LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

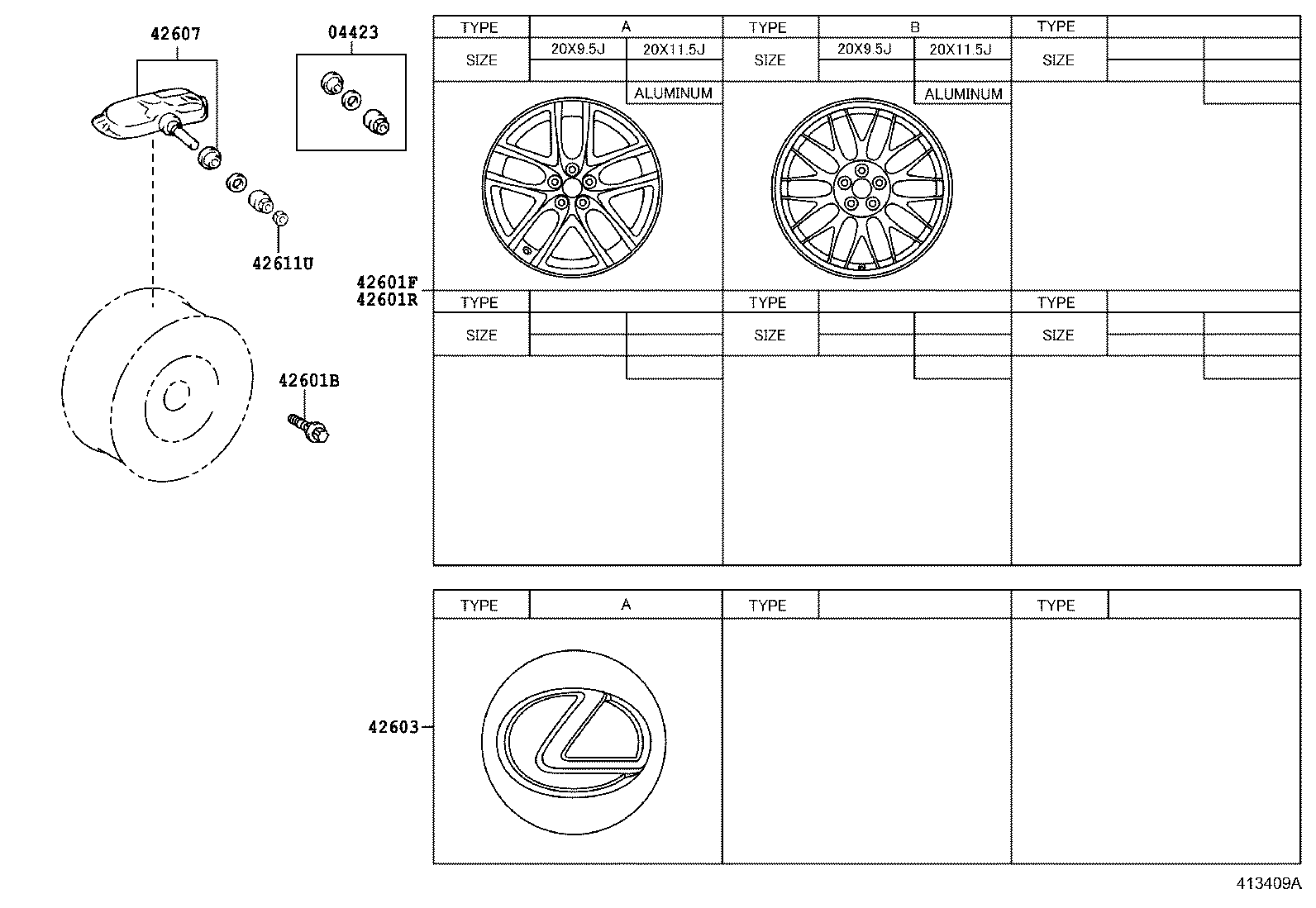

Click highlighted areas on diagram

diagram 04423 42601B 42601F 42601R 42603 42607 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33030

LFA10

 4
42601B - BOLT, HUB (FOR AXLE)
90942-02084

LFA10

 20
42601F - WHEEL, DISC (FOR FRONT)
42611-77020

LFA10

20X9.5J,#,TIRE & DISC WHEEL-FRONT:265/35R20, REAR:305/30R20, SILVER,TYPE A:REFER ILLUST.

 2
4261A-77020

LFA10

20X9.5J,#,TIRE & DISC WHEEL-FRONT:265/35R20, REAR:305/30R20, BLACK,TYPE A:REFER ILLUST.

 2
4261A-77050

LFA10

20X9.5J,#,CANADA SPEC&NURBURGRING PACKAGE&TIRE & DISC WHEEL-NURBURGRING PACKAGE, BLACK,TYPE B:REFER ILLUST.

 2
4261A-77050

LFA10

20X9.5J,#,NURBURGRING PACKAGE&TIRE & DISC WHEEL-NURBURGRING PACKAGE, BLACK,TYPE B:REFER ILLUST.

 2
4261A-77010

LFA10

20X9.5J,#,TYPE A:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
4261A-77040

LFA10

20X11.5J,#,TIRE & DISC WHEEL-FRONT:265/35R20, REAR:305/30R20, BLACK,TYPE A:REFER ILLUST.

 2
4261A-77060

LFA10

20X11.5J,#,NURBURGRING PACKAGE&TIRE & DISC WHEEL-NURBURGRING PACKAGE, BLACK,TYPE B:REFER ILLUST.

 2
42611-77040

LFA10

20X11.5J,#,TIRE & DISC WHEEL-FRONT:265/35R20, REAR:305/30R20, SILVER,TYPE A:REFERILLUST.

 2
4261A-77030

LFA10

20X11.5J,#,TYPE A:REFER ILLUST.

 2
4261A-77060

LFA10

20X11.5J,#,CANADA SPEC&NURBURGRING PACKAGE&TIRE & DISC WHEEL-NURBURGRING PACKAGE,BLACK,TYPE B:REFER ILLUST.

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-53110

LFA10

*ALU

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-33021

LFA10

 4
42611U - CAP, TIRE VALVE
90942-05037

LFA10

 4
