LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

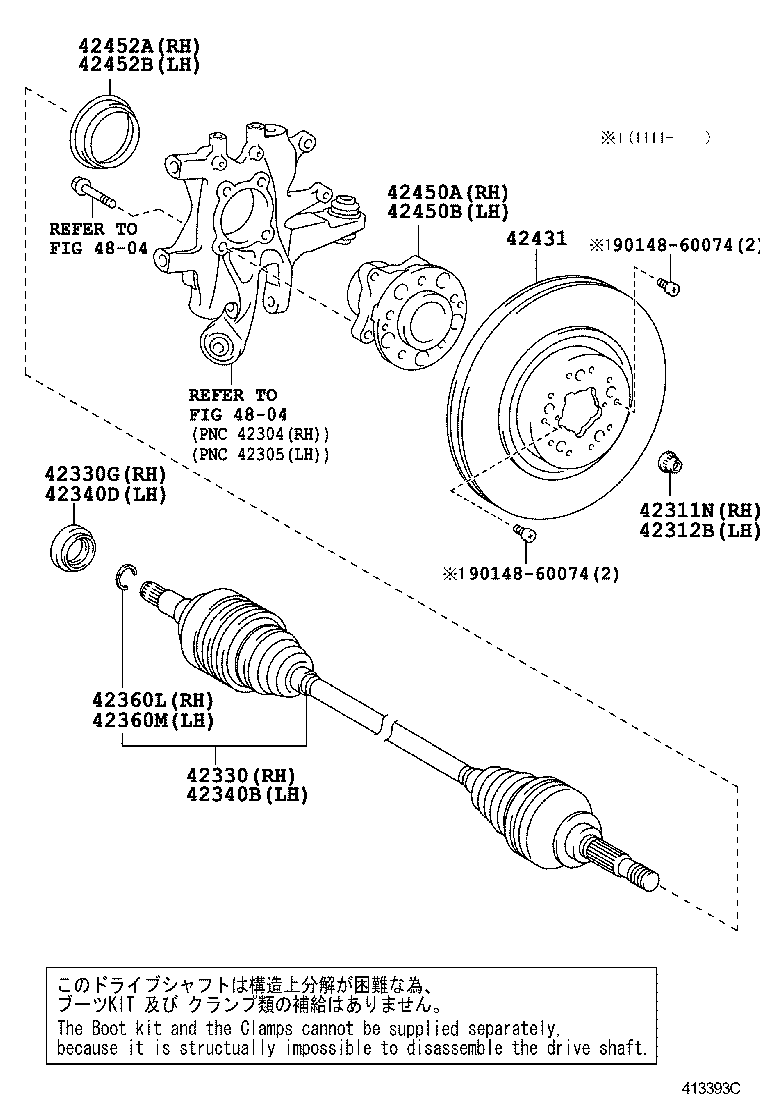

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-26001 |
LFA10 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-26001 |
LFA10 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-77010 |
LFA10 |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-43009 |
LFA10 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-77010 |
LFA10 |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-43009 |
LFA10 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90521-34003 |
LFA10 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90521-34003 |
LFA10 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-0W040 |
LFA10 |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-77011 |
LFA10 |
1 | ||
| 42410-77010 |
LFA10 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-77010 |
LFA10 |
1 | ||
| 42410-77011 |
LFA10 |
1 | ||
| 42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH | ||||
| 42451-30020 |
LFA10 |
1 | ||
| 42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH | ||||
| 42451-30020 |
LFA10 |
1 | ||
| Common parts | ||||
| 90148-60074 | ||||
| Linked diagrams | ||||
| 4804 | ||||
