LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

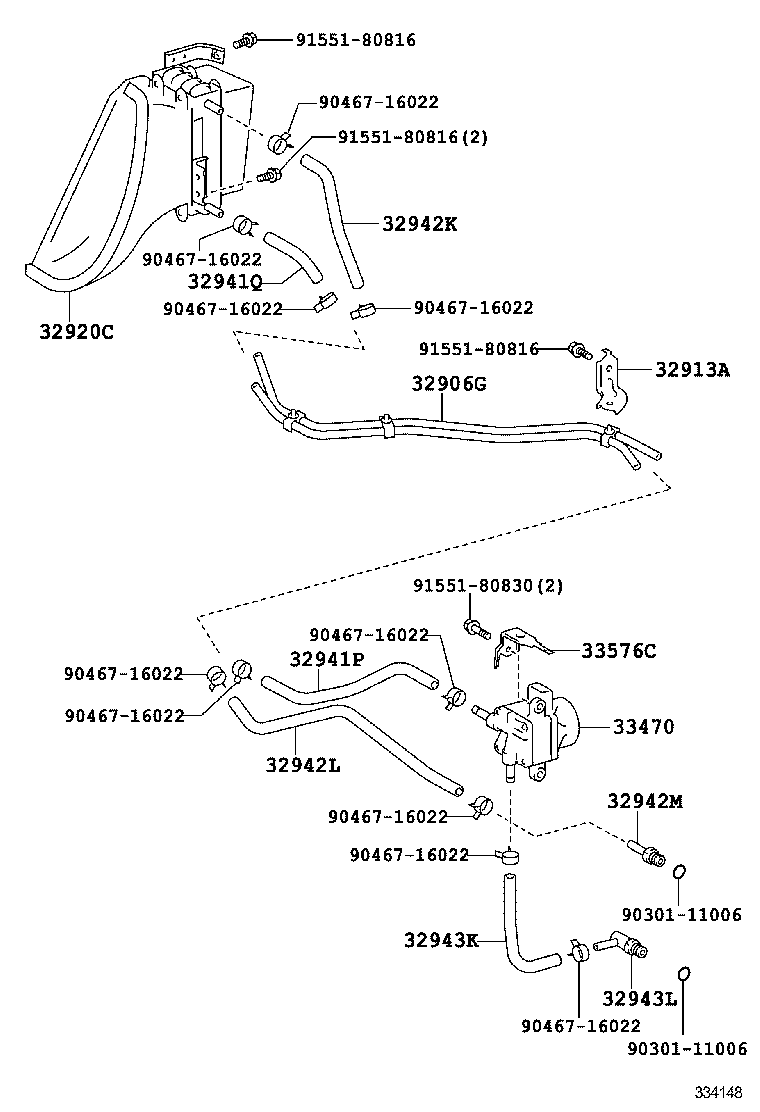

Click highlighted areas on diagram

RB60M

diagram 32906G 32913A 32920C 32941P 32941Q 32942K 32942L 32942M 32943K 32943L 33470 33576C 9030111006 9030111006 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9155180816 9155180816 9155180816 9155180830
Part # Description Qty Price
32906G - TUBE SUB-ASSY, OIL COOLER
32906-77010

LFA10

 1
32913A - BRACKET, TRANSMISSION OIL COOLER
32913-77010

LFA10

 1
32920C - COOLER ASSY, OIL W/HOSE
32920-77010

LFA10

 1
32941P - HOSE, OIL COOLER INLET, NO.1
32941-77010

LFA10

 1
32941Q - HOSE, OIL COOLER INLET, NO.2
32941-77020

LFA10

 1
32942K - HOSE, OIL COOLER OUTLET, NO.1
32942-77010

LFA10

 1
32942L - HOSE, OIL COOLER OUTLET, NO.2
32942-77020

LFA10

 1
32942M - CONNECTOR, TUBE
90404-14027

LFA10

 1
32943K - HOSE, TRANSMISSION OIL COOLER
32943-77010

LFA10

 1
32943L - ELBOW
90407-14032

LFA10

 1
33470 - PUMP ASSY, MANUAL TRANSMISSION OIL
33470-77010

LFA10

 1
33576C - BRACKET, BACK-UP LAMP SWITCH
33576-77010

LFA10

 1
Common parts
90301-11006
90467-16022
91551-80816
91551-80830
