LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

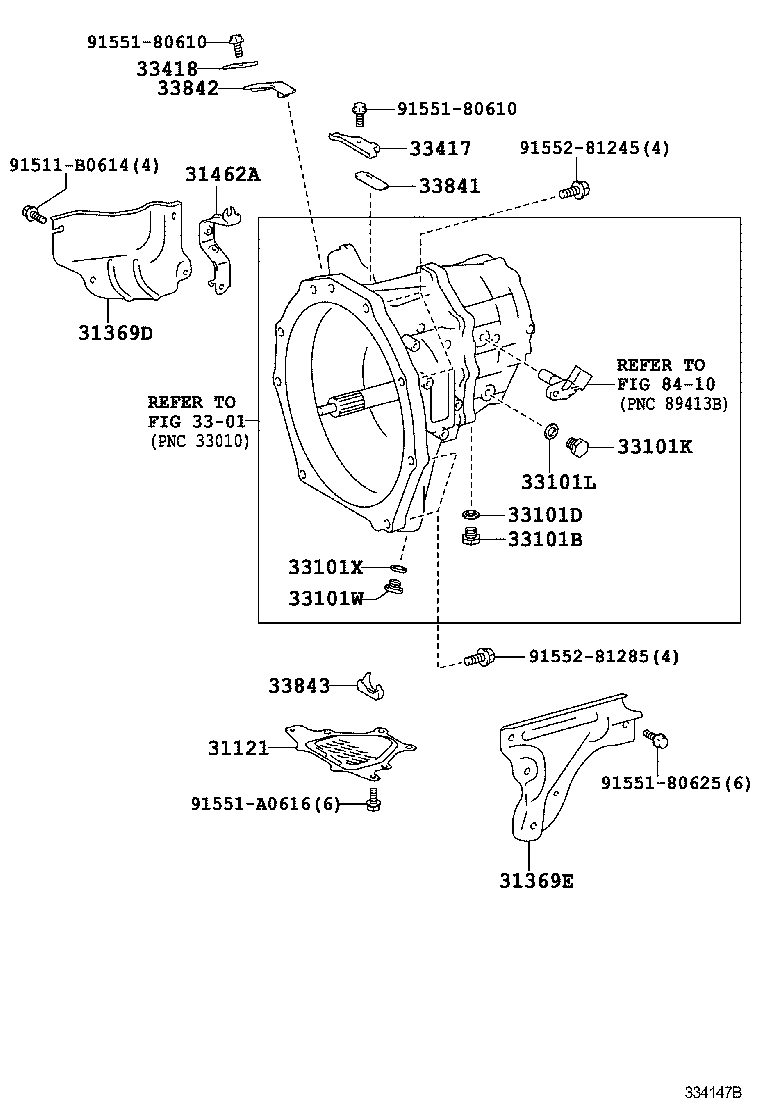

ILLUST NO. 1 OF 2(1012- )

Click highlighted areas on diagram

RB10

diagram 31121 31369D 31369E 31462A 3301 33101B 33101D 33101K 33101L 33101W 33101X 33417 33418 33841 33842 33843 8410 91511B0614 9155180610 9155180610 9155180625 91551A0616 9155281245 9155281285
Part # Description Qty Price
31121 - COVER, CLUTCH HOUSING, NO.1
31121-77030

LFA10

 1
31369D - INSULATOR, TRANSMISSION HEAT, NO.1
31369-77010

LFA10

 1
31369E - INSULATOR, TRANSMISSION HEAT, NO.2
31350-77010

LFA10

 1
31462A - SUPPORT, HEAT INSULATOR
31462-77010

LFA10

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18057

LFA10

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
90430-18008

LFA10

 1
33101K - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18074

LFA10

 1
33101L - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

LFA10

 1
33101W - PLUG(FOR OIL RETURN DRAIN)
90341-18073

LFA10

 1
33101X - GASKET(FOR OIL RETURN DRAIN PLUG)
90430-18008

LFA10

 1
33417 - PLATE, TRANSMISSION CASE UPPER, NO.1
33417-77010

LFA10

 1
33418 - PLATE, TRANSMISSION CASE UPPER, NO.2
33418-77010

LFA10

 1
33841 - GROMMET, TRANSMISSION CASE, NO.1
33841-77010

LFA10

 1
33842 - GROMMET, TRANSMISSION CASE, NO.2
33842-77010

LFA10

 1
33843 - GROMMET, TRANSMISSION CASE
33843-77010

LFA10

 1
Common parts
91511-B0614
91551-80610
91551-80625
91551-A0616
91552-81245
91552-81285
Linked diagrams
3301
8410

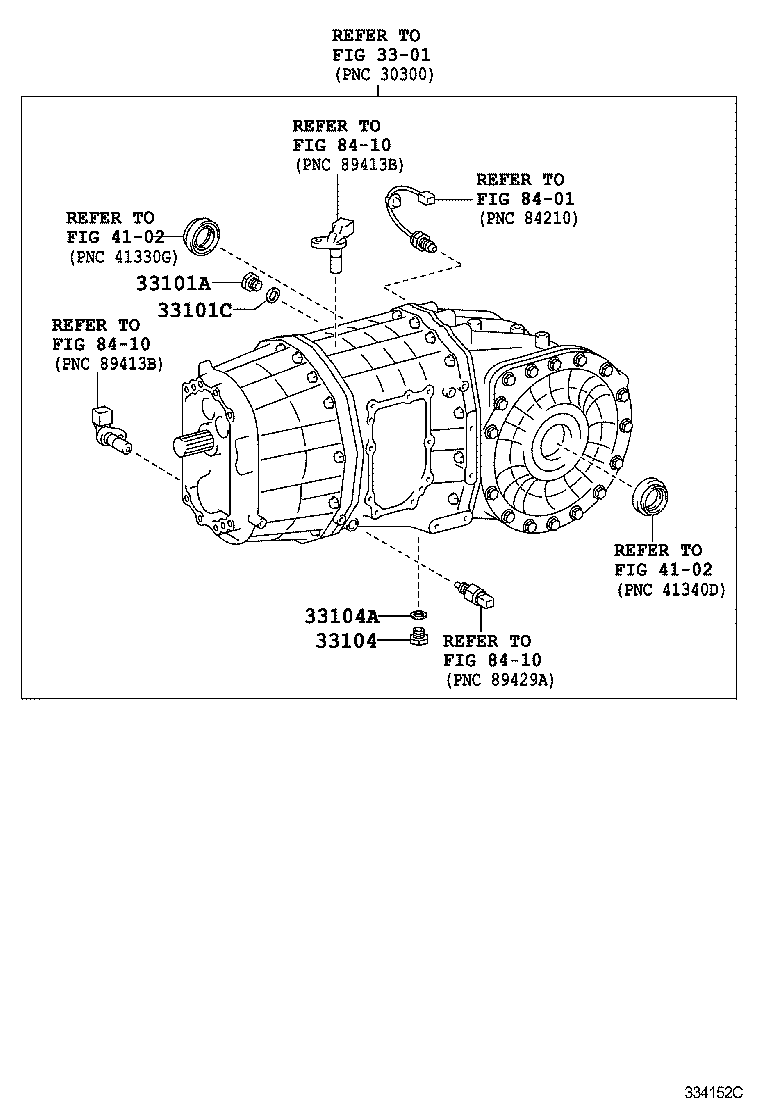

ILLUST NO. 2 OF 2(1012- )

Click highlighted areas on diagram

RB60M

diagram 3301 33101A 33101C 33104 33104A 4102 4102 8401 8410 8410 8410
Part # Description Qty Price
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18074

LFA10

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

LFA10

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

LFA10

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

LFA10

 1
Linked diagrams
3301
4102
8401
8410
