LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

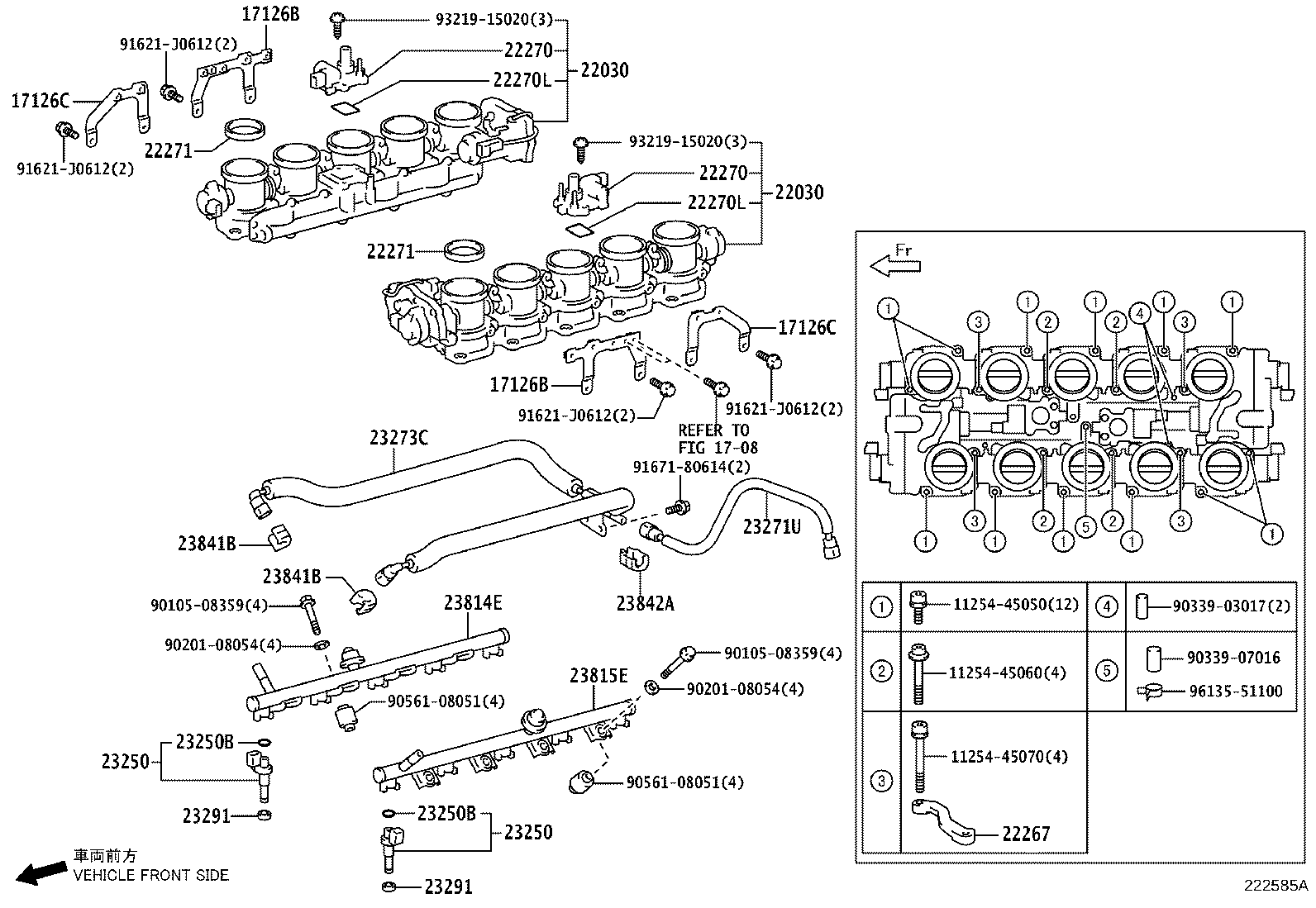

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17126B - STAY, SURGE TANK, NO.2 | ||||
| 17126-45020 |
1LRGUE..LFA10 |
2 | ||
| 17126B - STAY, SURGE TANK, NO.2 | ||||
| 17126-45020 |
1LRGUE..LFA10 |
2 | ||
| 17126C - STAY, SURGE TANK, NO.3 | ||||
| 17126-45010 |
1LRGUE..LFA10 |
2 | ||
| 17126C - STAY, SURGE TANK, NO.3 | ||||
| 17126-45010 |
1LRGUE..LFA10 |
2 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-45010 |
1LRGUE..LFA10 |
2 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-45010 |
1LRGUE..LFA10 |
2 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-45010 |
1LRGUE..LFA10 |
2 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-88580 |
1LRGUE..LFA10 |
2 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-88580 |
1LRGUE..LFA10 |
2 | ||
| 22270L - GASKET, IDLE SPEED CONTROL VALVE(FOR THLOTTLE BODY) | ||||
| 90079-50004 |
1LRGUE..LFA10 |
2 | ||
| 22270L - GASKET, IDLE SPEED CONTROL VALVE(FOR THLOTTLE BODY) | ||||
| 90079-50004 |
1LRGUE..LFA10 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-45010 |
1LRGUE..LFA10 |
10 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-45010 |
1LRGUE..LFA10 |
10 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-45020 |
1LRGUE..LFA10 |
10 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-45020 |
1LRGUE..LFA10 |
10 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-06017 |
1LRGUE..LFA10 |
10 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-06017 |
1LRGUE..LFA10 |
10 | ||
| 23271U - HOSE, FUEL, NO.1 | ||||
| 23271-45030 |
1LRGUE..LFA10 |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-45010 |
1LRGUE..LFA10 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
1LRGUE..LFA10 |
10 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
1LRGUE..LFA10 |
10 | ||
| 23814E - PIPE, FUEL DELIVERY, RH | ||||
| 23814-45010 |
1LRGUE..LFA10 |
1 | ||
| 23815E - PIPE, FUEL DELIVERY, LH | ||||
| 23815-45010 |
1LRGUE..LFA10 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-45010 |
1LRGUE..LFA10 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-45010 |
1LRGUE..LFA10 |
2 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-45010 |
1LRGUE..LFA10 |
1 | ||
| Common parts | ||||
| 11254-45050 | ||||
| 11254-45060 | ||||
| 11254-45070 | ||||
| 90105-08359 | ||||
| 90201-08054 | ||||
| 90339-03017 | ||||
| 90339-07016 | ||||
| 90561-08051 | ||||
| 91621-J0612 | ||||
| 91671-80614 | ||||
| 93219-15020 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
