LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

12V 220A

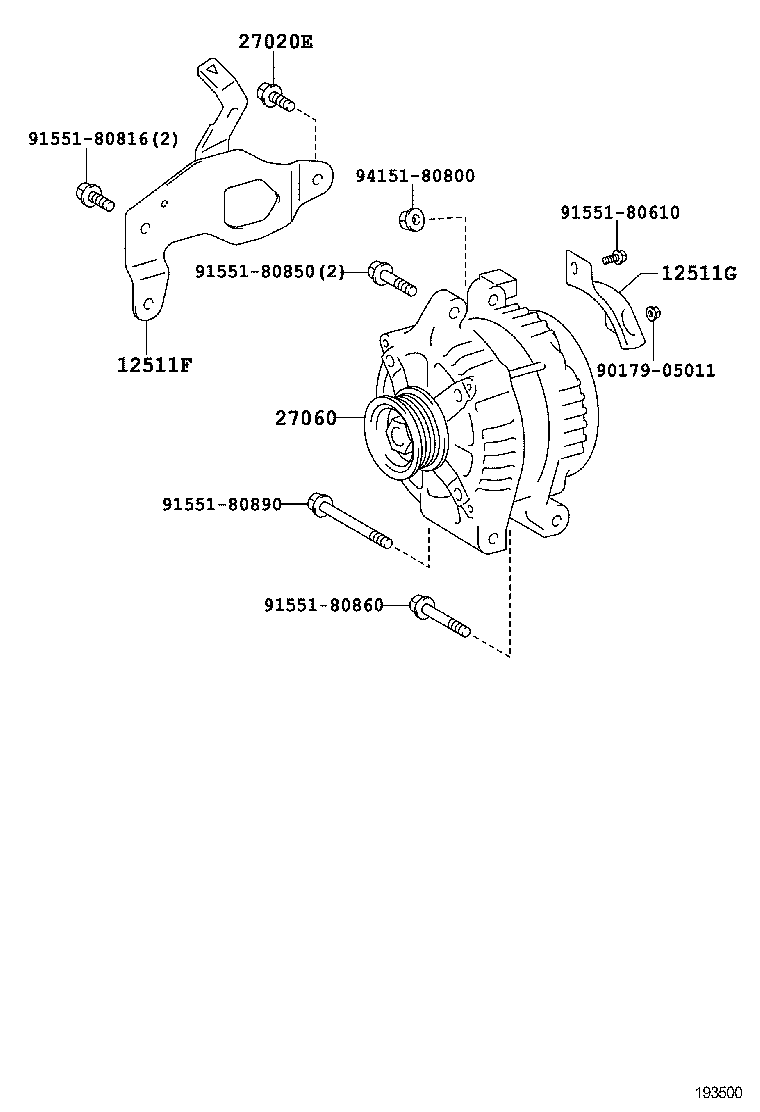

diagram 12511F 12511G 27020E 27060 9017905011 9155180610 9155180816 9155180850 9155180860 9155180890 9415180800
Part # Description Qty Price
12511F - BRACKET, ALTERNATOR, NO.1
12511-45020

1LRGUE..LFA10

 1
12511G - BRACKET, ALTERNATOR, NO.2
12511-45030

1LRGUE..LFA10

 1
27020E - BOLT(FOR ALTERNATOR)
91552-81020

1LRGUE..LFA10

 1
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-45060

1LRGUE..LFA10

 1
Common parts
90179-05011
91551-80610
91551-80816
91551-80850
91551-80860
91551-80890
94151-80800
