LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

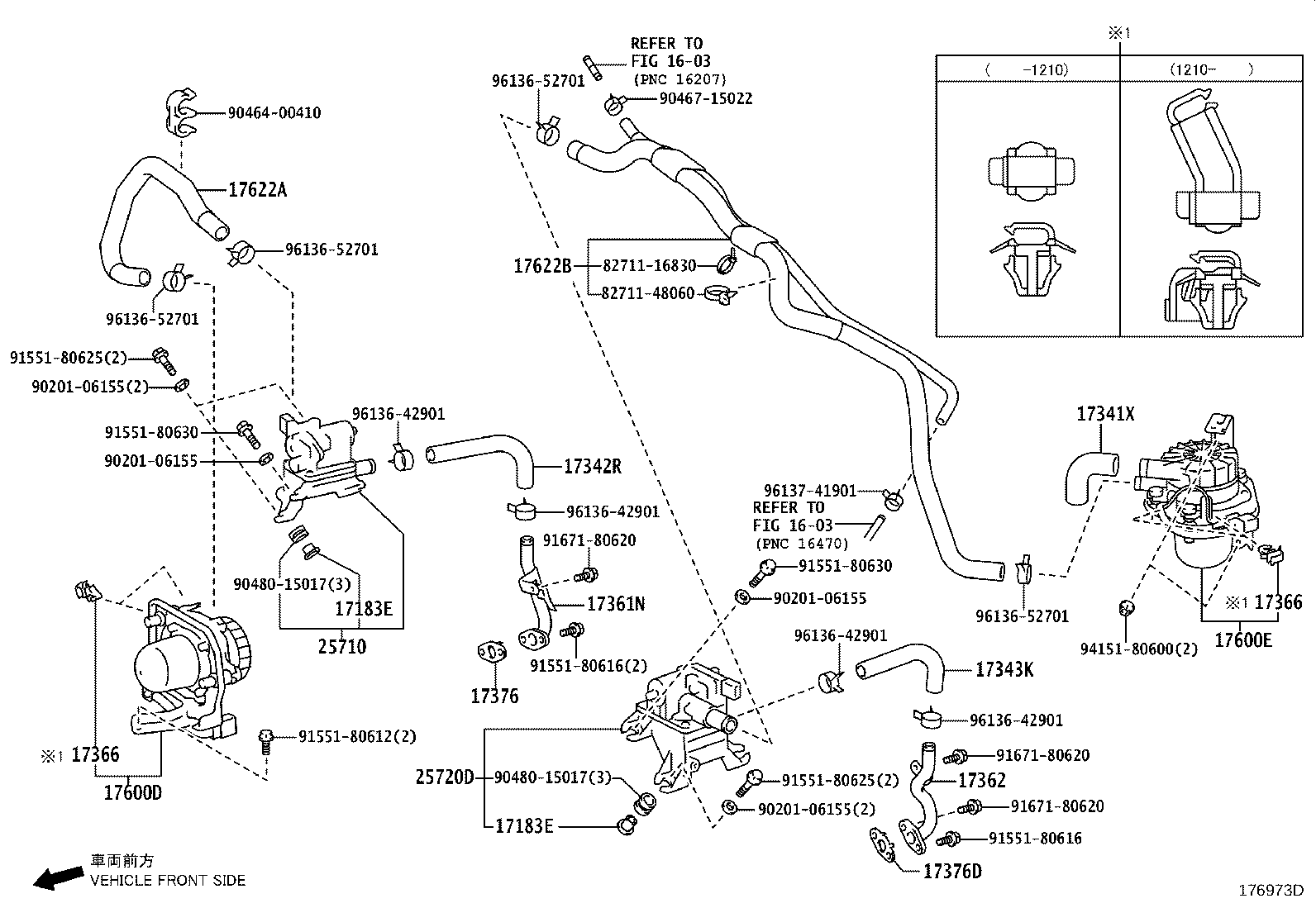

Click highlighted areas on diagram

diagram 1603 1603 17183E 17183E 17341X 17342R 17343K 17361N 17362 17366 17366 17376 17376D 17600D 17600E 17622A 17622B 25710 25720D 8271116830 8271148060 9020106155 9020106155 9020106155 9020106155 9046400410 9046715022 9048015017 9048015017 9155180612 9155180616 9155180616 9155180625 9155180625 9155180630 9155180630 9167180620 9167180620 9167180620 9415180600 9613642901 9613642901 9613642901 9613642901 9613652701 9613652701 9613652701 9613652701 9613741901
Part # Description Qty Price
17183E - COLLAR, MANIFOLD
17183-45010

1LRGUE..LFA10

 6
17183E - COLLAR, MANIFOLD
17183-45010

1LRGUE..LFA10

 6
17341X - HOSE, AIR, NO.1
17341-45070

1LRGUE..LFA10

 1
17342R - HOSE, AIR, NO.2
17342-45040

1LRGUE..LFA10

 1
17343K - HOSE, AIR, NO.3
17343-45040

1LRGUE..LFA10

 1
17361N - TUBE, AIR, NO.1
17361-45010

1LRGUE..LFA10

 1
17362 - TUBE, AIR, NO.2
17362-45010

1LRGUE..LFA10

 1
17366 - CLAMP, AIR INJECTION HOSE, NO.1
17366-0P010

1LRGUE..LFA10

 4
17366-38020

1LRGUE..LFA10

 4
17366 - CLAMP, AIR INJECTION HOSE, NO.1
17366-0P010

1LRGUE..LFA10

 4
17366-38020

1LRGUE..LFA10

 4
17376 - GASKET, AIR TUBE, NO.1
17376-38020

1LRGUE..LFA10

 1
17376D - GASKET, AIR TUBE, NO.2
17376-38020

1LRGUE..LFA10

 1
17600D - PUMP ASSY, AIR W/BRACKET, RH
17600-0W080

1LRGUE..LFA10

 1
17600E - PUMP ASSY, AIR W/BRACKET, LH
17600-0W090

1LRGUE..LFA10

 1
17622A - OUTLET, AIR PUMP, RH
17622-45020

1LRGUE..LFA10

 1
17622B - OUTLET, AIR PUMP, LH
17622-45030

1LRGUE..LFA10

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-45050

1LRGUE..LFA10

 1
25720D - VALVE ASSY, AIR SWITCHING, NO.2
25720-45010

1LRGUE..LFA10

 1
Common parts
82711-16830
82711-48060
90201-06155
90464-00410
90467-15022
90480-15017
91551-80612
91551-80616
91551-80625
91551-80630
91671-80620
94151-80600
96136-42901
96136-52701
96137-41901
Linked diagrams
1603
