LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

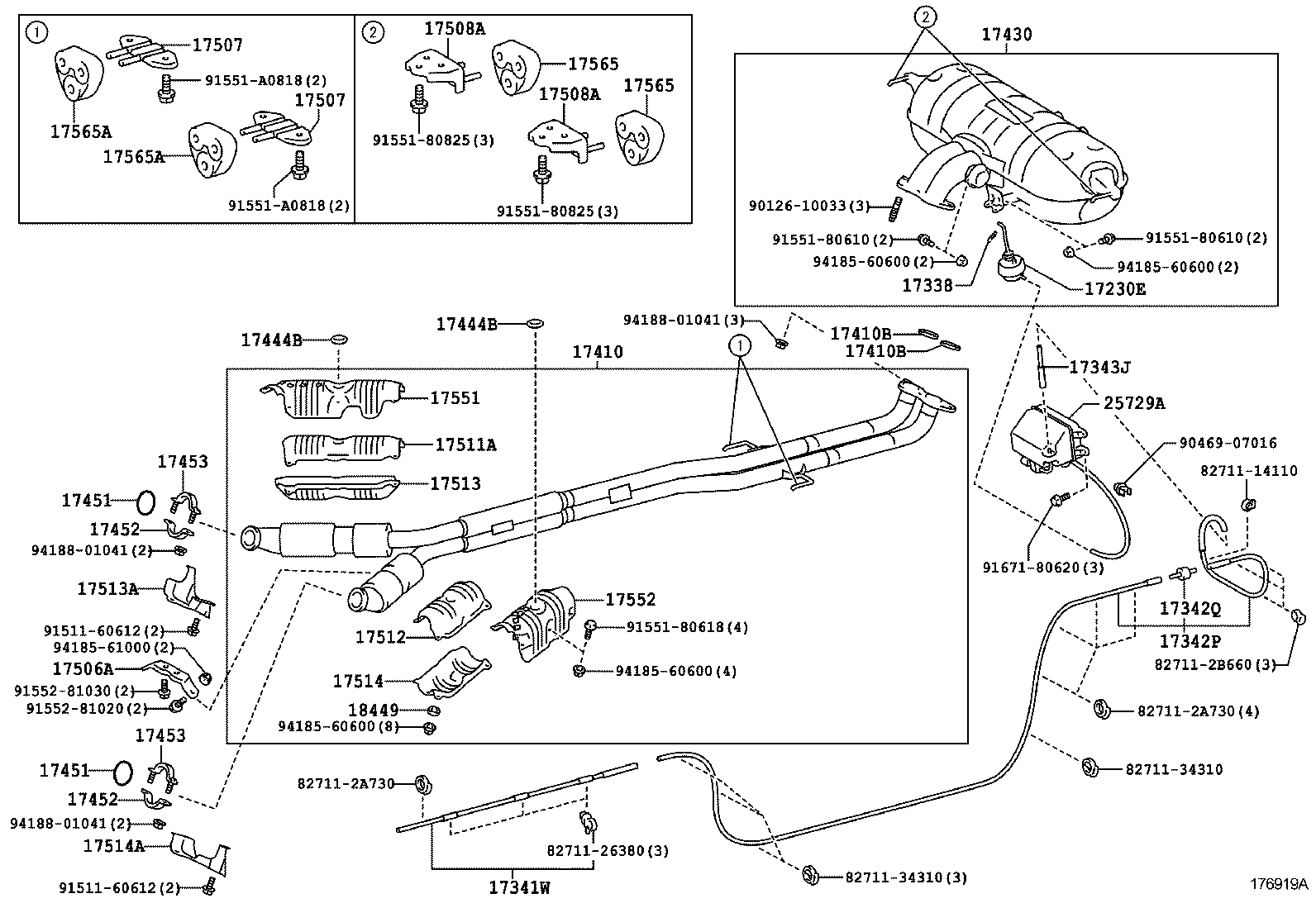

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17230E - ACTUATOR ASSY, W/BRACKET | ||||
| 17230-45010 |
1LRGUE..LFA10 |
1 | ||
| 17338 - SPRING, AIR CONTROL | ||||
| 17338-21010 |
1LRGUE..LFA10 |
1 | ||
| 17341W - HOSE, AIR, NO.1 | ||||
| 17341-45040 |
1LRGUE..LFA10 |
1 | ||
| 17342P - HOSE, AIR, NO.2 | ||||
| 17342-45030 |
1LRGUE..LFA10 |
1 | ||
| 17342Q - VALVE, CHECK | ||||
| 90917-10065 |
1LRGUE..LFA10 |
1 | ||
| 17343J - HOSE, AIR, NO.3 | ||||
| 17343-45030 |
1LRGUE..LFA10 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-45200 |
1LRGUE..LFA10 *115=TOYOTA/K04/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06056 |
1LRGUE..LFA10 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06056 |
1LRGUE..LFA10 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-45260 |
1LRGUE..LFA10 |
1 | ||
| 17444B - SPACER, EXHAUST PIPE | ||||
| 17444-45020 |
1LRGUE..LFA10 |
2 | ||
| 17444B - SPACER, EXHAUST PIPE | ||||
| 17444-45020 |
1LRGUE..LFA10 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-45030 |
1LRGUE..LFA10 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-45030 |
1LRGUE..LFA10 |
2 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-45010 |
1LRGUE..LFA10 |
2 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-45010 |
1LRGUE..LFA10 |
2 | ||
| 17453 - CLAMP, EXHAUST PIPE, NO.2 | ||||
| 17453-45010 |
1LRGUE..LFA10 |
2 | ||
| 17453 - CLAMP, EXHAUST PIPE, NO.2 | ||||
| 17453-45010 |
1LRGUE..LFA10 |
2 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-45050 |
1LRGUE..LFA10 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-45030 |
1LRGUE..LFA10 |
2 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-45030 |
1LRGUE..LFA10 |
2 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-45030 |
1LRGUE..LFA10 |
2 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-45030 |
1LRGUE..LFA10 |
2 | ||
| 17511A - INSULATOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17511-45010 |
1LRGUE..LFA10 |
1 | ||
| 17512 - INSULATOR, EXHAUST PIPE, UPPER NO.2 | ||||
| 17512-45010 |
1LRGUE..LFA10 |
1 | ||
| 17513 - INSULATOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17513-45010 |
1LRGUE..LFA10 |
1 | ||
| 17513A - INSULATOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17513-45020 |
1LRGUE..LFA10 |
1 | ||
| 17514 - INSULATOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17514-45010 |
1LRGUE..LFA10 |
1 | ||
| 17514A - INSULATOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17514-45020 |
1LRGUE..LFA10 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-45050 |
1LRGUE..LFA10 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17552-45040 |
1LRGUE..LFA10 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17566-64010 |
1LRGUE..LFA10 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17566-64010 |
1LRGUE..LFA10 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17566-45020 |
1LRGUE..LFA10 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17566-45020 |
1LRGUE..LFA10 |
2 | ||
| 18449 - SPACER, CONVERTER PROTECTOR | ||||
| 18449-74010 |
1LRGUE..LFA10 |
8 | ||
| 25729A - TANK, VACUUM SURGE W/BRACKET | ||||
| 25729-45010 |
1LRGUE..LFA10 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-26380 | ||||
| 82711-2A730 | ||||
| 82711-2B660 | ||||
| 82711-34310 | ||||
| 90126-10033 | ||||
| 90469-07016 | ||||
| 91511-60612 | ||||
| 91551-80610 | ||||
| 91551-80618 | ||||
| 91551-80825 | ||||
| 91551-A0818 | ||||
| 91552-81020 | ||||
| 91552-81030 | ||||
| 91671-80620 | ||||
| 94185-60600 | ||||
| 94185-61000 | ||||
| 94188-01041 | ||||
