LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

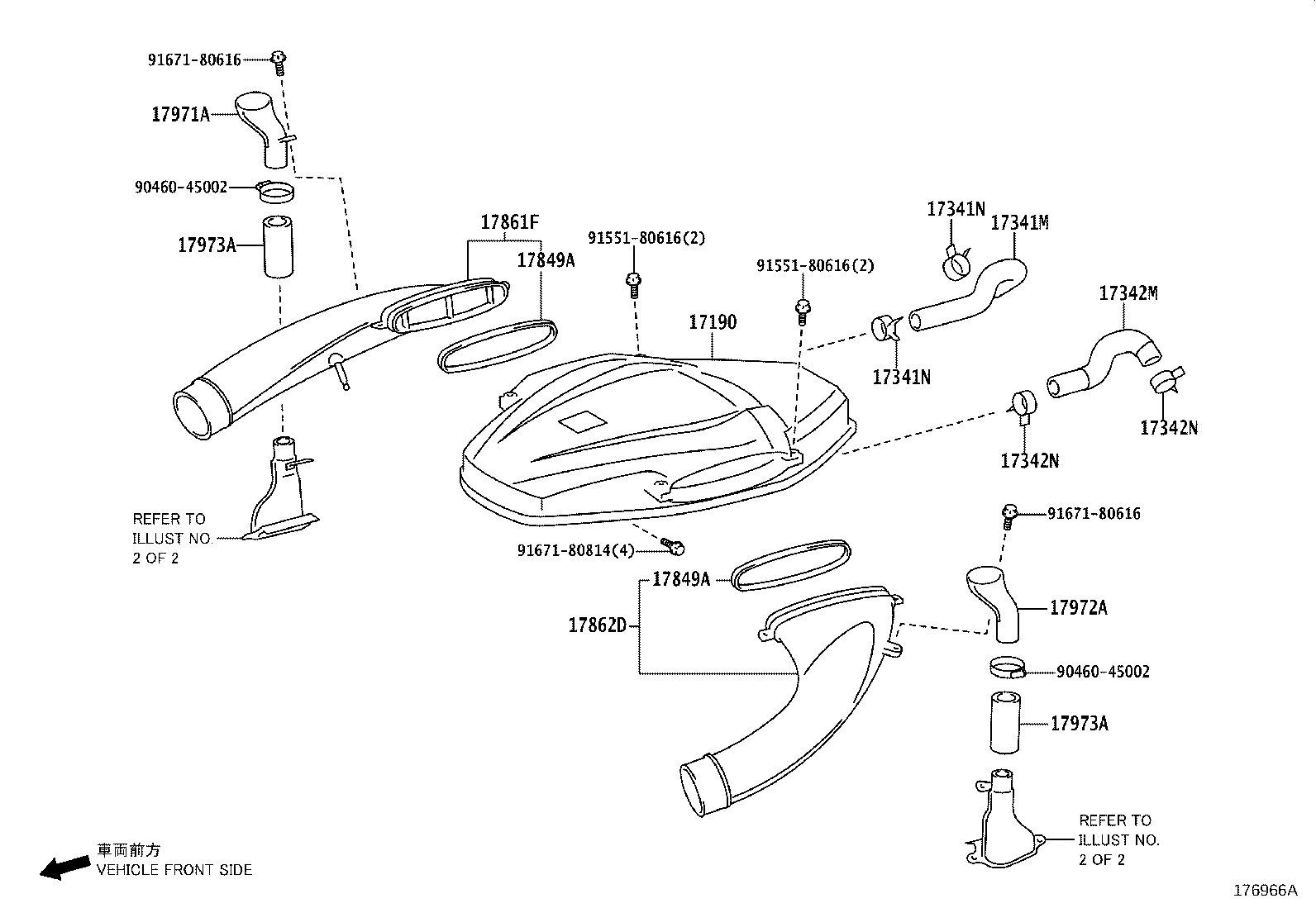

ILLUST NO. 1 OF 2(1012- )

Click highlighted areas on diagram

diagram 17190 17341M 17341N 17341N 17342M 17342N 17342N 17849A 17849A 17861F 17862D 17971A 17972A 17973A 17973A 9046045002 9046045002 9155180616 9155180616 9167180616 9167180616 9167180814
Part # Description Qty Price
17190 - TANK ASSY, INTAKE AIR SURGE
17109-45030

1LRGUE..LFA10

NURBURGRING PACKAGE

 1
17109-45020

1LRGUE..LFA10

 1
17109-45021

1LRGUE..LFA10

 1
17341M - HOSE, AIR, NO.1
17341-45050

1LRGUE..LFA10

 1
17341N - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90467-28007

1LRGUE..LFA10

 2
17341N - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90467-28007

1LRGUE..LFA10

 2
17342M - HOSE, AIR, NO.2
17341-45060

1LRGUE..LFA10

 1
17342N - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90467-28007

1LRGUE..LFA10

 2
17342N - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90467-28007

1LRGUE..LFA10

 2
17849A - GASKET, INTAKE AIR CONNECTOR
17849-45011

1LRGUE..LFA10

 2
17849A - GASKET, INTAKE AIR CONNECTOR
17849-45011

1LRGUE..LFA10

 2
17861F - CONNECTOR, INTAKE AIR
17861-45010

1LRGUE..LFA10

 1
17862D - CONNECTOR, INTAKE AIR, NO.2
17862-45010

1LRGUE..LFA10

 1
17971A - INLET, COOL AIR, NO.1
17971-45010

1LRGUE..LFA10

 1
17972A - INLET, COOL AIR, NO.2
17972-45010

1LRGUE..LFA10

 1
17973A - INLET, COOL AIR, NO.3
17973-45010

1LRGUE..LFA10

 2
17973A - INLET, COOL AIR, NO.3
17973-45010

1LRGUE..LFA10

 2
Common parts
90460-45002
91551-80616
91671-80616
91671-80814

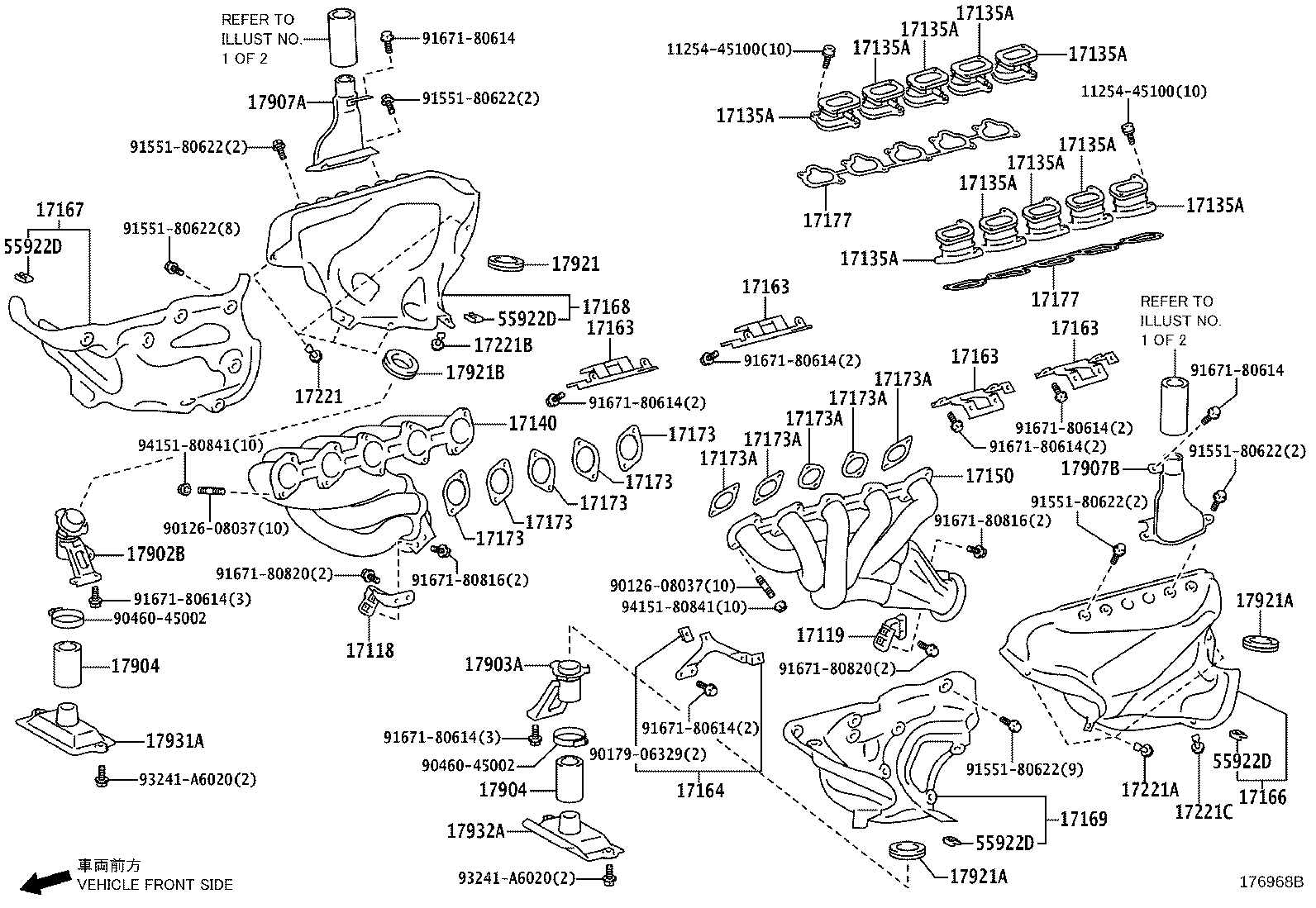

ILLUST NO. 2 OF 2(1012- )

Click highlighted areas on diagram

diagram 1125445100 1125445100 17118 17119 17135A 17135A 17135A 17135A 17135A 17135A 17135A 17135A 17135A 17135A 17140 17150 17163 17163 17163 17163 17164 17166 17167 17168 17169 17173 17173 17173 17173 17173 17173A 17173A 17173A 17173A 17173A 17177 17177 17221 17221A 17221B 17221C 17902B 17903A 17904 17904 17907A 17907B 17921 17921A 17921A 17921B 17931A 17932A 55922D 55922D 55922D 55922D 9012608037 9012608037 9017906329 9046045002 9046045002 9155180622 9155180622 9155180622 9155180622 9155180622 9155180622 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180816 9167180816 9167180820 9167180820 93241A6020 93241A6020 9415180841 9415180841
Part # Description Qty Price
17118 - STAY, MANIFOLD
17118-45010

1LRGUE..LFA10

 1
17119 - STAY, MANIFOLD, NO.2
17119-45010

1LRGUE..LFA10

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-45020

1LRGUE..LFA10

 10
17140 - MANIFOLD ASSY, EXHAUST, RH
17140-45010

1LRGUE..LFA10

 1
17150 - MANIFOLD ASSY, EXHAUST, LH
17150-45010

1LRGUE..LFA10

 1
17163 - BRACKET, HEAT INSULATOR, NO.1
17163-45010

1LRGUE..LFA10

 4
17163 - BRACKET, HEAT INSULATOR, NO.1
17163-45010

1LRGUE..LFA10

 4
17163 - BRACKET, HEAT INSULATOR, NO.1
17163-45010

1LRGUE..LFA10

 4
17163 - BRACKET, HEAT INSULATOR, NO.1
17163-45010

1LRGUE..LFA10

 4
17164 - BRACKET, HEAT INSULATOR, NO.2
17164-45010

1LRGUE..LFA10

 1
17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4
17166-45010

1LRGUE..LFA10

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-45040

1LRGUE..LFA10

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-45030

1LRGUE..LFA10

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-45010

1LRGUE..LFA10

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45040

1LRGUE..LFA10

 5
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45040

1LRGUE..LFA10

 5
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45040

1LRGUE..LFA10

 5
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45040

1LRGUE..LFA10

 5
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45040

1LRGUE..LFA10

 5
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-45040

1LRGUE..LFA10

 5
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-45040

1LRGUE..LFA10

 5
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-45040

1LRGUE..LFA10

 5
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-45040

1LRGUE..LFA10

 5
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-45040

1LRGUE..LFA10

 5
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-45030

1LRGUE..LFA10

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-45030

1LRGUE..LFA10

 2
17221 - RETAINER, SEAL RH, NO.1
17221-45010

1LRGUE..LFA10

 4
17221A - RETAINER, SEAL LH, NO.1
17221-45010

1LRGUE..LFA10

 3
17221B - RETAINER, SEAL RH, NO.2
17221-45010

1LRGUE..LFA10

 1
17221C - RETAINER, SEAL LH, NO.2
17221-45010

1LRGUE..LFA10

 1
17902B - SHROUD SUB-ASSY, HOT AIR, NO.1
17902-45010

1LRGUE..LFA10

 1
17903A - SHROUD SUB-ASSY, HOT AIR, NO.2
17903-45010

1LRGUE..LFA10

 1
17904 - SHROUD SUB-ASSY, HOT AIR, NO.3
17904-45010

1LRGUE..LFA10

 2
17904 - SHROUD SUB-ASSY, HOT AIR, NO.3
17904-45010

1LRGUE..LFA10

 2
17907A - INLET SUB-ASSY, COOL AIR, RH
17907-45010

1LRGUE..LFA10

 1
17907B - INLET SUB-ASSY, COOL AIR, LH
17907-45010

1LRGUE..LFA10

 1
17921 - INLET, HOT AIR, RH
17921-45010

1LRGUE..LFA10

 1
17921A - INLET, HOT AIR, LH
17921-45010

1LRGUE..LFA10

 2
17921A - INLET, HOT AIR, LH
17921-45010

1LRGUE..LFA10

 2
17921B - INLET, HOT AIR
17921-45010

1LRGUE..LFA10

 1
17931A - SHROUD, HOT AIR, NO.1
17931-45021

1LRGUE..LFA10

 1
17932A - SHROUD, HOT AIR, NO.2
17932-45021

1LRGUE..LFA10

 1
55922D - SPRING, WASHER
55922-77010

LFA10

 9
55922D - SPRING, WASHER
55922-77010

LFA10

 9
55922D - SPRING, WASHER
55922-77010

LFA10

 9
55922D - SPRING, WASHER
55922-77010

LFA10

 9
Common parts
11254-45100
90126-08037
90179-06329
90460-45002
91551-80622
91671-80614
91671-80816
91671-80820
93241-A6020
94151-80841
