LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 7(1012- )
Click highlighted areas on diagram

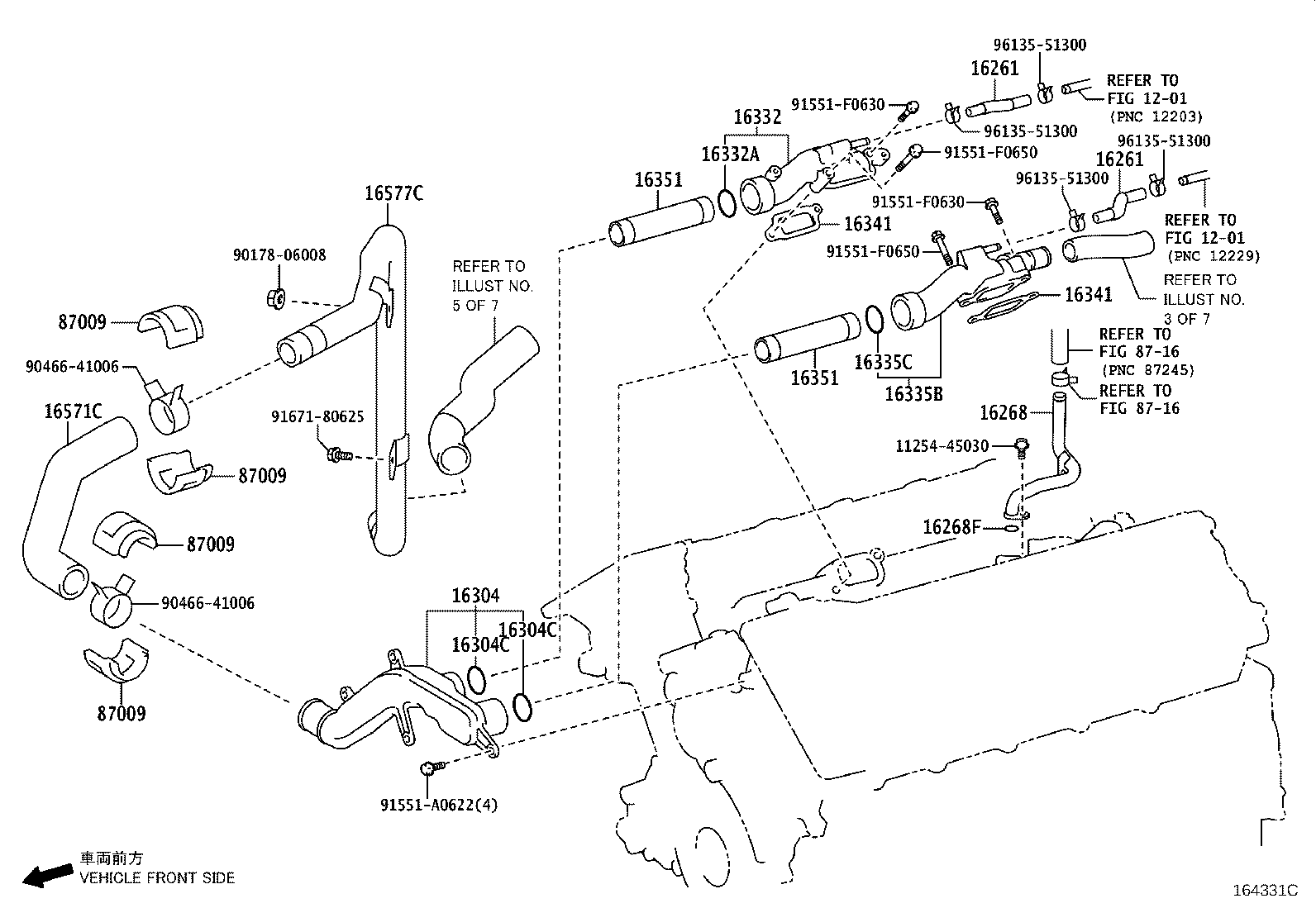

ENGINE UPPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-45060 |
1LRGUE..LFA10 |
2 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-45060 |
1LRGUE..LFA10 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-45030 |
1LRGUE..LFA10 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
1LRGUE..LFA10 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-45010 |
1LRGUE..LFA10 |
1 | ||
| 16304C - RING, O(FOR WATER OUTLET) | ||||
| 96761-35028 |
1LRGUE..LFA10 |
2 | ||
| 16304C - RING, O(FOR WATER OUTLET) | ||||
| 96761-35028 |
1LRGUE..LFA10 |
2 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-45010 |
1LRGUE..LFA10 |
1 | ||
| 16332A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35028 |
1LRGUE..LFA10 |
1 | ||
| 16335B - PIPE, WATER OUTLET, NO.2 | ||||
| 16335-45010 |
1LRGUE..LFA10 |
1 | ||
| 16335C - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35028 |
1LRGUE..LFA10 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-45010 |
1LRGUE..LFA10 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-45010 |
1LRGUE..LFA10 |
2 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-45030 |
1LRGUE..LFA10 |
2 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-45030 |
1LRGUE..LFA10 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-45010 |
1LRGUE..LFA10 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-45010 |
1LRGUE..LFA10 |
1 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| Common parts | ||||
| 11254-45030 | ||||
| 90178-06008 | ||||
| 90466-41006 | ||||
| 91551-A0622 | ||||
| 91551-F0630 | ||||
| 91551-F0650 | ||||
| 91671-80625 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 7(1012- )
Click highlighted areas on diagram

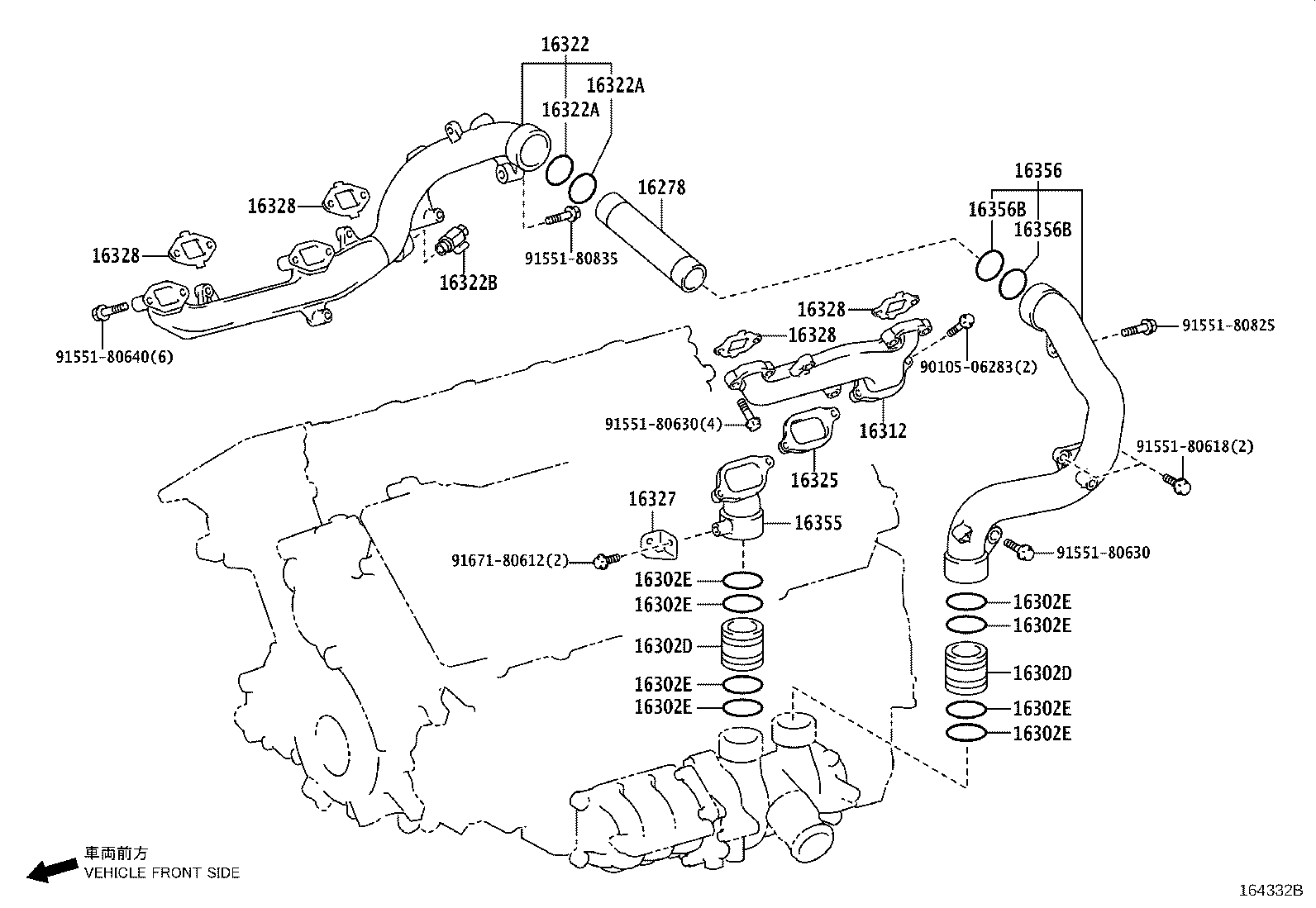

ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-45020 |
1LRGUE..LFA10 |
1 | ||
| 16302D - PIPE SUB-ASSY, WATER INLET | ||||
| 16302-45010 |
1LRGUE..LFA10 |
2 | ||
| 16302D - PIPE SUB-ASSY, WATER INLET | ||||
| 16302-45010 |
1LRGUE..LFA10 |
2 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16302E - RING, O(FOR WATER INLET PIPE) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
8 | ||
| 16312 - PIPE, WATER INLET, NO.2 | ||||
| 16312-45010 |
1LRGUE..LFA10 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-45010 |
1LRGUE..LFA10 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
2 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
2 | ||
| 16322B - DRAIN COCK ASSY(FOR WATER INLET PIPE) | ||||
| 90910-09129 |
1LRGUE..LFA10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-45010 |
1LRGUE..LFA10 |
1 | ||
| 16327 - BRACKET, WATER INLET HOUSING | ||||
| 16327-45010 |
1LRGUE..LFA10 |
1 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-45010 |
1LRGUE..LFA10 |
4 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-45010 |
1LRGUE..LFA10 |
4 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-45010 |
1LRGUE..LFA10 |
4 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-45010 |
1LRGUE..LFA10 |
4 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-45010 |
1LRGUE..LFA10 |
1 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-45010 |
1LRGUE..LFA10 |
1 | ||
| 16356B - RING, O(WATER BY-PASS JOINT REAR) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
2 | ||
| 16356B - RING, O(WATER BY-PASS JOINT REAR) | ||||
| 96761-35031 |
1LRGUE..LFA10 |
2 | ||
| Common parts | ||||
| 90105-06283 | ||||
| 91551-80618 | ||||
| 91551-80630 | ||||
| 91551-80640 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91671-80612 | ||||
ILLUST NO. 3 OF 7(1012- )
Click highlighted areas on diagram

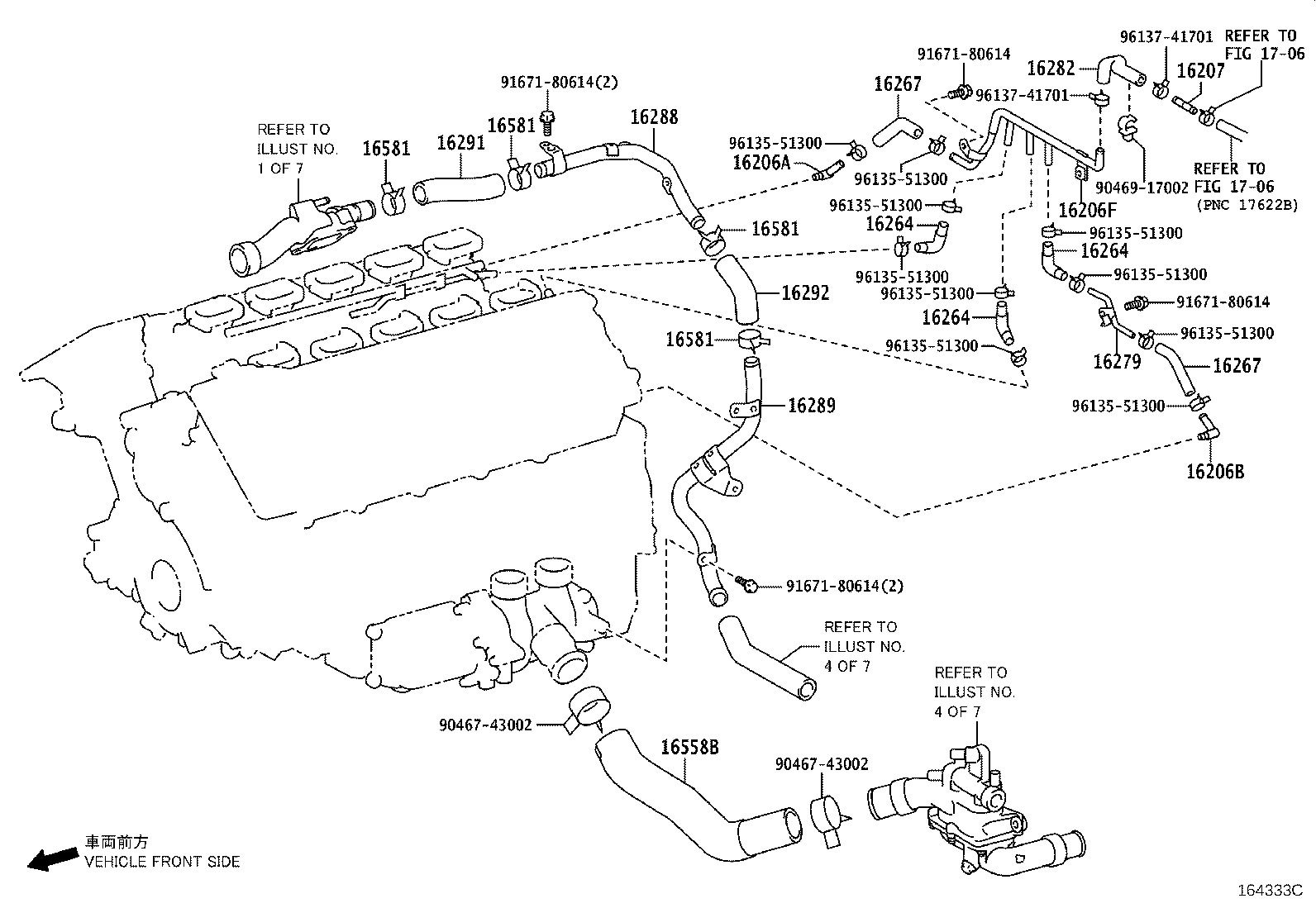

ENGINE REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-45030 |
1LRGUE..LFA10 |
1 | ||
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16206-45030 |
1LRGUE..LFA10 |
1 | ||
| 16206F - PIPE SUB-ASSY, WATER BY-PASS, NO.4 | ||||
| 16206-45020 |
1LRGUE..LFA10 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-45010 |
1LRGUE..LFA10 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-45050 |
1LRGUE..LFA10 |
3 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-45050 |
1LRGUE..LFA10 |
3 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-45050 |
1LRGUE..LFA10 |
3 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-45040 |
1LRGUE..LFA10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-45040 |
1LRGUE..LFA10 |
2 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-45010 |
1LRGUE..LFA10 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-45010 |
1LRGUE..LFA10 |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-45010 |
1LRGUE..LFA10 |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-45010 |
1LRGUE..LFA10 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-45010 |
1LRGUE..LFA10 |
1 | ||
| 16292 - JOINT, WATER HOSE, NO.2 | ||||
| 16292-45010 |
1LRGUE..LFA10 |
1 | ||
| 16558B - HOSE, RADIATOR, NO.7 | ||||
| 16558-45020 |
1LRGUE..LFA10 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-45010 |
1LRGUE..LFA10 |
4 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-45010 |
1LRGUE..LFA10 |
4 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-45010 |
1LRGUE..LFA10 |
4 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-45010 |
1LRGUE..LFA10 |
4 | ||
| Common parts | ||||
| 90467-43002 | ||||
| 90469-17002 | ||||
| 91671-80614 | ||||
| 96135-51300 | ||||
| 96137-41701 | ||||
| Linked diagrams | ||||
| 1706 | ||||
ILLUST NO. 4 OF 7(1012- )
Click highlighted areas on diagram

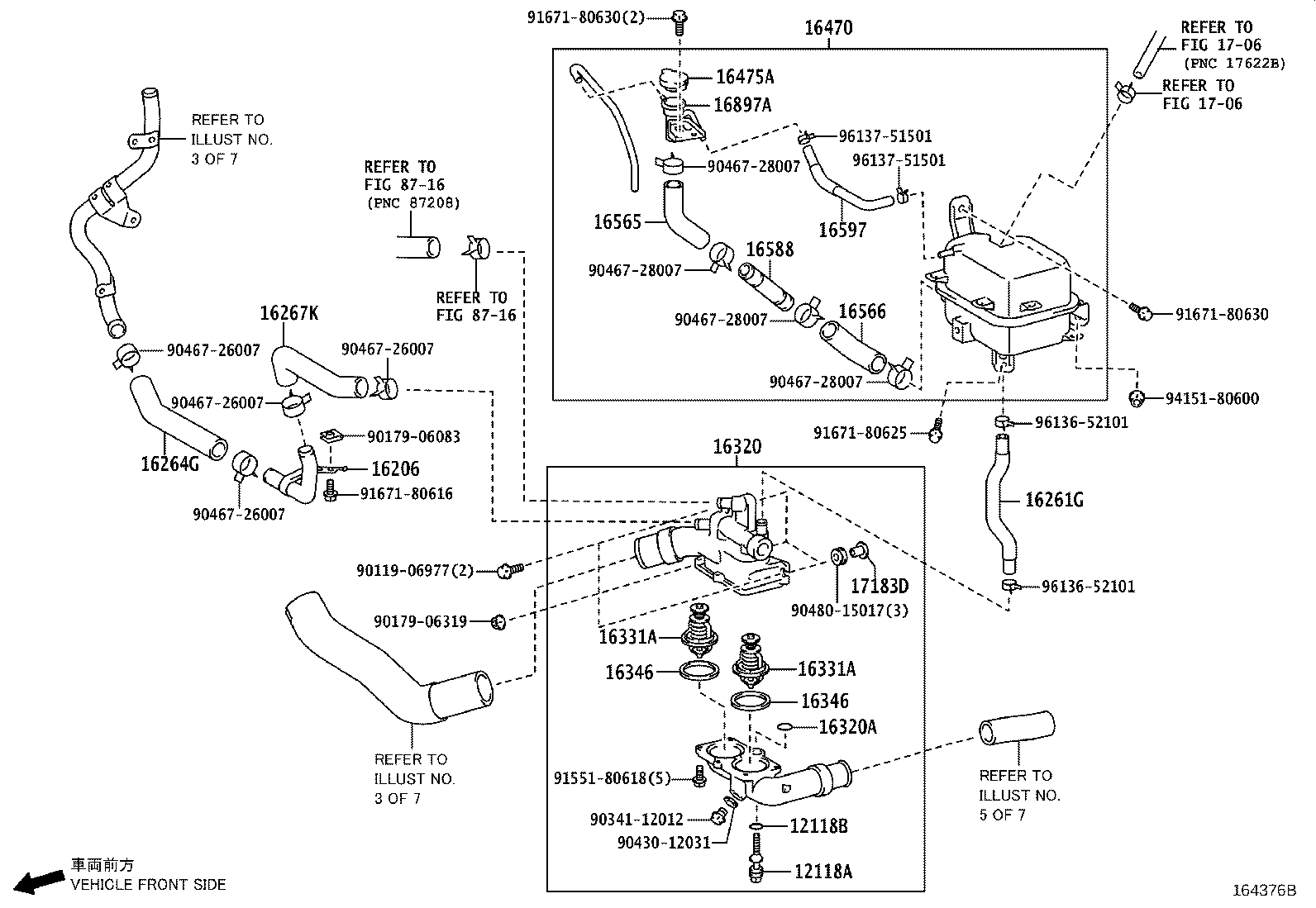

RESERVE TANK & WATER INLET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12118A - PLUG, DRAIN | ||||
| 12118-45010 |
1LRGUE..LFA10 |
1 | ||
| 12118B - RING, O(FOR DRAIN PLUG) | ||||
| 90301-15014 |
1LRGUE..LFA10 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-45010 |
1LRGUE..LFA10 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-45050 |
1LRGUE..LFA10 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-45040 |
1LRGUE..LFA10 |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-45030 |
1LRGUE..LFA10 |
1 | ||
| 16320 - INLET ASSY, WATER | ||||
| 16320-45010 |
1LRGUE..LFA10 |
1 | ||
| 16320A - RING, O(FOR WATER INLET) | ||||
| 96761-24023 |
1LRGUE..LFA10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03146 |
1LRGUE..LFA10 *WAX 83-96 |
2 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03146 |
1LRGUE..LFA10 *WAX 83-96 |
2 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-32010 |
1LRGUE..LFA10 |
2 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-32010 |
1LRGUE..LFA10 |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-45050 |
1LRGUE..LFA10 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-45050 |
1LRGUE..LFA10 |
1 | ||
| 16565 - HOSE, RESERVE TANK INLET | ||||
| 16565-45010 |
1LRGUE..LFA10 |
1 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-45010 |
1LRGUE..LFA10 |
1 | ||
| 16588 - PIPE, RADIATOR RESERVE TANK | ||||
| 16588-45010 |
1LRGUE..LFA10 |
1 | ||
| 16597 - HOSE, RESERVE TANK OUTLET, NO.2 | ||||
| 16597-45010 |
1LRGUE..LFA10 |
1 | ||
| 16897A - NECK, FILLER | ||||
| 16897-45010 |
1LRGUE..LFA10 |
1 | ||
| 17183D - COLLAR, MANIFOLD | ||||
| 17183-45010 |
1LRGUE..LFA10 |
3 | ||
| Common parts | ||||
| 90119-06977 | ||||
| 90179-06083 | ||||
| 90179-06319 | ||||
| 90341-12012 | ||||
| 90430-12031 | ||||
| 90467-26007 | ||||
| 90467-28007 | ||||
| 90480-15017 | ||||
| 91551-80618 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| 91671-80630 | ||||
| 94151-80600 | ||||
| 96136-52101 | ||||
| 96137-51501 | ||||
| Linked diagrams | ||||
| 1706 | ||||
| 8716 | ||||
ILLUST NO. 5 OF 7(1012- )
Click highlighted areas on diagram

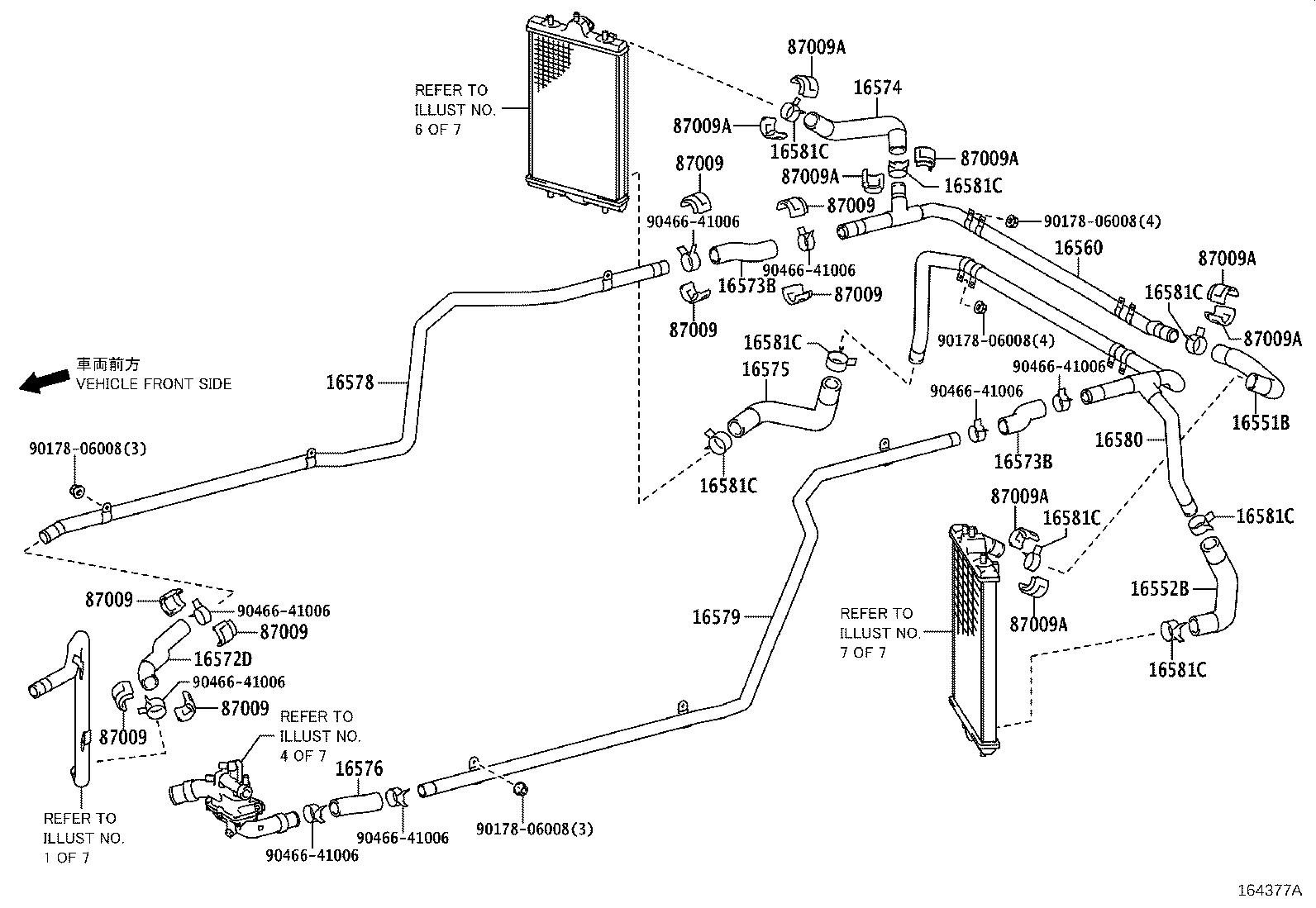

PIPING(WATER INLET - RADIATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16551B - HOSE, SUB-RADIATOR, NO.1 | ||||
| 16551-45010 |
1LRGUE..LFA10 |
1 | ||
| 16552B - HOSE, SUB-RADIATOR, NO.2 | ||||
| 16552-45010 |
1LRGUE..LFA10 |
1 | ||
| 16560 - PIPE ASSY, RADIATOR TO RESERVE TANK, NO.1 | ||||
| 16560-45010 |
1LRGUE..LFA10 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-45010 |
1LRGUE..LFA10 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-45010 |
1LRGUE..LFA10 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-45010 |
1LRGUE..LFA10 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-45010 |
1LRGUE..LFA10 |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-45010 |
1LRGUE..LFA10 |
1 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-45010 |
1LRGUE..LFA10 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-45010 |
1LRGUE..LFA10 |
1 | ||
| 16579 - PIPE, RADIATOR, NO.3 | ||||
| 16579-45010 |
1LRGUE..LFA10 |
1 | ||
| 16580 - PIPE ASSY, RADIATOR TO RESERVE TANK, NO.2 | ||||
| 16580-45010 |
1LRGUE..LFA10 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-45020 |
1LRGUE..LFA10 |
8 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009 - HOSE SET, WATER, NO.1 | ||||
| 87009-77010 |
LFA10 |
12 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| 87009A - HOSE SET, WATER, NO.2 | ||||
| 87009-77020 |
LFA10 |
8 | ||
| Common parts | ||||
| 90178-06008 | ||||
| 90466-41006 | ||||
ILLUST NO. 6 OF 7(1012- )
Click highlighted areas on diagram

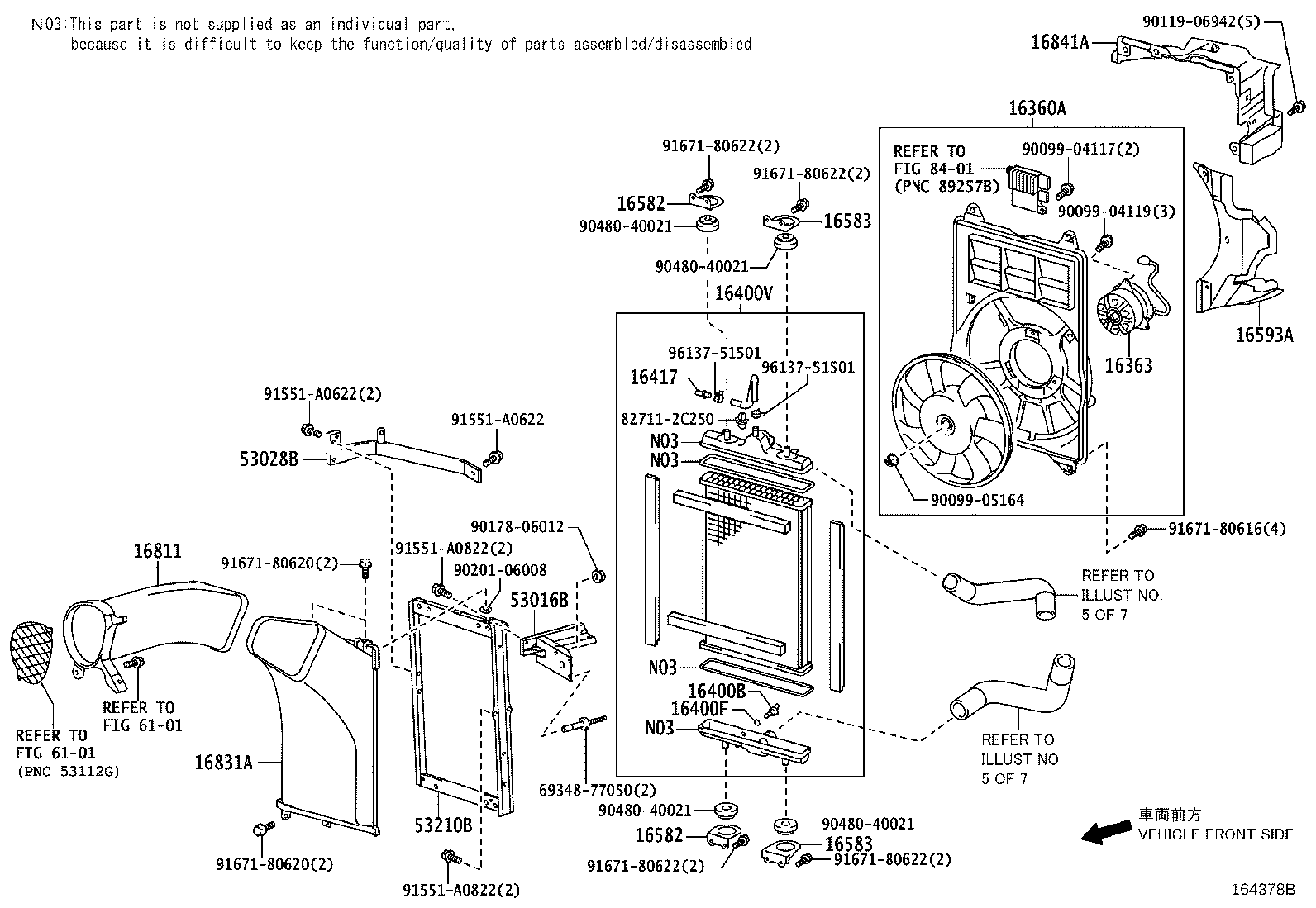

RADIATOR RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-45010 |
1LRGUE..LFA10 |
2 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-45010 |
1LRGUE..LFA10 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
1LRGUE..LFA10 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1LRGUE..LFA10 |
2 | ||
| 16400V - RADIATOR ASSY, RH | ||||
| 16400-45190 |
1LRGUE..LFA10 |
1 | ||
| 16417 - COCK | ||||
| 16417-45190 |
1LRGUE..LFA10 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-45010 |
1LRGUE..LFA10 |
4 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-45010 |
1LRGUE..LFA10 |
4 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-45010 |
1LRGUE..LFA10 |
4 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-45010 |
1LRGUE..LFA10 |
4 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-45010 |
1LRGUE..LFA10 |
1 | ||
| 16811 - SHROUD, UPPER RH | ||||
| 16811-45010 |
1LRGUE..LFA10 |
1 | ||
| 16831A - SHROUD, LOWER, RH | ||||
| 16831-45010 |
1LRGUE..LFA10 |
1 | ||
| 16841A - SHROUD, REAR, RH | ||||
| 16841-45010 |
1LRGUE..LFA10 |
1 | ||
| 53016B - ROD SUB-ASSY, RADIATOR BRACE, RH | ||||
| 53016-77010 |
LFA10 |
1 | ||
| 53028B - SUPPORT SUB-ASSY, RADIATOR, LOWER RH | ||||
| 53028-77010 |
LFA10 |
1 | ||
| 53210B - SUPPORT ASSY, RADIATOR, RH | ||||
| 53210-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 69348-77050 | ||||
| 82711-2C250 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06942 | ||||
| 90178-06012 | ||||
| 90201-06008 | ||||
| 90480-40021 | ||||
| 91551-A0622 | ||||
| 91551-A0822 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80622 | ||||
| 96137-51501 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 8401 | ||||
ILLUST NO. 7 OF 7(1012- )
Click highlighted areas on diagram

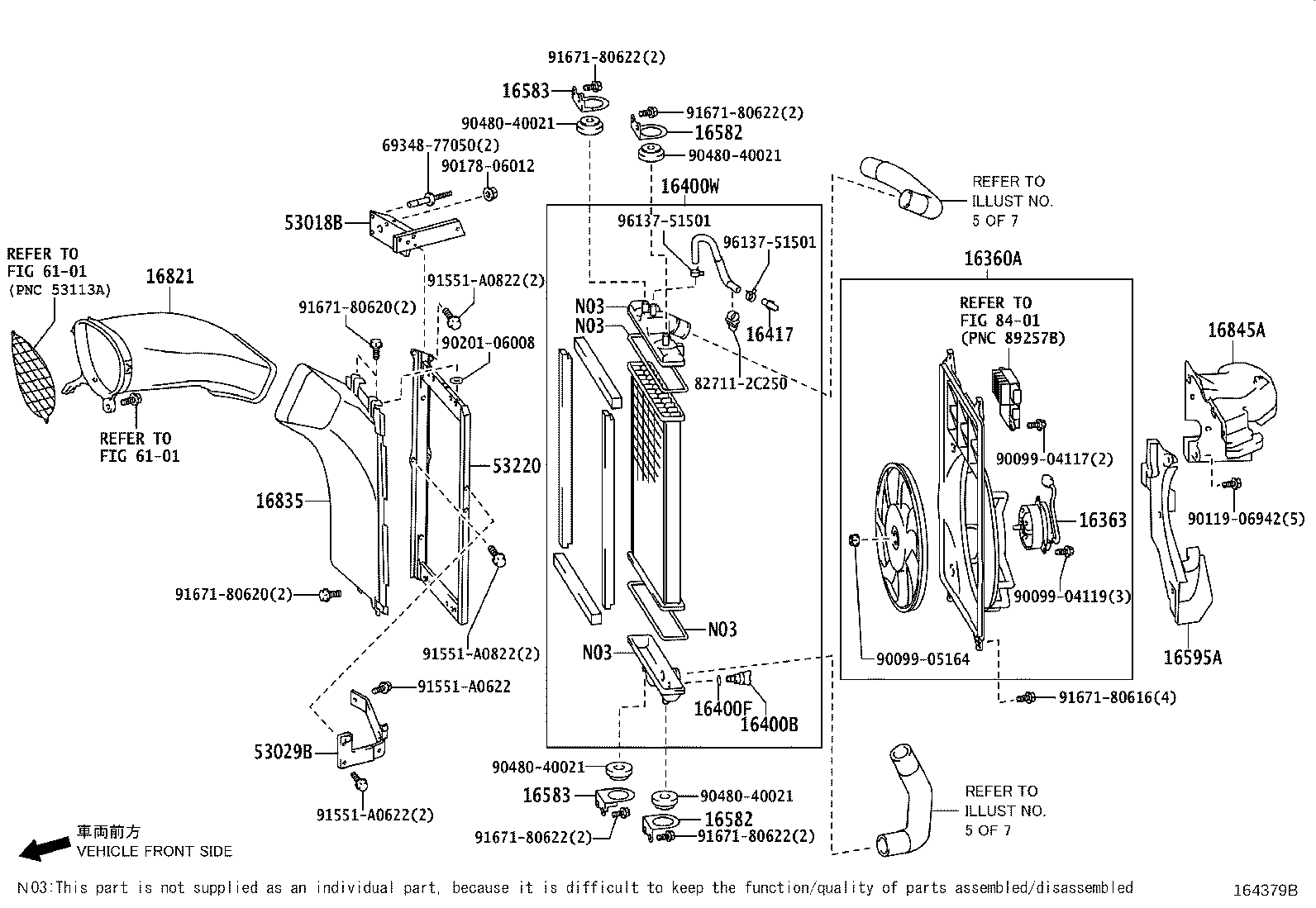

RADIATOR LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-45010 |
1LRGUE..LFA10 |
2 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-45010 |
1LRGUE..LFA10 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
1LRGUE..LFA10 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1LRGUE..LFA10 |
2 | ||
| 16400W - RADIATOR ASSY, LH | ||||
| 16400-45200 |
1LRGUE..LFA10 |
1 | ||
| 16417 - COCK | ||||
| 16417-45190 |
1LRGUE..LFA10 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-45010 |
1LRGUE..LFA10 |
4 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-45010 |
1LRGUE..LFA10 |
4 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-45010 |
1LRGUE..LFA10 |
4 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-45010 |
1LRGUE..LFA10 |
4 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-45010 |
1LRGUE..LFA10 |
1 | ||
| 16821 - SHROUD, UPPER LH | ||||
| 16821-45010 |
1LRGUE..LFA10 |
1 | ||
| 16835 - SHROUD, LOWER, LH | ||||
| 16835-45010 |
1LRGUE..LFA10 |
1 | ||
| 16845A - SHROUD, REAR, LH | ||||
| 16845-45010 |
1LRGUE..LFA10 |
1 | ||
| 53018B - ROD SUB-ASSY, RADIATOR BRACE, LH | ||||
| 53018-77010 |
LFA10 |
1 | ||
| 53029B - SUPPORT SUB-ASSY, RADIATOR, LOWER LH | ||||
| 53029-77010 |
LFA10 |
1 | ||
| 53220 - SUPPORT ASSY, RADIATOR | ||||
| 53220-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 69348-77050 | ||||
| 82711-2C250 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06942 | ||||
| 90178-06012 | ||||
| 90201-06008 | ||||
| 90480-40021 | ||||
| 91551-A0622 | ||||
| 91551-A0822 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80622 | ||||
| 96137-51501 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
