LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

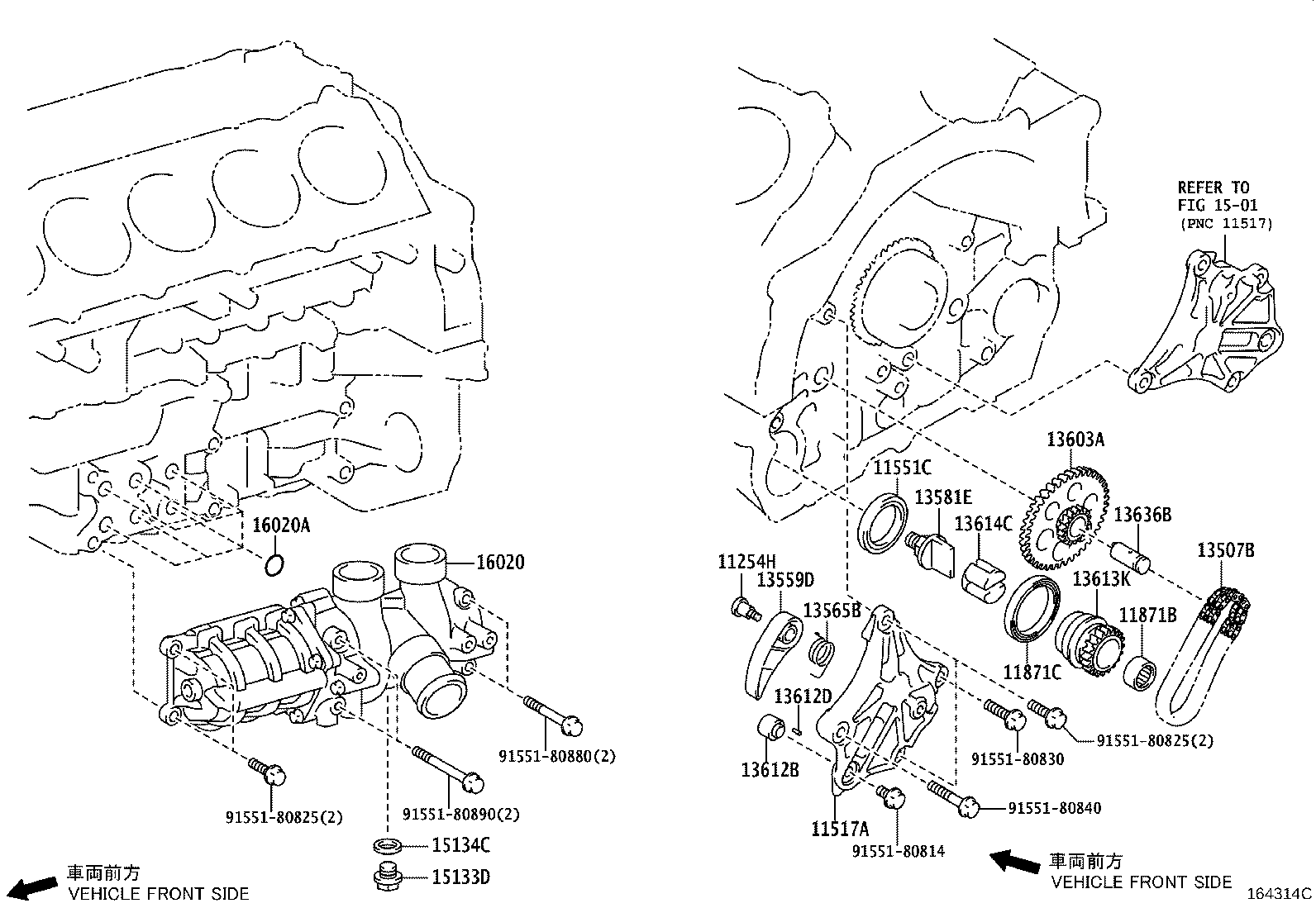

Click highlighted areas on diagram

diagram 11254H 11517A 11551C 11871B 11871C 13507B 13559D 13565B 13581E 13603A 13612B 13612D 13613K 13614C 13636B 1501 15133D 15134C 16020 16020A 9155180814 9155180825 9155180825 9155180830 9155180840 9155180880 9155180890
Part # Description Qty Price
11254H - BOLT, V-BANK COVER
11254-45090

1LRGUE..LFA10

 1
11517A - HOUSING, BALANCESHAFT, NO.1
11517-45010B0

1LRGUE..LFA10

MARK B

 1
11517-45010A0

1LRGUE..LFA10

MARK A

 1
11551C - SEAL, CRANKSHAFT REAR OIL
11551-45030

1LRGUE..LFA10

 1
11871B - BEARING, OIL PUMP DRIVE SHAFT, NO.1
11871-45010

1LRGUE..LFA10

 1
11871C - BEARING, OIL PUMP DRIVE SHAFT, NO.2
11871-45020

1LRGUE..LFA10

 1
13507B - CHAIN SUB-ASSY, WATER PUMP DRIVE
13507-45010

1LRGUE..LFA10

 1
13559D - SLIPPER, CHAIN TENSIONER
13559-45020

1LRGUE..LFA10

 1
13565B - SPRING, CHAIN DAMPER
13565-45010

1LRGUE..LFA10

 1
13581E - SHAFT, IDLE GEAR
13581-45020

1LRGUE..LFA10

 1
13603A - GEAR SUB-ASSY, BALANCESHAFT
13603-45010

1LRGUE..LFA10

 1
13612B - SHAFT, PUMP DRIVE
13612-45010

1LRGUE..LFA10

 1
13612D - PIN, STRAIGHT(FOR PUMP DRIVE SHAFT)
90250-03091

1LRGUE..LFA10

 1
13613K - SPROCKET, HYDRAULIC PUMP DRIVE
13613-45010

1LRGUE..LFA10

 1
13614C - COUPLING, SUPPLY PUMP DRIVE
13614-45010

1LRGUE..LFA10

 1
13636B - SHAFT, BALANCESHAFT DRIVE GEAR
13636-45010B0

1LRGUE..LFA10

MARK B

 1
13636-45010A0

1LRGUE..LFA10

MARK A

 1
15133D - PLUG, OIL PUMP RELIEF VALVE
15133-64041

1LRGUE..LFA10

 1
15134C - GASKET, OIL PUMP RELIEF VALVE
15134-67020

1LRGUE..LFA10

 1
16020 - PUMP ASSY, WATER
16020-45050

1LRGUE..LFA10

 1
16020A - RING, O(FOR WATER PUMP)
96721-24018

1LRGUE..LFA10

 6
Common parts
91551-80814
91551-80825
91551-80830
91551-80840
91551-80880
91551-80890
Linked diagrams
1501
