LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

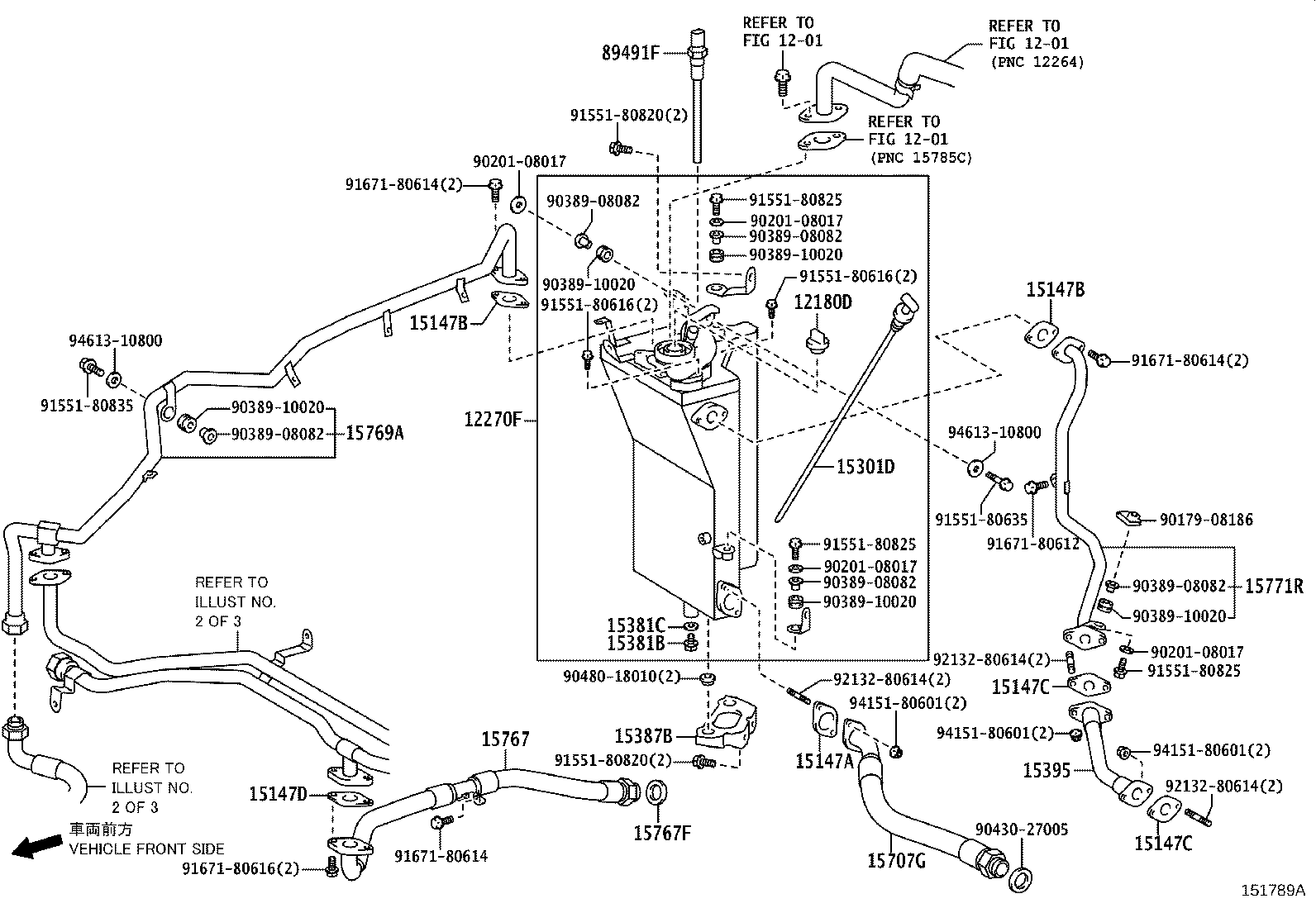

ILLUST NO. 1 OF 3(1012- )

Click highlighted areas on diagram

diagram 1201 1201 1201 12180D 12270F 15147A 15147B 15147B 15147C 15147C 15147D 15301D 15381B 15381C 15387B 15395 15707G 15767 15767F 15769A 15771R 89491F 9017908186 9020108017 9020108017 9020108017 9020108017 9038908082 9038908082 9038908082 9038908082 9038908082 9038910020 9038910020 9038910020 9038910020 9038910020 9043027005 9048018010 9155180616 9155180616 9155180635 9155180820 9155180820 9155180825 9155180825 9155180825 9155180835 9167180612 9167180614 9167180614 9167180614 9167180616 9213280614 9213280614 9213280614 9415180601 9415180601 9415180601 9461310800 9461310800
Part # Description Qty Price
12180D - CAP ASSY, OIL FILLER
12180-45010

1LRGUE..LFA10

 1
12270F - SEPARATOR ASSY, OIL
12270-45011

1LRGUE..LFA10

 1
15147A - GASKET, OIL STRAINER
15147-31060

1LRGUE..LFA10

 1
15147B - GASKET, OIL STRAINER NO.2
15147-46010

1LRGUE..LFA10

 2
15147B - GASKET, OIL STRAINER NO.2
15147-46010

1LRGUE..LFA10

 2
15147C - GASKET, OIL STRAINER NO.3
15147-46010

1LRGUE..LFA10

 3
15147C - GASKET, OIL STRAINER NO.3
15147-46010

1LRGUE..LFA10

 3
15147D - GASKET, OIL STRAINER
15147-46010

1LRGUE..LFA10

 1
15301D - GAGE SUB-ASSY, OIL LEVEL
15301-45020

1LRGUE..LFA10

 1
15381B - PLUG(FOR OIL TANK DRAIN)
90341-12012

1LRGUE..LFA10

 1
15381C - GASKET(FOR OIL TANK DRAIN PLUG)
90430-12031

1LRGUE..LFA10

 1
15387B - BRACKET, OIL TANK
15387-45010

1LRGUE..LFA10

 1
15395 - HOSE, OIL TANK
15395-45010

1LRGUE..LFA10

 1
15707G - PIPE SUB-ASSY, OIL
15707-45030

1LRGUE..LFA10

 1
15767 - PIPE, OIL COOLER
15767-45010

1LRGUE..LFA10

 1
15767F - GASKET(FOR OIL COOLER PIPE)
90430-22010

1LRGUE..LFA10

 1
15769A - PIPE, OIL COOLER, NO.2
15769-45010

1LRGUE..LFA10

 1
15771R - PIPE, OIL, NO.1
15771-45010

1LRGUE..LFA10

 1
89491F - SENSOR, ENGINE OIL LEVEL
89491-0W010

LFA10

 1
Common parts
90179-08186
90201-08017
90389-08082
90389-10020
90430-27005
90480-18010
91551-80616
91551-80635
91551-80820
91551-80825
91551-80835
91671-80612
91671-80614
91671-80616
92132-80614
94151-80601
94613-10800
Linked diagrams
1201

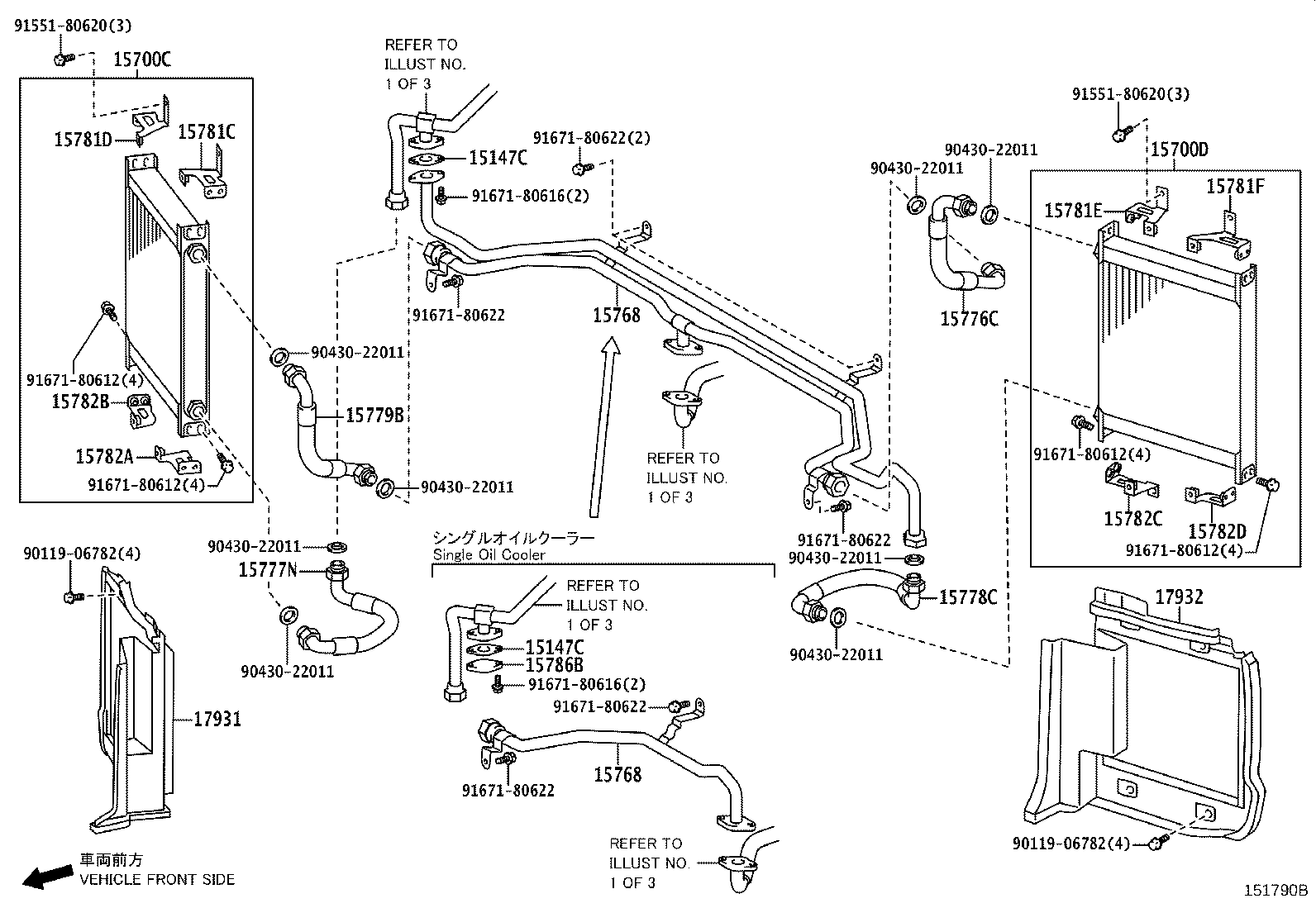

ILLUST NO. 2 OF 3(1012- )

Click highlighted areas on diagram

diagram 15147C 15147C 15700C 15700D 15768 15768 15776C 15777N 15778C 15779B 15781C 15781D 15781E 15781F 15782A 15782B 15782C 15782D 15786B 17931 17932 9011906782 9011906782 9043022011 9043022011 9043022011 9043022011 9043022011 9043022011 9043022011 9043022011 9155180620 9155180620 9167180612 9167180612 9167180612 9167180612 9167180616 9167180616 9167180622 9167180622 9167180622 9167180622 9167180622
Part # Description Qty Price
15147C - GASKET, OIL STRAINER NO.3
15147-46010

1LRGUE..LFA10

 3
15147C - GASKET, OIL STRAINER NO.3
15147-46010

1LRGUE..LFA10

 3
15700C - COOLER ASSY, OIL W/BRACKET, RH
15700-45010

1LRGUE..LFA10

 1
15700D - COOLER ASSY, OIL W/BRACKET, LH
15700-45030

1LRGUE..LFA10

 1
15768 - PIPE, OIL COOLER, NO.1
15768-45020

1LRGUE..LFA10

ENGINE OIL COOLER-WATER COOLED+AIR COOLED(1-RADIATOR)

 1
15768-45010

1LRGUE..LFA10

 1
15768 - PIPE, OIL COOLER, NO.1
15768-45020

1LRGUE..LFA10

ENGINE OIL COOLER-WATER COOLED+AIR COOLED(1-RADIATOR)

 1
15768-45010

1LRGUE..LFA10

 1
15776C - HOSE, OIL COOLER, NO.5
15776-45030

1LRGUE..LFA10

 1
15777N - HOSE, OIL COOLER NO.1
15777-45050

1LRGUE..LFA10

 1
15778C - HOSE, OIL COOLER, NO.2
15778-45050

1LRGUE..LFA10

 1
15779B - HOSE, OIL COOLER, NO.3
15779-45031

1LRGUE..LFA10

 1
15781C - BRACKET, OIL COOLER, RH NO.1
15781-45030

1LRGUE..LFA10

 1
15781D - BRACKET, OIL COOLER, RH NO.2
15781-45040

1LRGUE..LFA10

 1
15781E - BRACKET, OIL COOLER, LH NO.1
15781-45050

1LRGUE..LFA10

 1
15781F - BRACKET, OIL COOLER, LH NO.2
15781-45060

1LRGUE..LFA10

 1
15782A - BRACKET, OIL COOLER, RH NO.3
15782-45030

1LRGUE..LFA10

 1
15782B - BRACKET, OIL COOLER, RH NO.4
15782-45040

1LRGUE..LFA10

 1
15782C - BRACKET, OIL COOLER, LH NO.3
15782-45050

1LRGUE..LFA10

 1
15782D - BRACKET, OIL COOLER, LH NO.4
15782-45060

1LRGUE..LFA10

 1
15786B - SEAL, OIL PIPE
15786-45010

1LRGUE..LFA10

ENGINE OIL COOLER-WATER COOLED+AIR COOLED(1-RADIATOR)

 1
17931 - SHROUD, HOT AIR, NO.1
17931-45010

1LRGUE..LFA10

 1
17932 - SHROUD, HOT AIR, NO.2
17932-45010

1LRGUE..LFA10

 1
Common parts
90119-06782
90430-22011
91551-80620
91671-80612
91671-80616
91671-80622

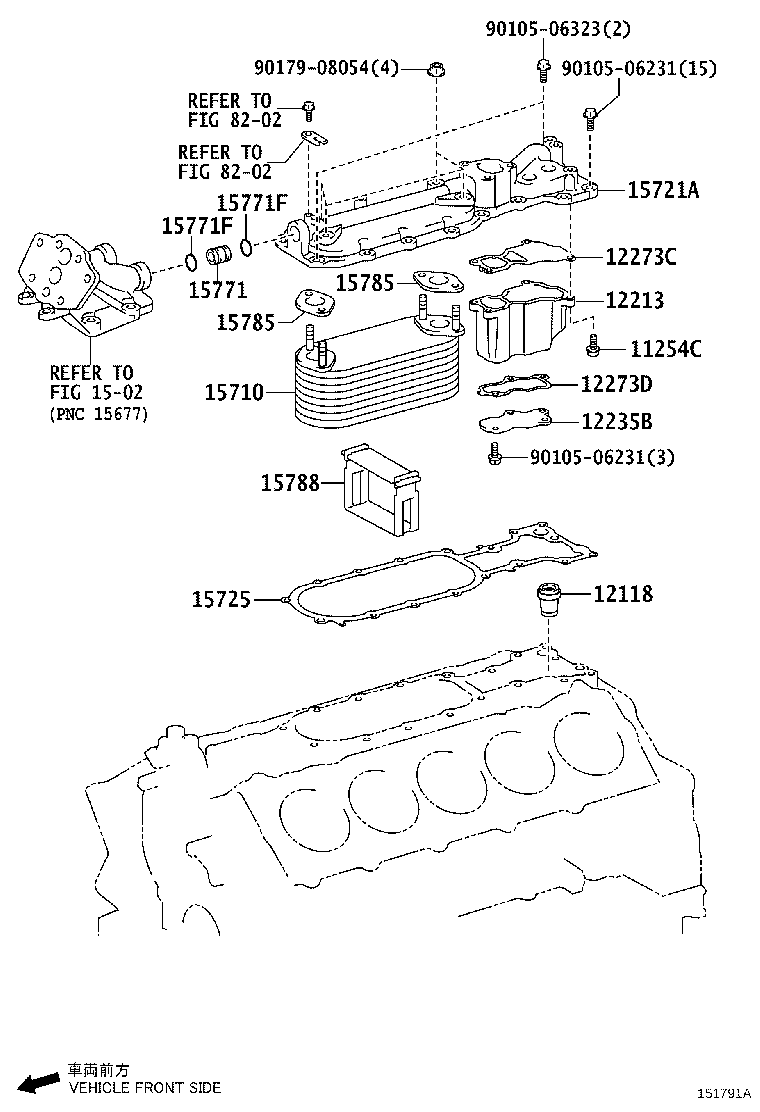

ILLUST NO. 3 OF 3(1012- )

Click highlighted areas on diagram

diagram 11254C 12118 12213 12235B 12273C 12273D 1502 15710 15721A 15725 15771 15771F 15771F 15785 15785 15788 8202 8202 9010506231 9010506231 9010506323 9017908054
Part # Description Qty Price
11254C - BOLT, V-BANK COVER
11254-45050

1LRGUE..LFA10

 4
12118 - PLUG, DRAIN
12118-45020

1LRGUE..LFA10

 1
12213 - CASE, VENTLATION, NO.3
12213-45010

1LRGUE..LFA10

 1
12235B - CAP, VENTILATION
12235-45010

1LRGUE..LFA10

 1
12273C - GASKET, OIL SEPARATOR
12273-45020

1LRGUE..LFA10

 1
12273D - GASKET, OIL SEPARATOR
12273-45030

1LRGUE..LFA10

 1
15710 - COOLER ASSY, OIL
15710-45060

1LRGUE..LFA10

 1
15721A - COVER, OIL COOLER
15721-45010

1LRGUE..LFA10

 1
15725 - GASKET, OIL COOLER COVER
15725-45010

1LRGUE..LFA10

 1
15771 - PIPE, OIL, NO.1
15771-45030

1LRGUE..LFA10

 1
15771F - RING, O
96721-24018

1LRGUE..LFA10

 2
15771F - RING, O
96721-24018

1LRGUE..LFA10

 2
15785 - GASKET, OIL COOLER
15785-30010

1LRGUE..LFA10

 2
15785 - GASKET, OIL COOLER
15785-30010

1LRGUE..LFA10

 2
15788 - SPACER, OIL COOLER
15788-45010

1LRGUE..LFA10

 1
Common parts
90105-06231
90105-06323
90179-08054
Linked diagrams
1502
8202
