LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

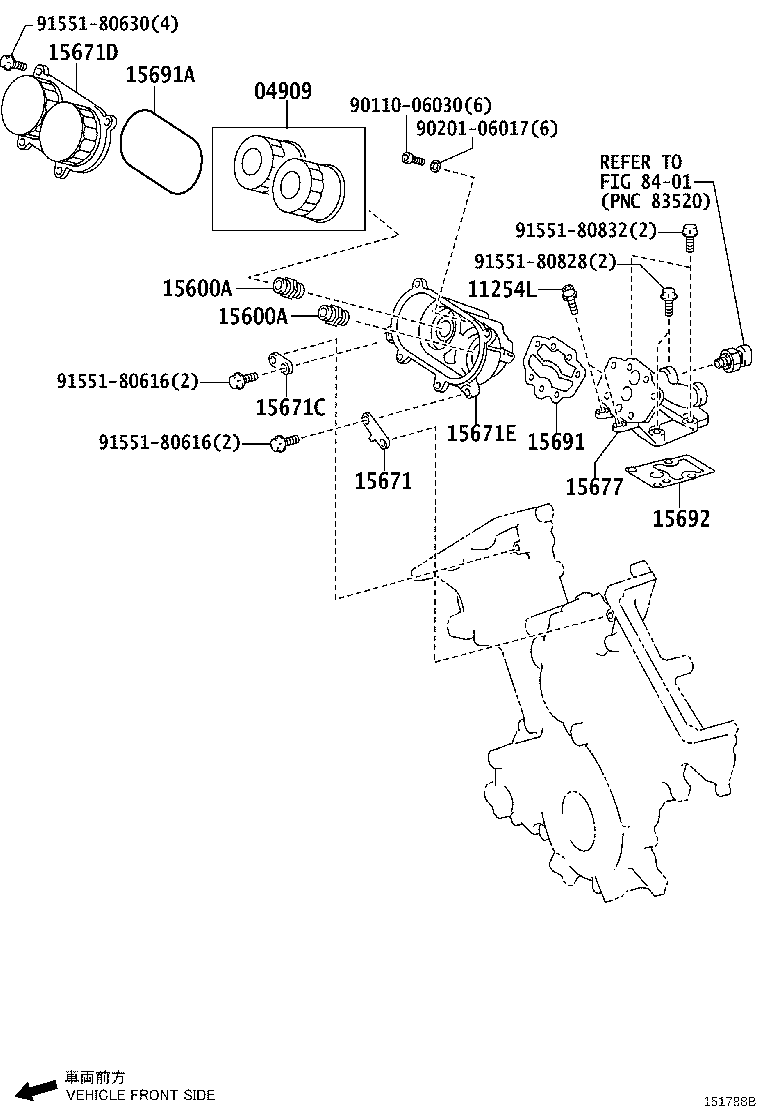

diagram 04909 11254L 15600A 15600A 15671 15671C 15671D 15671E 15677 15691 15691A 15692 8401 9011006030 9020106017 9155180616 9155180616 9155180630 9155180828 9155180832
Part # Description Qty Price
04909 - FILTER KIT, OIL
04909-45010

LFA10

 1
11254L - BOLT, V-BANK COVER
11254-45050

1LRGUE..LFA10

 2
15600A - UNION(FOR OIL FILTER)
90404-19002

1LRGUE..LFA10

 2
15600A - UNION(FOR OIL FILTER)
90404-19002

1LRGUE..LFA10

 2
15671 - BRACKET, OIL FILTER
15671-45010

1LRGUE..LFA10

 1
15671C - BRACKET, OIL FILTER, NO.2
15671-45020

1LRGUE..LFA10

 1
15671D - BRACKET, OIL FILTER, NO.3
15671-45060

1LRGUE..LFA10

 1
15671-45080

1LRGUE..LFA10

NURBURGRING PACKAGE

 1
15671E - BRACKET, OIL FILTER, NO.4
15671-45070

1LRGUE..LFA10

 1
15677 - BRACKET, OIL FILTER
15677-45010

1LRGUE..LFA10

 1
15691 - GASKET, OIL FILTER
15691-45010

1LRGUE..LFA10

 1
15691A - GASKET, OIL FILTER, NO.2
15691-45040

1LRGUE..LFA10

 1
15692 - GASKET, OIL FILTER BRACKET
15692-45010

1LRGUE..LFA10

 1
Common parts
90110-06030
90201-06017
91551-80616
91551-80630
91551-80828
91551-80832
Linked diagrams
8401
