LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)

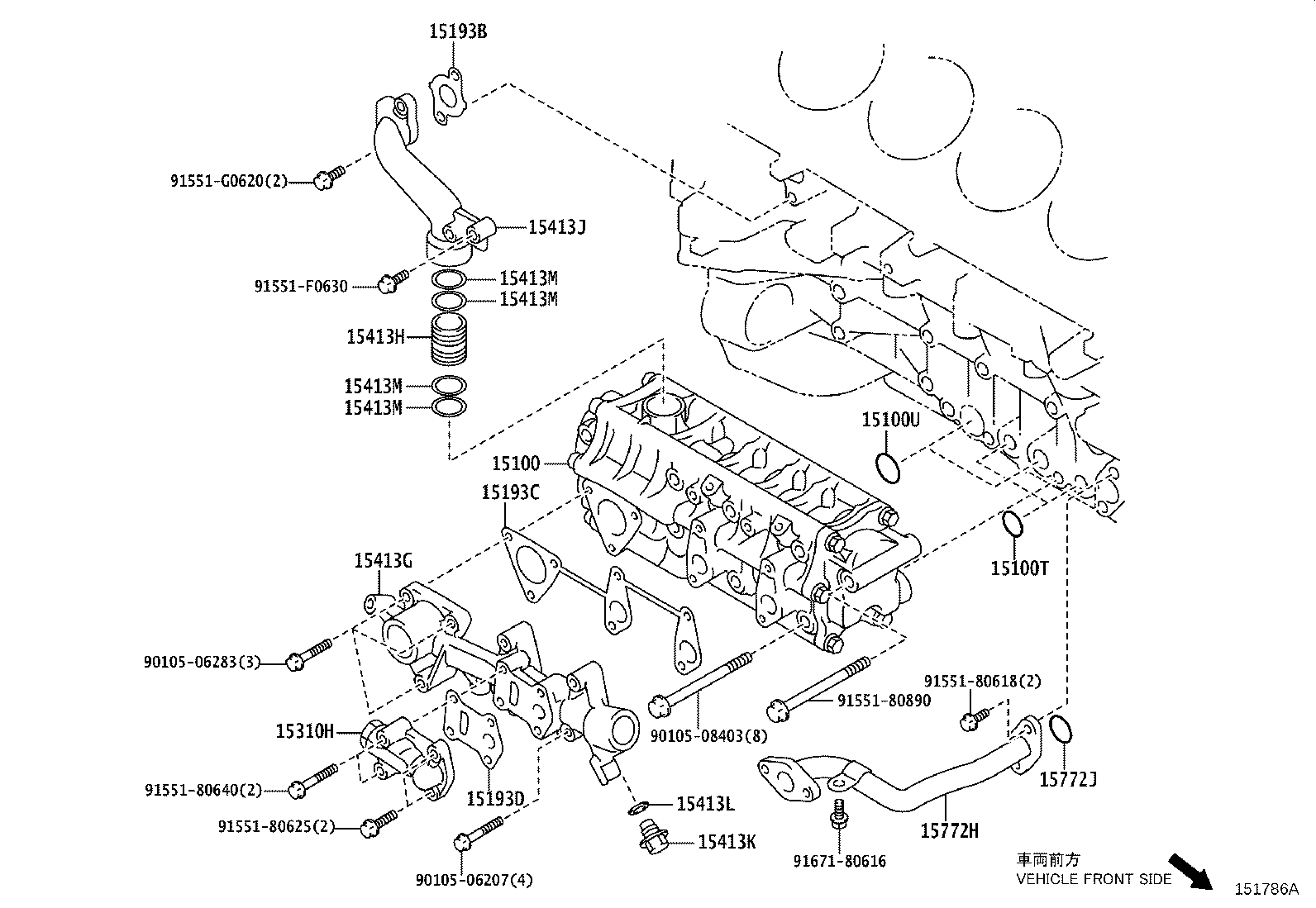

ILLUST NO. 1 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-45030 |
1LRGUE..LFA10 |
1 | ||
| 15100T - RING, O(FOR OIL PUMP NO.1) | ||||
| 96721-19017 |
1LRGUE..LFA10 |
2 | ||
| 15100U - RING, O(FOR OIL PUMP NO.2) | ||||
| 96723-19022 |
1LRGUE..LFA10 |
2 | ||
| 15193B - GASKET, OIL PUMP NO.1 | ||||
| 15193-45010 |
1LRGUE..LFA10 |
1 | ||
| 15193C - GASKET, OIL PUMP NO.2 | ||||
| 15193-45020 |
1LRGUE..LFA10 |
1 | ||
| 15193D - GASKET, OIL PUMP NO.3 | ||||
| 15193-45040 |
1LRGUE..LFA10 |
1 | ||
| 15310H - REGULATOR ASSY, OIL | ||||
| 15310-45020 |
1LRGUE..LFA10 |
1 | ||
| 15413G - PIPE, OIL PUMP OUTLET, NO.1 | ||||
| 15413-45020 |
1LRGUE..LFA10 |
1 | ||
| 15413H - PIPE, OIL PUMP OUTLET, NO.2 | ||||
| 15413-45030 |
1LRGUE..LFA10 |
1 | ||
| 15413J - PIPE, OIL PUMP OUTLET, NO.3 | ||||
| 15413-45040 |
1LRGUE..LFA10 |
1 | ||
| 15413K - PLUG, STRAIGHT(FOR OIL PUMP OUTLET PIPE) | ||||
| 90341-12012 |
1LRGUE..LFA10 |
1 | ||
| 15413L - GASKET(FOR OIL PUMP OUTLET PIPE STRAIGHT PLUG) | ||||
| 90430-12031 |
1LRGUE..LFA10 |
1 | ||
| 15413M - RING, O(FOR OIL PUMP OUTLET PIPE) | ||||
| 96721-24022 |
1LRGUE..LFA10 |
4 | ||
| 15413M - RING, O(FOR OIL PUMP OUTLET PIPE) | ||||
| 96721-24022 |
1LRGUE..LFA10 |
4 | ||
| 15413M - RING, O(FOR OIL PUMP OUTLET PIPE) | ||||
| 96721-24022 |
1LRGUE..LFA10 |
4 | ||
| 15413M - RING, O(FOR OIL PUMP OUTLET PIPE) | ||||
| 96721-24022 |
1LRGUE..LFA10 |
4 | ||
| 15772H - PIPE, OIL, NO.2 | ||||
| 15772-45010 |
1LRGUE..LFA10 |
1 | ||
| 15772J - RING, O(FOR OIL PIPE NO.2) | ||||
| 96721-24021 |
1LRGUE..LFA10 |
1 | ||
| Common parts | ||||
| 90105-06207 | ||||
| 90105-06283 | ||||
| 90105-08403 | ||||
| 91551-80618 | ||||
| 91551-80625 | ||||
| 91551-80640 | ||||
| 91551-80890 | ||||
| 91551-F0630 | ||||
| 91551-G0620 | ||||
| 91671-80616 | ||||

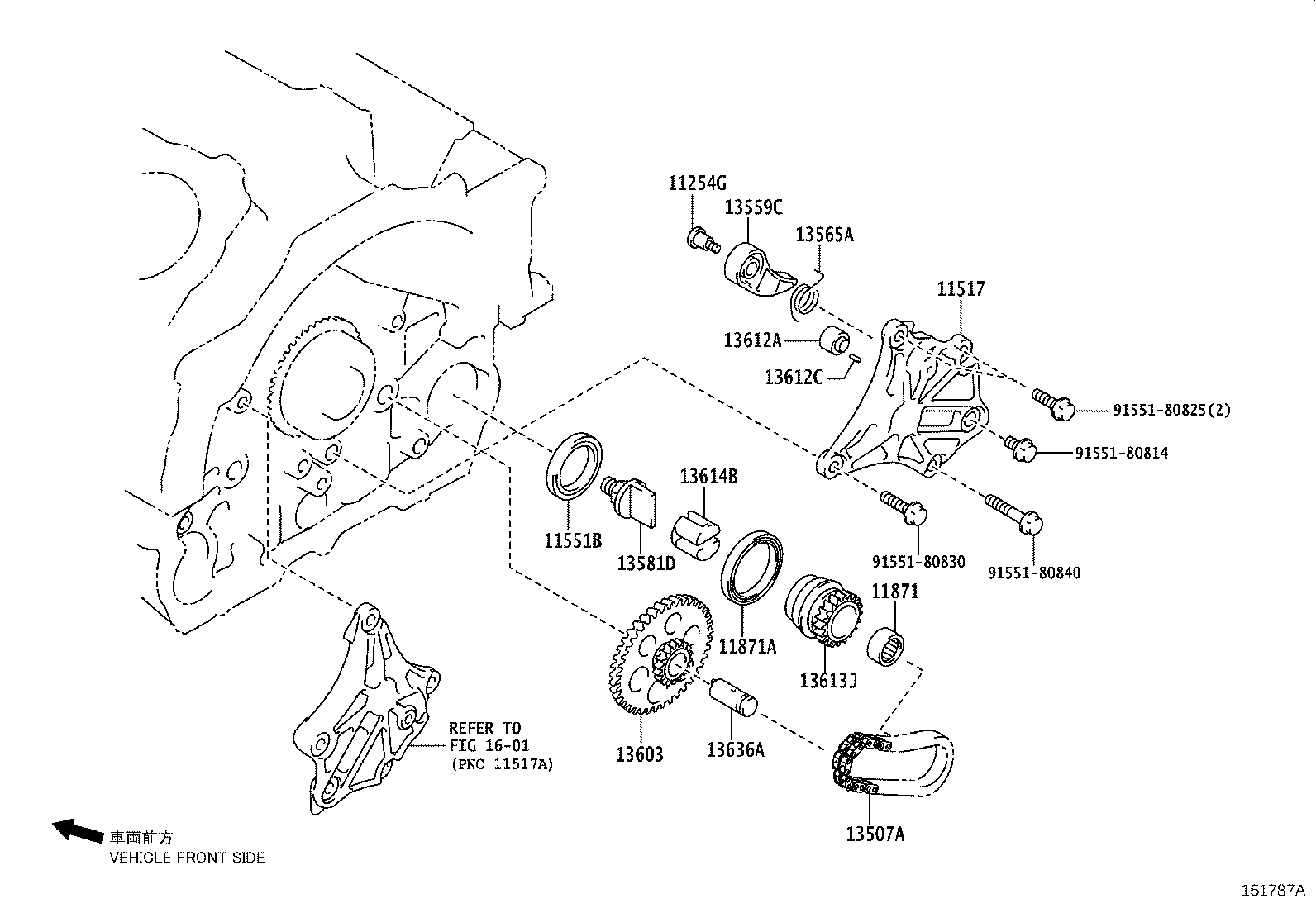

ILLUST NO. 2 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11254G - BOLT, V-BANK COVER | ||||
| 11254-45090 |
1LRGUE..LFA10 |
1 | ||
| 11517 - HOUSING, BALANCESHAFT, NO.1 | ||||
| 11517-45010B0 |
1LRGUE..LFA10 MARK B |
1 | ||
| 11517-45010A0 |
1LRGUE..LFA10 MARK A |
1 | ||
| 11551B - SEAL, CRANKSHAFT REAR OIL | ||||
| 11551-45030 |
1LRGUE..LFA10 |
1 | ||
| 11871 - BEARING, OIL PUMP DRIVE SHAFT, NO.1 | ||||
| 11871-45010 |
1LRGUE..LFA10 |
1 | ||
| 11871A - BEARING, OIL PUMP DRIVE SHAFT, NO.2 | ||||
| 11871-45020 |
1LRGUE..LFA10 |
1 | ||
| 13507A - CHAIN SUB-ASSY, OIL PUMP DRIVE | ||||
| 13507-45010 |
1LRGUE..LFA10 |
1 | ||
| 13559C - SLIPPER, CHAIN TENSIONER | ||||
| 13559-45020 |
1LRGUE..LFA10 |
1 | ||
| 13565A - SPRING, CHAIN DAMPER | ||||
| 13565-45010 |
1LRGUE..LFA10 |
1 | ||
| 13581D - SHAFT, IDLE GEAR | ||||
| 13581-45020 |
1LRGUE..LFA10 |
1 | ||
| 13603 - GEAR SUB-ASSY, BALANCESHAFT | ||||
| 13603-45010 |
1LRGUE..LFA10 |
1 | ||
| 13612A - SHAFT, PUMP DRIVE | ||||
| 13612-45010 |
1LRGUE..LFA10 |
1 | ||
| 13612C - PIN, STRAIGHT(FOR PUMP DRIVE SHAFT) | ||||
| 90250-03091 |
1LRGUE..LFA10 |
1 | ||
| 13613J - SPROCKET, HYDRAULIC PUMP DRIVE | ||||
| 13613-45010 |
1LRGUE..LFA10 |
1 | ||
| 13614B - COUPLING, SUPPLY PUMP DRIVE | ||||
| 13614-45010 |
1LRGUE..LFA10 |
1 | ||
| 13636A - SHAFT, BALANCESHAFT DRIVE GEAR | ||||
| 13636-45010A0 |
1LRGUE..LFA10 MARK A |
1 | ||
| 13636-45010B0 |
1LRGUE..LFA10 MARK B |
1 | ||
| Common parts | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91551-80840 | ||||
| Linked diagrams | ||||
| 1601 | ||||
