LFA10L-FCRAFA (2010)
Toyota Lexus Lfa

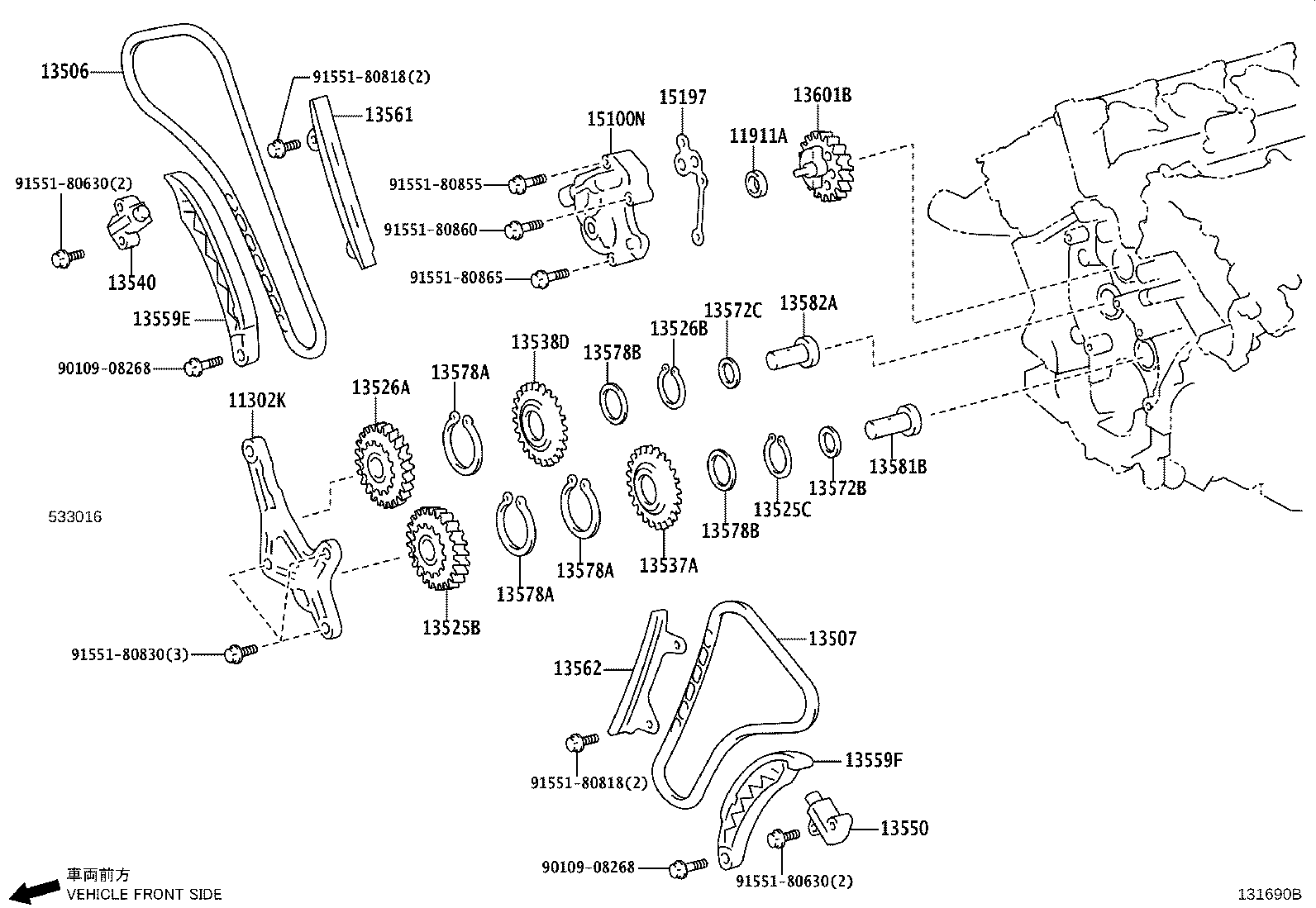

ILLUST NO. 1 OF 2(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302K - COVER SUB-ASSY, TIMING GEAR | ||||
| 11302-45020 |
1LRGUE..LFA10 |
1 | ||
| 11911A - BEARING, BALANCESHAFT, NO.1 | ||||
| 11911-45010 |
1LRGUE..LFA10 |
2 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-45010 |
1LRGUE..LFA10 |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13506-45020 |
1LRGUE..LFA10 |
1 | ||
| 13525B - GEAR, IDLE, NO.1 | ||||
| 13525-45010 |
1LRGUE..LFA10 |
1 | ||
| 13525C - RING, SNAP(FOR IDLE GEAR NO.1) | ||||
| 96150-03000 |
1LRGUE..LFA10 |
1 | ||
| 13526A - GEAR, IDLE, NO.2 | ||||
| 13526-45010 |
1LRGUE..LFA10 |
1 | ||
| 13526B - RING, SNAP(FOR IDLE GEAR NO.2) | ||||
| 96150-03000 |
1LRGUE..LFA10 |
1 | ||
| 13537A - GEAR, IDLE SUB, NO.1 | ||||
| 13537-45010 |
1LRGUE..LFA10 |
1 | ||
| 13538D - GEAR, IDLE SUB, NO.2 | ||||
| 13538-45010 |
1LRGUE..LFA10 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-45020 |
1LRGUE..LFA10 |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13540-45020 |
1LRGUE..LFA10 |
1 | ||
| 13559E - SLIPPER, CHAIN TENSIONER, RH | ||||
| 13559-45010 |
1LRGUE..LFA10 |
1 | ||
| 13559F - SLIPPER, CHAIN TENSIONER, LH | ||||
| 13559-45010 |
1LRGUE..LFA10 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-45020 |
1LRGUE..LFA10 |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-45020 |
1LRGUE..LFA10 |
1 | ||
| 13572B - PLATE, IDLE GEAR THRUST, NO.1 | ||||
| 13572-45010 |
1LRGUE..LFA10 |
1 | ||
| 13572C - PLATE, IDLE GEAR THRUST, NO.2 | ||||
| 13572-45010 |
1LRGUE..LFA10 |
1 | ||
| 13578A - SPRING, IDLE GEAR, NO.1 | ||||
| 13578-45010 |
1LRGUE..LFA10 |
3 | ||
| 13578A - SPRING, IDLE GEAR, NO.1 | ||||
| 13578-45010 |
1LRGUE..LFA10 |
3 | ||
| 13578A - SPRING, IDLE GEAR, NO.1 | ||||
| 13578-45010 |
1LRGUE..LFA10 |
3 | ||
| 13578B - SPRING, IDLE GEAR, NO.2 | ||||
| 13578-45020 |
1LRGUE..LFA10 |
2 | ||
| 13578B - SPRING, IDLE GEAR, NO.2 | ||||
| 13578-45020 |
1LRGUE..LFA10 |
2 | ||
| 13581B - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-45010 |
1LRGUE..LFA10 |
1 | ||
| 13582A - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-45010 |
1LRGUE..LFA10 |
1 | ||
| 13601B - BALANCESHAFT SUB-ASSY, NO.1 | ||||
| 13601-45010 |
1LRGUE..LFA10 |
1 | ||
| 15100N - PUMP ASSY, OIL | ||||
| 15100-45050 |
1LRGUE..LFA10 |
1 | ||
| 15197 - GASKET, OIL PUMP | ||||
| 15197-45010 |
1LRGUE..LFA10 |
1 | ||
| Common parts | ||||
| 90109-08268 | ||||
| 91551-80630 | ||||
| 91551-80818 | ||||
| 91551-80830 | ||||
| 91551-80855 | ||||
| 91551-80860 | ||||
| 91551-80865 | ||||

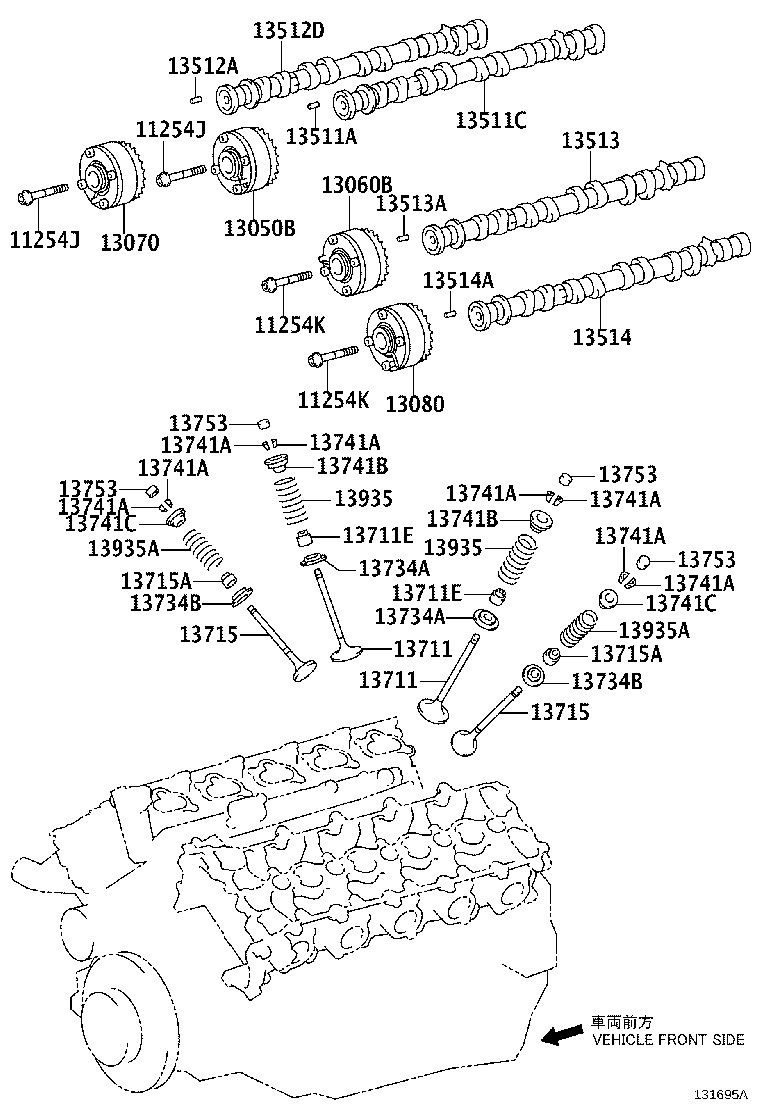

ILLUST NO. 2 OF 2(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11254J - BOLT, V-BANK COVER, RH | ||||
| 11254-45010 |
1LRGUE..LFA10 |
2 | ||
| 11254J - BOLT, V-BANK COVER, RH | ||||
| 11254-45010 |
1LRGUE..LFA10 |
2 | ||
| 11254K - BOLT, V-BANK COVER, LH | ||||
| 11254-45040 |
1LRGUE..LFA10 |
2 | ||
| 11254K - BOLT, V-BANK COVER, LH | ||||
| 11254-45040 |
1LRGUE..LFA10 |
2 | ||
| 13050B - GEAR ASSY, CAMSHAFT TIMING INTAKE, RH | ||||
| 13050-45010 |
1LRGUE..LFA10 |
1 | ||
| 13060B - GEAR ASSY, CAMSHAFT TIMING INTAKE, LH | ||||
| 13050-45020 |
1LRGUE..LFA10 |
1 | ||
| 13070 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH | ||||
| 13070-45010 |
1LRGUE..LFA10 |
1 | ||
| 13080 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH | ||||
| 13070-45020 |
1LRGUE..LFA10 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05043 |
1LRGUE..LFA10 L=10,OD=5 |
1 | ||
| 13511C - CAMSHAFT, INTAKE, RH | ||||
| 13511-45040 |
1LRGUE..LFA10 |
1 | ||
| 13512A - PIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK) | ||||
| 90250-05043 |
1LRGUE..LFA10 L=10,OD=5 |
1 | ||
| 13512D - CAMSHAFT, EXHAUST, RH | ||||
| 13512-45010 |
1LRGUE..LFA10 |
1 | ||
| 13513 - CAMSHAFT, INTAKE, LH | ||||
| 13513-45010 |
1LRGUE..LFA10 |
1 | ||
| 13513A - PIN, STRAIGHT NO.3(FOR CAMSHAFT KNOCK) | ||||
| 90250-05043 |
1LRGUE..LFA10 L=10,OD=5 |
1 | ||
| 13514 - CAMSHAFT, EXHAUST, LH | ||||
| 13514-45010 |
1LRGUE..LFA10 |
1 | ||
| 13514A - PIN, STRAIGHT NO.4(FOR CAMSHAFT KNOCK) | ||||
| 90250-05043 |
1LRGUE..LFA10 L=10,OD=5 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-45030 |
1LRGUE..LFA10 |
20 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-45030 |
1LRGUE..LFA10 |
20 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02114 |
1LRGUE..LFA10 |
20 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02114 |
1LRGUE..LFA10 |
20 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-45040 |
1LRGUE..LFA10 |
20 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-45040 |
1LRGUE..LFA10 |
20 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02115 |
1LRGUE..LFA10 |
20 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02115 |
1LRGUE..LFA10 |
20 | ||
| 13734A - SEAT, INTAKE VALVE SPRING | ||||
| 13734-45010 |
1LRGUE..LFA10 |
20 | ||
| 13734A - SEAT, INTAKE VALVE SPRING | ||||
| 13734-45010 |
1LRGUE..LFA10 |
20 | ||
| 13734B - SEAT, EXHAUST VALVE SPRING | ||||
| 13734-45020 |
1LRGUE..LFA10 |
20 | ||
| 13734B - SEAT, EXHAUST VALVE SPRING | ||||
| 13734-45020 |
1LRGUE..LFA10 |
20 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03033 |
1LRGUE..LFA10 |
80 | ||
| 13741B - RETAINER, INTAKE VALVE SPRING | ||||
| 13741-45010 |
1LRGUE..LFA10 |
20 | ||
| 13741B - RETAINER, INTAKE VALVE SPRING | ||||
| 13741-45010 |
1LRGUE..LFA10 |
20 | ||
| 13741C - RETAINER, EXHAUST VALVE SPRING | ||||
| 13741-45020 |
1LRGUE..LFA10 |
20 | ||
| 13741C - RETAINER, EXHAUST VALVE SPRING | ||||
| 13741-45020 |
1LRGUE..LFA10 |
20 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22490 |
1LRGUE..LFA10 T=2.080 |
1 | ||
| 13753-22450 |
1LRGUE..LFA10 T=2.000 |
1 | ||
| 13753-22470 |
1LRGUE..LFA10 T=2.040 |
1 | ||
| 13753-22540 |
1LRGUE..LFA10 T=2.180 |
1 | ||
| 13753-22500 |
1LRGUE..LFA10 T=2.100 |
1 | ||
| 13753-22580 |
1LRGUE..LFA10 T=2.260 |
1 | ||
| 13753-22530 |
1LRGUE..LFA10 T=2.160 |
1 | ||
| 13753-22560 |
1LRGUE..LFA10 T=2.220 |
1 | ||
| 13753-22480 |
1LRGUE..LFA10 T=2.060 |
1 | ||
| 13753-22520 |
1LRGUE..LFA10 T=2.140 |
1 | ||
| 13753-22510 |
1LRGUE..LFA10 T=2.120 |
1 | ||
| 13753-22600 |
1LRGUE..LFA10 T=2.300 |
1 | ||
| 13753-22570 |
1LRGUE..LFA10 T=2.240 |
1 | ||
| 13753-22610 |
1LRGUE..LFA10 T=2.320 |
1 | ||
| 13753-22650 |
1LRGUE..LFA10 T=2.400 |
1 | ||
| 13753-22550 |
1LRGUE..LFA10 T=2.200 |
1 | ||
| 13753-22460 |
1LRGUE..LFA10 T=2.020 |
1 | ||
| 13753-22670 |
1LRGUE..LFA10 T=2.440 |
1 | ||
| 13753-22620 |
1LRGUE..LFA10 T=2.340 |
1 | ||
| 13753-22720 |
1LRGUE..LFA10 T=2.540 |
1 | ||
| 13753-22690 |
1LRGUE..LFA10 T=2.480 |
1 | ||
| 13753-22740 |
1LRGUE..LFA10 T=2.580 |
1 | ||
| 13753-22750 |
1LRGUE..LFA10 T=2.600 |
1 | ||
| 13753-22700 |
1LRGUE..LFA10 T=2.500 |
1 | ||
| 13753-22770 |
1LRGUE..LFA10 T=2.640 |
1 | ||
| 13753-22800 |
1LRGUE..LFA10 T=2.700 |
1 | ||
| 13753-22590 |
1LRGUE..LFA10 T=2.280 |
1 | ||
| 13753-22820 |
1LRGUE..LFA10 T=2.740 |
1 | ||
| 13753-22680 |
1LRGUE..LFA10 T=2.460 |
1 | ||
| 13753-22640 |
1LRGUE..LFA10 T=2.380 |
1 | ||
| 13753-22630 |
1LRGUE..LFA10 T=2.360 |
1 | ||
| 13753-22730 |
1LRGUE..LFA10 T=2.560 |
1 | ||
| 13753-22790 |
1LRGUE..LFA10 T=2.680 |
1 | ||
| 13753-22710 |
1LRGUE..LFA10 T=2.520 |
1 | ||
| 13753-22830 |
1LRGUE..LFA10 T=2.760 |
1 | ||
| 13753-22760 |
1LRGUE..LFA10 T=2.620 |
1 | ||
| 13753-22780 |
1LRGUE..LFA10 T=2.660 |
1 | ||
| 13753-22660 |
1LRGUE..LFA10 T=2.420 |
1 | ||
| 13753-22840 |
1LRGUE..LFA10 T=2.780 |
1 | ||
| 13753-22850 |
1LRGUE..LFA10 T=2.800 |
1 | ||
| 13753-22810 |
1LRGUE..LFA10 T=2.720 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22490 |
1LRGUE..LFA10 T=2.080 |
1 | ||
| 13753-22450 |
1LRGUE..LFA10 T=2.000 |
1 | ||
| 13753-22470 |
1LRGUE..LFA10 T=2.040 |
1 | ||
| 13753-22540 |
1LRGUE..LFA10 T=2.180 |
1 | ||
| 13753-22500 |
1LRGUE..LFA10 T=2.100 |
1 | ||
| 13753-22580 |
1LRGUE..LFA10 T=2.260 |
1 | ||
| 13753-22530 |
1LRGUE..LFA10 T=2.160 |
1 | ||
| 13753-22560 |
1LRGUE..LFA10 T=2.220 |
1 | ||
| 13753-22480 |
1LRGUE..LFA10 T=2.060 |
1 | ||
| 13753-22520 |
1LRGUE..LFA10 T=2.140 |
1 | ||
| 13753-22510 |
1LRGUE..LFA10 T=2.120 |
1 | ||
| 13753-22600 |
1LRGUE..LFA10 T=2.300 |
1 | ||
| 13753-22570 |
1LRGUE..LFA10 T=2.240 |
1 | ||
| 13753-22610 |
1LRGUE..LFA10 T=2.320 |
1 | ||
| 13753-22650 |
1LRGUE..LFA10 T=2.400 |
1 | ||
| 13753-22550 |
1LRGUE..LFA10 T=2.200 |
1 | ||
| 13753-22460 |
1LRGUE..LFA10 T=2.020 |
1 | ||
| 13753-22670 |
1LRGUE..LFA10 T=2.440 |
1 | ||
| 13753-22620 |
1LRGUE..LFA10 T=2.340 |
1 | ||
| 13753-22720 |
1LRGUE..LFA10 T=2.540 |
1 | ||
| 13753-22690 |
1LRGUE..LFA10 T=2.480 |
1 | ||
| 13753-22740 |
1LRGUE..LFA10 T=2.580 |
1 | ||
| 13753-22750 |
1LRGUE..LFA10 T=2.600 |
1 | ||
| 13753-22700 |
1LRGUE..LFA10 T=2.500 |
1 | ||
| 13753-22770 |
1LRGUE..LFA10 T=2.640 |
1 | ||
| 13753-22800 |
1LRGUE..LFA10 T=2.700 |
1 | ||
| 13753-22590 |
1LRGUE..LFA10 T=2.280 |
1 | ||
| 13753-22820 |
1LRGUE..LFA10 T=2.740 |
1 | ||
| 13753-22680 |
1LRGUE..LFA10 T=2.460 |
1 | ||
| 13753-22640 |
1LRGUE..LFA10 T=2.380 |
1 | ||
| 13753-22630 |
1LRGUE..LFA10 T=2.360 |
1 | ||
| 13753-22730 |
1LRGUE..LFA10 T=2.560 |
1 | ||
| 13753-22790 |
1LRGUE..LFA10 T=2.680 |
1 | ||
| 13753-22710 |
1LRGUE..LFA10 T=2.520 |
1 | ||
| 13753-22830 |
1LRGUE..LFA10 T=2.760 |
1 | ||
| 13753-22760 |
1LRGUE..LFA10 T=2.620 |
1 | ||
| 13753-22780 |
1LRGUE..LFA10 T=2.660 |
1 | ||
| 13753-22660 |
1LRGUE..LFA10 T=2.420 |
1 | ||
| 13753-22840 |
1LRGUE..LFA10 T=2.780 |
1 | ||
| 13753-22850 |
1LRGUE..LFA10 T=2.800 |
1 | ||
| 13753-22810 |
1LRGUE..LFA10 T=2.720 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22490 |
1LRGUE..LFA10 T=2.080 |
1 | ||
| 13753-22450 |
1LRGUE..LFA10 T=2.000 |
1 | ||
| 13753-22470 |
1LRGUE..LFA10 T=2.040 |
1 | ||
| 13753-22540 |
1LRGUE..LFA10 T=2.180 |
1 | ||
| 13753-22500 |
1LRGUE..LFA10 T=2.100 |
1 | ||
| 13753-22580 |
1LRGUE..LFA10 T=2.260 |
1 | ||
| 13753-22530 |
1LRGUE..LFA10 T=2.160 |
1 | ||
| 13753-22560 |
1LRGUE..LFA10 T=2.220 |
1 | ||
| 13753-22480 |
1LRGUE..LFA10 T=2.060 |
1 | ||
| 13753-22520 |
1LRGUE..LFA10 T=2.140 |
1 | ||
| 13753-22510 |
1LRGUE..LFA10 T=2.120 |
1 | ||
| 13753-22600 |
1LRGUE..LFA10 T=2.300 |
1 | ||
| 13753-22570 |
1LRGUE..LFA10 T=2.240 |
1 | ||
| 13753-22610 |
1LRGUE..LFA10 T=2.320 |
1 | ||
| 13753-22650 |
1LRGUE..LFA10 T=2.400 |
1 | ||
| 13753-22550 |
1LRGUE..LFA10 T=2.200 |
1 | ||
| 13753-22460 |
1LRGUE..LFA10 T=2.020 |
1 | ||
| 13753-22670 |
1LRGUE..LFA10 T=2.440 |
1 | ||
| 13753-22620 |
1LRGUE..LFA10 T=2.340 |
1 | ||
| 13753-22720 |
1LRGUE..LFA10 T=2.540 |
1 | ||
| 13753-22690 |
1LRGUE..LFA10 T=2.480 |
1 | ||
| 13753-22740 |
1LRGUE..LFA10 T=2.580 |
1 | ||
| 13753-22750 |
1LRGUE..LFA10 T=2.600 |
1 | ||
| 13753-22700 |
1LRGUE..LFA10 T=2.500 |
1 | ||
| 13753-22770 |
1LRGUE..LFA10 T=2.640 |
1 | ||
| 13753-22800 |
1LRGUE..LFA10 T=2.700 |
1 | ||
| 13753-22590 |
1LRGUE..LFA10 T=2.280 |
1 | ||
| 13753-22820 |
1LRGUE..LFA10 T=2.740 |
1 | ||
| 13753-22680 |
1LRGUE..LFA10 T=2.460 |
1 | ||
| 13753-22640 |
1LRGUE..LFA10 T=2.380 |
1 | ||
| 13753-22630 |
1LRGUE..LFA10 T=2.360 |
1 | ||
| 13753-22730 |
1LRGUE..LFA10 T=2.560 |
1 | ||
| 13753-22790 |
1LRGUE..LFA10 T=2.680 |
1 | ||
| 13753-22710 |
1LRGUE..LFA10 T=2.520 |
1 | ||
| 13753-22830 |
1LRGUE..LFA10 T=2.760 |
1 | ||
| 13753-22760 |
1LRGUE..LFA10 T=2.620 |
1 | ||
| 13753-22780 |
1LRGUE..LFA10 T=2.660 |
1 | ||
| 13753-22660 |
1LRGUE..LFA10 T=2.420 |
1 | ||
| 13753-22840 |
1LRGUE..LFA10 T=2.780 |
1 | ||
| 13753-22850 |
1LRGUE..LFA10 T=2.800 |
1 | ||
| 13753-22810 |
1LRGUE..LFA10 T=2.720 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22490 |
1LRGUE..LFA10 T=2.080 |
1 | ||
| 13753-22450 |
1LRGUE..LFA10 T=2.000 |
1 | ||
| 13753-22470 |
1LRGUE..LFA10 T=2.040 |
1 | ||
| 13753-22540 |
1LRGUE..LFA10 T=2.180 |
1 | ||
| 13753-22500 |
1LRGUE..LFA10 T=2.100 |
1 | ||
| 13753-22580 |
1LRGUE..LFA10 T=2.260 |
1 | ||
| 13753-22530 |
1LRGUE..LFA10 T=2.160 |
1 | ||
| 13753-22560 |
1LRGUE..LFA10 T=2.220 |
1 | ||
| 13753-22480 |
1LRGUE..LFA10 T=2.060 |
1 | ||
| 13753-22520 |
1LRGUE..LFA10 T=2.140 |
1 | ||
| 13753-22510 |
1LRGUE..LFA10 T=2.120 |
1 | ||
| 13753-22600 |
1LRGUE..LFA10 T=2.300 |
1 | ||
| 13753-22570 |
1LRGUE..LFA10 T=2.240 |
1 | ||
| 13753-22610 |
1LRGUE..LFA10 T=2.320 |
1 | ||
| 13753-22650 |
1LRGUE..LFA10 T=2.400 |
1 | ||
| 13753-22550 |
1LRGUE..LFA10 T=2.200 |
1 | ||
| 13753-22460 |
1LRGUE..LFA10 T=2.020 |
1 | ||
| 13753-22670 |
1LRGUE..LFA10 T=2.440 |
1 | ||
| 13753-22620 |
1LRGUE..LFA10 T=2.340 |
1 | ||
| 13753-22720 |
1LRGUE..LFA10 T=2.540 |
1 | ||
| 13753-22690 |
1LRGUE..LFA10 T=2.480 |
1 | ||
| 13753-22740 |
1LRGUE..LFA10 T=2.580 |
1 | ||
| 13753-22750 |
1LRGUE..LFA10 T=2.600 |
1 | ||
| 13753-22700 |
1LRGUE..LFA10 T=2.500 |
1 | ||
| 13753-22770 |
1LRGUE..LFA10 T=2.640 |
1 | ||
| 13753-22800 |
1LRGUE..LFA10 T=2.700 |
1 | ||
| 13753-22590 |
1LRGUE..LFA10 T=2.280 |
1 | ||
| 13753-22820 |
1LRGUE..LFA10 T=2.740 |
1 | ||
| 13753-22680 |
1LRGUE..LFA10 T=2.460 |
1 | ||
| 13753-22640 |
1LRGUE..LFA10 T=2.380 |
1 | ||
| 13753-22630 |
1LRGUE..LFA10 T=2.360 |
1 | ||
| 13753-22730 |
1LRGUE..LFA10 T=2.560 |
1 | ||
| 13753-22790 |
1LRGUE..LFA10 T=2.680 |
1 | ||
| 13753-22710 |
1LRGUE..LFA10 T=2.520 |
1 | ||
| 13753-22830 |
1LRGUE..LFA10 T=2.760 |
1 | ||
| 13753-22760 |
1LRGUE..LFA10 T=2.620 |
1 | ||
| 13753-22780 |
1LRGUE..LFA10 T=2.660 |
1 | ||
| 13753-22660 |
1LRGUE..LFA10 T=2.420 |
1 | ||
| 13753-22840 |
1LRGUE..LFA10 T=2.780 |
1 | ||
| 13753-22850 |
1LRGUE..LFA10 T=2.800 |
1 | ||
| 13753-22810 |
1LRGUE..LFA10 T=2.720 |
1 | ||
| 13935 - SPRING, INTAKE VALVE ROCKER ARM | ||||
| 13935-45011 |
1LRGUE..LFA10 |
20 | ||
| 13935 - SPRING, INTAKE VALVE ROCKER ARM | ||||
| 13935-45011 |
1LRGUE..LFA10 |
20 | ||
| 13935A - SPRING, EXHAUST VALVE ROCKER ARM | ||||
| 13935-45020 |
1LRGUE..LFA10 |
20 | ||
| 13935A - SPRING, EXHAUST VALVE ROCKER ARM | ||||
| 13935-45020 |
1LRGUE..LFA10 |
20 | ||
Part Price Details
Loading price information...
Part Number:
Price:
