LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

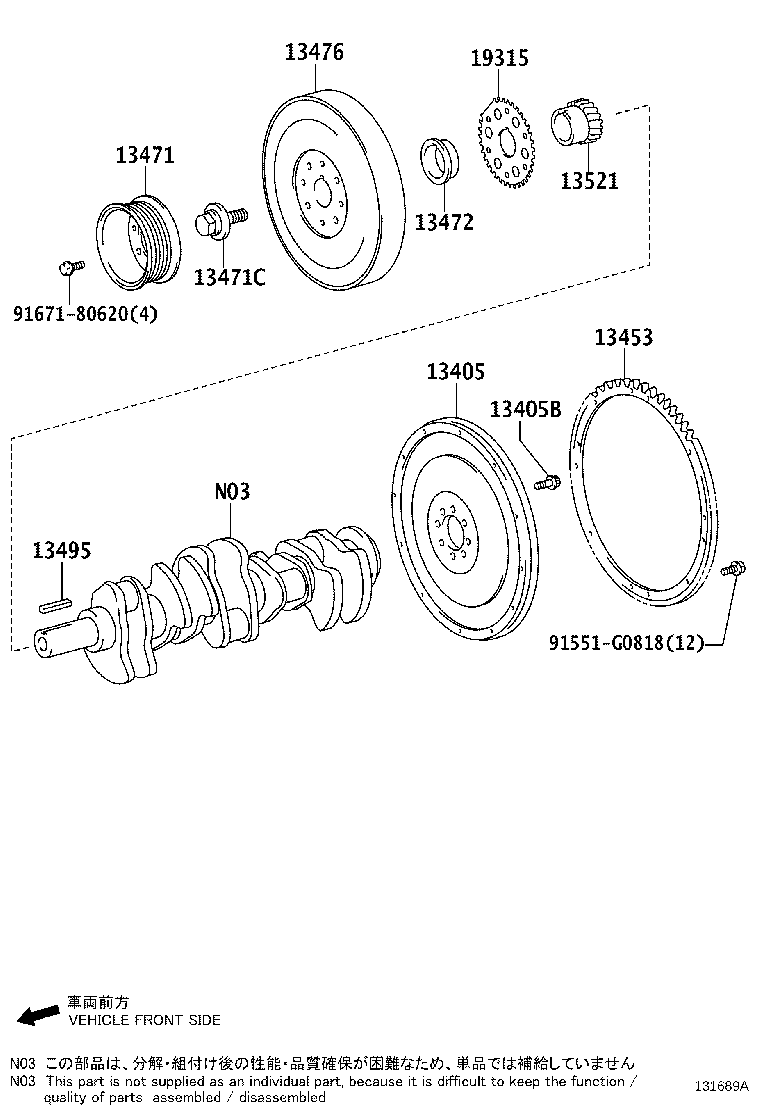

Click highlighted areas on diagram

diagram 13405 13405B 13453 13471 13471C 13472 13476 13495 13521 19315 91551G0818 9167180620
Part # Description Qty Price
13405 - FLYWHEEL SUB-ASSY
13451-45010

1LRGUE..LFA10

 1
13405B - BOLT, FLYWHEEL SETTING
11254-45130

1LRGUE..LFA10

 8
13453 - GEAR, FLYWHEEL RING
13453-45010

1LRGUE..LFA10

 1
13471 - PULLEY, CRANKSHAFT
13471-45010

1LRGUE..LFA10

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-18003

1LRGUE..LFA10

 1
13472 - HUB, CRANKSHAFT PULLEY
13472-45010

1LRGUE..LFA10

 1
13476 - DAMPER, CRANKSHAFT
13476-45010

1LRGUE..LFA10

 1
13495 - LOCK, CRANKSHAFT PULLEY
13495-45010

1LRGUE..LFA10

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-45020

1LRGUE..LFA10

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-45010

1LRGUE..LFA10

 1
Common parts
91551-G0818
91671-80620
