LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

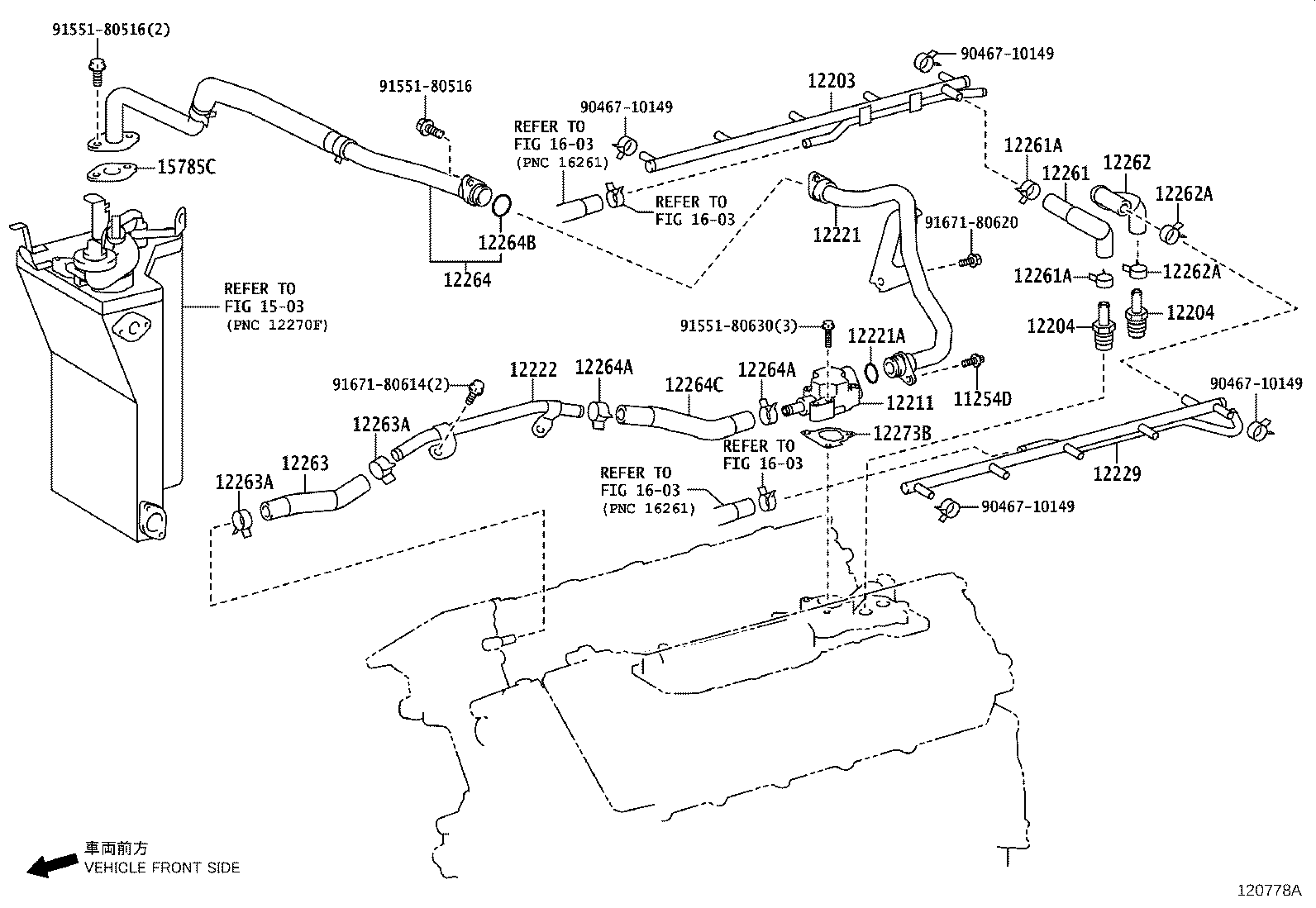

Click highlighted areas on diagram

diagram 11254D 12203 12204 12204 12211 12221 12221A 12222 12229 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 12264 12264A 12264A 12264B 12264C 12273B 1503 15785C 1603 1603 1603 9046710149 9046710149 9046710149 9046710149 9155180516 9155180516 9155180630 9167180614 9167180620
Part # Description Qty Price
11254D - BOLT, V-BANK COVER
11254-45181

1LRGUE..LFA10

 1
12203 - PIPE SUB-ASSY, VENTILATION
12203-45010

1LRGUE..LFA10

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-45020

1LRGUE..LFA10

 2
12204 - VALVE SUB-ASSY, VENTILATION
12204-45020

1LRGUE..LFA10

 2
12211 - CASE, VENTILATION, NO.1
12211-45010

1LRGUE..LFA10

 1
12221 - TUBE, VENTILATION NO.1
12221-45020

1LRGUE..LFA10

 1
12221A - RING, O(FOR VENTILATION TUBE NO.1)
96721-24020

1LRGUE..LFA10

 1
12222 - TUBE, VENTILATION, NO.2
12222-45020

1LRGUE..LFA10

 1
12229 - PIPE, VENTILATION
12229-45010

1LRGUE..LFA10

 1
12261 - HOSE, VENTILATION
12261-45020

1LRGUE..LFA10

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

1LRGUE..LFA10

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

1LRGUE..LFA10

 2
12262 - HOSE, VENTILATION, NO.2
12262-45010

1LRGUE..LFA10

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14037

1LRGUE..LFA10

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14037

1LRGUE..LFA10

 2
12263 - HOSE, VENTILATION, NO.3
12263-45010

1LRGUE..LFA10

 1
12263A - CLIP(FOR VENTILATION HOSE)
96136-41901

1LRGUE..LFA10

 2
12263A - CLIP(FOR VENTILATION HOSE)
96136-41901

1LRGUE..LFA10

 2
12264 - HOSE, VENTILATION, NO.4
12264-45010

1LRGUE..LFA10

 1
12264A - CLIP(FOR VENTILATION HOSE)
96136-41901

1LRGUE..LFA10

 2
12264A - CLIP(FOR VENTILATION HOSE)
96136-41901

1LRGUE..LFA10

 2
12264B - RING O(FOR VENTILATION HOSE NO.4)
96711-24020

1LRGUE..LFA10

 1
12264C - HOSE, VENTILATION, NO.5
12264-45020

1LRGUE..LFA10

 1
12273B - GASKET, OIL SEPARATOR
12273-45010

1LRGUE..LFA10

 1
15785C - GASKET, OIL COOLER
15785-54010

1LRGUE..LFA10

 1
Common parts
90467-10149
91551-80516
91551-80630
91671-80614
91671-80620
Linked diagrams
1503
1603
