LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

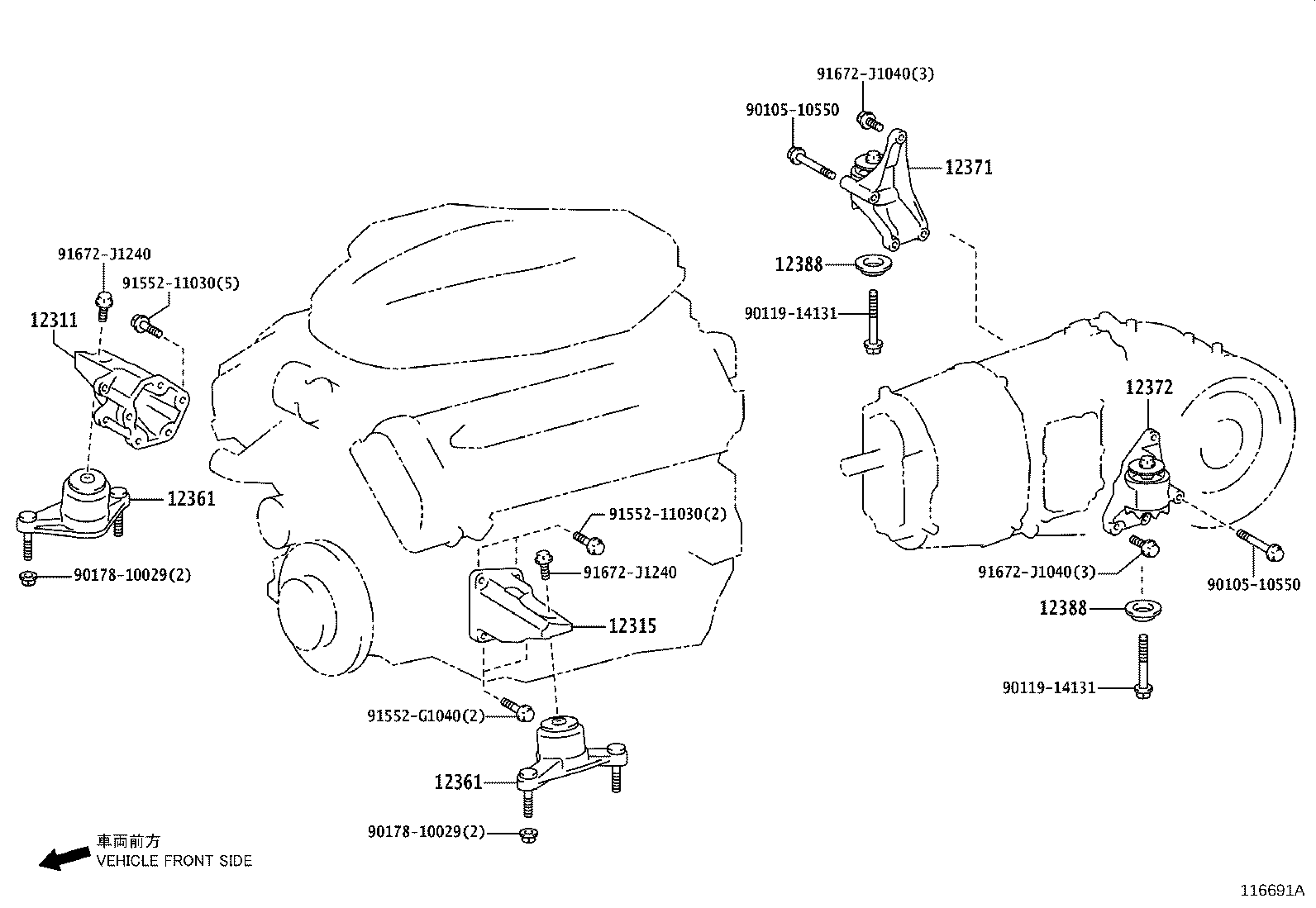

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12372 12388 12388 9010510550 9010510550 9011914131 9011914131 9017810029 9017810029 9155211030 9155211030 91552G1040 91672J1040 91672J1040 91672J1240 91672J1240
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-45010

1LRGUE..LFA10

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-45010

1LRGUE..LFA10

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-45010

1LRGUE..LFA10

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-45010

1LRGUE..LFA10

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-45030

1LRGUE..LFA10

 1
12372 - INSULATOR, ENGINE MOUNTING, REAR NO.2
12372-45010

1LRGUE..LFA10

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-45010

1LRGUE..LFA10

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-45010

1LRGUE..LFA10

 2
Common parts
90105-10550
90119-14131
90178-10029
91552-11030
91552-G1040
91672-J1040
91672-J1240
