LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

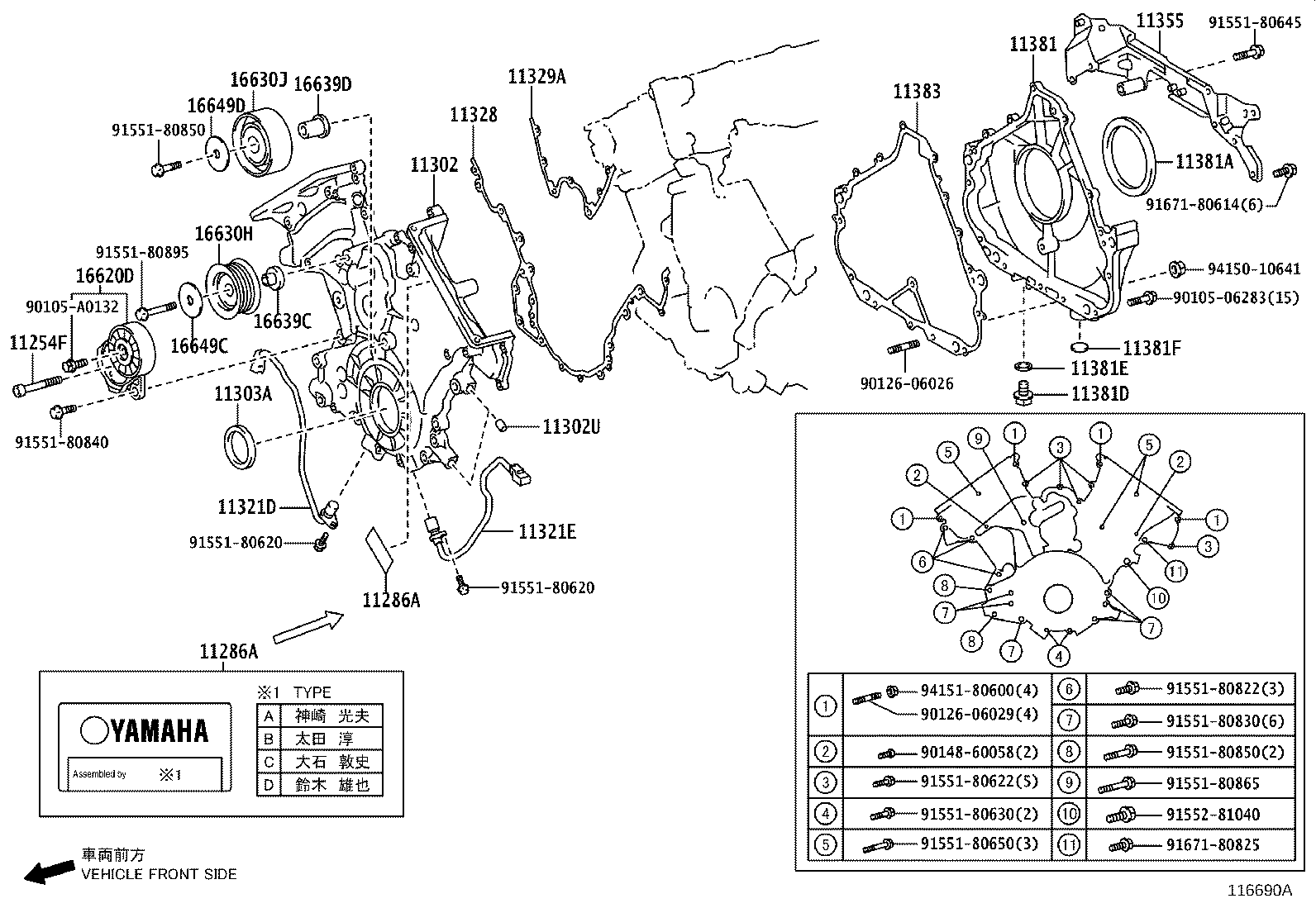

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11254F - BOLT, V-BANK COVER | ||||
| 11254-45170 |
1LRGUE..LFA10 |
1 | ||
| 11286A - PLATE, ENGINE SPECIFICATION | ||||
| 11286-45050 |
1LRGUE..LFA10 TYPE D |
1 | ||
| 11286-45040 |
1LRGUE..LFA10 TYPE C |
1 | ||
| 11286-45030 |
1LRGUE..LFA10 TYPE B |
1 | ||
| 11286-45020 |
1LRGUE..LFA10 TYPE A |
1 | ||
| 11286A - PLATE, ENGINE SPECIFICATION | ||||
| 11286-45050 |
1LRGUE..LFA10 TYPE D |
1 | ||
| 11286-45040 |
1LRGUE..LFA10 TYPE C |
1 | ||
| 11286-45030 |
1LRGUE..LFA10 TYPE B |
1 | ||
| 11286-45020 |
1LRGUE..LFA10 TYPE A |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-45020 |
1LRGUE..LFA10 |
1 | ||
| 11302U - PIN, RING | ||||
| 90253-11006 |
1LRGUE..LFA10 |
2 | ||
| 11303A - SEAL, OIL(FOR CRANKSHAFT FRONT) | ||||
| 11551-45010 |
1LRGUE..LFA10 |
1 | ||
| 11321D - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05077 |
1LRGUE..LFA10 |
1 | ||
| 11321E - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05076 |
1LRGUE..LFA10 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-45010 |
1LRGUE..LFA10 |
1 | ||
| 11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2 | ||||
| 11329-45010 |
1LRGUE..LFA10 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-45010 |
1LRGUE..LFA10 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-45010 |
1LRGUE..LFA10 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 11551-45020 |
1LRGUE..LFA10 |
1 | ||
| 11381D - PLUG, STRAIGHT SCREW(FOR OIL SEAL RETAINER) | ||||
| 90341-12012 |
1LRGUE..LFA10 |
1 | ||
| 11381E - GASKET(FOR OIL SEAL RETAINER STRAIGHT SCREW PLUG) | ||||
| 90430-12031 |
1LRGUE..LFA10 |
1 | ||
| 11381F - TIGHT PLUG(FOR OIL SEAL RETAINER) | ||||
| 96411-61800 |
1LRGUE..LFA10 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-45010 |
1LRGUE..LFA10 |
1 | ||
| 16620D - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0W150 |
1LRGUE..LFA10 |
1 | ||
| 16630H - PULLEY ASSY, IDLER | ||||
| 16630-45010 |
1LRGUE..LFA10 |
1 | ||
| 16630J - PULLEY ASSY, IDLER, NO.2 | ||||
| 16630-45020 |
1LRGUE..LFA10 |
1 | ||
| 16639C - SPACER, IDLER PULLEY NO.1 | ||||
| 16639-45010 |
1LRGUE..LFA10 |
1 | ||
| 16639D - SPACER, IDLER PULLEY NO.2 | ||||
| 16639-45020 |
1LRGUE..LFA10 |
1 | ||
| 16649C - PLATE, IDLER PULLEY COVER | ||||
| 16649-45010 |
1LRGUE..LFA10 |
1 | ||
| 16649D - PLATE, IDLER PULLEY COVER, NO.2 | ||||
| 16649-45010 |
1LRGUE..LFA10 |
1 | ||
| Common parts | ||||
| 90105-06283 | ||||
| 90105-A0132 | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90148-60058 | ||||
| 91551-80620 | ||||
| 91551-80622 | ||||
| 91551-80630 | ||||
| 91551-80645 | ||||
| 91551-80650 | ||||
| 91551-80822 | ||||
| 91551-80830 | ||||
| 91551-80840 | ||||
| 91551-80850 | ||||
| 91551-80865 | ||||
| 91551-80895 | ||||
| 91552-81040 | ||||
| 91671-80614 | ||||
| 91671-80825 | ||||
| 94150-10641 | ||||
| 94151-80600 | ||||
