LFA10L-FCRAFA (2010)
Toyota Lexus Lfa

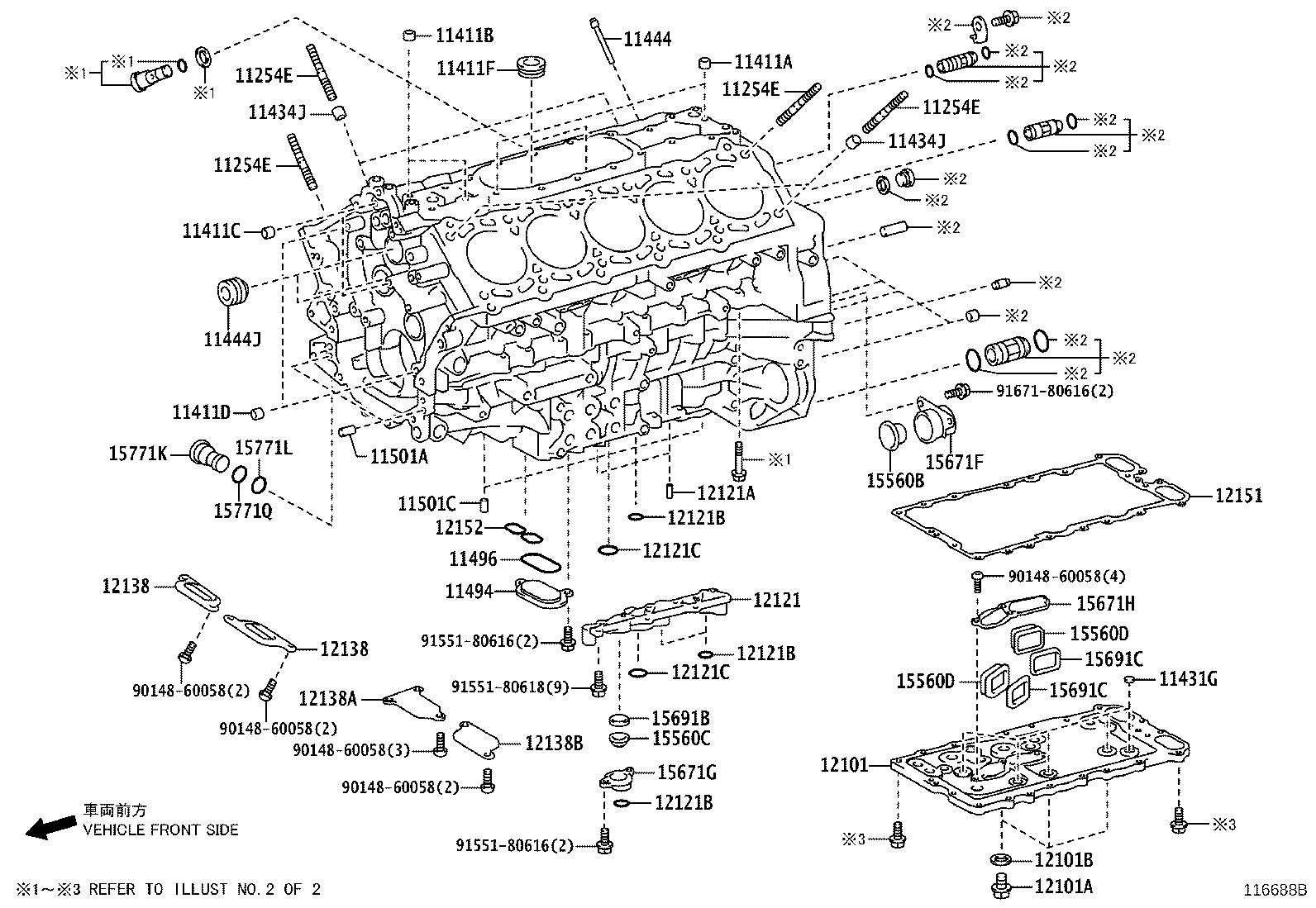

ILLUST NO. 1 OF 2(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11254E - BOLT, V-BANK COVER | ||||
| 11254-45120 |
1LRGUE..LFA10 |
8 | ||
| 11254E - BOLT, V-BANK COVER | ||||
| 11254-45120 |
1LRGUE..LFA10 |
8 | ||
| 11254E - BOLT, V-BANK COVER | ||||
| 11254-45120 |
1LRGUE..LFA10 |
8 | ||
| 11254E - BOLT, V-BANK COVER | ||||
| 11254-45120 |
1LRGUE..LFA10 |
8 | ||
| 11411A - PIN, RING(FOR CYLINDER BLOCK NO.1 ) | ||||
| 90253-09001 |
1LRGUE..LFA10 |
2 | ||
| 11411B - PIN, RING(FOR CYLINDER BLOCK NO.2) | ||||
| 90253-11021 |
1LRGUE..LFA10 |
2 | ||
| 11411C - PIN, RING(FOR CYLINDER BLOCK NO.3) | ||||
| 90253-11021 |
1LRGUE..LFA10 |
2 | ||
| 11411D - PIN, RING(FOR CYLINDER BLOCK NO.4) | ||||
| 90253-11021 |
1LRGUE..LFA10 |
2 | ||
| 11411F - PLUG, STRAIGHT SCREW(FOR CYLINDER BLOCK) | ||||
| 90341-27003 |
1LRGUE..LFA10 |
2 | ||
| 11431G - PLUG, TIGHT | ||||
| 96411-41200 |
1LRGUE..LFA10 |
5 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-14003 |
1LRGUE..LFA10 |
4 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-14003 |
1LRGUE..LFA10 |
4 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-45010 |
1LRGUE..LFA10 |
1 | ||
| 11444J - PLUG, HOLE | ||||
| 11444-45030 |
1LRGUE..LFA10 |
2 | ||
| 11494 - PLATE, OIL HOLE COVER | ||||
| 11494-45020 |
1LRGUE..LFA10 |
1 | ||
| 11496 - GASKET, OIL HOLE COVER PLATE | ||||
| 11496-45020 |
1LRGUE..LFA10 |
1 | ||
| 11501A - PIN, STRAIGHT(FOR CRANKSHAFT BEARING CAP FRONT) | ||||
| 90250-06003 |
1LRGUE..LFA10 |
2 | ||
| 11501C - PIN, STRAIGHT(FOR OIL PAN COVER) | ||||
| 90250-06027 |
1LRGUE..LFA10 |
2 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-45020 |
1LRGUE..LFA10 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1LRGUE..LFA10 |
3 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1LRGUE..LFA10 |
3 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-45010 |
1LRGUE..LFA10 |
1 | ||
| 12121A - PIN, STRAIGHT(FOR OIL PAN BAFFLE PLATE) | ||||
| 90250-04015 |
1LRGUE..LFA10 |
2 | ||
| 12121B - RING O(OIL PAN BAFFLE PLATE NO.1) | ||||
| 96721-19017 |
1LRGUE..LFA10 |
4 | ||
| 12121B - RING O(OIL PAN BAFFLE PLATE NO.1) | ||||
| 96721-19017 |
1LRGUE..LFA10 |
4 | ||
| 12121B - RING O(OIL PAN BAFFLE PLATE NO.1) | ||||
| 96721-19017 |
1LRGUE..LFA10 |
4 | ||
| 12121C - RING O(OIL PAN BAFFLE PLATE NO.2) | ||||
| 96723-19022 |
1LRGUE..LFA10 |
2 | ||
| 12121C - RING O(OIL PAN BAFFLE PLATE NO.2) | ||||
| 96723-19022 |
1LRGUE..LFA10 |
2 | ||
| 12138 - PLATE, OIL PAN BOTTOM, NO.1 | ||||
| 12138-45010 |
1LRGUE..LFA10 |
2 | ||
| 12138 - PLATE, OIL PAN BOTTOM, NO.1 | ||||
| 12138-45010 |
1LRGUE..LFA10 |
2 | ||
| 12138A - PLATE, OIL PAN BOTTOM, NO.2 | ||||
| 12138-45020 |
1LRGUE..LFA10 |
1 | ||
| 12138B - PLATE, OIL PAN BOTTOM, NO.3 | ||||
| 12138-45030 |
1LRGUE..LFA10 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-45010 |
1LRGUE..LFA10 |
1 | ||
| 12152 - GASKET, OIL PAN, NO.2 | ||||
| 12152-45010 |
1LRGUE..LFA10 |
1 | ||
| 15560B - FILTER ASSY, BY-PASS FLOW OIL, NO.1 | ||||
| 15560-45030 |
1LRGUE..LFA10 |
1 | ||
| 15560C - FILTER ASSY, BY-PASS FLOW OIL, NO.2 | ||||
| 15560-45040 |
1LRGUE..LFA10 |
1 | ||
| 15560D - FILTER ASSY, BY-PASS FLOW OIL, NO.3 | ||||
| 15560-45050 |
1LRGUE..LFA10 |
2 | ||
| 15560D - FILTER ASSY, BY-PASS FLOW OIL, NO.3 | ||||
| 15560-45050 |
1LRGUE..LFA10 |
2 | ||
| 15671F - BRACKET, OIL FILTER, NO.1 | ||||
| 15671-45030 |
1LRGUE..LFA10 |
1 | ||
| 15671G - BRACKET, OIL FILTER, NO.2 | ||||
| 15671-45040 |
1LRGUE..LFA10 |
1 | ||
| 15671H - BRACKET, OIL FILTER, NO.3 | ||||
| 15671-45050 |
1LRGUE..LFA10 |
1 | ||
| 15691B - GASKET, OIL FILTER | ||||
| 15691-45020 |
1LRGUE..LFA10 |
1 | ||
| 15691C - GASKET, OIL FILTER, NO.2 | ||||
| 15691-45030 |
1LRGUE..LFA10 |
2 | ||
| 15691C - GASKET, OIL FILTER, NO.2 | ||||
| 15691-45030 |
1LRGUE..LFA10 |
2 | ||
| 15771K - PIPE, OIL, NO.1 | ||||
| 15771-45020 |
1LRGUE..LFA10 |
1 | ||
| 15771L - RING, O(FOR OIL PIPE NO.1) | ||||
| 96721-19016 |
1LRGUE..LFA10 |
1 | ||
| 15771Q - RING, O(FOR OIL PIPE NO.2) | ||||
| 96723-19017 |
1LRGUE..LFA10 |
1 | ||
| Common parts | ||||
| 90148-60058 | ||||
| 91551-80616 | ||||
| 91551-80618 | ||||
| 91671-80616 | ||||
ILLUST NO. 2 OF 2(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11411E - PIN, RING(FOR CYLINDER BLOCK NO.5) | ||||
| 90253-11021 |
1LRGUE..LFA10 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10030 |
1LRGUE..LFA10 L=36,OD=10 |
2 | ||
| 11444A - RING, O | ||||
| 96721-24014 |
1LRGUE..LFA10 |
1 | ||
| 11444D - PLUG, HOLE | ||||
| 11444-45020 |
1LRGUE..LFA10 |
1 | ||
| 11501B - PIN, STRAIGHT(FOR CRANKSHAFT BEARING CAP REAR) | ||||
| 90250-06003 |
1LRGUE..LFA10 |
2 | ||
| 15770C - PIPE ASSY, OIL, NO.1 | ||||
| 15770-45010 |
1LRGUE..LFA10 |
1 | ||
| 15770D - PIPE ASSY, OIL, NO.2 | ||||
| 15770-45020 |
1LRGUE..LFA10 |
1 | ||
| 15770E - PIPE ASSY, OIL, NO.3 | ||||
| 15770-45030 |
1LRGUE..LFA10 |
1 | ||
| 15770J - RING, O(FOR OIL PIPE NO.2) | ||||
| 96721-24010 |
1LRGUE..LFA10 |
2 | ||
| 15770J - RING, O(FOR OIL PIPE NO.2) | ||||
| 96721-24010 |
1LRGUE..LFA10 |
2 | ||
| 15772K - RING, O(FOR OIL PIPE NO.2) | ||||
| 96721-24018 |
1LRGUE..LFA10 |
2 | ||
| 15772K - RING, O(FOR OIL PIPE NO.2) | ||||
| 96721-24018 |
1LRGUE..LFA10 |
2 | ||
| 15773A - RING, O(FOR OIL PIPE NO.3) | ||||
| 96721-24010 |
1LRGUE..LFA10 |
2 | ||
| 15773A - RING, O(FOR OIL PIPE NO.3) | ||||
| 96721-24010 |
1LRGUE..LFA10 |
2 | ||
| 15783B - BRACKET, OIL PIPE CLAMP | ||||
| 15783-45010 |
1LRGUE..LFA10 |
1 | ||
| Common parts | ||||
| 90105-06231 | ||||
| 90105-06323 | ||||
| 91551-80614 | ||||
| 91551-80840 | ||||
| 91551-80845 | ||||
| 91551-80850 | ||||
| 91551-80865 | ||||
| 91551-80880 | ||||
