LFA10L-FCRAFA (2010)
Toyota Lexus Lfa

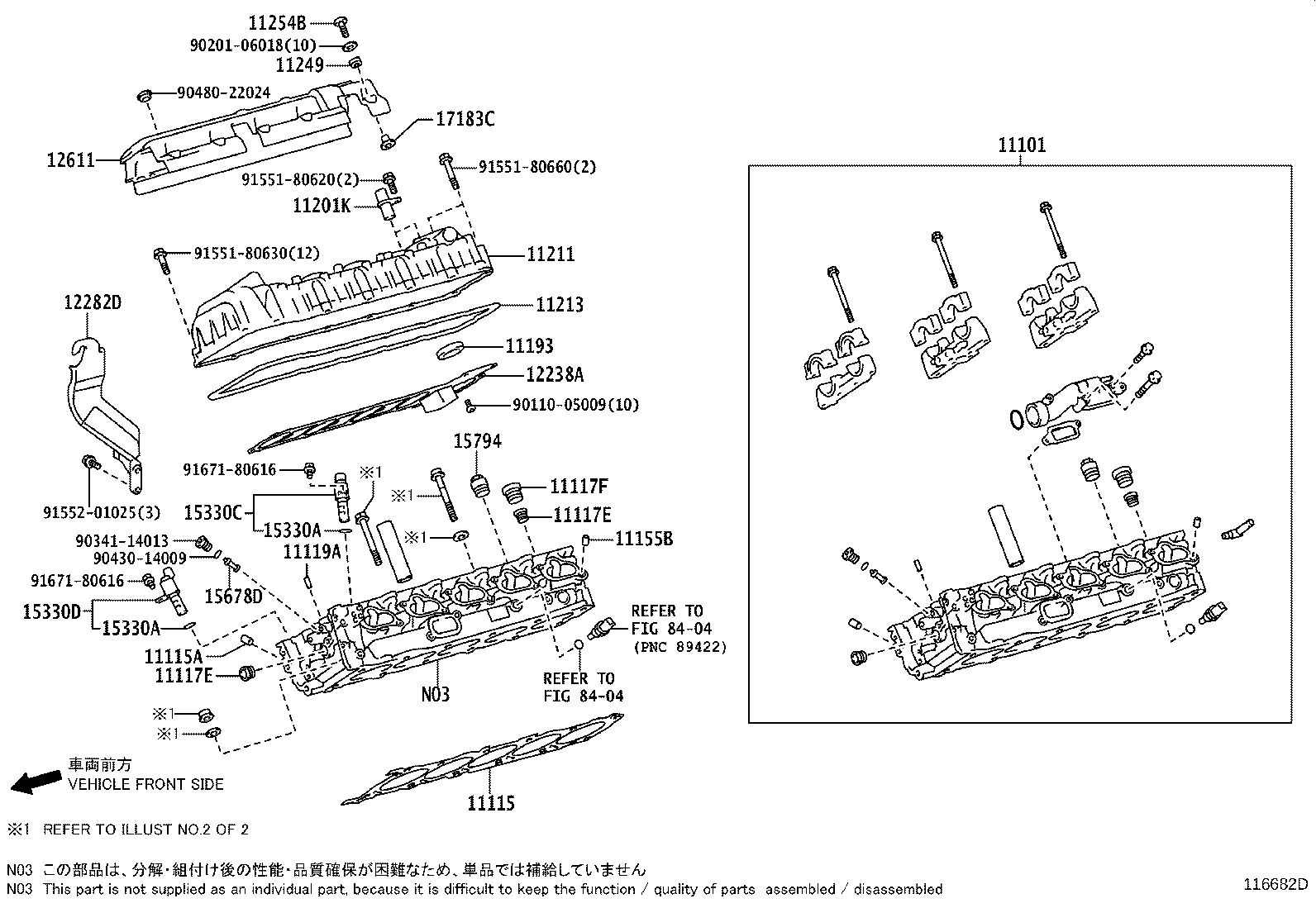

ILLUST NO. 1 OF 2(1012- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11110-45100 |
1LRGUE..LFA10 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-45060 |
1LRGUE..LFA10 |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-11006 |
1LRGUE..LFA10 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-18010 |
1LRGUE..LFA10 |
5 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-18010 |
1LRGUE..LFA10 |
5 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1LRGUE..LFA10 |
4 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-04015 |
1LRGUE..LFA10 L=11.8,OD=4.0 |
6 | ||
| 11155B - PIN, RING | ||||
| 90253-08003 |
1LRGUE..LFA10 |
12 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
1LRGUE..LFA10 |
5 | ||
| 11201K - SENSOR, CAM POSITION, RH | ||||
| 90919-05060 |
1LRGUE..LFA10 |
2 | ||
| 11211 - COVER, CYLINDER HEAD, RH | ||||
| 11211-45030 |
1LRGUE..LFA10 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-45030 |
1LRGUE..LFA10 |
1 | ||
| 11249 - GROMMET, CYLINDER HEAD COVER | ||||
| 11249-45010 |
1LRGUE..LFA10 |
20 | ||
| 11254B - BOLT, V-BANK COVER | ||||
| 11254-45020 |
1LRGUE..LFA10 |
20 | ||
| 12238A - PLATE, VENTILATION BAFFLE | ||||
| 12238-45020 |
1LRGUE..LFA10 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-45010 |
1LRGUE..LFA10 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-45010 |
1LRGUE..LFA10 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1LRGUE..LFA10 |
4 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1LRGUE..LFA10 |
4 | ||
| 15330C - VALVE ASSY, CAM TIMING OIL CONTROL, INTAKE RH | ||||
| 15330-45010 |
1LRGUE..LFA10 |
1 | ||
| 15330D - VALVE ASSY, CAM TIMING OIL CONTROL, EXHAUST RH | ||||
| 15330-45020 |
1LRGUE..LFA10 |
1 | ||
| 15678D - FILTER, OIL CONTROL VALVE, RH | ||||
| 15678-21010 |
1LRGUE..LFA10 |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-45010 |
1LRGUE..LFA10 |
1 | ||
| 17183C - COLLAR, ENGINE COVER | ||||
| 17183-45020 |
1LRGUE..LFA10 |
20 | ||
| Common parts | ||||
| 90110-05009 | ||||
| 90201-06018 | ||||
| 90341-14013 | ||||
| 90430-14009 | ||||
| 90480-22024 | ||||
| 91551-80620 | ||||
| 91551-80630 | ||||
| 91551-80660 | ||||
| 91552-01025 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||

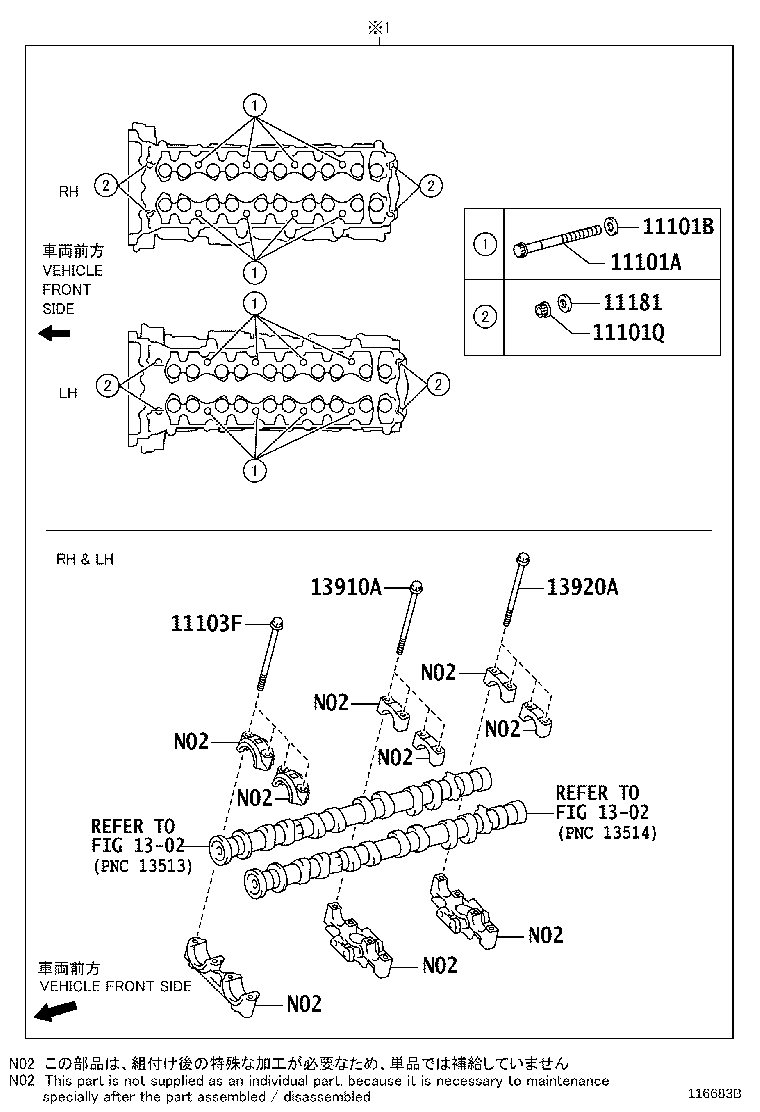

ILLUST NO. 2 OF 2(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 11254-45160 |
1LRGUE..LFA10 |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
1LRGUE..LFA10 |
16 | ||
| 11101Q - NUT(FOR CYLINDER HEAD SET) | ||||
| 13495-45020 |
1LRGUE..LFA10 |
8 | ||
| 11103F - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 11254-45110 |
1LRGUE..LFA10 |
8 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-45010 |
1LRGUE..LFA10 |
8 | ||
| 13910A - BOLT(FOR VALVE ROCKER HOUSING NO.1) | ||||
| 11254-45110 |
1LRGUE..LFA10 |
32 | ||
| 13920A - BOLT(FOR VALVE ROCKER HOUSING NO.2) | ||||
| 11254-45110 |
1LRGUE..LFA10 |
8 | ||
| Linked diagrams | ||||
| 1302 | ||||

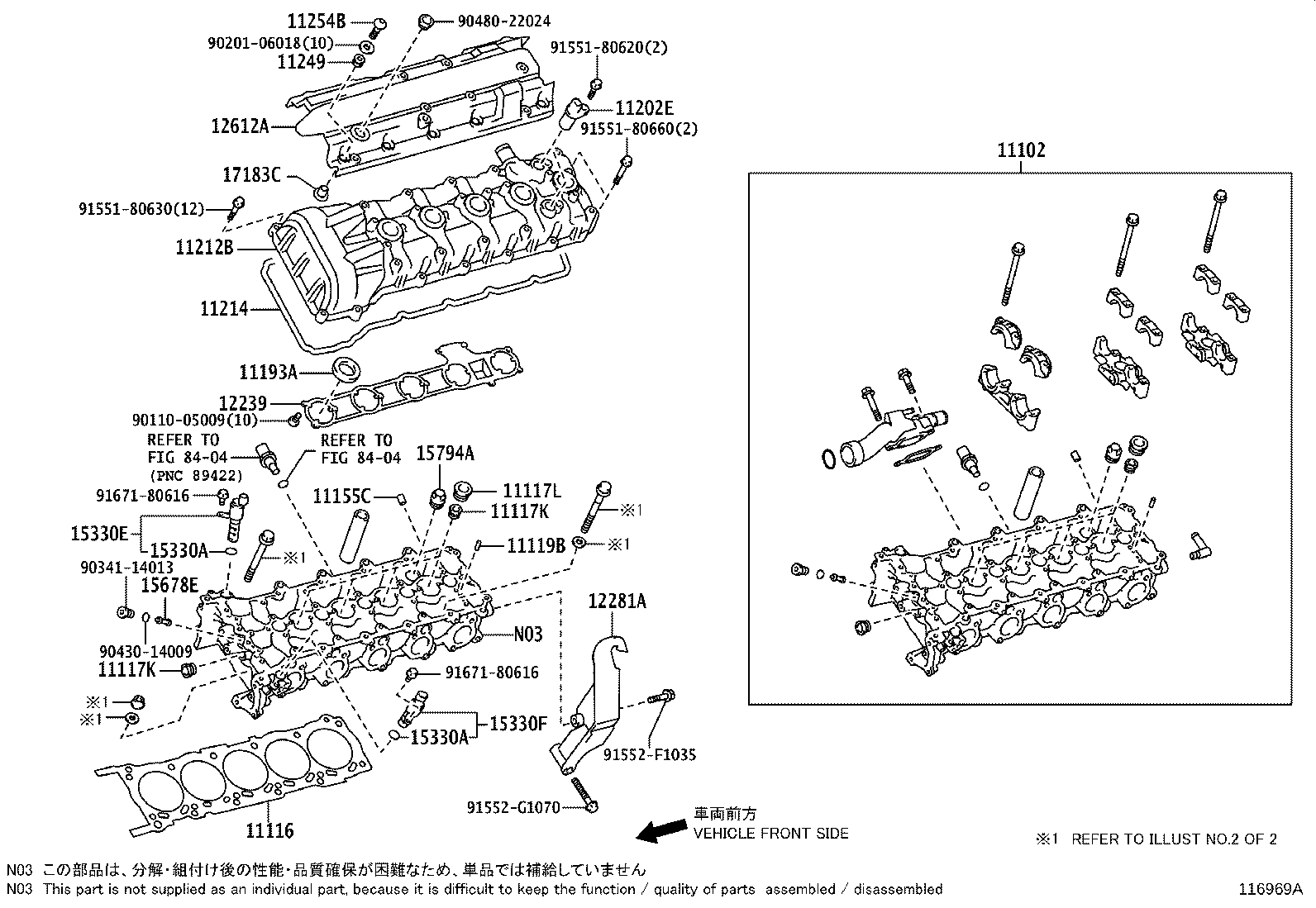

ILLUST NO. 1 OF 2(1012- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11102 - HEAD, CYLINDER, LH | ||||
| 11120-45020 |
1LRGUE..LFA10 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-45010 |
1LRGUE..LFA10 |
1 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-18010 |
1LRGUE..LFA10 |
5 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-18010 |
1LRGUE..LFA10 |
5 | ||
| 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||||
| 90341-27003 |
1LRGUE..LFA10 |
4 | ||
| 11119B - PIN, STRAIGHT, NO.2 | ||||
| 90250-04015 |
1LRGUE..LFA10 L=11.8,OD=4.0 |
6 | ||
| 11155C - PIN, RING NO.2 | ||||
| 90253-08003 |
1LRGUE..LFA10 |
12 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-15010 |
1LRGUE..LFA10 |
5 | ||
| 11202E - SENSOR, CAM POSITION, LH | ||||
| 90919-05060 |
1LRGUE..LFA10 |
2 | ||
| 11212B - COVER, CYLINDER HEAD, LH | ||||
| 11212-45010 |
1LRGUE..LFA10 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-45010 |
1LRGUE..LFA10 |
1 | ||
| 11249 - GROMMET, CYLINDER HEAD COVER | ||||
| 11249-45010 |
1LRGUE..LFA10 |
20 | ||
| 11254B - BOLT, V-BANK COVER | ||||
| 11254-45020 |
1LRGUE..LFA10 |
20 | ||
| 12239 - PLATE, VENTILATION BAFFLE, NO.2 | ||||
| 12239-45010 |
1LRGUE..LFA10 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-45040 |
1LRGUE..LFA10 |
1 | ||
| 12612A - COVER, ENGINE, NO.2 | ||||
| 12611-45020 |
1LRGUE..LFA10 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1LRGUE..LFA10 |
4 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1LRGUE..LFA10 |
4 | ||
| 15330E - VALVE ASSY, CAM TIMING OIL CONTROL, INTAKE LH | ||||
| 15330-45020 |
1LRGUE..LFA10 |
1 | ||
| 15330F - VALVE ASSY, CAM TIMING OIL CONTROL, EXHAUST LH | ||||
| 15330-45010 |
1LRGUE..LFA10 |
1 | ||
| 15678E - FILTER, OIL CONTROL VALVE, LH | ||||
| 15678-21010 |
1LRGUE..LFA10 |
1 | ||
| 15794A - NOZZLE, CYLINDER HEAD OIL, LH | ||||
| 15794-45010 |
1LRGUE..LFA10 |
1 | ||
| 17183C - COLLAR, ENGINE COVER | ||||
| 17183-45020 |
1LRGUE..LFA10 |
20 | ||
| Common parts | ||||
| 90110-05009 | ||||
| 90201-06018 | ||||
| 90341-14013 | ||||
| 90430-14009 | ||||
| 90480-22024 | ||||
| 91551-80620 | ||||
| 91551-80630 | ||||
| 91551-80660 | ||||
| 91552-F1035 | ||||
| 91552-G1070 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
