LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

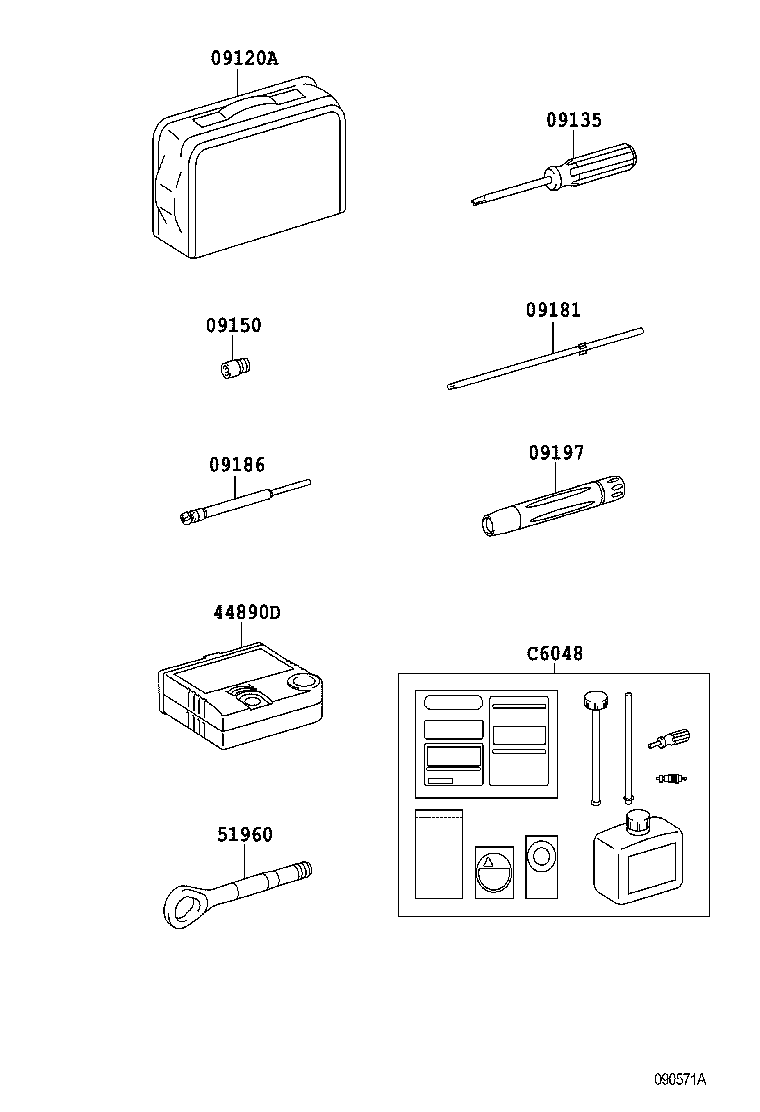

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09120A - CASE, TOOL | ||||
| 09120-77010 |
LFA10 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 09135-50050 |
LFA10 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09151-77010 |
LFA10 |
1 | ||
| 09181 - ROD, PARKING BRAKE RELEASE | ||||
| 09181-50010 |
LFA10 |
1 | ||
| 09186 - GAGE, TIRE | ||||
| 09186-00010 |
LFA10 |
1 | ||
| 09197 - LIGHT, PEN | ||||
| 09197-77010 |
LFA10 |
1 | ||
| 44890D - COMPRESSOR ASSY, AIR | ||||
| 44890-77020 |
LFA10 |
1 | ||
| 51960 - HOOK ASSY, FRONT | ||||
| 51961-53010 |
LFA10 |
1 | ||
| C6048 - REPAIR SET, TIRE | ||||
| C6048-77010 |
LFA10 |
1 | ||
| C6048-77011 |
LFA10 |
1 | ||
