URZ100L-AKUBHA (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

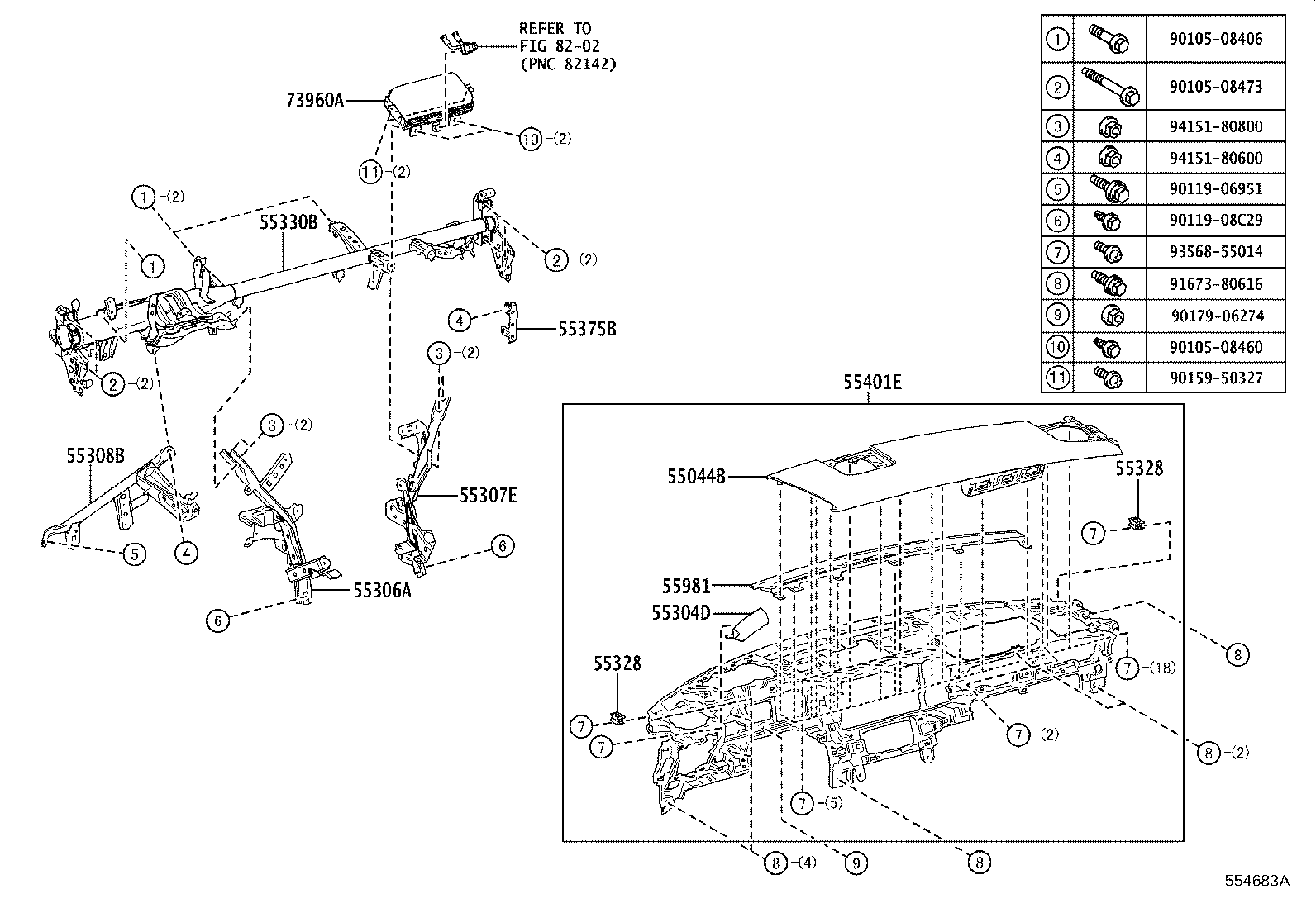

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

diagram 55044B 55304D 55306A 55307E 55308B 55328 55328 55330B 55375B 55401E 55981 73960A 8202 9010508406 9010508460 9010508473 9011906951 9011908C29 9015950327 9017906274 9167380616 9356855014 9415180600 9415180800
Part # Description Qty Price
55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER
55044-11010E1

URZ100

OCHRE,TRIM4#

 1
55044-11010C1

URZ100

BLACK,TRIM2#,3#

 1
55044-11010J0

URZ100

BLUE,TRIM0#

 1
55304D - PANEL SUB-ASSY, INSTRUMENT, MAIN
55304-11010J0

URZ100

BLUE,TRIM0#

 1
55304-11010C1

URZ100

BLACK,TRIM2#,3#

 1
55304-11010E1

URZ100

OCHRE,TRIM4#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-11030

URZ100

 1
55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-11030

URZ100

 1
55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55308-11030

URZ100

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-60090

URZ100

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-60090

URZ100

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-11050

URZ100

 1
55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55375-11030

URZ100

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-11040C2

URZ100

BLACK,TRIM2#,3#

 1
55401-11040E2

URZ100

OCHRE,TRIM4#

 1
55401-11040J1

URZ100

BLUE,TRIM0#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-11010C1

URZ100

BLACK,TRIM2#,3#

 1
55981-11010J1

URZ100

BLUE,TRIM0#

 1
55981-11010E1

URZ100

OCHRE,TRIM4#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-11010

URZ100

KOREA SPEC

 1
73960-11030

URZ100

 1
Common parts
90105-08406
90105-08460
90105-08473
90119-06951
90119-08C29
90159-50327
90179-06274
91673-80616
93568-55014
94151-80600
94151-80800
Linked diagrams
8202

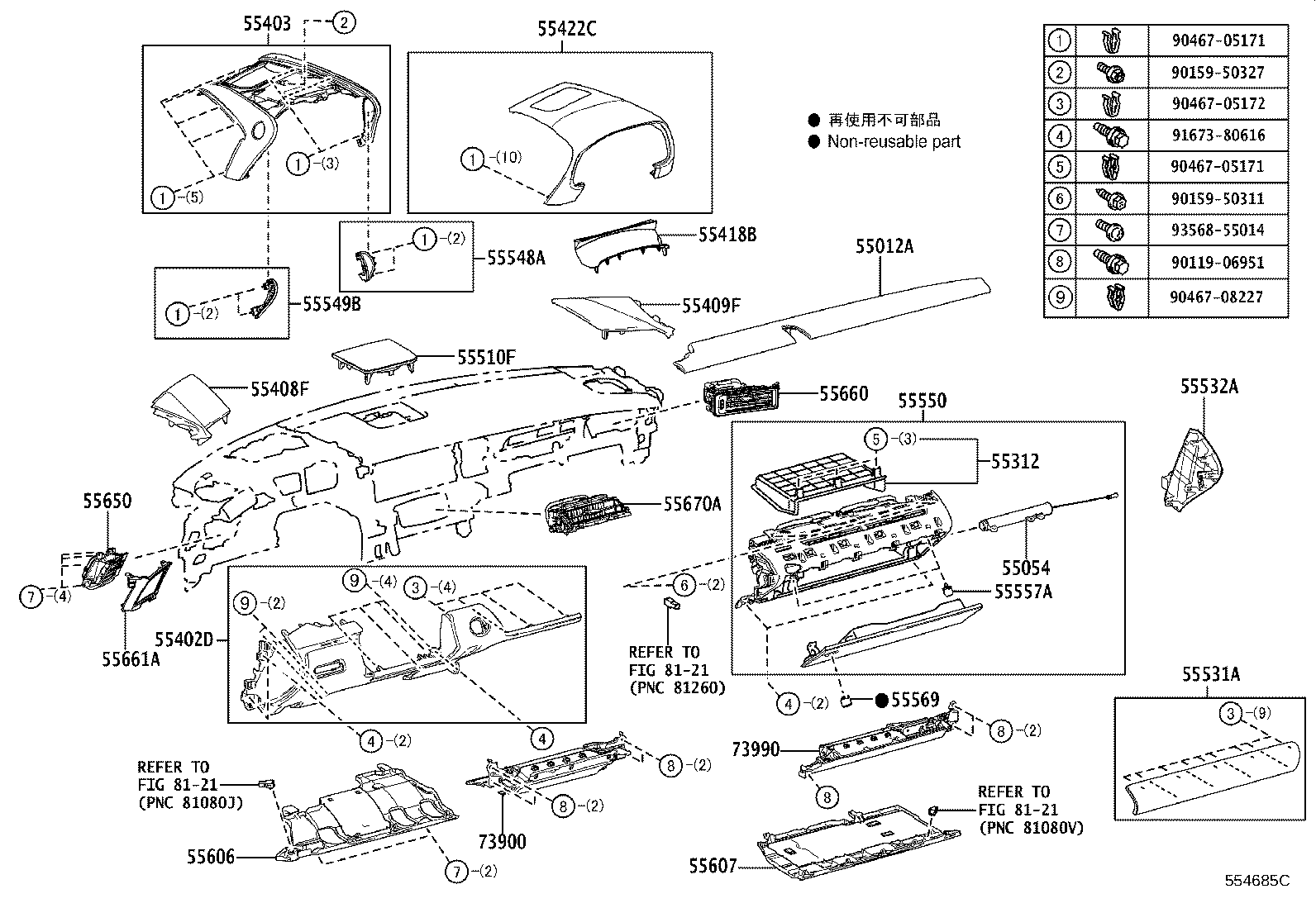

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

diagram 55012A 55054 55312 55402D 55403 55408F 55409F 55418B 55422C 55510F 55531A 55532A 55548A 55549B 55550 55557A 55569 55606 55607 55650 55660 55661A 55670A 73900 73990 8121 8121 8121 9011906951 9015950311 9015950327 9046705171 9046705171 9046705172 9046708227 9167380616 9356855014
Part # Description Qty Price
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-11030J1

URZ100

BLUE,TRIM0#

 1
55012-11030E2

URZ100

OCHRE,TRIM4#

 1
55012-11030C2

URZ100

BLACK,TRIM2#,3#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-11020

URZ100

 1
55312 - PANEL, INSTRUMENT, LOWER
55312-11080

URZ100

 1
55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
55402-11010C8

URZ100

BLACK,TRIM2#,3#

 1
55402-11010A4

URZ100

WHITE/BLUE,TRIM0#

 1
55402-11010E8

URZ100

OCHER,TRIM4#

 1
55403 - HOOD SUB-ASSY, METER
55403-11020J2

URZ100

BLUE,TRIM0#

 1
55403-11020E3

URZ100

OCHRE,TRIM4#

 1
55403-11020C3

URZ100

BLACK,TRIM2#,3#

 1
55403-11010C7

URZ100

HEAD UP DISPLAY-WITH,BLACK,TRIM2#,3#

 1
55403-11010L1

URZ100

HEAD UP DISPLAY-WITH,OCHRE,TRIM4#

 1
55403-11010J5

URZ100

HEAD UP DISPLAY-WITH,BLUE,TRIM0#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-11010C6

URZ100

BLACK,TRIM2#,3#

 1
55408-11010J5

URZ100

BLUE/WHITE,TRIM0#

 1
55408-11010E6

URZ100

OCHER,TRIM4#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55409-11010C6

URZ100

BLACK,TRIM2#,3#

 1
55409-11010J5

URZ100

BLUE/WHITE,TRIM0#

 1
55409-11010E6

URZ100

OCHER,TRIM4#

 1
55418B - SPACER,METER HOOD
55418-11010C4

URZ100

BLACK,TRIM2#,3#,4#

 1
55418-11010J2

URZ100

BLUE,TRIM0#

 1
55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER
55422-11130E4

URZ100

OCHRE,TRIM4#

 1
55422-11130J3

URZ100

BLUE,TRIM0#

 1
55422-11150J2

URZ100

HEAD UP DISPLAY-WITH,BLUE,TRIM0#

 1
55422-11130C5

URZ100

BLACK,TRIM2#,3#

 1
55422-11150C4

URZ100

HEAD UP DISPLAY-WITH,BLACK,TRIM2#,3#

 1
55422-11150E3

URZ100

HEAD UP DISPLAY-WITH,OCHRE,TRIM4#

 1
55510F - COVER ASSY, SPEAKER OPENING, NO.1
55510-11010C2

URZ100

BLACK,TRIM2#,3#

 1
55510-11010J1

URZ100

BLUE,TRIM0#

 1
55510-11010E1

URZ100

OCHRE,TRIM4#

 1
55531A - PANEL, GLOVE COMPARTMENT, NO.1
55531-11010C1

URZ100

BLACK,TRIM2#,3#

 1
55531-11010E0

URZ100

OCHRE,TRIM4#

 1
55531-11010A0

URZ100

WHITE/BLUE,TRIM0#

 1
55532A - PANEL, GLOVE COMPARTMENT, NO.2
55532-11020E1

URZ100

OCHRE,TRIM4#

 1
55532-11020C1

URZ100

BLACK,TRIM2#,3#

 1
55532-11020A1

URZ100

WHITE,TRIM0#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-11010J3

URZ100

BLUE,TRIM0#

 1
55548-11010E3

URZ100

OCHRE,TRIM4#

 1
55548-11010C4

URZ100

BLACK,TRIM2#,3#

 1
55549B - COVER, INSTRUMENT PANEL HOLE, NO.2
55549-11010J3

URZ100

BLUE,TRIM0#

 1
55549-11010E3

URZ100

OCHRE,TRIM4#

 1
55549-11010C4

URZ100

BLACK,TRIM2#,3#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-11010E2

URZ100

OCHRE,TRIM4#

 1
55550-11010C2

URZ100

BLACK,TRIM2#,3#

 1
55550-11010A0

URZ100

WHITE/BLUE,TRIM0#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-47050

URZ100

 2
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-11030A1

URZ100

WHITE,TRIM0#

 1
55569-11030C2

URZ100

BLACK,TRIM2#,3#

 1
55569-11030E1

URZ100

OCHRE,TRIM4#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-11010

URZ100

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-11030

URZ100

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-11010

URZ100

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-11010

URZ100

 1
55661A - BEZEL, INSTRUMENT PANEL REGISTER
55661-11090

URZ100

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-11030

URZ100

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-11010C3

URZ100

BLACK,TRIM2#,3#

 1
73900-11010E2

URZ100

OCHRE,TRIM4#

 1
73900-11010A1

URZ100

WHITE,TRIM0#

 1
73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2
73990-11010C3

URZ100

BLACK,TRIM2#,3#

 1
73990-11010E2

URZ100

OCHRE,TRIM4#

 1
73990-11010A1

URZ100

WHITE,TRIM0#

 1
Common parts
90119-06951
90159-50311
90159-50327
90467-05171
90467-05172
90467-08227
91673-80616
93568-55014
Linked diagrams
8121
