GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

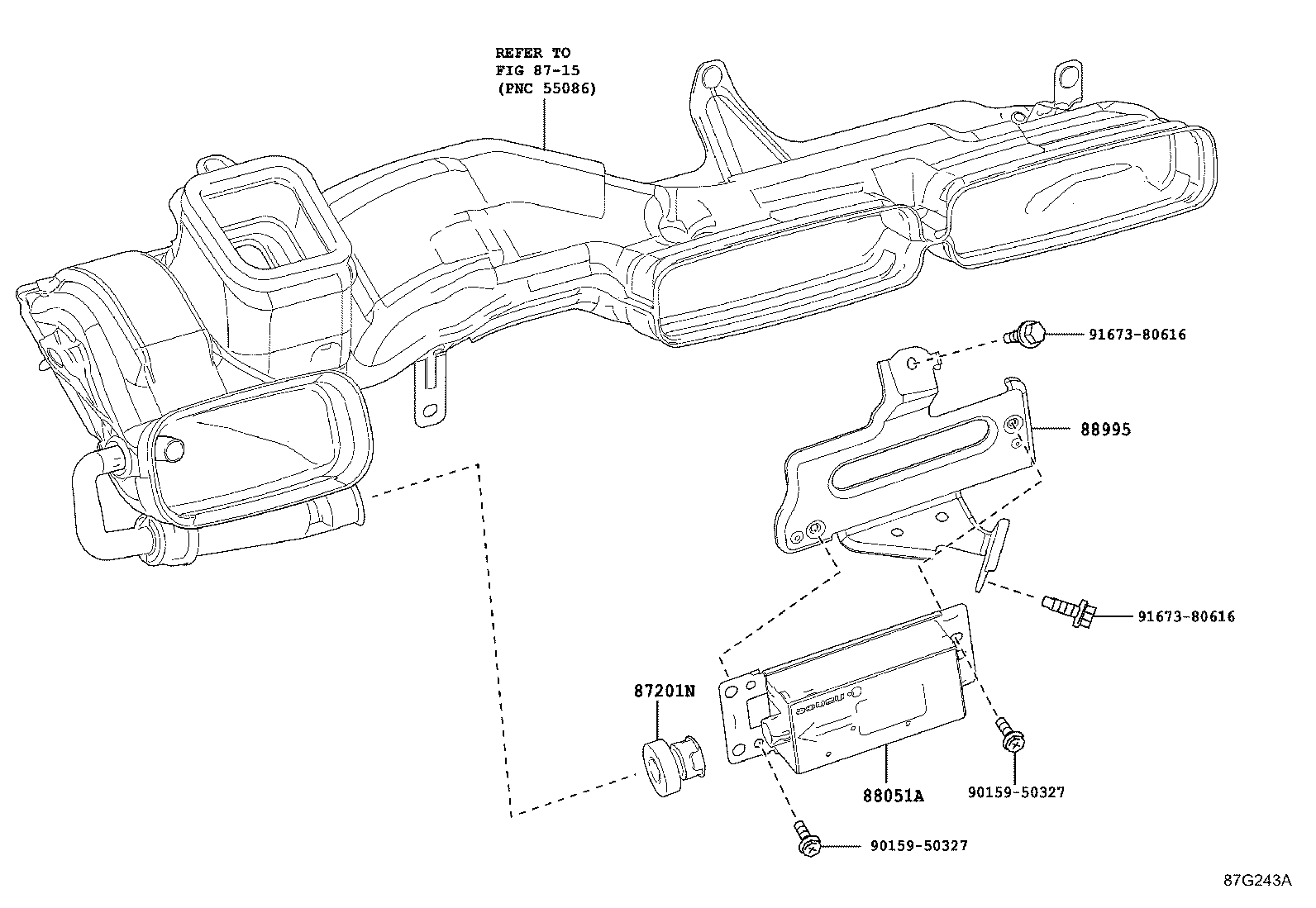

Click highlighted areas on diagram

diagram 8715 87201N 88051A 88995 9015950327 9015950327 9167380616 9167380616
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
55848-50010

GWZ100,URZ100

KOREA SPEC

 1
88051A - GENERATOR SUB-ASSY,ION
88051-28060

GWZ100,URZ100

KOREA SPEC

 1
88995 - BRACKET,ION GENERATOR, NO.1
88995-11010

GWZ100,URZ100

KOREA SPEC

 1
Common parts
90159-50327
91673-80616
Linked diagrams
8715
