GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )GWZ100

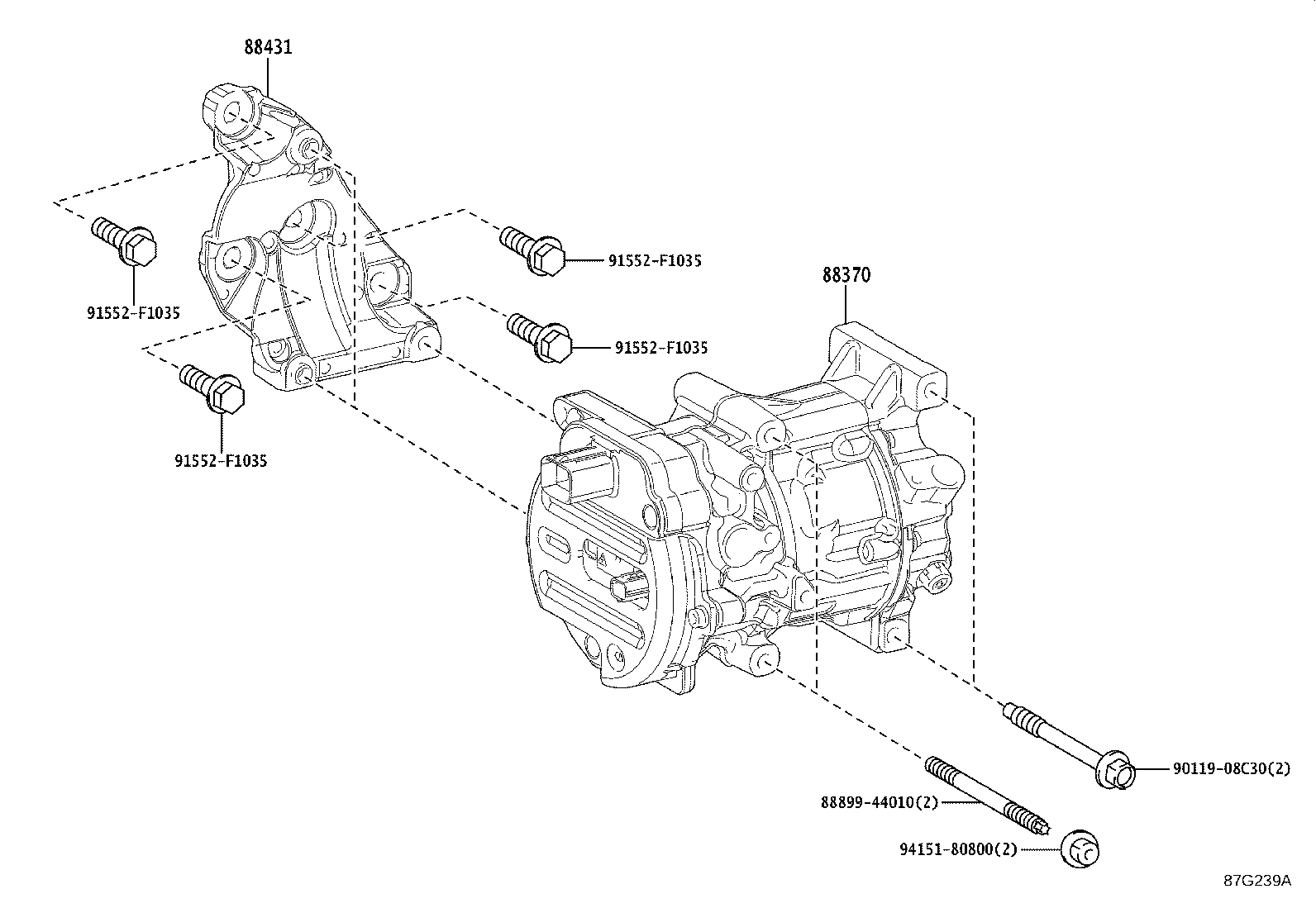

Click highlighted areas on diagram

diagram 88370 88431 8889944010 9011908C30 91552F1035 91552F1035 91552F1035 91552F1035 9415180800
Part # Description Qty Price
88370 - COMPRESSOR ASSY, W/MOTOR
88370-11010

GWZ100

 1
88370-11011

GWZ100

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-11010

GWZ100

 1
Common parts
88899-44010
90119-08C30
91552-F1035
94151-80800
