GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )GWZ100

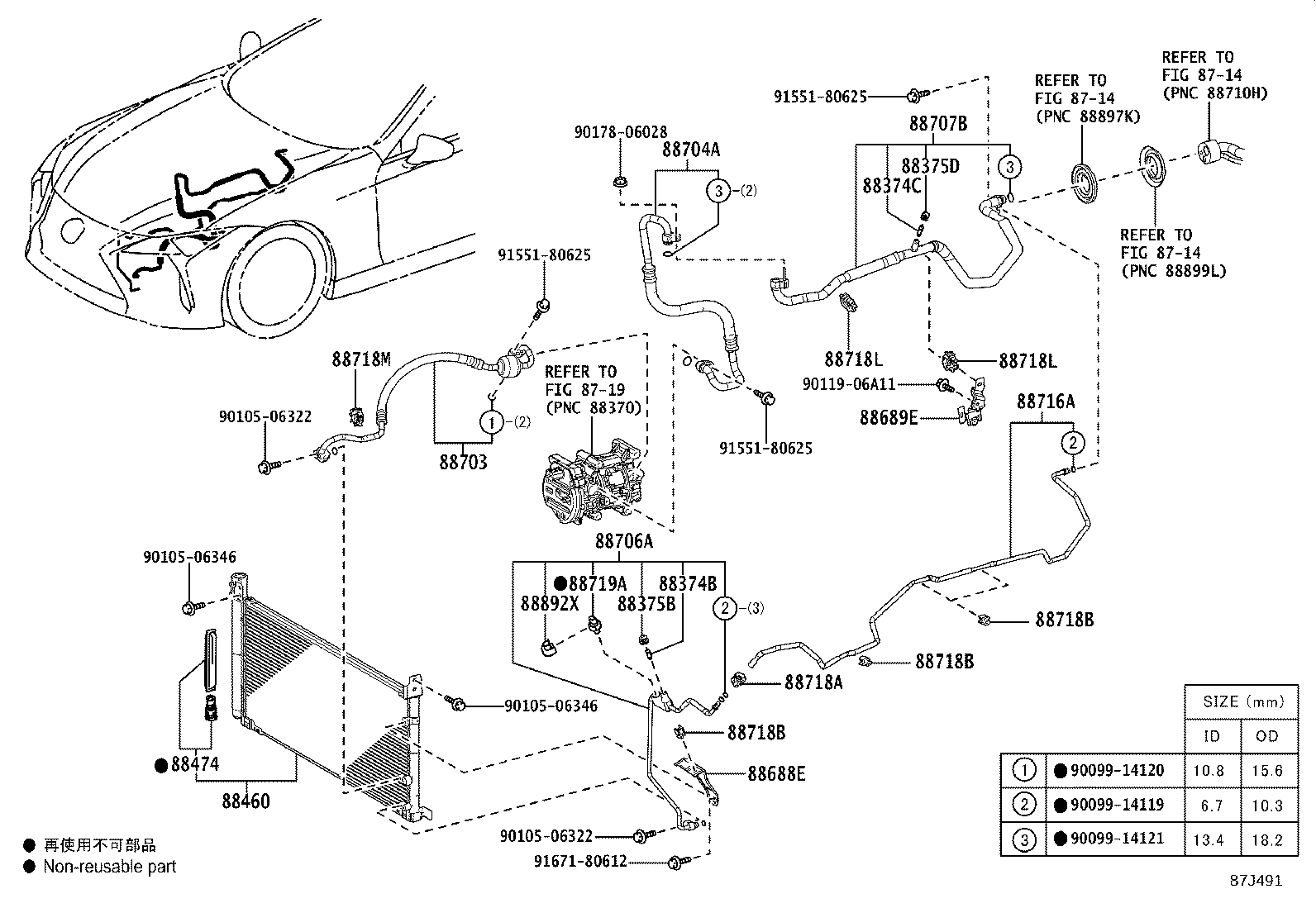

Click highlighted areas on diagram

diagram 8714 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88688E 88689E 88703 88704A 88706A 88707B 88716A 88718A 88718B 88718B 88718B 88718L 88718L 88718M 88719A 88892X 9009914119 9009914120 9009914121 9010506322 9010506322 9010506346 9010506346 9011906A11 9017806028 9155180625 9155180625 9155180625 9167180612
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GWZ100,URZ100

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GWZ100,URZ100

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

GWZ100,URZ100

KOREA SPEC

 1
88375-30320

GWZ100,URZ100

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30310

GWZ100,URZ100

 1
88375-30290

GWZ100,URZ100

KOREA SPEC

 1
88460 - CONDENSER ASSY, COOLER
884A0-11030

GWZ100

 1
88474 - DRYER, COOLER
88474-47030

GWZ100,URZ100

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-11010

GWZ100,URZ100

 1
88689E - BRACKET, COOLER, NO.1
88688-11040

GWZ100

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-11020

GWZ100

 1
88704A - HOSE SUB-ASSY, SUCTION, A
88704-11020

GWZ100

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-11010

GWZ100,URZ100

KOREA SPEC

 1
88706-11030

GWZ100,URZ100

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-11030

GWZ100

KOREA SPEC

 1
88707-11070

GWZ100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-11030

GWZ100

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-2D150

GWZ100,URZ100

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-50390

GWZ100,URZ100

 4
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-50390

GWZ100,URZ100

 4
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-50390

GWZ100,URZ100

 4
88718L - CLAMP, PIPING
88718-42110

GWZ100,URZ100

 2
88718L - CLAMP, PIPING
88718-42110

GWZ100,URZ100

 2
88718M - CLAMP, PIPING
88718-47090

GWZ100,URZ100

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

GWZ100,URZ100

 1
88892X - COVER, COOLER, NO.2
88892-50120

GWZ100,URZ100

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-06322
90105-06346
90119-06A11
90178-06028
91551-80625
91671-80612
Linked diagrams
8714
8719

(1701-1905)GWZ100

Click highlighted areas on diagram

diagram 8714 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88688E 88689E 88703 88704A 88706A 88707B 88716A 88718A 88718B 88718B 88718B 88718L 88718L 88718M 88719A 88892X 9009914119 9009914120 9009914121 9010506322 9010506322 9010506346 9010506346 9010506349 9017806028 9155180625 9155180625 9155180625 9167180612
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GWZ100,URZ100

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GWZ100,URZ100

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

GWZ100,URZ100

KOREA SPEC

 1
88375-30320

GWZ100,URZ100

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30310

GWZ100,URZ100

 1
88375-30290

GWZ100,URZ100

KOREA SPEC

 1
88460 - CONDENSER ASSY, COOLER
884A0-11030

GWZ100

 1
88474 - DRYER, COOLER
88474-47030

GWZ100,URZ100

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-11010

GWZ100,URZ100

 1
88689E - BRACKET, COOLER, NO.1
88688-11040

GWZ100

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-11020

GWZ100

 1
88704A - HOSE SUB-ASSY, SUCTION, A
88704-11020

GWZ100

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-11010

GWZ100,URZ100

KOREA SPEC

 1
88706-11030

GWZ100,URZ100

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-11030

GWZ100

KOREA SPEC

 1
88707-11070

GWZ100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-11030

GWZ100

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-2D150

GWZ100,URZ100

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-50390

GWZ100,URZ100

 4
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-50390

GWZ100,URZ100

 4
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-50390

GWZ100,URZ100

 4
88718L - CLAMP, PIPING
88718-42110

GWZ100,URZ100

 2
88718L - CLAMP, PIPING
88718-42110

GWZ100,URZ100

 2
88718M - CLAMP, PIPING
88718-47090

GWZ100,URZ100

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

GWZ100,URZ100

 1
88892X - COVER, COOLER, NO.2
88892-50120

GWZ100,URZ100

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-06322
90105-06346
90105-06349
90178-06028
91551-80625
91671-80612
Linked diagrams
8714
8719
