GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

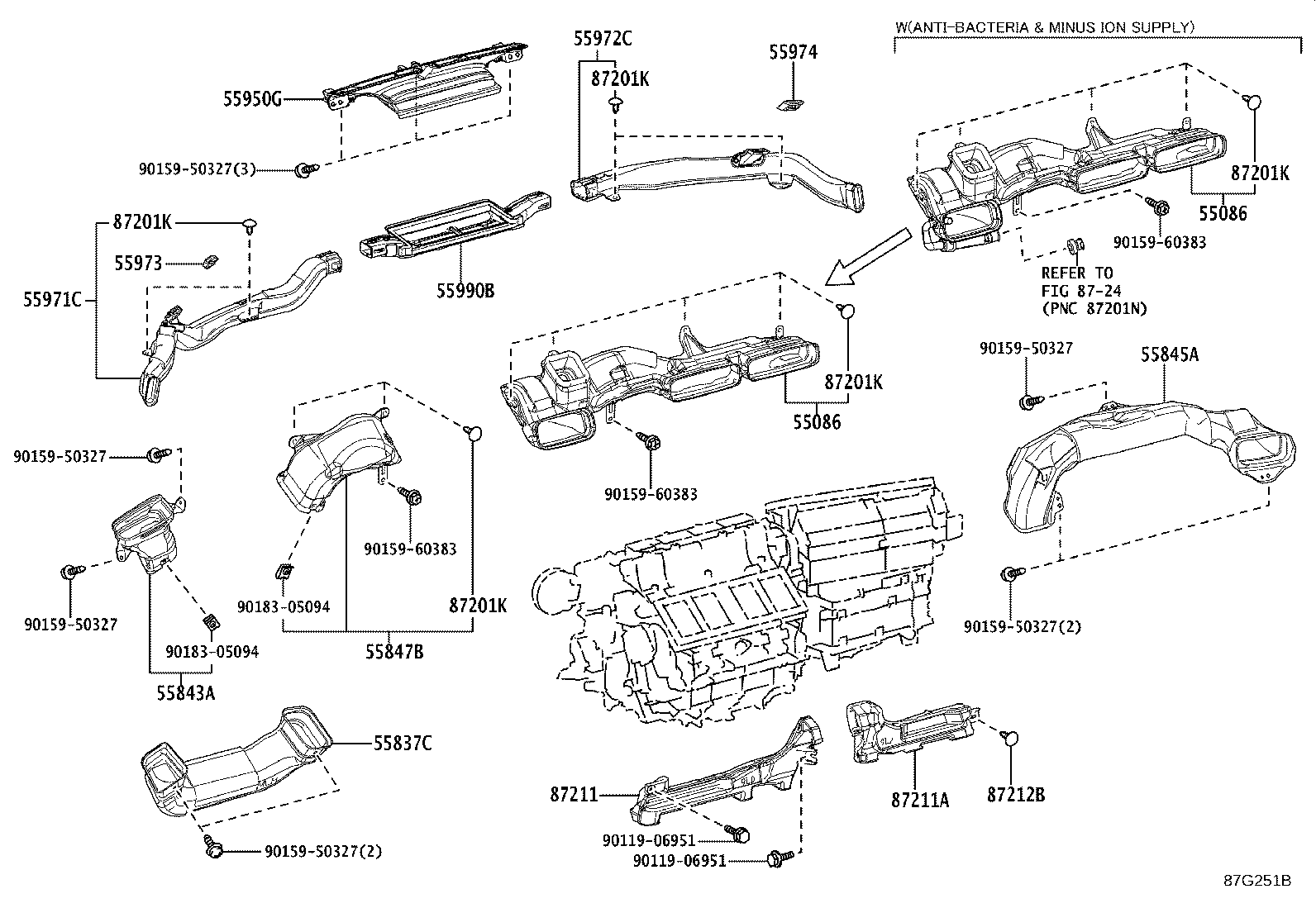

ILLUST NO. 2 OF 3(1701- )

Click highlighted areas on diagram

AIR DUCT

diagram 55086 55086 55837C 55843A 55845A 55847B 55950G 55971C 55972C 55973 55974 55990B 87201K 87201K 87201K 87201K 87201K 87211 87211A 87212B 8724 9011906951 9011906951 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015960383 9015960383 9015960383 9018305094 9018305094
Part # Description Qty Price
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-11020

GWZ100,URZ100

KOREA SPEC

 1
55086-11040

GWZ100,URZ100

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-11020

GWZ100,URZ100

KOREA SPEC

 1
55086-11040

GWZ100,URZ100

 1
55837C - DUCT, HEATER TO REGISTER CENTER SUB
55837-11010

GWZ100,URZ100

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-11010

GWZ100,URZ100

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-11010

GWZ100,URZ100

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-11010

GWZ100,URZ100

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-11010

GWZ100,URZ100

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-11010

GWZ100,URZ100

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-11010

GWZ100,URZ100

 1
55973 - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-11030

GWZ100,URZ100

 1
55974 - DUCT, SIDE DEFROSTER NOZZLE, NO.4
55973-11040

GWZ100,URZ100

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-11010

GWZ100,URZ100

 1
87201K - CLIP (FOR AIR DUCT)
90467-05162C0

GWZ100,URZ100

BLACK

 6
87201K - CLIP (FOR AIR DUCT)
90467-05162C0

GWZ100,URZ100

BLACK

 6
87201K - CLIP (FOR AIR DUCT)
90467-05162C0

GWZ100,URZ100

BLACK

 6
87201K - CLIP (FOR AIR DUCT)
90467-05162C0

GWZ100,URZ100

BLACK

 6
87201K - CLIP (FOR AIR DUCT)
90467-05162C0

GWZ100,URZ100

BLACK

 6
87211 - DUCT, AIR, NO.1
87211-11020

GWZ100,URZ100

 1
87211A - DUCT, AIR, NO.2
87211-11030

GWZ100,URZ100

 1
87212B - CLIP, AIR DUCT
90467-05021C0

GWZ100,URZ100

BLACK

 1
90467-05161C0

GWZ100,URZ100

BLACK

 1
Common parts
90119-06951
90159-50327
90159-60383
90183-05094
Linked diagrams
8724

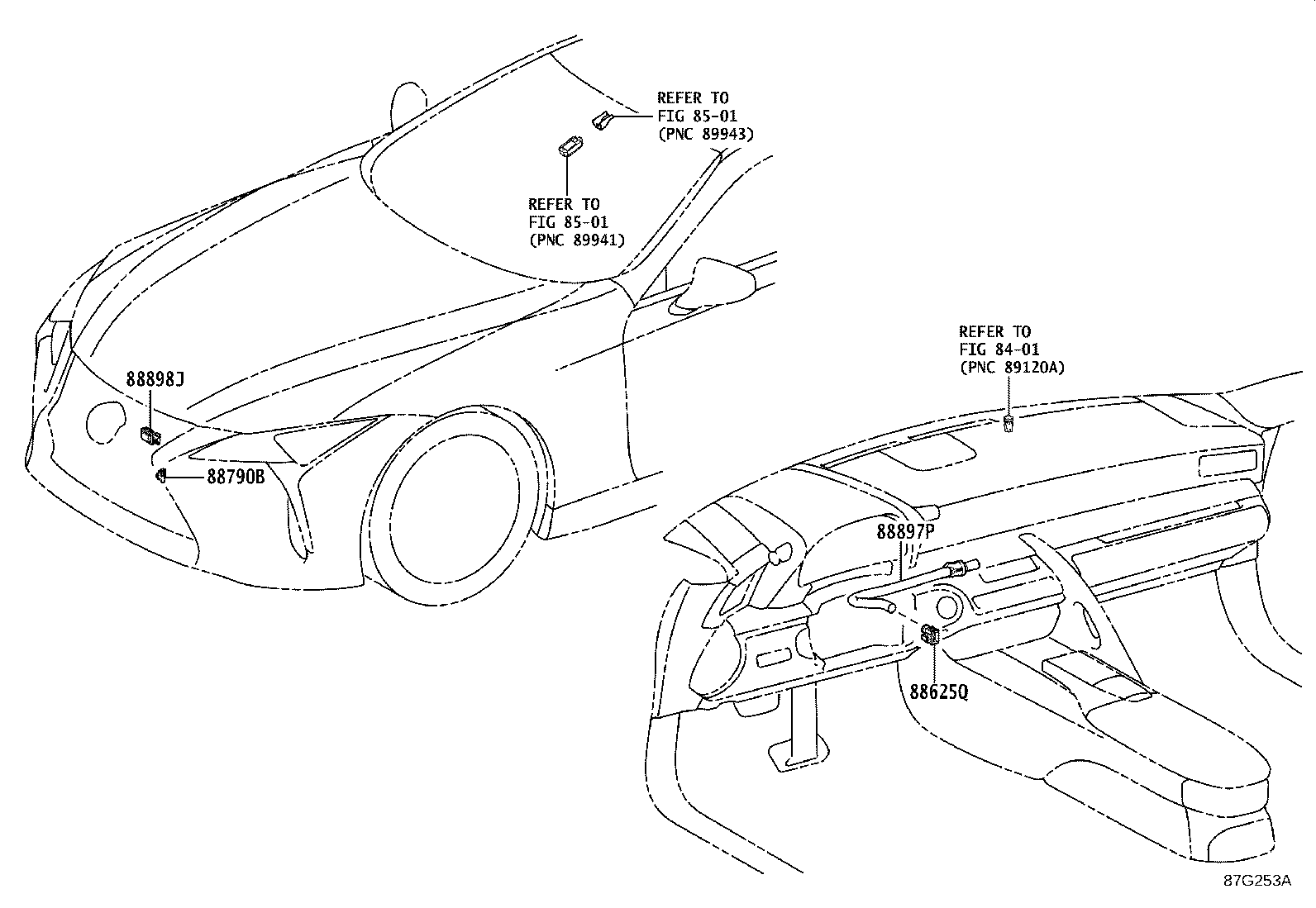

ILLUST NO. 3 OF 3(1701- )

Click highlighted areas on diagram

SENSOR

diagram 8401 8501 8501 88625Q 88790B 88897P 88898J
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

GWZ100,URZ100

 1
88790B - THERMISTOR ASSY
88790-28100

GWZ100,URZ100

 1
88897P - ASPIRATOR
87201-11010

GWZ100,URZ100

 1
88898J - SENSOR, SMOG VENTILATION
88898-11011

GWZ100,URZ100

 1
88898-11010

GWZ100,URZ100

 1
Linked diagrams
8401
8501

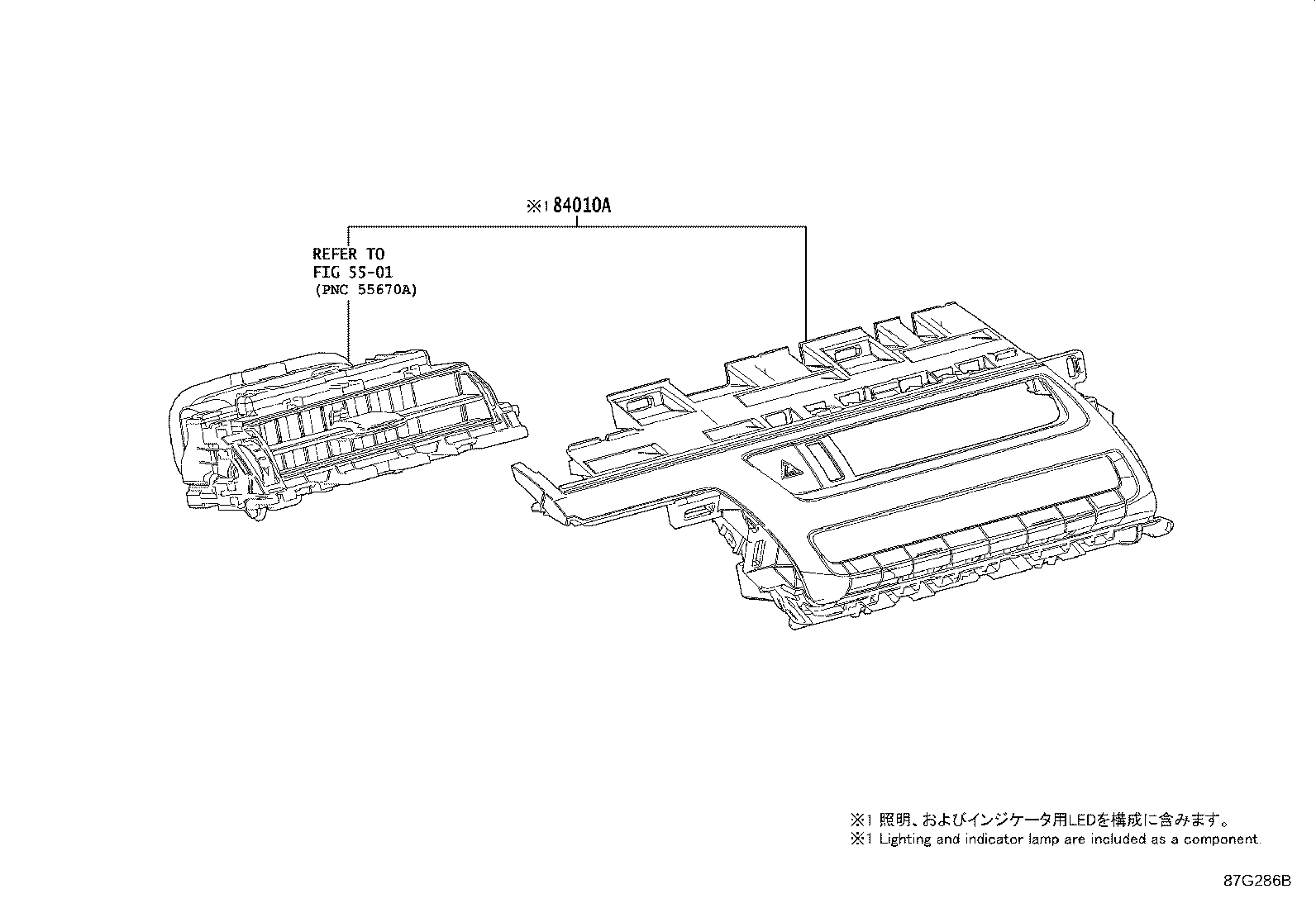

ILLUST NO. 1 OF 3(1701- )

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 5501 84010A
Part # Description Qty Price
84010A - CONTROL & PANEL ASSY, INTEGRATION
84010-11050

GWZ100,URZ100

KOREA SPEC&LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA)

 1
84010-11060

GWZ100,URZ100

 1
Linked diagrams
5501
