GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

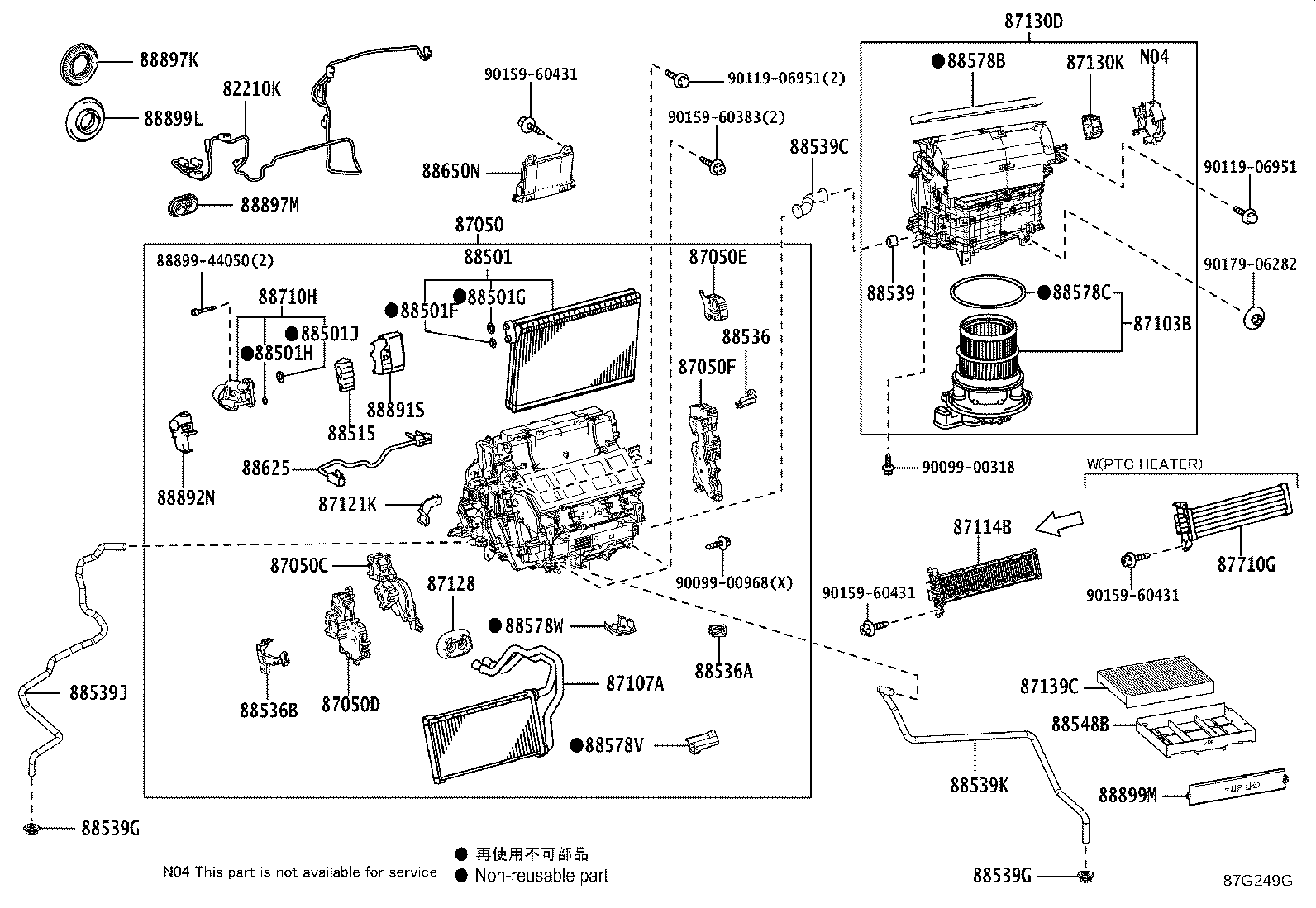

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-11010 |
GWZ100,URZ100 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-11060 |
GWZ100 |
1 | ||
| 87050-11050 |
GWZ100 KOREA SPEC |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11060 |
GWZ100,URZ100 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-11010 |
GWZ100,URZ100 |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-11090 |
GWZ100,URZ100 |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-11020 |
GWZ100,URZ100 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-11010 |
GWZ100,URZ100 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-11010 |
GWZ100,URZ100 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
GWZ100,URZ100 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-11030 |
GWZ100,URZ100 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
GWZ100,URZ100 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-11010 |
GWZ100,URZ100 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-11100 |
GWZ100,URZ100 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-11010 |
GWZ100,URZ100 DEODORANT FILTER,OE PART |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-30050 |
GWZ100 COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-11030 |
GWZ100 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GWZ100,URZ100 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GWZ100,URZ100 ID=13.4,OD=18.2 |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14119 |
GWZ100,URZ100 ID=6.7,OD=10.3 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GWZ100,URZ100 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 88515-11010 |
GWZ100,URZ100 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 87241-11010 |
GWZ100,URZ100 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 87241-11030 |
GWZ100,URZ100 |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 87241-11050 |
GWZ100,URZ100 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30A00 |
GWZ100,URZ100 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-11050 |
GWZ100,URZ100 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GWZ100,URZ100 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GWZ100,URZ100 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-11010 |
GWZ100,URZ100 |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-11020 |
GWZ100,URZ100 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-11010 |
GWZ100,URZ100 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 87429-53010 |
GWZ100,URZ100 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 87127-11010 |
GWZ100,URZ100 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-11010 |
GWZ100,URZ100 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-11020 |
GWZ100,URZ100 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30050 |
GWZ100,URZ100 |
1 | ||
| 88620-50010 |
GWZ100,URZ100 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-11050 |
GWZ100,URZ100 SEAT HEATER-WITHOUT |
1 | ||
| 88650-11051 |
GWZ100,URZ100 SEAT HEATER-WITHOUT |
1 | ||
| 88650-11052 |
GWZ100,URZ100 SEAT HEATER-WITHOUT |
1 | ||
| 88650-11031 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 88650-11032 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 88650-11040 |
GWZ100,URZ100 |
1 | ||
| 88650-11042 |
GWZ100,URZ100 |
1 | ||
| 88650-11041 |
GWZ100,URZ100 |
1 | ||
| 88650-11033 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 88650-11043 |
GWZ100,URZ100 |
1 | ||
| 88650-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-11010 |
GWZ100,URZ100 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-11010 |
GWZ100,URZ100 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-11010 |
GWZ100,URZ100 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GWZ100,URZ100 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-30060 |
GWZ100,URZ100 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-11020 |
GWZ100,URZ100 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-11030 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

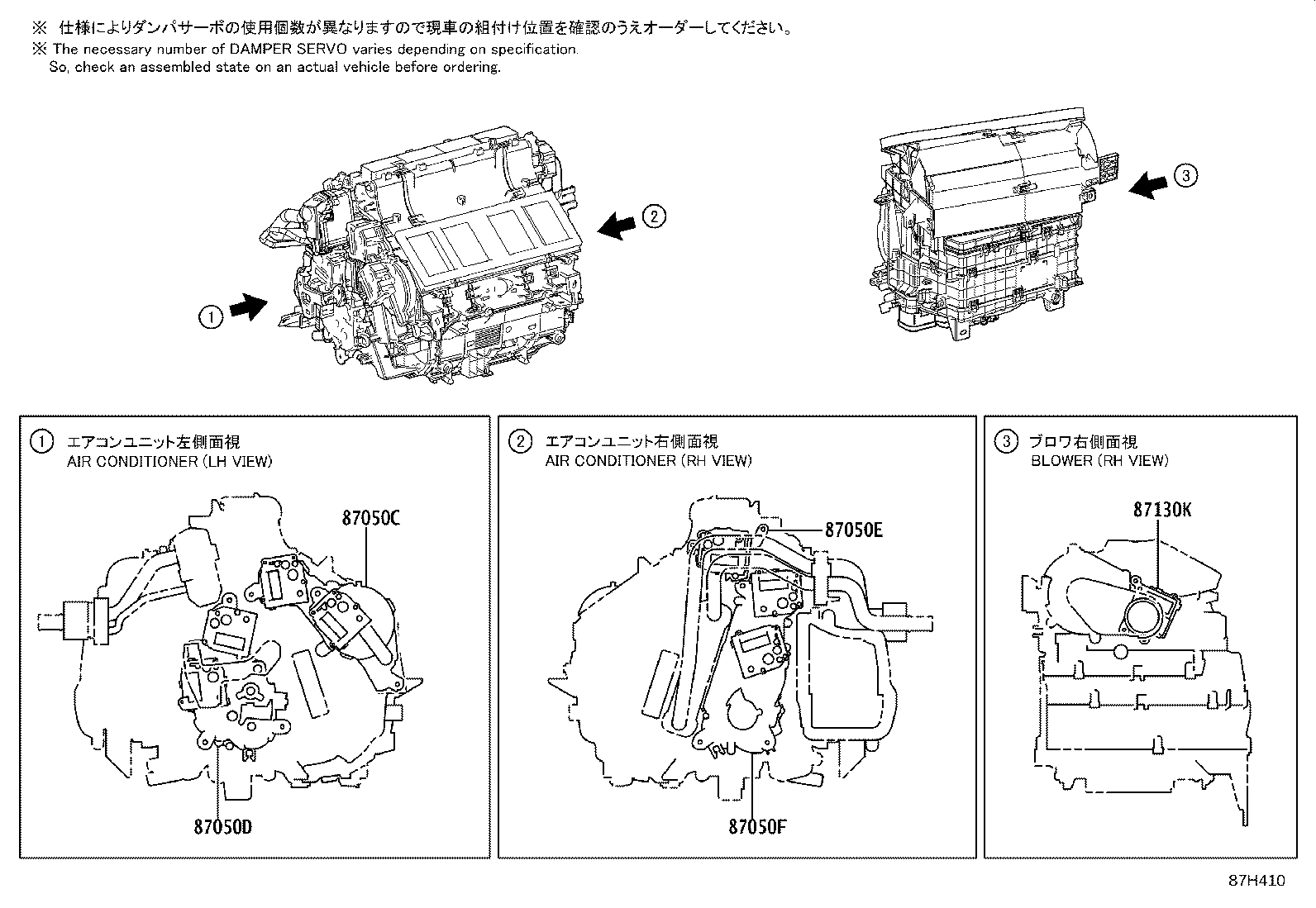

ILLUST NO. 2 OF 2(1701- )
SERVO MOTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11060 |
GWZ100,URZ100 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-11010 |
GWZ100,URZ100 |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-11090 |
GWZ100,URZ100 |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-11020 |
GWZ100,URZ100 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-11100 |
GWZ100,URZ100 |
1 | ||
