Toyota Lexus lc500/500h(cp) GWZ100 PRE-COLLISION SYSTEM

Part #	Description	Period	Qty
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
86401-11010	GWZ100,URZ100	01/2017 - 12/2999	1
86464A - LATCH, FORWARD RECOGNITION
86464-48011	GWZ100,URZ100	01/2017 - 12/2999	1
86464-48011	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-11010	GWZ100,URZ100	01/2017 - 12/2999	1
86466-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
8646C - CAMERA, FORWARD RECOGNITION
8646C-11010	GWZ100,URZ100	01/2017 - 08/2018	1
8646C-11021	GWZ100,URZ100 KOREA SPEC	02/2021 - 12/2999	1
8646C-11011	GWZ100,URZ100 KOREA SPEC	08/2018 - 04/2020	1
8646C-11020	GWZ100,URZ100 KOREA SPEC	04/2020 - 02/2021	1
8646C-11020	GWZ100,URZ100	04/2020 - 02/2021	1
8646C-11021	GWZ100,URZ100	02/2021 - 12/2999	1
8646C-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 08/2018	1
8646C-11011	GWZ100,URZ100	08/2018 - 04/2020	1
86652E - BUZZER, PRE-COLLISION CITY
86652-50010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
86652-50010	GWZ100,URZ100	01/2017 - 12/2999	1

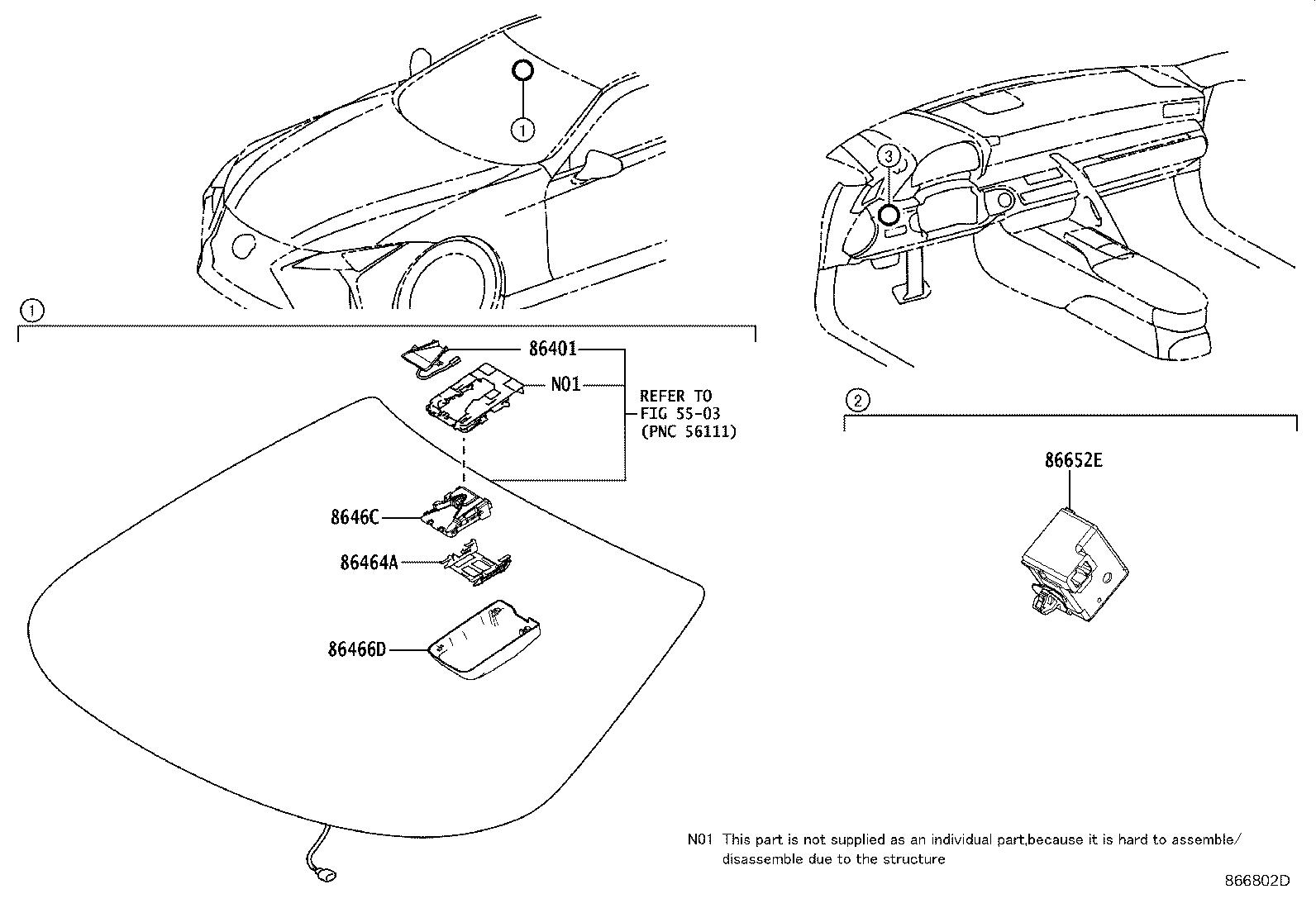

Linked diagrams
5503

GWZ100L-ACVBBA (2017)
