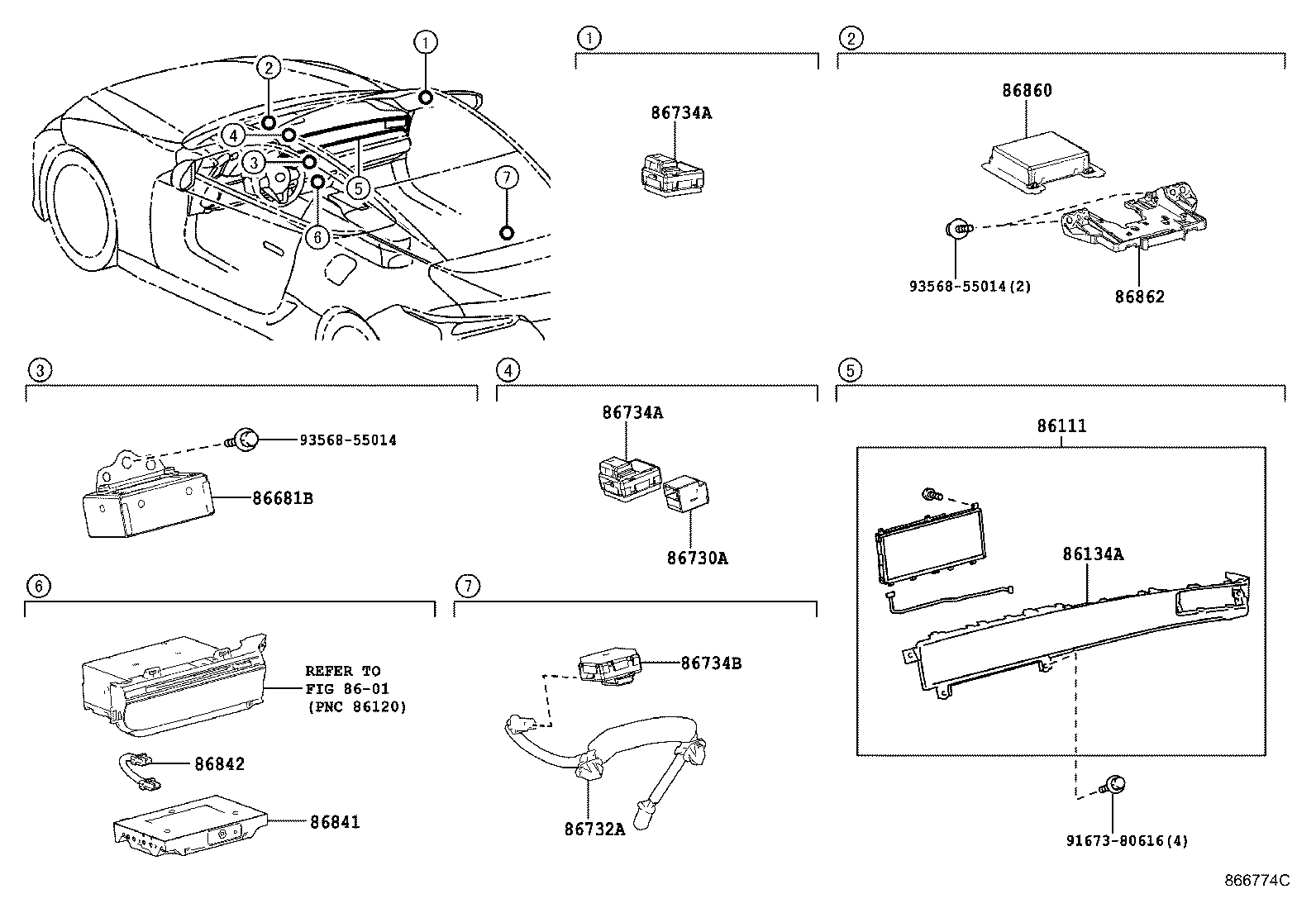

Toyota Lexus lc500/500h(cp) GWZ100 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86111 - MULTI-DISPLAY
86111-11020	GWZ100,URZ100 DENSO	01/2017 - 01/2018	1
86111-11022	GWZ100,URZ100 DENSO	06/2020 - 12/2999	1
86111-11021	GWZ100,URZ100 DENSO,KOREA SPEC	06/2017 - 02/2018	1
86111-11021	GWZ100,URZ100 DENSO	02/2018 - 05/2020	1
86134A - PARTS, MULTI-DISPLAY
86134-11010	GWZ100,URZ100	01/2017 - 12/2999	1
86681B - DIVIDER, ANTENNA
86681-11010	GWZ100,URZ100	01/2017 - 12/2999	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-48110	GWZ100,URZ100	05/2021 - 12/2999	1
86730-11010	GWZ100,URZ100	01/2017 - 04/2021	1
86732A - WIRE,MICROPHONE
86732-11010	GWZ100,URZ100	01/2017 - 12/2999	1
86734A - MICROPHONE, ACTIVE NOISE CONTROL, FRONT
86734-11030	GWZ100,URZ100	12/2020 - 12/2999	2
86734-11010	GWZ100,URZ100	01/2017 - 11/2020	2
86734A - MICROPHONE, ACTIVE NOISE CONTROL, FRONT
86734-11030	GWZ100,URZ100	12/2020 - 12/2999	2
86734-11010	GWZ100,URZ100	01/2017 - 11/2020	2
86734B - MICROPHONE, ACTIVE NOISE CONTROL, REAR
86734-11010	GWZ100,URZ100	01/2017 - 12/2999	1
86841 - COMPUTER, NAVIGATION
86840-11021	GWZ100,URZ100	02/2017 - 06/2017	1
86840-11020	GWZ100	01/2017 - 02/2017	1
86840-11022	GWZ100,URZ100	07/2017 - 01/2018	1
86840-11024	GWZ100,URZ100	08/2018 - 09/2018	1
86841-0W030	GWZ100,URZ100 KOREA SPEC&MAP DISC(DOP)-WITH(FOR KOREA EXTENSION BOX)	01/2017 - 04/2020	1
86840-48163	GWZ100,URZ100	02/2021 - 12/2999	1
86840-48162	GWZ100,URZ100	07/2020 - 01/2021	1
86840-33203	GWZ100,URZ100	08/2019 - 12/2019	1
86840-11023	GWZ100,URZ100	02/2018 - 07/2018	1
86840-33201	GWZ100,URZ100	09/2018 - 01/2019	1
86840-48161	GWZ100,URZ100	04/2020 - 06/2020	1
86840-33204	GWZ100,URZ100	01/2020 - 04/2020	1
86840-33202	GWZ100,URZ100	02/2019 - 07/2019	1
86842 - WIRE, NAVIGATION, NO.1
86842-11010	GWZ100,URZ100	01/2017 - 12/2999	1
86860 - ANTENNA ASSY, NAVIGATION
86880-47090	GWZ100,URZ100	01/2017 - 04/2020	1
86880-47090	GWZ100,URZ100 CANADA SPEC	01/2017 - 04/2020	1
86860-78010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
86880-47090	GWZ100,URZ100 KOREA SPEC	01/2017 - 04/2020	1
86880-47090	GWZ100,URZ100 GUAM	01/2017 - 04/2020	1
86880-47090	GWZ100,URZ100 PUERTO RICO SPEC	01/2017 - 04/2020	1
86880-47090	GWZ100,URZ100 HAWAII SPEC	01/2017 - 04/2020	1
86860-78010	GWZ100,URZ100 GUAM	06/2019 - 12/2999	1
86880-52020	GWZ100,URZ100 PUERTO RICO SPEC	04/2020 - 12/2999	1
86880-52020	GWZ100,URZ100	04/2020 - 12/2999	1
86880-52020	GWZ100,URZ100 HAWAII SPEC	04/2020 - 12/2999	1
86880-52020	GWZ100,URZ100 GUAM	04/2020 - 12/2999	1
86880-52020	GWZ100,URZ100 CANADA SPEC	04/2020 - 12/2999	1
86880-52020	GWZ100,URZ100 KOREA SPEC	04/2020 - 12/2999	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020	GWZ100,URZ100	01/2017 - 12/2999	1
Common parts
91673-80616
93568-55014
Linked diagrams
8601

GWZ100L-ACVBBA (2017)

(1701- )
