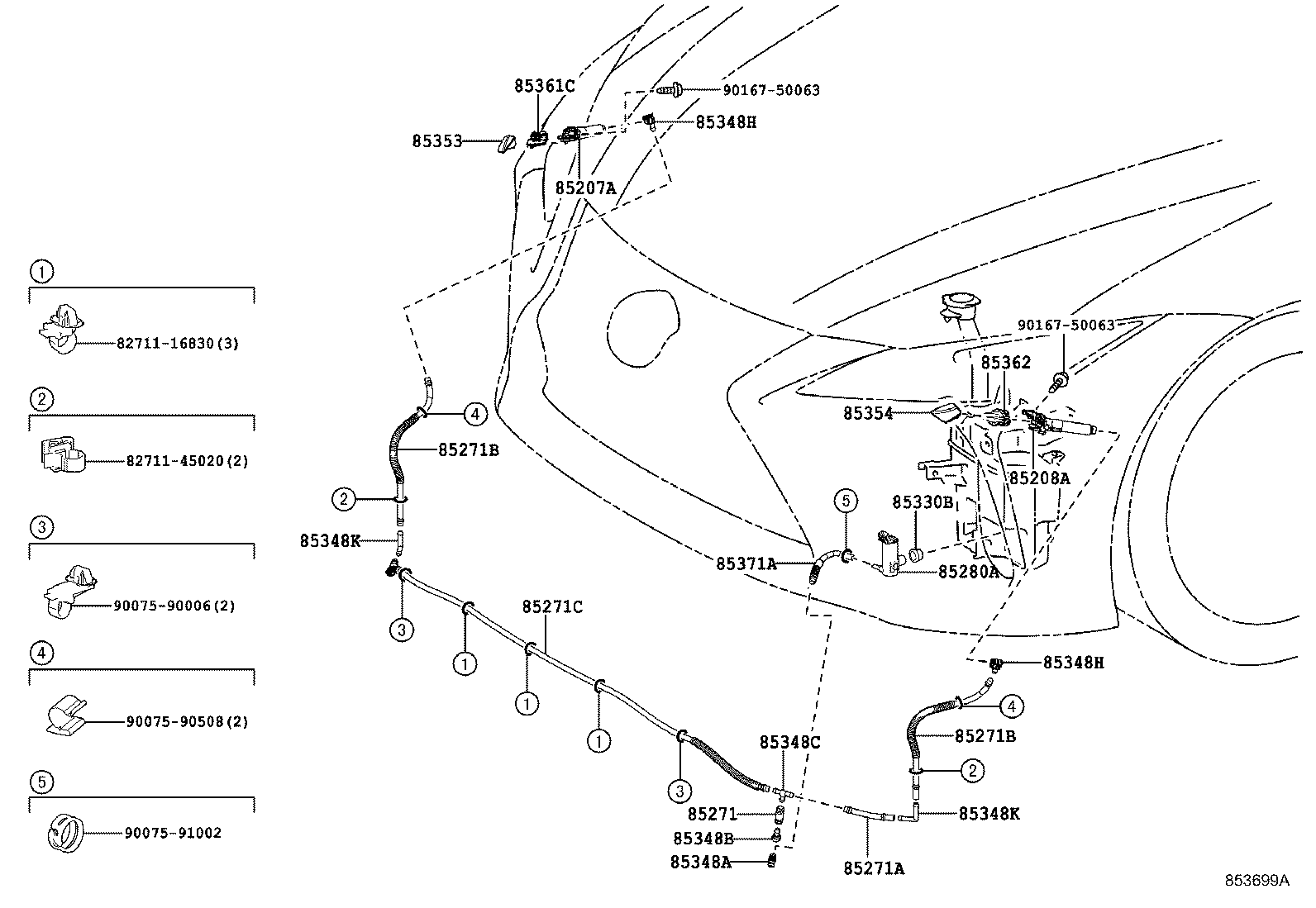

Toyota Lexus lc500/500h(cp) GWZ100 HEADLAMP CLEANER

Part #	Description	Period	Qty
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-11010	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
85207-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-11010	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
85208-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90075-15053	GWZ100,URZ100 L=35,KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
90075-15053	GWZ100,URZ100 L=35,KOREA SPEC	01/2017 - 12/2999	1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90075-15063	GWZ100,URZ100 L=50,KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
90075-15063	GWZ100,URZ100 L=50,KOREA SPEC	01/2017 - 12/2999	1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90075-15101	GWZ100,URZ100 L=360,KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	2
90075-15101	GWZ100,URZ100 L=360,KOREA SPEC	01/2017 - 12/2999	2
85271B - HOSE, HEADLAMP CLEANER, NO.3
90075-15101	GWZ100,URZ100 L=360,KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	2
90075-15101	GWZ100,URZ100 L=360,KOREA SPEC	01/2017 - 12/2999	2
85271C - HOSE, HEADLAMP CLEANER, NO.4
90075-15072	GWZ100,URZ100 L=1550,KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
90075-15072	GWZ100,URZ100 L=1550,KOREA SPEC	01/2017 - 12/2999	1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-33030	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90099-32089	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
90075-17009	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
90075-17012	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
90075-17012	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
90075-17010	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
90075-17010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
90075-17009	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	2
90075-17009	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	2
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
90075-17009	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	2
90075-17009	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	2
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90075-17013	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	2
90075-17013	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	2
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90075-17013	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	2
90075-17013	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	2
85353 - COVER, HEADLAMP WASHER, RH
85353-11070	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
85353-11060	GWZ100,URZ100 KOREA SPEC	01/2017 - 10/2021	1
85354 - COVER, HEADLAMP WASHER, LH
85354-11070	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
85354-11060	GWZ100,URZ100 KOREA SPEC	01/2017 - 10/2021	1
85361C - BRACKET, WASHER
85361-11020	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
85361-11020	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85362 - BRACKET, WASHER, NO.2
85362-11020	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
85362-11020	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)	01/2021 - 10/2021	1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85359-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
Common parts
82711-16830
82711-45020
90075-90006
90075-90508
90075-91002
90167-50063

GWZ100L-ACVBBA (2017)

(1701- )
