GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )GWZ100

Click highlighted areas on diagram

W(HEADLAMP CLEANER)

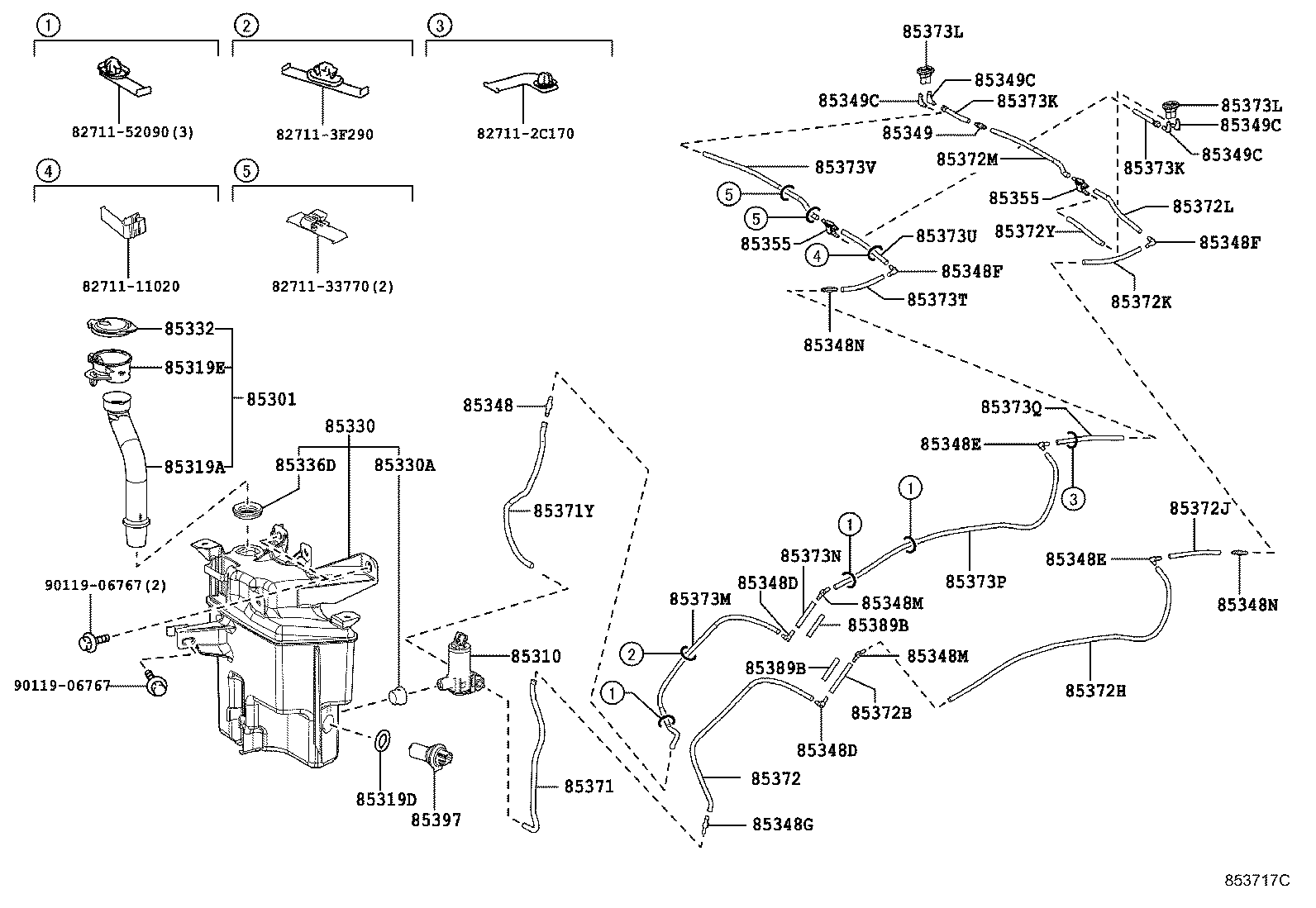

diagram 8271111020 827112C170 8271133770 827113F290 8271152090 8505 8505 85301 85310 85319A 85319D 85319E 85330 85330A 85332 85336D 85348 85348D 85348D 85348E 85348E 85348F 85348F 85348G 85348M 85348M 85348N 85348N 85349 85349C 85349C 85349C 85349C 85355 85355 85371 85371Y 85372 85372B 85372H 85372J 85372K 85372L 85372M 85372Y 85373K 85373K 85373L 85373L 85373M 85373N 85373P 85373Q 85373T 85373U 85373V 85389B 85389B 85397 9011906767 9011906767
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-11010

GWZ100

 1
85301-11011

GWZ100

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-11030

GWZ100,URZ100

 1
85330-11040

GWZ100,URZ100

 1
85319A - HOSE, INLET
85319-11010

GWZ100

 1
85319D - PACKING, FRONT WASHER
85319-33230

GWZ100,URZ100

 1
85319E - INLET WASHER
85318-11010

GWZ100

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-11011

GWZ100,URZ100

KOREA SPEC

 1
85315-11010

GWZ100,URZ100

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GWZ100,URZ100

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-11010

GWZ100,URZ100

 1
85316-11011

GWZ100,URZ100

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

GWZ100,URZ100

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

GWZ100,URZ100

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

GWZ100,URZ100

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

GWZ100,URZ100

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

GWZ100,URZ100

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

GWZ100,URZ100

 2
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

GWZ100,URZ100

 2
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

GWZ100,URZ100

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GWZ100,URZ100

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-14560

GWZ100,URZ100

 2
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-14560

GWZ100,URZ100

 2
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GWZ100,URZ100

 2
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GWZ100,URZ100

 2
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

GWZ100,URZ100

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GWZ100,URZ100

 4
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GWZ100,URZ100

 4
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GWZ100,URZ100

 4
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GWZ100,URZ100

 4
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GWZ100,URZ100

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GWZ100,URZ100

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

GWZ100,URZ100

*H,L=300

 1
90099-33080

GWZ100,URZ100

*H,L=300,KOREA SPEC

 1
85371Y - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT), NO.2
90446-07001

GWZ100,URZ100

*H,L=305

 1
90446-07001

GWZ100,URZ100

*H,L=305,KOREA SPEC

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

GWZ100,URZ100

*H,L=400

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GWZ100,URZ100

*H,L=60

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GWZ100,URZ100

*H,L=570

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GWZ100,URZ100

*H,L=90

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

GWZ100,URZ100

*H,L=115

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GWZ100,URZ100

*H,L=140

 1
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33080

GWZ100,URZ100

*H,L=230

 1
85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
90099-33080

GWZ100,URZ100

 1
85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9
90099-33080

GWZ100,URZ100

*H,L=70

 2
85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9
90099-33080

GWZ100,URZ100

*H,L=70

 2
85373L - GROMMET, WASHER
85373-11020

GWZ100,URZ100

 2
85373L - GROMMET, WASHER
85373-11020

GWZ100,URZ100

 2
85373M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10
90099-33080

GWZ100,URZ100

*H,L=390

 1
85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11
90099-33080

GWZ100,URZ100

*H,L=50

 1
85373P - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12
90099-33080

GWZ100,URZ100

*H,L=570

 1
85373Q - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13
90099-33080

GWZ100,URZ100

*H,L=120

 1
85373T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14
90099-33080

GWZ100,URZ100

*H,L=85

 1
85373U - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15
90099-33080

GWZ100,URZ100

*H,L=120

 1
85373V - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16
90099-33080

GWZ100,URZ100

*H,L=330

 1
85389B - PROTECTOR, WINDSHIELD WASHER
85389-11050

GWZ100,URZ100

 2
85389B - PROTECTOR, WINDSHIELD WASHER
85389-11050

GWZ100,URZ100

 2
85397 - SWITCH ASSY,LEVEL WARNING
85397-52100

GWZ100,URZ100

 1
Common parts
82711-11020
82711-2C170
82711-33770
82711-3F290
82711-52090
90119-06767
Linked diagrams
8505

(1701- )GWZ100

Click highlighted areas on diagram

W/O(HEADLAMP CLEANER)

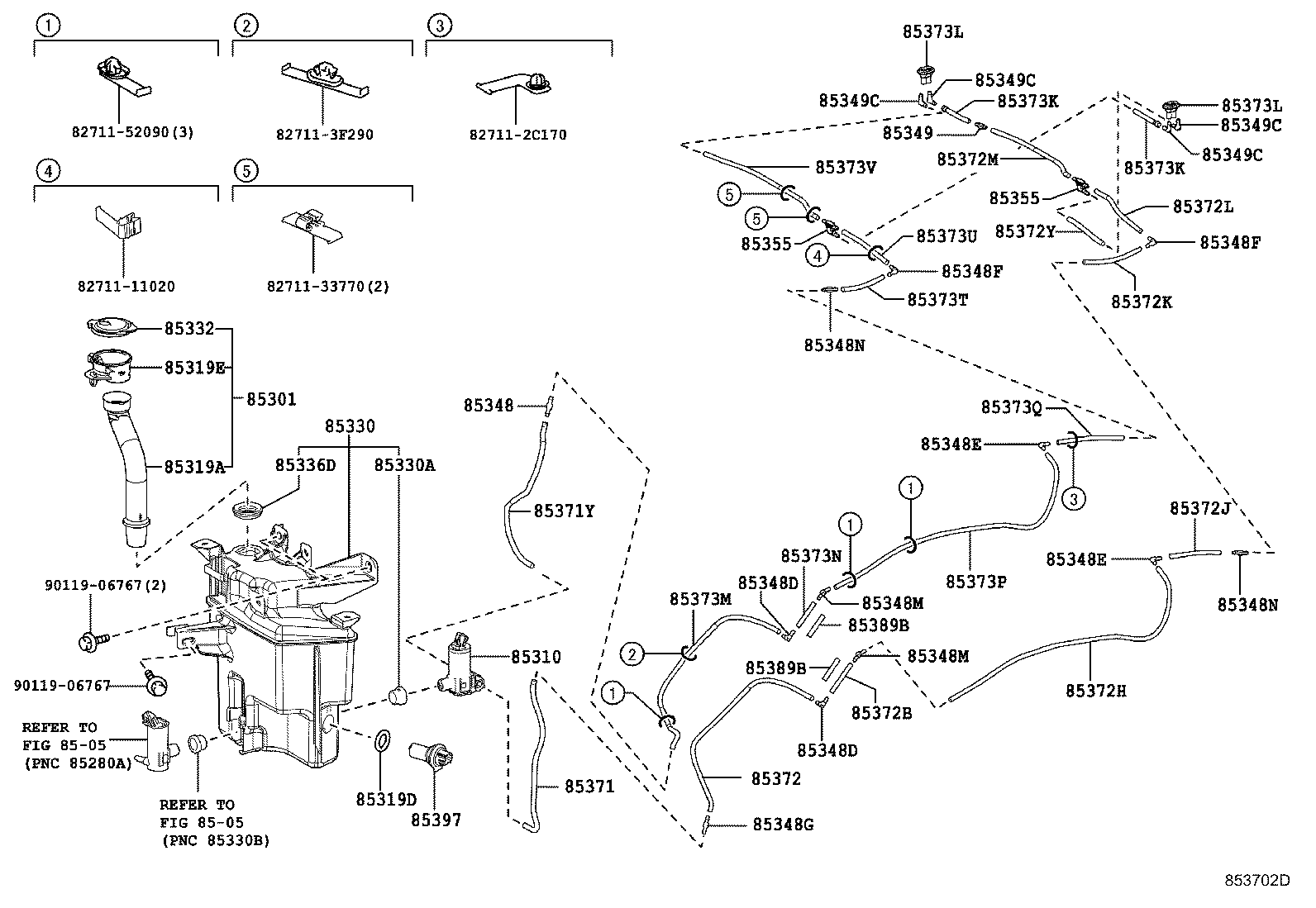

diagram 8271111020 827112C170 8271133770 827113F290 8271152090 85301 85310 85319A 85319D 85319E 85330 85330A 85332 85336D 85348 85348D 85348D 85348E 85348E 85348F 85348F 85348G 85348M 85348M 85348N 85348N 85349 85349C 85349C 85349C 85349C 85355 85355 85371 85371Y 85372 85372B 85372H 85372J 85372K 85372L 85372M 85372Y 85373K 85373K 85373L 85373L 85373M 85373N 85373P 85373Q 85373T 85373U 85373V 85389B 85389B 85397 9011906767 9011906767
