GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701-1909)

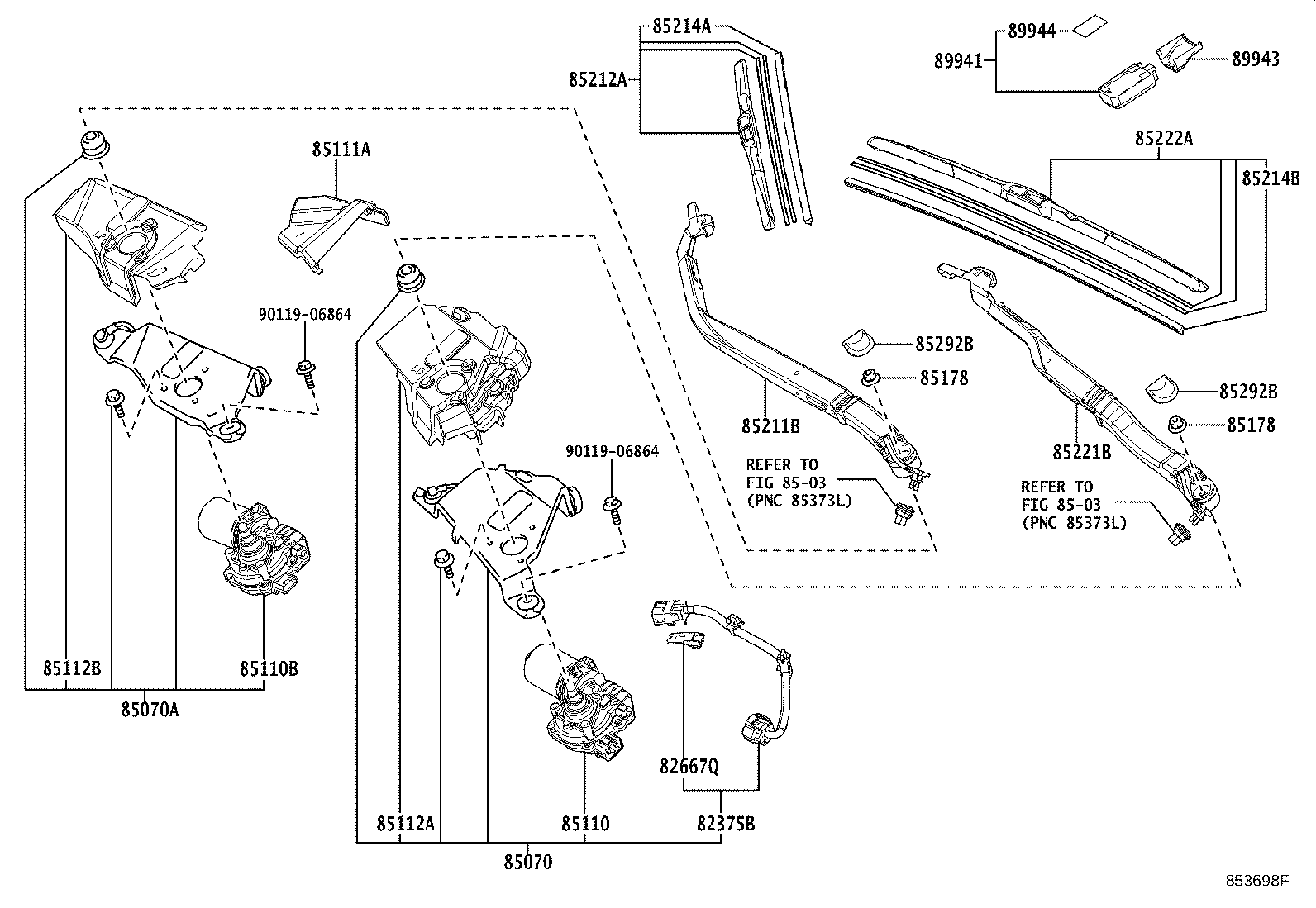

Click highlighted areas on diagram

diagram 82375B 82667Q 8503 8503 85070 85070A 85110 85110B 85111A 85112A 85112B 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864 9011906864
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-11020

GWZ100,URZ100

 1
82667Q - HOLDER, CONNECTOR
82666-11160

GWZ100,URZ100

 1
85070 - MOTOR & BRACKET ASSY, FRONT WIPER
85070-11030

GWZ100,URZ100

 1
85070-11060

GWZ100,URZ100

 1
85070A - MOTOR & BRACKET ASSY, FRONT WIPER, NO.2
85070-11040

GWZ100,URZ100

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-11051

GWZ100,URZ100

 1
85110-11050

GWZ100,URZ100

 1
85110B - MOTOR ASSY, WINDSHIELD WIPER, NO.2
85110-11060

GWZ100,URZ100

 1
85110-11061

GWZ100,URZ100

 1
85111A - COVER, FRONT WIPER MOTOR
85111-11040

GWZ100,URZ100

 1
85111-11090

GWZ100,URZ100

 1
85112A - COVER, WINDSHIELD WIPER SHAFT, NO.1
85112-11050

GWZ100,URZ100

 1
85112B - COVER, WINDSHIELD WIPER SHAFT, NO.2
85112-11060

GWZ100,URZ100

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

GWZ100,URZ100

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

GWZ100,URZ100

 2
85211B - ARM, FRONT WIPER, RH
85211-11031

GWZ100,URZ100

 1
85211-11030

GWZ100,URZ100

 1
85212A - BLADE, FR WIPER, RH
85212-11030

GWZ100,URZ100

 1
85214A - RUBBER, WIPER, RH
85214-33180

GWZ100,URZ100

 1
85214B - RUBBER, WIPER, LH
85214-11010

GWZ100,URZ100

 1
85221B - ARM, FRONT WIPER, LH
85221-11040

GWZ100,URZ100

 1
85221-11041

GWZ100,URZ100

 1
85222A - BLADE, FR WIPER, LH
85222-11040

GWZ100,URZ100

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-11010

GWZ100,URZ100

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-11010

GWZ100,URZ100

 2
89941 - SENSOR, RAIN
89941-11010

GWZ100,URZ100

 1
89943 - COVER, RAIN SENSOR
89943-11010

GWZ100,URZ100

 1
89944 - TAPE, RAIN SENSOR
89944-48010

GWZ100,URZ100

 1
89944-42020

GWZ100,URZ100

 1
Common parts
90119-06864
Linked diagrams
8503

(1910- )

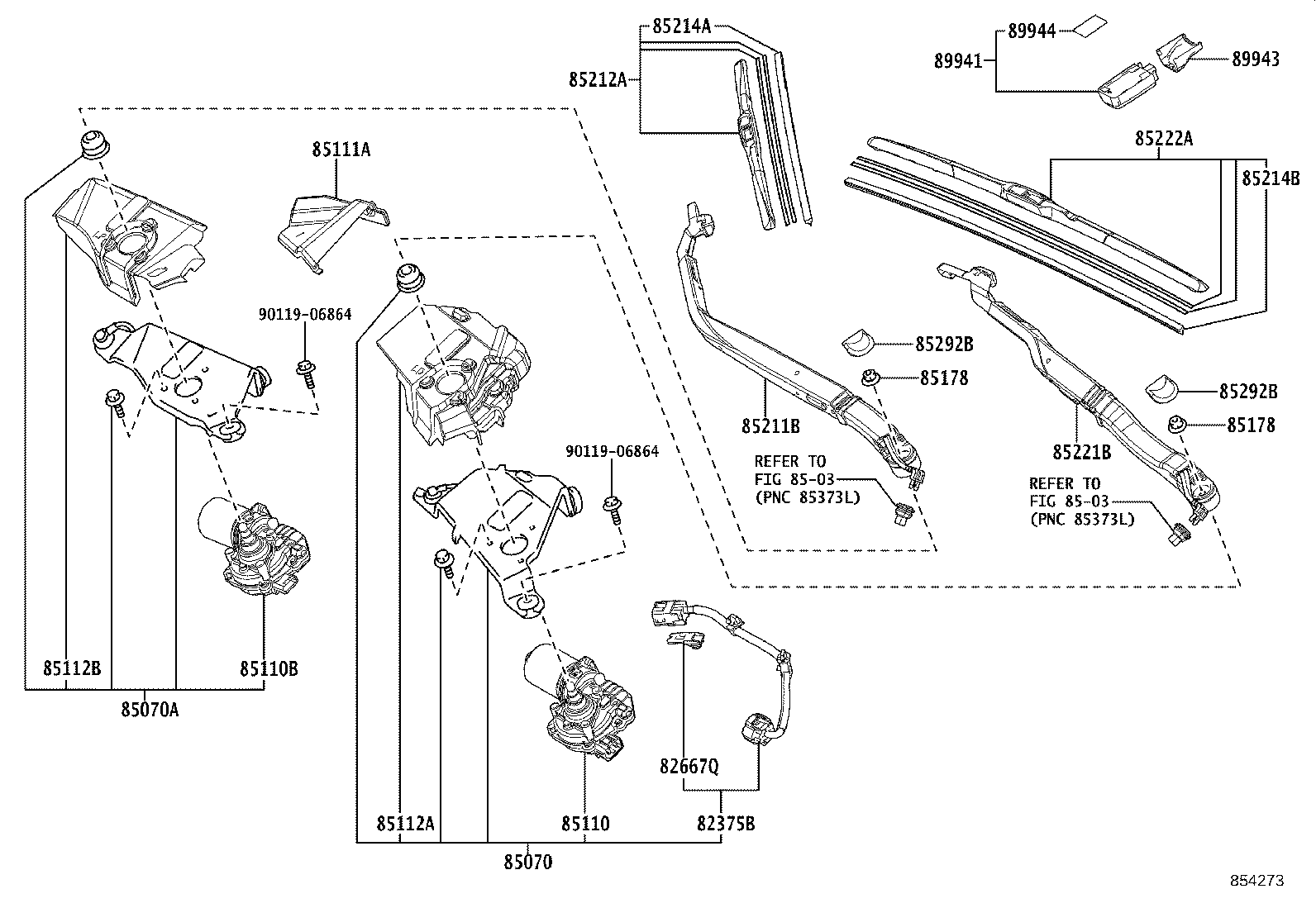

Click highlighted areas on diagram

diagram 82375B 82667Q 8503 8503 85070 85070A 85110 85110B 85111A 85112A 85112B 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864 9011906864
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-11020

GWZ100,URZ100

 1
82667Q - HOLDER, CONNECTOR
82666-11160

GWZ100,URZ100

 1
85070 - MOTOR & BRACKET ASSY, FRONT WIPER
85070-11030

GWZ100,URZ100

 1
85070-11060

GWZ100,URZ100

 1
85070A - MOTOR & BRACKET ASSY, FRONT WIPER, NO.2
85070-11040

GWZ100,URZ100

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-11051

GWZ100,URZ100

 1
85110-11050

GWZ100,URZ100

 1
85110B - MOTOR ASSY, WINDSHIELD WIPER, NO.2
85110-11060

GWZ100,URZ100

 1
85110-11061

GWZ100,URZ100

 1
85111A - COVER, FRONT WIPER MOTOR
85111-11040

GWZ100,URZ100

 1
85111-11090

GWZ100,URZ100

 1
85112A - COVER, WINDSHIELD WIPER SHAFT, NO.1
85112-11050

GWZ100,URZ100

 1
85112B - COVER, WINDSHIELD WIPER SHAFT, NO.2
85112-11060

GWZ100,URZ100

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

GWZ100,URZ100

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

GWZ100,URZ100

 2
85211B - ARM, FRONT WIPER, RH
85211-11031

GWZ100,URZ100

 1
85211-11030

GWZ100,URZ100

 1
85212A - BLADE, FR WIPER, RH
85212-11030

GWZ100,URZ100

 1
85214A - RUBBER, WIPER, RH
85214-33180

GWZ100,URZ100

 1
85214B - RUBBER, WIPER, LH
85214-11010

GWZ100,URZ100

 1
85221B - ARM, FRONT WIPER, LH
85221-11040

GWZ100,URZ100

 1
85221-11041

GWZ100,URZ100

 1
85222A - BLADE, FR WIPER, LH
85222-11040

GWZ100,URZ100

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-11010

GWZ100,URZ100

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-11010

GWZ100,URZ100

 2
89941 - SENSOR, RAIN
89941-11010

GWZ100,URZ100

 1
89943 - COVER, RAIN SENSOR
89943-11010

GWZ100,URZ100

 1
89944 - TAPE, RAIN SENSOR
89944-48010

GWZ100,URZ100

 1
89944-42020

GWZ100,URZ100

 1
Common parts
90119-06864
Linked diagrams
8503
