GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )GWZ100

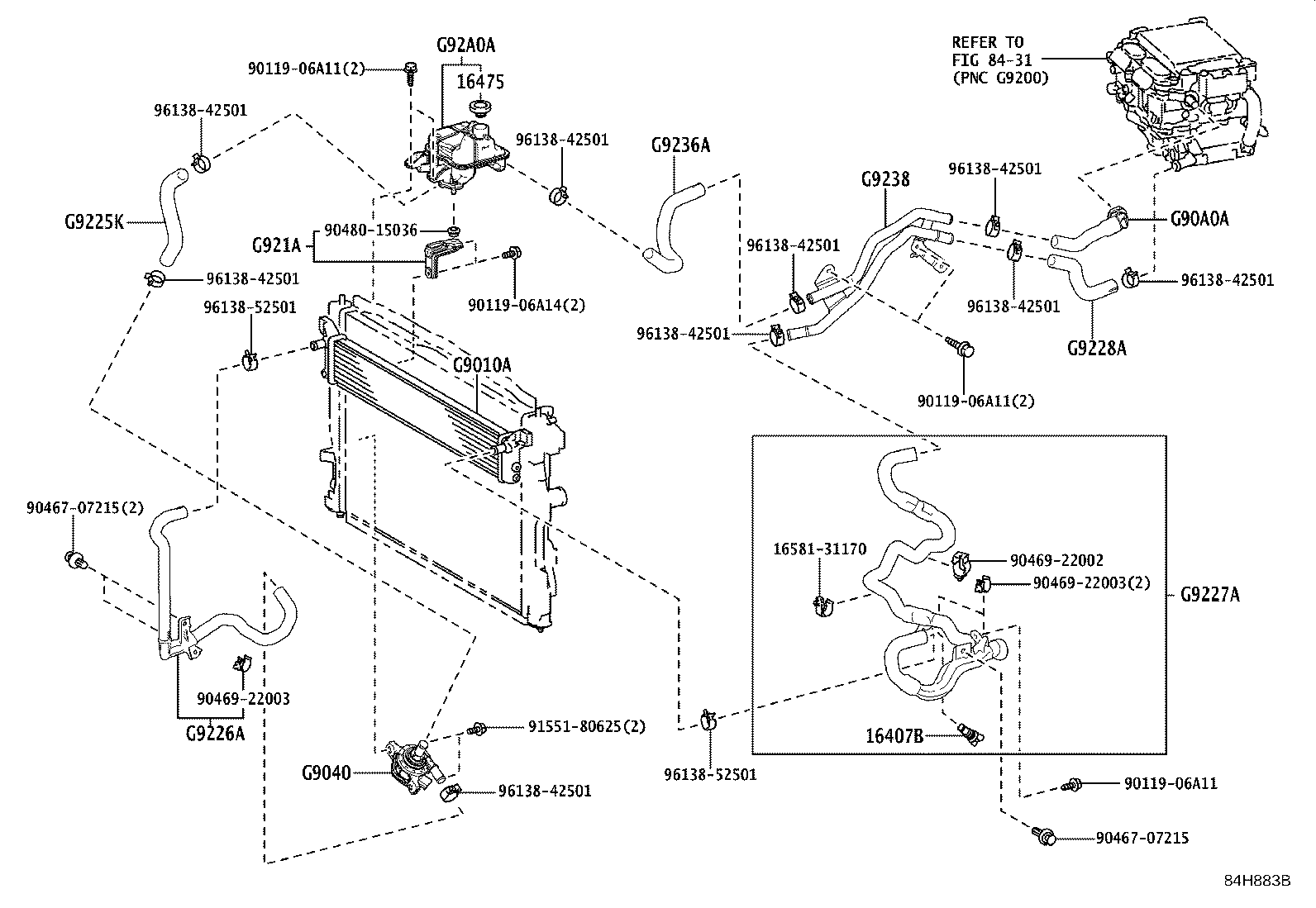

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16407B - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-64010 |
8GRFXS..GWZ100 |
1 | ||
| 16475 - CAP, RESERVE TANK | ||||
| 16475-28140 |
8GRFXS..GWZ100 |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-11010 |
GWZ100 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-33050 |
GWZ100 |
1 | ||
| G90A0A - HOSE ASSY, INVERTER COOLING, NO.1 | ||||
| G90A0-11010 |
GWZ100 |
1 | ||
| G921A - BRACKET, INVERTER RESERVE TANK, NO.1 | ||||
| G91H2-11010 |
GWZ100 |
1 | ||
| G9225K - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-11010 |
GWZ100 |
1 | ||
| G9226A - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-11010 |
GWZ100 |
1 | ||
| G9227A - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-11010 |
GWZ100 |
1 | ||
| G9228A - HOSE, INVERTER COOLING, NO.4 | ||||
| G9228-11030 |
GWZ100 |
1 | ||
| G9236A - HOSE, INVERTER COOLING, NO.6 | ||||
| G9236-11010 |
GWZ100 |
1 | ||
| G9238 - PIPE, INVERTER COOLING | ||||
| G9238-11010 |
GWZ100 |
1 | ||
| G92A0A - TANK ASSY, INVERTER RESERVE | ||||
| G91H0-11010 |
GWZ100 |
1 | ||
| Common parts | ||||
| 16581-31170 | ||||
| 90119-06A11 | ||||
| 90119-06A14 | ||||
| 90467-07215 | ||||
| 90469-22002 | ||||
| 90469-22003 | ||||
| 90480-15036 | ||||
| 91551-80625 | ||||
| 96138-42501 | ||||
| 96138-52501 | ||||
| Linked diagrams | ||||
| 8431 | ||||
