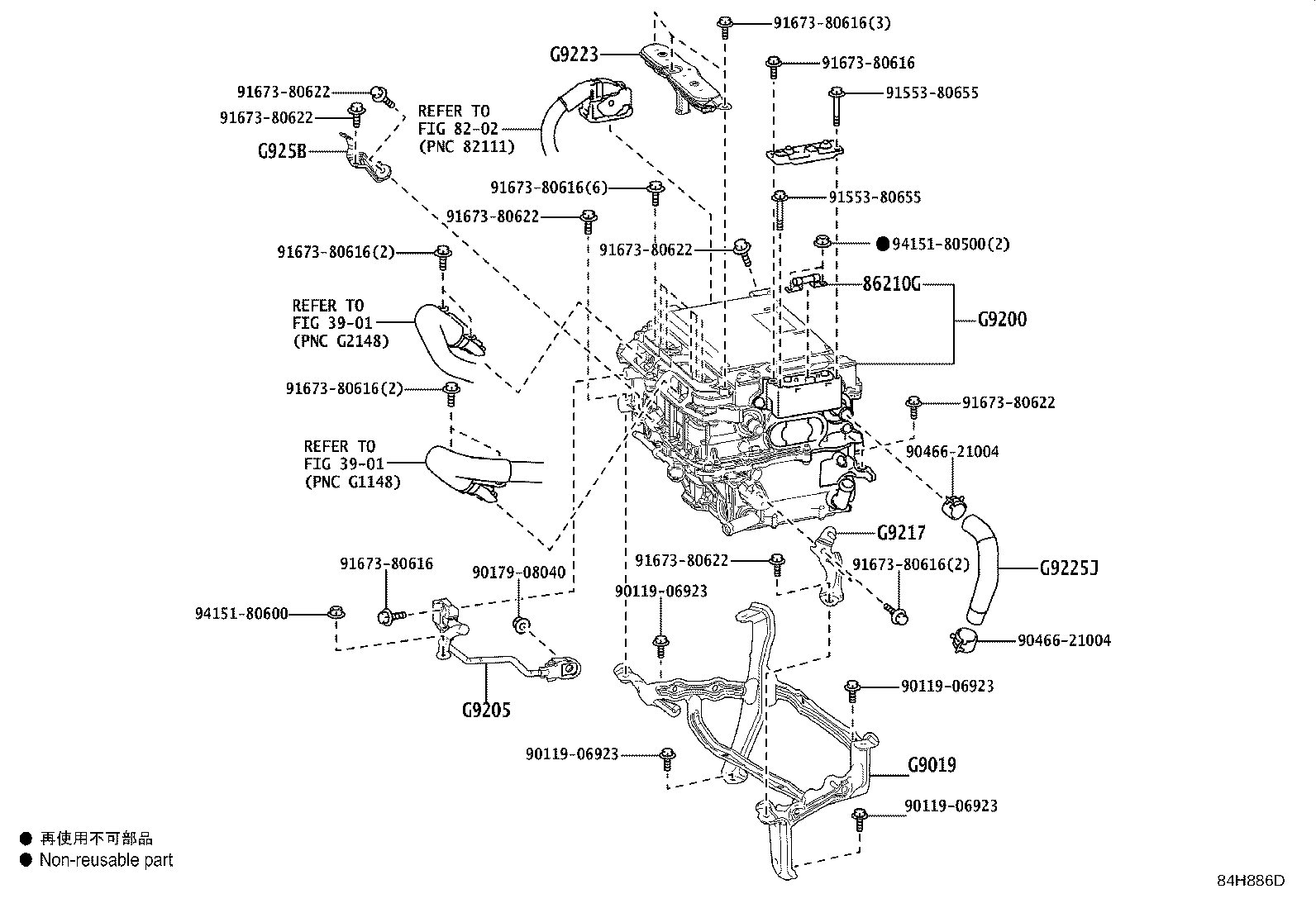

Toyota Lexus lc500/500h(cp) GWZ100 HV INVERTER

Part #	Description	Period	Qty
86210G - FUSE, HIGH VOLTAGE
90982-11050	GWZ100	01/2017 - 12/2999	1
G9019 - BRACKET SUB-ASSY, INVERTER TRAY
G9019-11040	GWZ100	10/2017 - 12/2999	1
G9019-11020	GWZ100	01/2017 - 09/2017	1
G9200 - INVERTER ASSY, W/CONVERTER
G92A0-11010	GWZ100	01/2017 - 04/2017	1
G92A0-50010	GWZ100	05/2017 - 12/2999	1
G9205 - PLATE SUB-ASSY, INVERTER BUS-BAR
G9205-11010	GWZ100	01/2017 - 12/2999	1
G9217 - BRACKET, INVERTER, NO.4
G9217-30040	GWZ100	01/2017 - 12/2999	1
G9223 - COVER, INVERTER TERMINAL
G9223-11010	GWZ100	01/2017 - 12/2999	1
G9225J - HOSE, INVERTER COOLING, NO.1
G9225-30210	GWZ100	01/2017 - 12/2999	1
G925B - BRACKET, INVERTER, NO.6
G925B-11020	GWZ100	01/2017 - 12/2999	1
Common parts
90119-06923
90179-08040
90466-21004
91553-80655
91673-80616
91673-80622
94151-80500
94151-80600
Linked diagrams
3901
8202

GWZ100L-ACVBBA (2017)
