GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

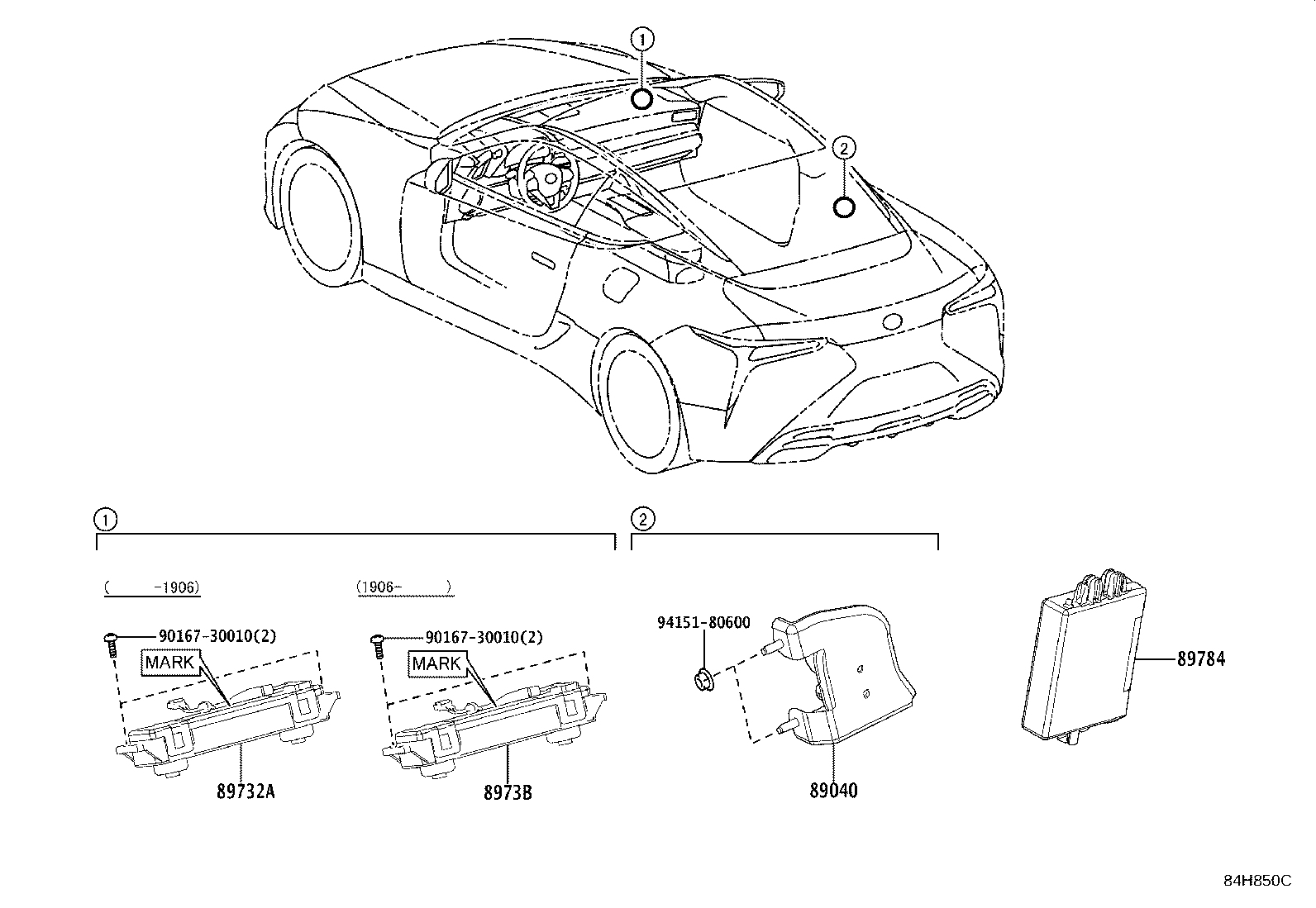

Click highlighted areas on diagram

diagram 89040 89732A 8973B 89784 9016730010 9016730010 9415180600
Part # Description Qty Price
89040 - SIREN ASSY, THEFT WARNING
89040-11010

GWZ100,URZ100

 1
89732A - SENSOR, THEFT WARNING ULTRASONIC
89732-11010

GWZ100,URZ100

KOREA SPEC,P/N LABEL=8973211010

 1
8973B - SENSOR, THEFT WARNING ULTRASONIC & TILT
8973B-42010

GWZ100,URZ100

KOREA SPEC,P/N LABEL=8973B42010

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-33020

GWZ100,URZ100

 1
Common parts
90167-30010
94151-80600
