GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

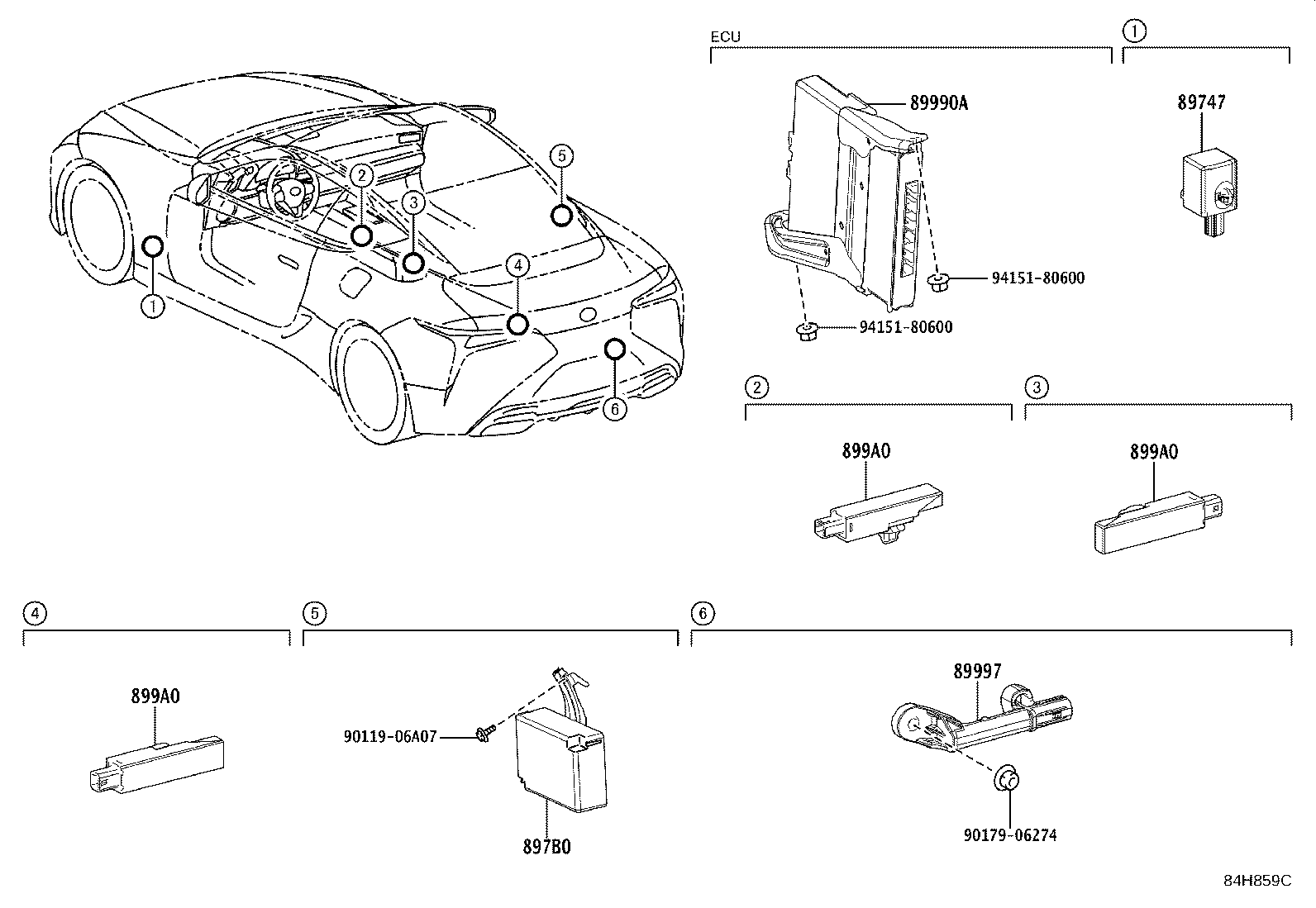

Click highlighted areas on diagram

diagram 89747 897B0 89990A 89997 899A0 899A0 899A0 9011906A07 9017906274 9415180600 9415180600
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GWZ100,URZ100

 1
897B0 - RECEIVER ASSY, ELECTRICAL KEY & TPMS
897B0-11020

GWZ100,URZ100

 1
897B0-11121

GWZ100,URZ100

KOREA SPEC

 1
897B0-11110

GWZ100,URZ100

 1
897B0-11120

GWZ100,URZ100

KOREA SPEC

 1
897B0-11030

GWZ100,URZ100

KOREA SPEC

 1
89990A - COMPUTER ASSY, SMART KEY
89990-11031

GWZ100

 1
89990-11110

GWZ100

 1
89990-11060

GWZ100

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

GWZ100,URZ100

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

GWZ100,URZ100

 3
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

GWZ100,URZ100

 3
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

GWZ100,URZ100

 3
Common parts
90119-06A07
90179-06274
94151-80600
