GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

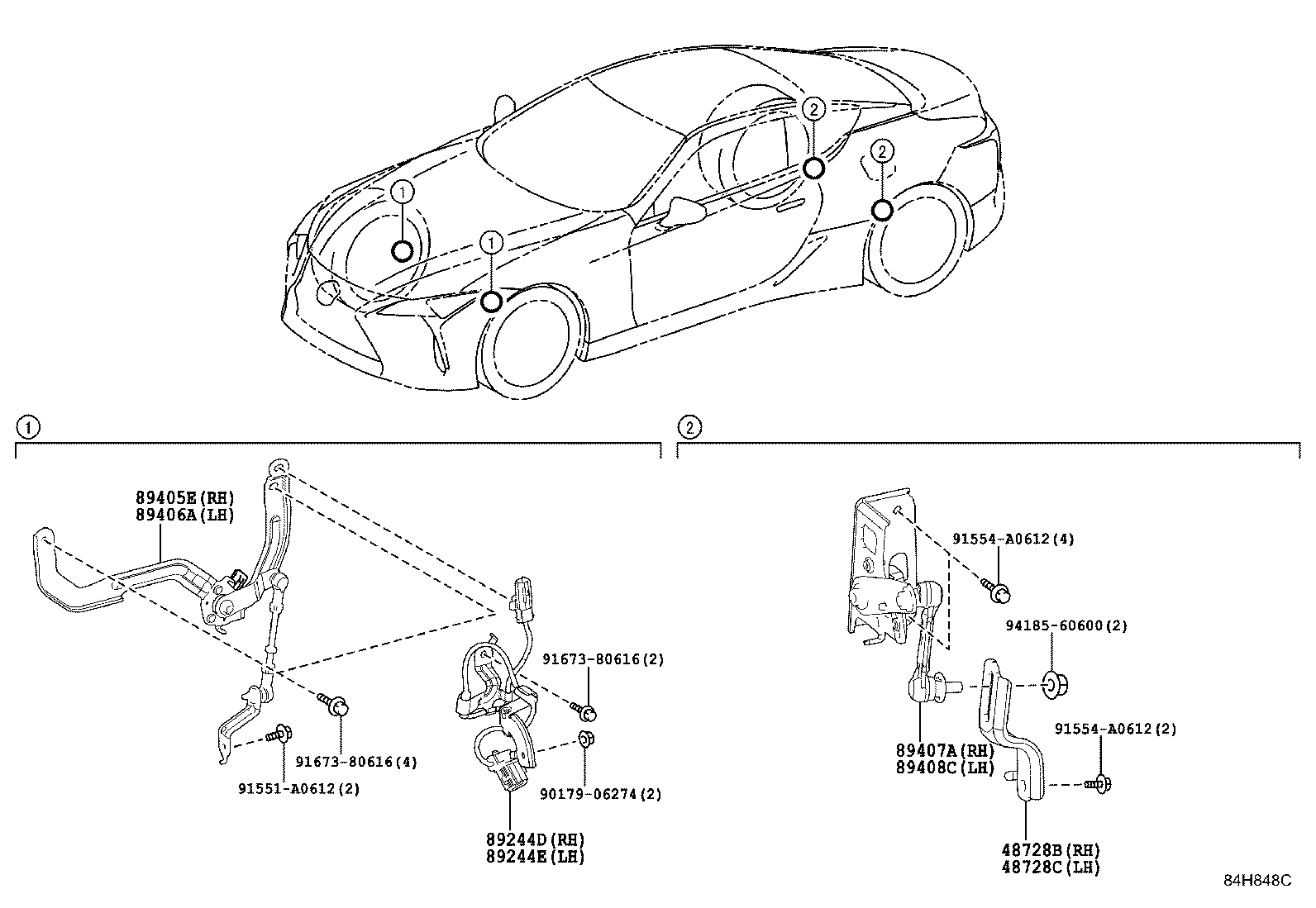

Click highlighted areas on diagram

diagram 48728B 48728C 89244D 89244E 89405E 89406A 89407A 89408C 9017906274 91551A0612 91554A0612 91554A0612 9167380616 9167380616 9418560600
Part # Description Qty Price
48728B - BRACKET, LOAD SENSING VALVE SENSOR, RH
48728-11010

GWZ100,URZ100

 1
48728C - BRACKET, LOAD SENSING VALVE SENSOR, LH
48728-11020

GWZ100,URZ100

 1
89244D - WIRE, ABSORBER CONTROL, RH
89244-11010

GWZ100,URZ100

 1
89244E - WIRE, ABSORBER CONTROL, LH
89244-11020

GWZ100,URZ100

 1
89405E - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH
89405-11010

GWZ100,URZ100

 1
89406A - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH
89406-11010

GWZ100,URZ100

 1
89407A - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH
89407-11010

GWZ100,URZ100

 1
89408C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89408-11010

GWZ100,URZ100

 1
Common parts
90179-06274
91551-A0612
91554-A0612
91673-80616
94185-60600
