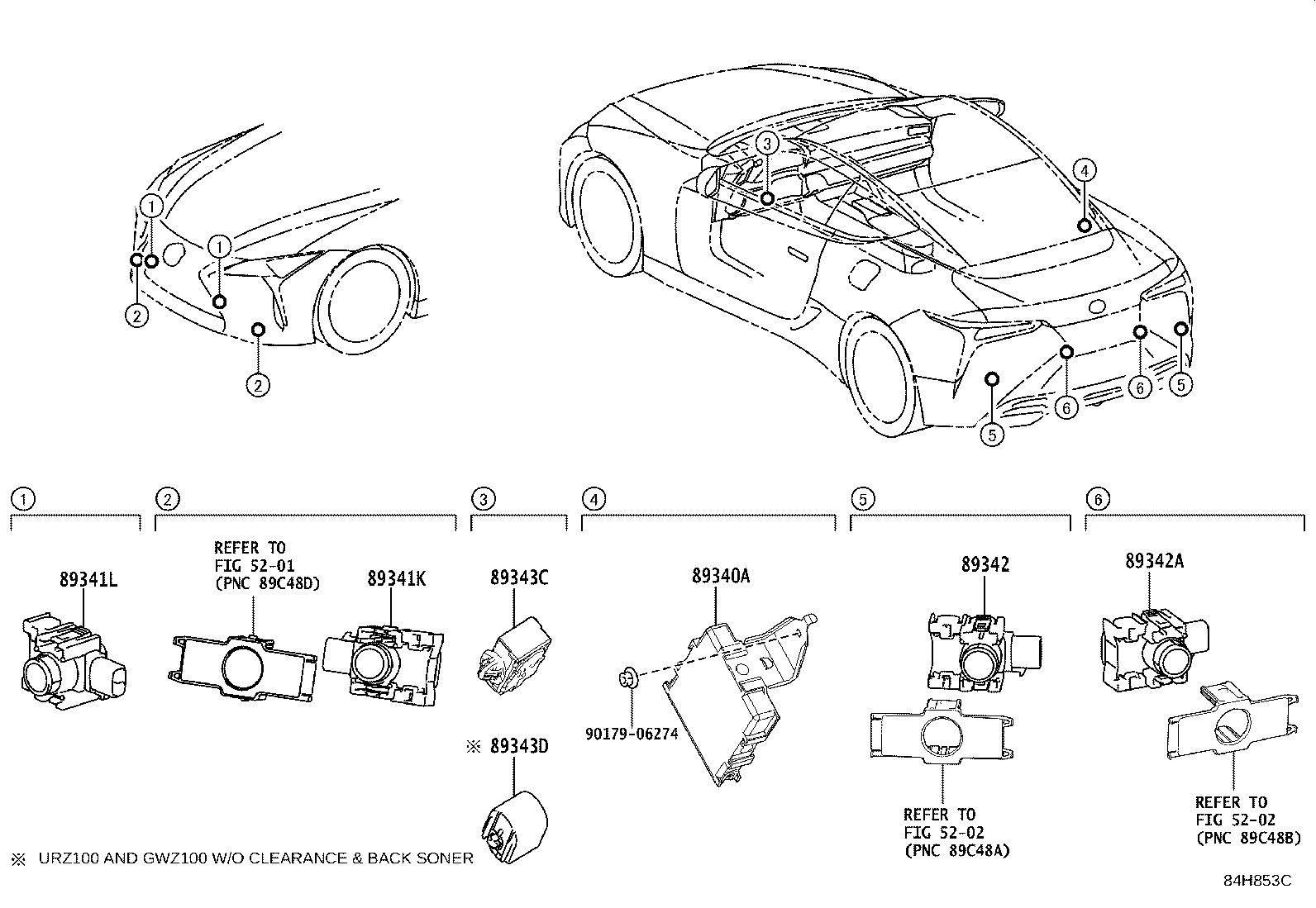

Toyota Lexus lc500/500h(cp) GWZ100 CLEARANCE & BACK SONAR

Part #	Description	Period	Qty
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-11010	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-11010E0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,AMBER CS.,4X2	01/2017 - 04/2020	2
89341-11010B1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2	01/2017 - 10/2021	2
89341-11010J1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,STRUCTURAL BLUE,8Y0	10/2017 - 09/2018	2
89341-11010G0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,TERRANE KHAKI M.M.,6X4	09/2019 - 12/2999	2
89341-11010C0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,BLACK,212	01/2017 - 10/2021	2
89341-11010B0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0	01/2017 - 12/2999	2
89341-11010C1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223	01/2017 - 12/2999	2
89341-11010D0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0	01/2017 - 06/2019	2
89341-11010B2	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	01/2017 - 12/2999	2
89341-11010A0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	01/2017 - 12/2999	2
89341-11010D1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,RADIANT RED CONTRAST LAYE,3T5	01/2017 - 12/2999	2
89341-11010F0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1	01/2017 - 12/2999	2
89341-11010J0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,DEEP BLUE MC.,8X5	01/2017 - 12/2999	2
89341-11010E1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,BLAZING CARNELIAN CONTRAS,4Y1	04/2020 - 12/2999	2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-11020	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-11010B1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2	01/2017 - 10/2021	2
89341-11010D0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0	01/2017 - 06/2019	2
89341-11010A0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	01/2017 - 12/2999	2
89341-11010J1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,STRUCTURAL BLUE,8Y0	10/2017 - 09/2018	2
89341-11010E0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,AMBER CS.,4X2	01/2017 - 04/2020	2
89341-11010G0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,TERRANE KHAKI M.M.,6X4	09/2019 - 12/2999	2
89341-11010D1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,RADIANT RED CONTRAST LAYE,3T5	01/2017 - 12/2999	2
89341-11010F0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1	01/2017 - 12/2999	2
89341-11010J0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,DEEP BLUE MC.,8X5	01/2017 - 12/2999	2
89341-11010C0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,BLACK,212	01/2017 - 10/2021	2
89341-11010B0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0	01/2017 - 12/2999	2
89341-11010C1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223	01/2017 - 12/2999	2
89341-11010B2	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	01/2017 - 12/2999	2
89341-11010E1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,BLAZING CARNELIAN CONTRAS,4Y1	04/2020 - 12/2999	2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-11010C0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,BLACK,212	01/2017 - 10/2021	2
89341-11010B1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2	01/2017 - 10/2021	2
89341-11010E0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,AMBER CS.,4X2	01/2017 - 04/2020	2
89341-11010A0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	01/2017 - 12/2999	2
89341-11010E1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,BLAZING CARNELIAN CONTRAS,4Y1	04/2020 - 12/2999	2
89341-11010J1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,STRUCTURAL BLUE,8Y0	10/2017 - 09/2018	2
89341-11010G0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,TERRANE KHAKI M.M.,6X4	09/2019 - 12/2999	2
89341-11010J0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,DEEP BLUE MC.,8X5	01/2017 - 12/2999	2
89341-11010D0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0	01/2017 - 06/2019	2
89341-11010B0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0	01/2017 - 12/2999	2
89341-11010C1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223	01/2017 - 12/2999	2
89341-11010F0	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1	01/2017 - 12/2999	2
89341-11010B2	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	01/2017 - 12/2999	2
89341-11010D1	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH,RADIANT RED CONTRAST LAYE,3T5	01/2017 - 12/2999	2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	1
89343D - BUZZER, CLEARANCE WARNING, NO.2
89343-50060	GWZ100	01/2017 - 10/2021	1
Common parts
90179-06274
Linked diagrams
5201
5202

GWZ100L-ACVBBA (2017)

(1701- )
