GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

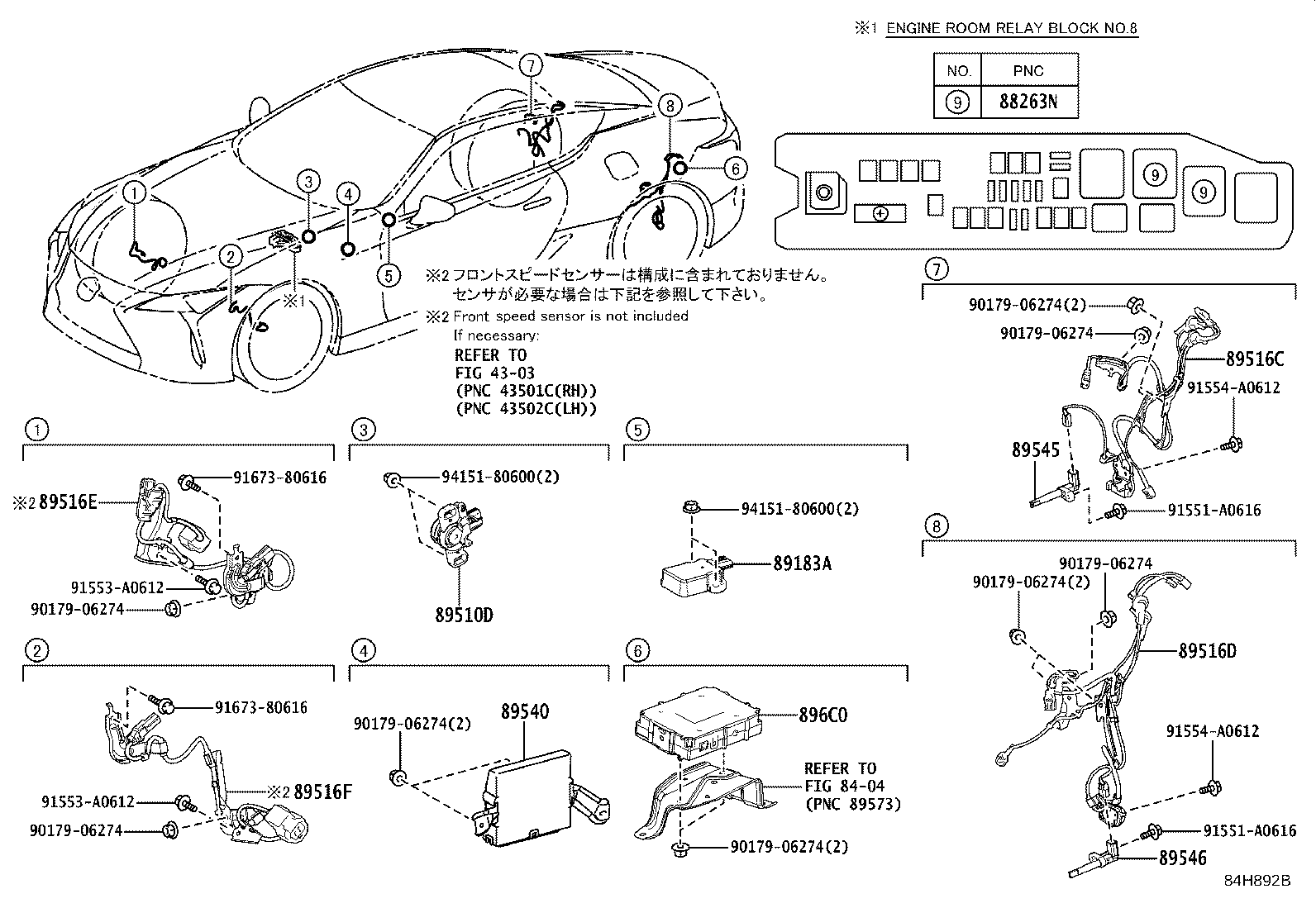

Click highlighted areas on diagram

diagram 4303 8404 88263N 89183A 89510D 89516C 89516D 89516E 89516F 89540 89545 89546 896C0 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 91551A0616 91551A0616 91553A0612 91553A0612 91554A0612 91554A0612 9167380616 9167380616 9415180600 9415180600
Part # Description Qty Price
88263N - RELAY, ABS MOTOR
88263-21010

GWZ100,URZ100

 2
89183A - SENSOR, YAWRATE
89183-48020

GWZ100,URZ100

 1
89183-50030

GWZ100,URZ100

KOREA SPEC

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-33020

GWZ100,URZ100

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-11030

GWZ100,URZ100

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-11040

GWZ100,URZ100

 1
89516E - WIRE, SKID CONTROL SENSOR, FRONT RH
89516-11010

GWZ100,URZ100

 1
89516F - WIRE, SKID CONTROL SENSOR, FRONT LH
89516-11020

GWZ100,URZ100

 1
89540 - COMPUTER ASSY, SKID CONTROL
895B0-11070

GWZ100

 1
895B0-11090

GWZ100

"S PACKAGE"

 1
895B0-11490

GWZ100

"S PACKAGE"&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)

 1
895B0-11230

GWZ100

LUSTER YELLOW*()

 1
895B0-11490

GWZ100

"AVIATION"*(D)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM

 1
895B0-11230

GWZ100

"S PACKAGE"

 1
895B0-11250

GWZ100

 1
895B0-11520

GWZ100

"S PACKAGE"&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM

 1
895B0-11650

GWZ100

 1
89545 - SENSOR, SPEED, REAR RH
89545-30090

GWZ100,URZ100

 1
89546 - SENSOR, SPEED, REAR LH
89546-30090

GWZ100,URZ100

 1
896C0 - SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET
896C0-11010

GWZ100,URZ100

 1
Common parts
90179-06274
91551-A0616
91553-A0612
91554-A0612
91673-80616
94151-80600
Linked diagrams
4303
8404
