GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )GWZ100

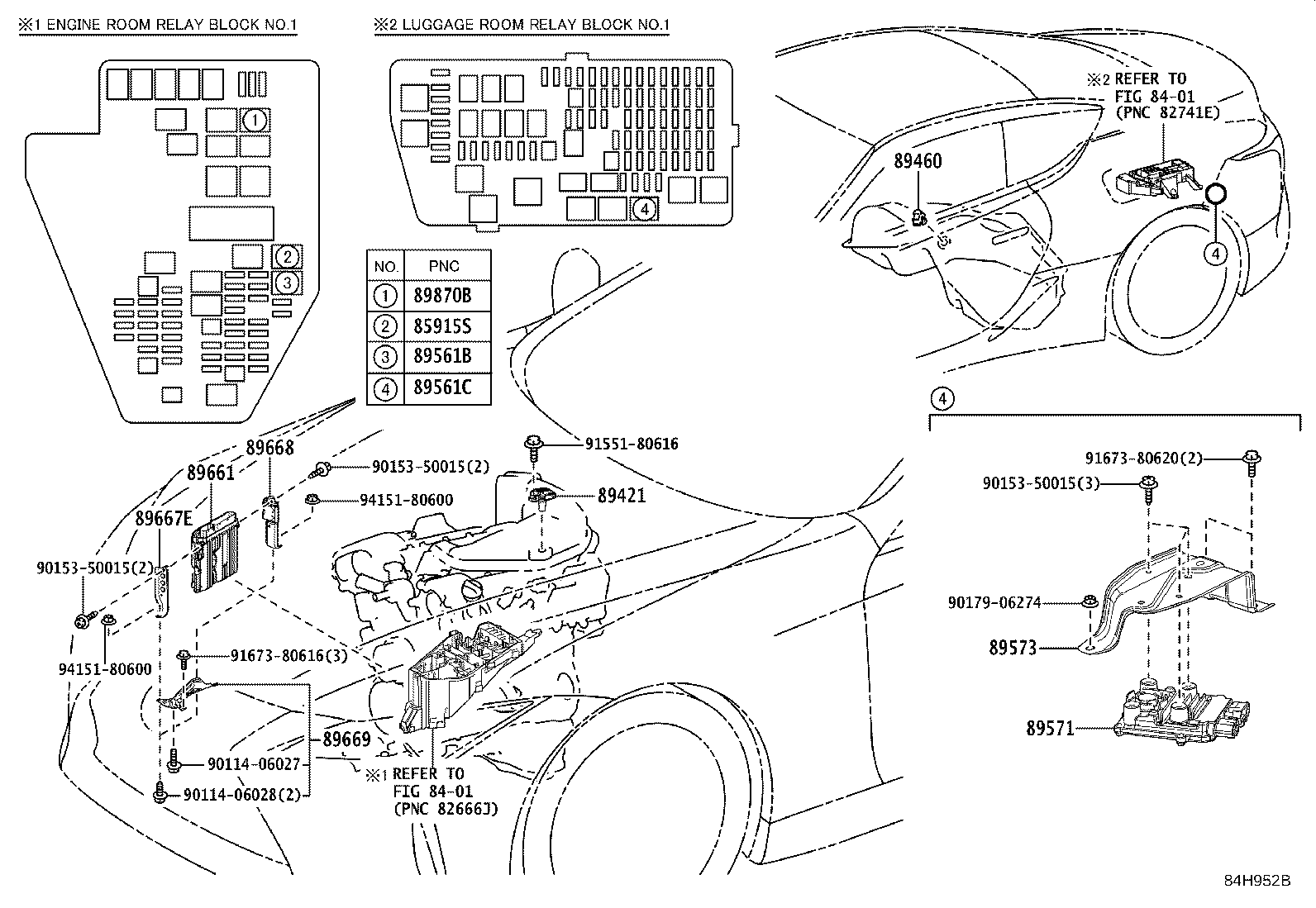

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-47010 |
GWZ100 |
1 | ||
| 89460 - SENSOR ASSY, VAPOR PRESSURE | ||||
| 89461-48020 |
GWZ100 |
1 | ||
| 89561B - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 89561C - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 89571 - COMPUTER, FUEL PUMP CONTROL | ||||
| 89571-58010 |
GWZ100,URZ100 |
1 | ||
| 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER | ||||
| 89573-11010 |
GWZ100,URZ100 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-11110 |
GWZ100 |
1 | ||
| 89661-11111 |
GWZ100 DENSO |
1 | ||
| 89661-11010 |
GWZ100 DENSO |
1 | ||
| 89661-11112 |
GWZ100 DENSO |
1 | ||
| 89661-11490 |
GWZ100 DENSO |
1 | ||
| 89661-11560 |
GWZ100 DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-11030 |
GWZ100 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-11030 |
GWZ100 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-11030 |
GWZ100 |
1 | ||
| 89870B - RELAY, ELECTRONIC DRIVER UNIT | ||||
| 90987-02027 |
GWZ100 |
1 | ||
| Common parts | ||||
| 90114-06027 | ||||
| 90114-06028 | ||||
| 90153-50015 | ||||
| 90179-06274 | ||||
| 91551-80616 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
