GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
ILLUST NO. 7 OF10(1701- )

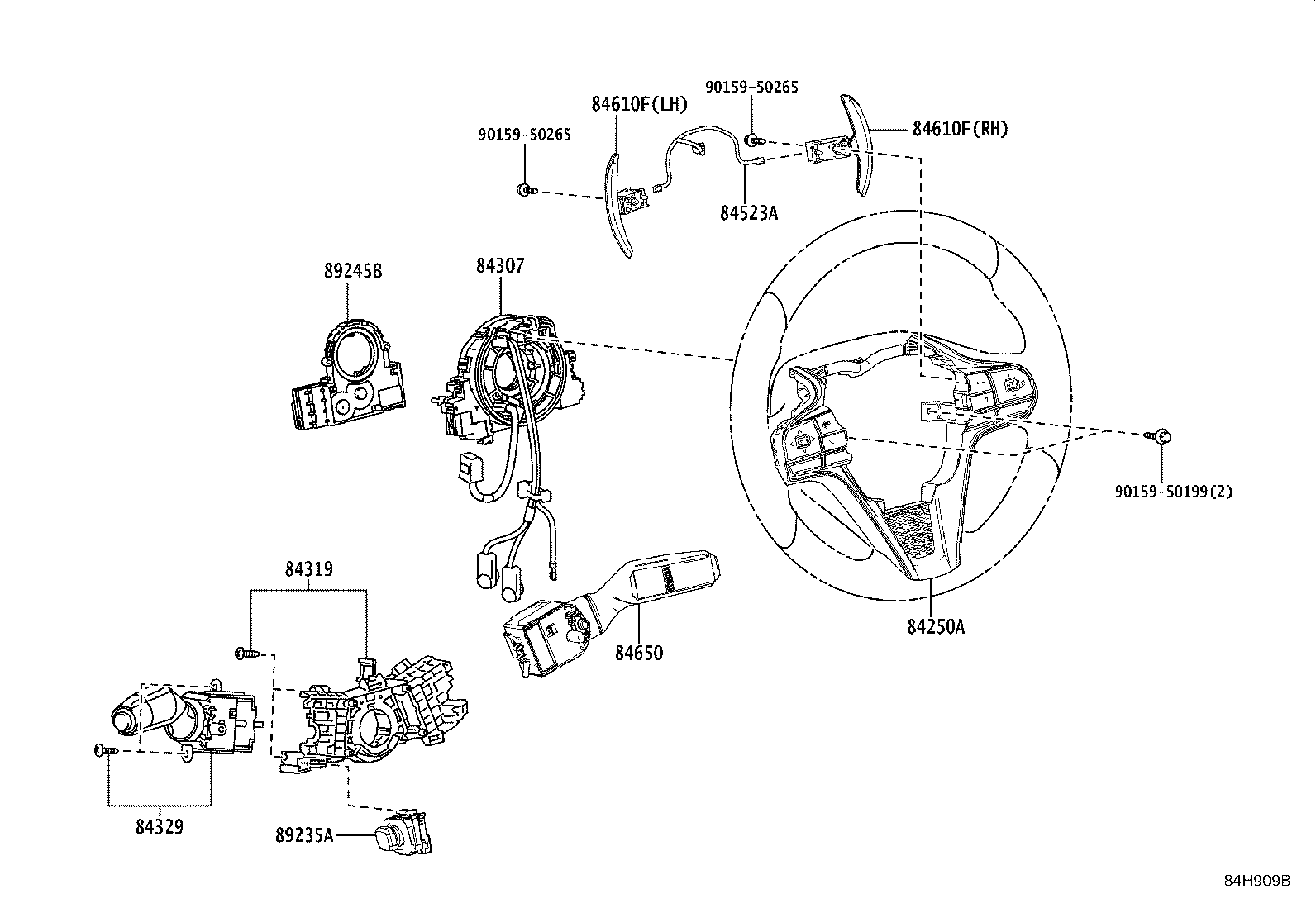

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 84250-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 84250-11020 |
GWZ100,URZ100 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84308-11020 |
GWZ100,URZ100 STRUCTURAL BLUE*(A)&STEERING WHEEL-LEATHER+HEATER(LIMITED) |
1 | ||
| 84308-11020 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 84308-11010 |
GWZ100,URZ100 |
1 | ||
| 84308-11020 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
GWZ100,URZ100 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33140 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 84329-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 84329-11040 |
GWZ100,URZ100 |
1 | ||
| 84329-11010 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 84329-11040 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 84523A - WIRE, SWITCH NO.2 | ||||
| 84523-11010 |
GWZ100,URZ100 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-11020 |
GWZ100,URZ100 RH |
1 | ||
| 84610-11010 |
GWZ100,URZ100 LH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-11020 |
GWZ100,URZ100 RH |
1 | ||
| 84610-11010 |
GWZ100,URZ100 LH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-11010 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 84652-11020 |
GWZ100,URZ100 |
1 | ||
| 84652-11010 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GWZ100,URZ100 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 8924B-33040 |
GWZ100,URZ100 |
1 | ||
| 8924B-50050 |
GWZ100,URZ100 |
1 | ||
| 8924B-50070 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 8924B-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
ILLUST NO. 9 OF10(1701- )

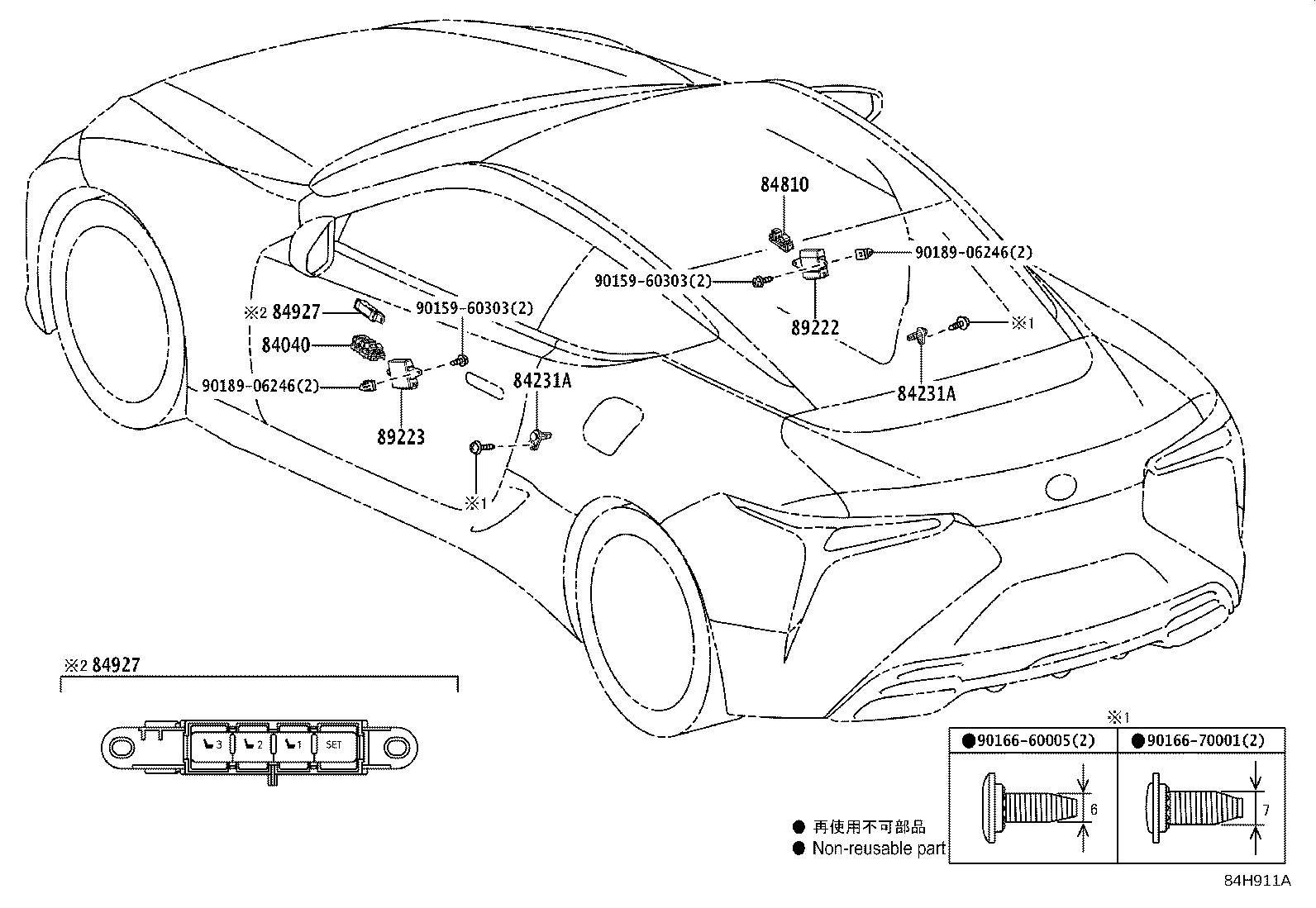

DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-11020 |
GWZ100,URZ100 |
1 | ||
| 84040-11010 |
GWZ100,URZ100 |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-30380 |
GWZ100,URZ100 |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-30380 |
GWZ100,URZ100 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-11010 |
GWZ100,URZ100 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-11010 |
GWZ100,URZ100 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-11010 |
GWZ100,URZ100 |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-11010 |
GWZ100,URZ100 |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89223-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90189-06246 | ||||

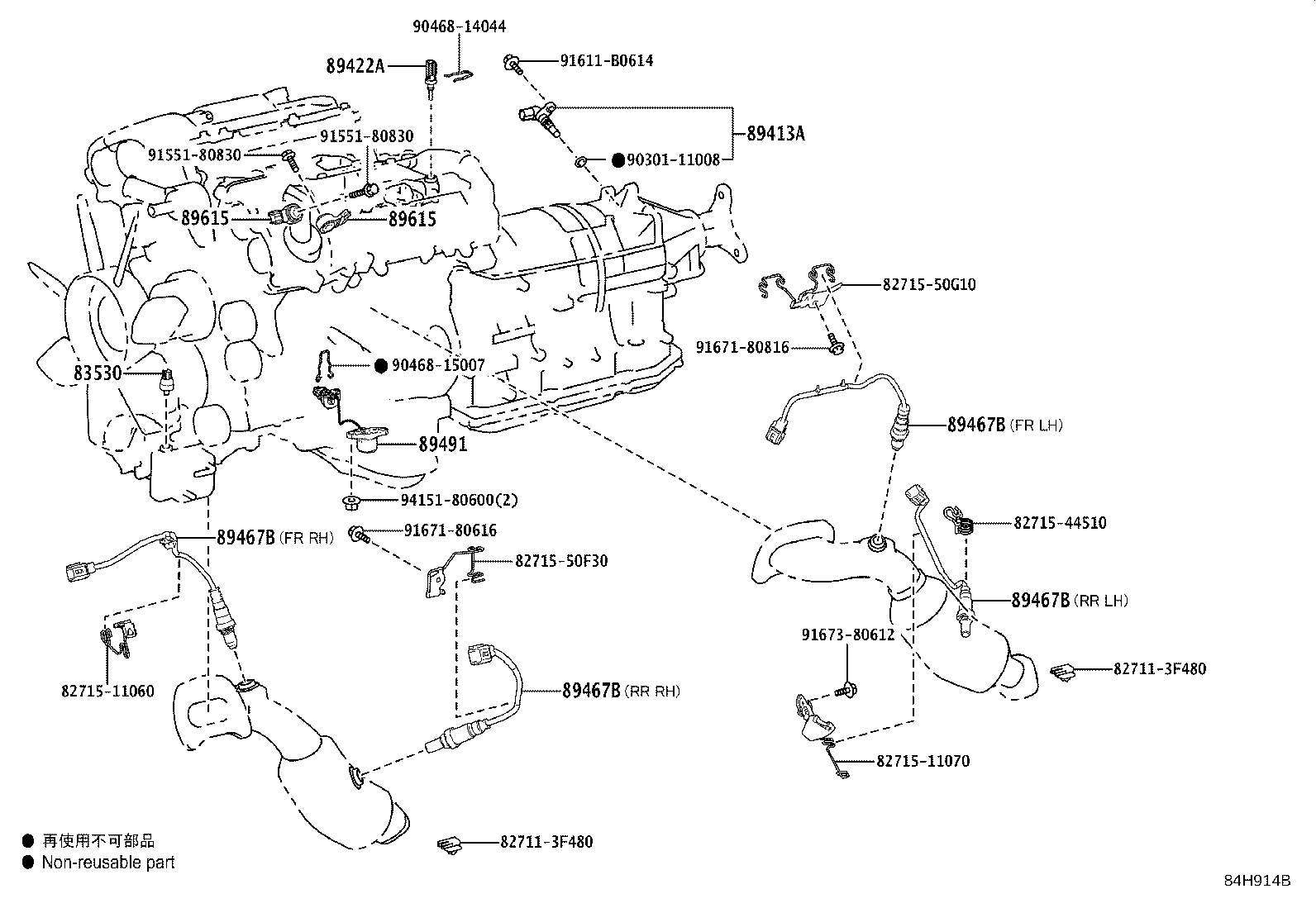

ILLUST NO. 1 OF10(1701- )GWZ100
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
GWZ100,URZ100 YAZAKI |
1 | ||
| 83530-28020 |
GWZ100,URZ100 DENSO |
1 | ||
| 89413A - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-11010 |
GWZ100 |
1 | ||
| 89413-11011 |
GWZ100 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-47010 |
GWZ100 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-11010 |
GWZ100 FR LH |
1 | ||
| 89467-11030 |
GWZ100 RR LH |
1 | ||
| 89467-11040 |
GWZ100 RR RH |
1 | ||
| 89467-11020 |
GWZ100 FR RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-11010 |
GWZ100 FR LH |
1 | ||
| 89467-11030 |
GWZ100 RR LH |
1 | ||
| 89467-11040 |
GWZ100 RR RH |
1 | ||
| 89467-11020 |
GWZ100 FR RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-11010 |
GWZ100 FR LH |
1 | ||
| 89467-11030 |
GWZ100 RR LH |
1 | ||
| 89467-11040 |
GWZ100 RR RH |
1 | ||
| 89467-11020 |
GWZ100 FR RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-11010 |
GWZ100 FR LH |
1 | ||
| 89467-11030 |
GWZ100 RR LH |
1 | ||
| 89467-11040 |
GWZ100 RR RH |
1 | ||
| 89467-11020 |
GWZ100 FR RH |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30100 |
GWZ100 |
1 | ||
| 89491-30101 |
GWZ100 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GWZ100 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GWZ100 |
2 | ||
| Common parts | ||||
| 82711-3F480 | ||||
| 82715-11060 | ||||
| 82715-11070 | ||||
| 82715-44510 | ||||
| 82715-50F30 | ||||
| 82715-50G10 | ||||
| 90301-11008 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91611-B0614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF10(1701- )

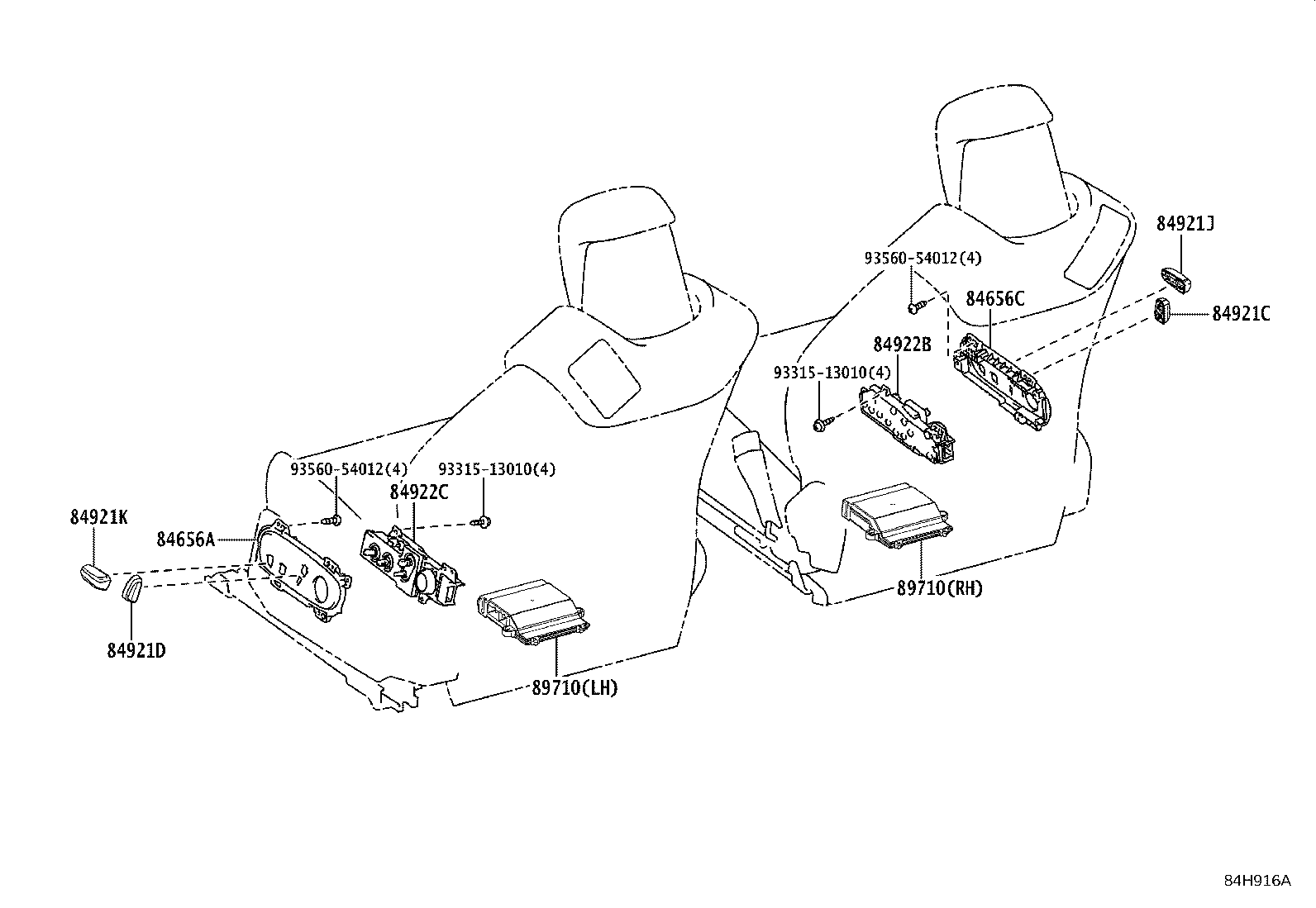

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84656A - BEZEL, SWITCH | ||||
| 84656-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 84656-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 84656-11010E2 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 84656-11010E0 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 84656C - BEZEL, SWITCH NO.2 | ||||
| 84656-11020J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 84656-11030E0 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,OCHRE,TRIM4# |
1 | ||
| 84656-11030C0 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,BLACK,TRIM2#,3# |
1 | ||
| 84656-11020E0 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 84656-11020C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 84656-11020E2 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 84656-11030C0 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,BLACK,TRIM2#,3# |
1 | ||
| 84656-11030E0 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,OCHRE,TRIM4# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-11040 |
GWZ100,URZ100 |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-11020 |
GWZ100,URZ100 |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-11030 |
GWZ100,URZ100 |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-11010 |
GWZ100,URZ100 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-11040 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 84922-11050 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT |
1 | ||
| 84922-11040 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 84922-11040 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 84922-11050 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT |
1 | ||
| 84922-11020 |
GWZ100,URZ100 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-11030 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT |
1 | ||
| 84922-11030 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 84922-11030 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 84922-11030 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT |
1 | ||
| 84922-11030 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 84922-11010 |
GWZ100,URZ100 |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11040 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11070 |
GWZ100,URZ100 LH |
1 | ||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11080 |
GWZ100,URZ100 RH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11090 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11091 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11040 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11071 |
GWZ100,URZ100 LH |
1 | ||
| 89710-11090 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11041 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11081 |
GWZ100,URZ100 RH |
1 | ||
| 89710-11032 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11091 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11042 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11042 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11082 |
GWZ100,URZ100 RH |
1 | ||
| 89710-11032 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11072 |
GWZ100,URZ100 LH |
1 | ||
| 89710-11041 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11040 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11070 |
GWZ100,URZ100 LH |
1 | ||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11080 |
GWZ100,URZ100 RH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11090 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11030 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,LH |
1 | ||
| 89710-11091 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11040 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11071 |
GWZ100,URZ100 LH |
1 | ||
| 89710-11090 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11031 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11041 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11081 |
GWZ100,URZ100 RH |
1 | ||
| 89710-11032 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11091 |
GWZ100,URZ100 "S PACKAGE"&SEAT HEATER-WITHOUT,RH |
1 | ||
| 89710-11042 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11042 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| 89710-11082 |
GWZ100,URZ100 RH |
1 | ||
| 89710-11032 |
GWZ100,URZ100 "S PACKAGE",LH |
1 | ||
| 89710-11072 |
GWZ100,URZ100 LH |
1 | ||
| 89710-11041 |
GWZ100,URZ100 "S PACKAGE",RH |
1 | ||
| Common parts | ||||
| 93315-13010 | ||||
| 93560-54012 | ||||
ILLUST NO. 6 OF10(1701- )

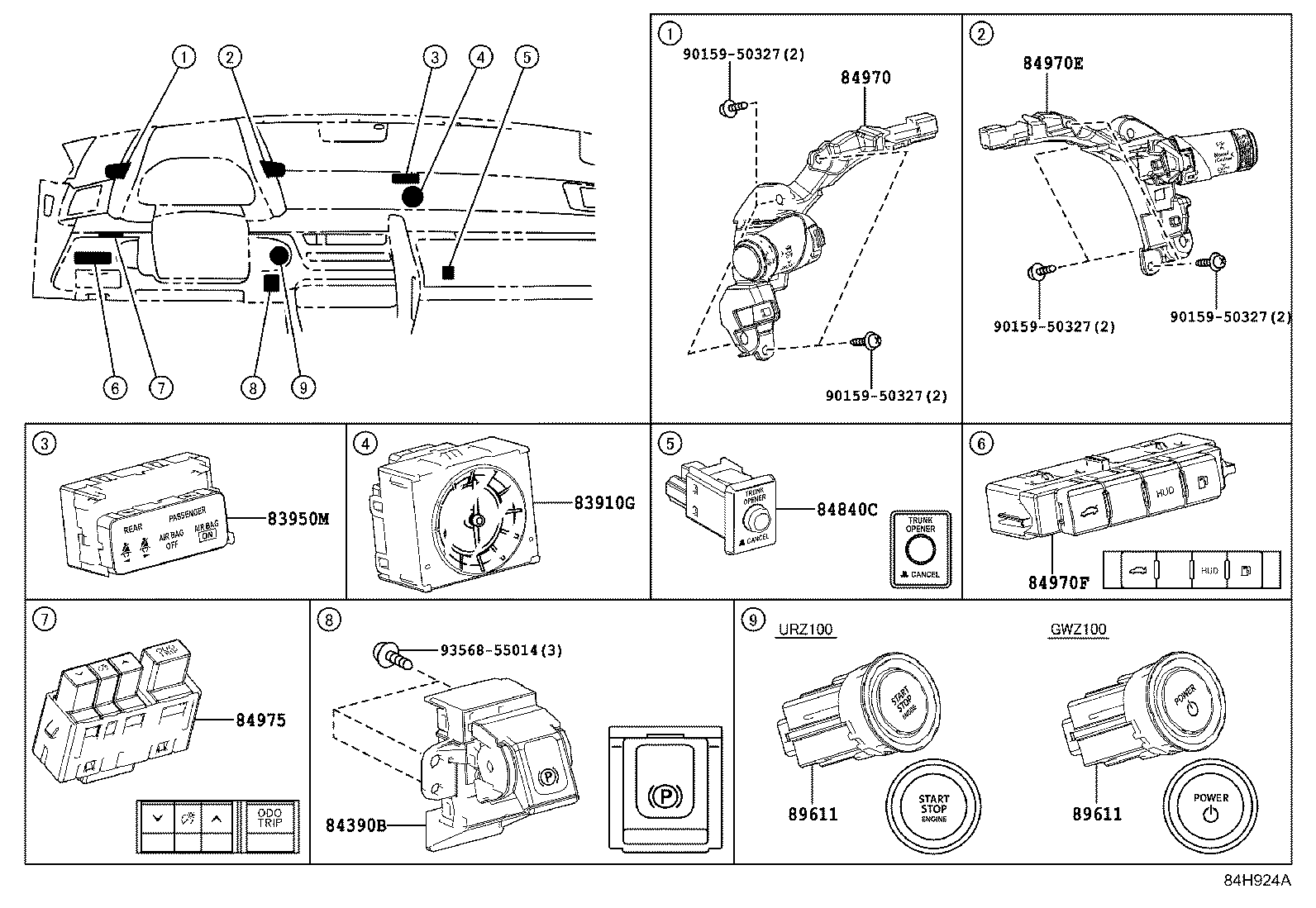

INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84392 - SWITCH, BRAKE HOLD | ||||
| 84392-11010 |
GWZ100,URZ100 |
1 | ||
| 84780B - CONTROLLER ASSY, REMOTE OPERATION | ||||
| 84780-11011 |
GWZ100,URZ100 |
1 | ||
| 84780-11010 |
GWZ100,URZ100 |
1 | ||

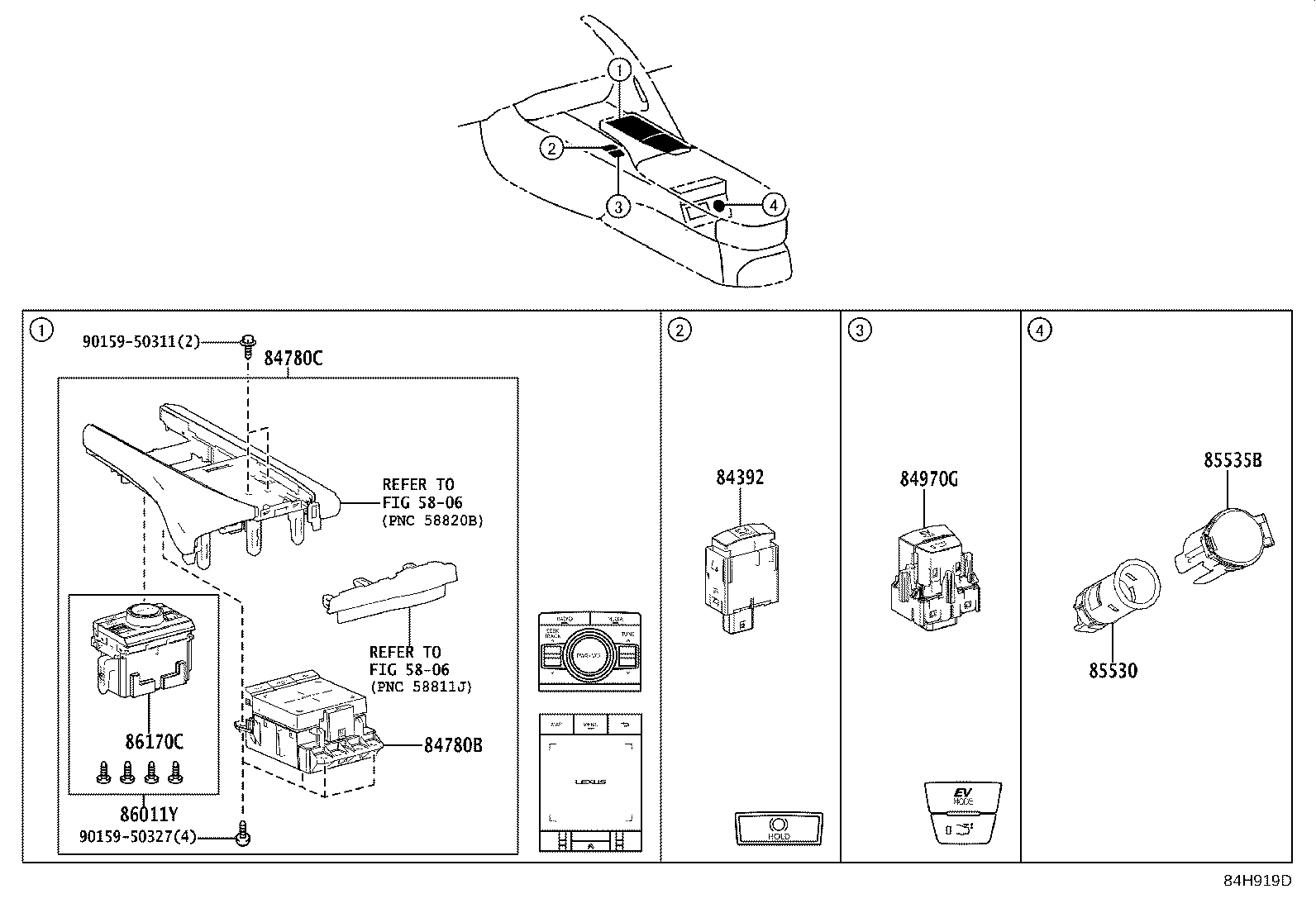

| 84780C - SWITCH ASSY, RADIO REMOTE TUNING | ||||
| 84780-11070C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 84780-11070E1 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 84780-11071C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 84780-11070J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 84780-11071J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 84780-11071E2 |
GWZ100,URZ100 OCHER, OCHRE,TRIM4# |
1 | ||
| 84780-11071C4 |
GWZ100,URZ100 BLACK, MUSTARD YELLOW,TRIM21 |
1 | ||
| 84780-11071C3 |
GWZ100,URZ100 BLACK, LT.GRAY,TRIM2#,3# |
1 | ||
| 84780-11071C3 |
GWZ100,URZ100 BLACK, LT.GRAY,TRIM20,3# |
1 | ||
| 84780-11071E4 |
GWZ100,URZ100 KUROKOHAKU, BROWN NO.304,TRIM41 |
1 | ||
| 84780-11071J2 |
GWZ100,URZ100 BLUE, ECRU,TRIM8# |
1 | ||
| 84780-11071C5 |
GWZ100,URZ100 BLACK, ORANGE NO.85,TRIM42 |
1 | ||
| 84780-11071E2 |
GWZ100,URZ100 OCHER, OCHRE,TRIM40 |
1 | ||
| 84780-11071E1 |
GWZ100,URZ100 OCHER,TRIM4# |
1 | ||
| 84780-11150C0 |
GWZ100,URZ100 "AVIATION"*(D),BLACK, BROWN NO.304,TRIM2# |
1 | ||
| 84970G - SWITCH ASSY, COMBINATION, NO.4 | ||||
| 84970-11180 |
GWZ100 LUSTER YELLOW*() |
1 | ||
| 84970-11200 |
GWZ100 |
1 | ||
| 84970-11180 |
GWZ100 "S PACKAGE" |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
GWZ100,URZ100 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
GWZ100,URZ100 |
1 | ||
| 86011Y - SWITCH & VOLUME, SET | ||||
| 86011-11030 |
GWZ100,URZ100 |
1 | ||
| 86170C - SWITCH & VOLUME ASSY | ||||
| 86170-11020 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 5806 | ||||
ILLUST NO.10 OF10(1701- )
FLOOR & LUGGAGE

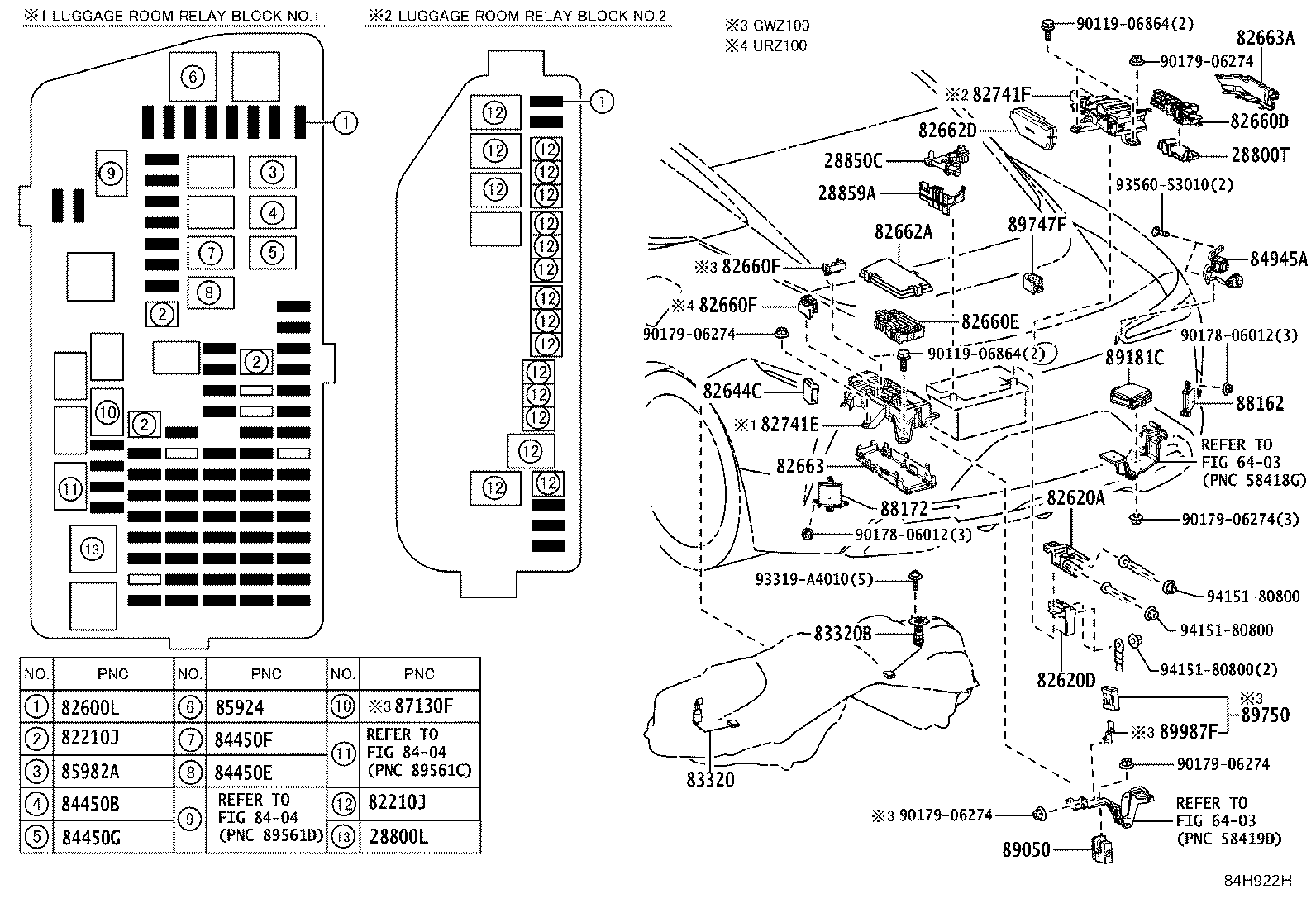

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800L - RELAY, SUB BATTERY | ||||
| 90987-02030 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 28800T - RELAY, SUB-BATTERY, NO.2 | ||||
| 28861-38010 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-37070 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-38010 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08274 |
GWZ100,URZ100 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08308 |
GWZ100,URZ100 40A-30A-30A,FEMALE |
1 | ||
| 90982-08301 |
GWZ100,URZ100 50A-30A-40A,FEMALE |
1 | ||
| 90982-08300 |
GWZ100,URZ100 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
GWZ100,URZ100 80A,TERM.:FEMALE,BLK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08274 |
GWZ100,URZ100 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08308 |
GWZ100,URZ100 40A-30A-30A,FEMALE |
1 | ||
| 90982-08301 |
GWZ100,URZ100 50A-30A-40A,FEMALE |
1 | ||
| 90982-08300 |
GWZ100,URZ100 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
GWZ100,URZ100 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09019 |
GWZ100,URZ100 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
GWZ100,URZ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GWZ100,URZ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GWZ100,URZ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GWZ100,URZ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
GWZ100,URZ100 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GWZ100,URZ100 25A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50270 |
GWZ100 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50230 |
GWZ100,URZ100 |
1 | ||
| 82644C - COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.3 | ||||
| 82644-11020 |
GWZ100,URZ100 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-11030 |
GWZ100,URZ100 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-11080 |
GWZ100,URZ100 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-11090 |
GWZ100 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-11090 |
GWZ100 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-11100 |
GWZ100,URZ100 |
1 | ||
| 82662-11130 |
GWZ100,URZ100 |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-11020 |
GWZ100,URZ100 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-11010 |
GWZ100,URZ100 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-11020 |
GWZ100,URZ100 |
1 | ||
| 82741E - BLOCK, LUGGAGE ROOM RELAY, NO.1 | ||||
| 82741-11010 |
GWZ100,URZ100 |
1 | ||
| 82741F - BLOCK, LUGGAGE ROOM RELAY, NO.2 | ||||
| 82741-11020 |
GWZ100,URZ100 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-11080 |
GWZ100,URZ100 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-80526 |
GWZ100,URZ100 |
1 | ||
| 84450B - RELAY, LUGGAGE ACCESSORY | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 84450E - RELAY, LUGGAGE IGNITION 1, NO.1 | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 84450F - RELAY, LUGGAGE IGNITION 1, NO.2 | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 84450G - RELAY, LUGGAGE IGNITION 1, NO.3 | ||||
| 90987-02025 |
GWZ100,URZ100 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-11010 |
GWZ100,URZ100 |
1 | ||
| 84945-11020 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02031 |
GWZ100 |
1 | ||
| 85982A - RELAY, LUGGAGE OPENER | ||||
| 90987-04004 |
GWZ100,URZ100 |
1 | ||
| 87130F - RELAY, BATTERY BLOWER, NO.1 | ||||
| 90987-02027 |
GWZ100 |
1 | ||
| 90987-02027 |
GWZ100 HIGH VOLTAGE BATTERY-WITH |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W430 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88162-11010 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88162-11011 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88162-11012 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-11012 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88162-0W430 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88162-11010 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88162-11011 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-11010 |
GWZ100,URZ100 |
1 | ||
| 89181C - COMPUTER, STEERING CONTROL, RR | ||||
| 89182-11020 |
GWZ100 "S PACKAGE" |
1 | ||
| 89182-11021 |
GWZ100 LUSTER YELLOW*() |
1 | ||
| 89182-11021 |
GWZ100 "S PACKAGE" |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
GWZ100,URZ100 LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 89750 - COMPUTER ASSY, SPOILER CONTROL | ||||
| 89750-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 89750-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 89987F - BRACKET, COMPUTER, NO.1 | ||||
| 89987-11030 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 89987-11030 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90178-06012 | ||||
| 90179-06274 | ||||
| 93319-A4010 | ||||
| 93560-53010 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 6403 | ||||
| 8404 | ||||
ILLUST NO. 5 OF10(1701- )
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-11010 |
GWZ100,URZ100 |
1 | ||
| 83910-11011 |
GWZ100,URZ100 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-11010 |
GWZ100,URZ100 |
1 | ||
| 83950-11030 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 83950-11040 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 83950-11010 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-11010 |
GWZ100,URZ100 |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
GWZ100,URZ100 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-11060 |
GWZ100,URZ100 |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-11010 |
GWZ100,URZ100 |
1 | ||
| 84970F - SWITCH ASSY, COMBINATION, NO.3 | ||||
| 84970-11070 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH |
1 | ||
| 84970-11080 |
GWZ100,URZ100 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-11010 |
GWZ100,URZ100 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-11020 |
GWZ100 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-11020 |
GWZ100 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 93568-55014 | ||||

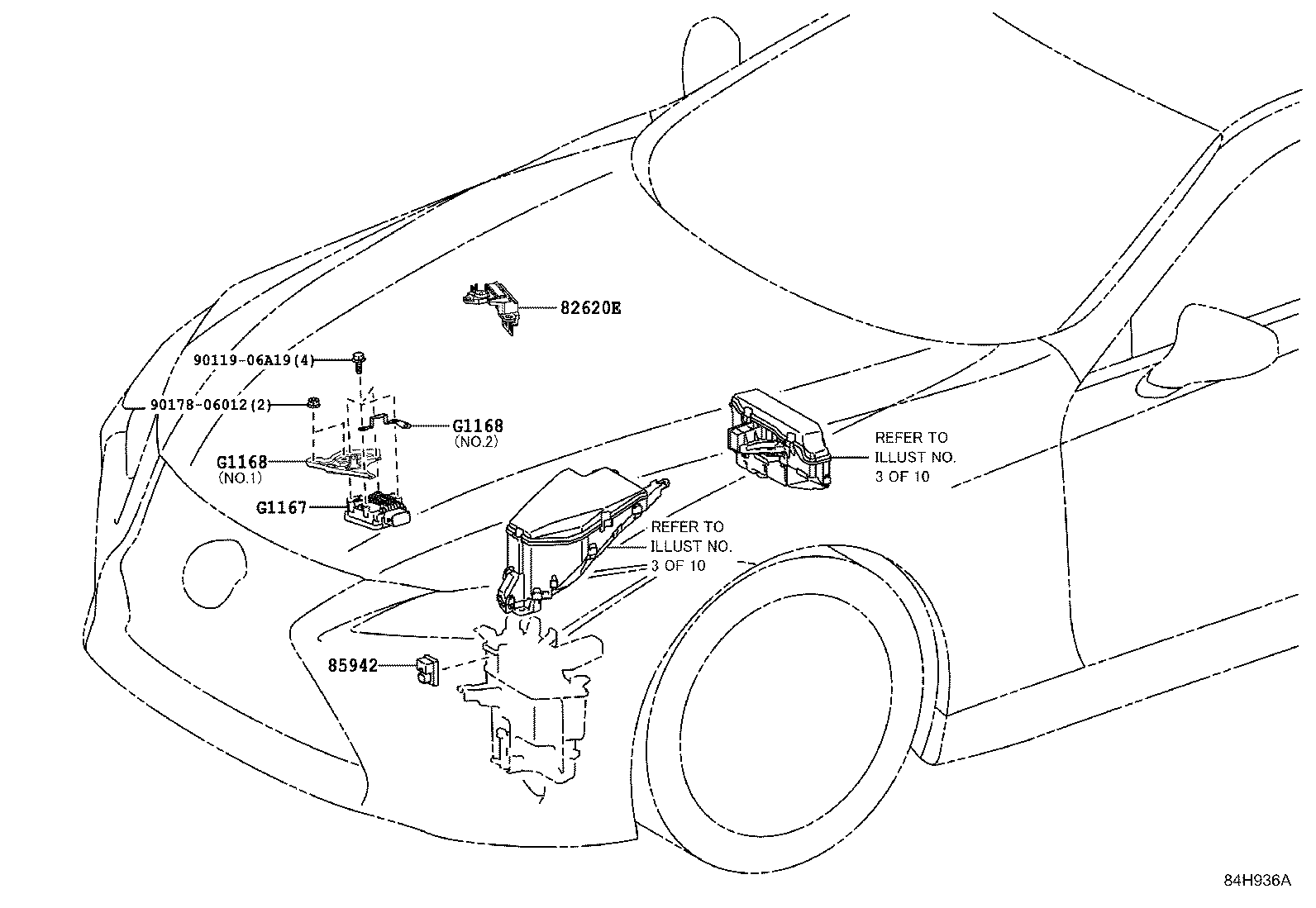

ILLUST NO. 2 OF10(1701- )GWZ100
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620E - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50200 |
GWZ100 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-53020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| G1167 - CONTROLLER, OIL PUMP MOTOR | ||||
| G1167-11010 |
GWZ100 |
1 | ||
| G1168 - BRACKET, OIL PUMP MOTOR CONTROLLER | ||||
| G1168-11010 |
GWZ100 NO.1 |
1 | ||
| G1168-11051 |
GWZ100 NO.2 |
1 | ||
| G1168 - BRACKET, OIL PUMP MOTOR CONTROLLER | ||||
| G1168-11010 |
GWZ100 NO.1 |
1 | ||
| G1168-11051 |
GWZ100 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06A19 | ||||
| 90178-06012 | ||||

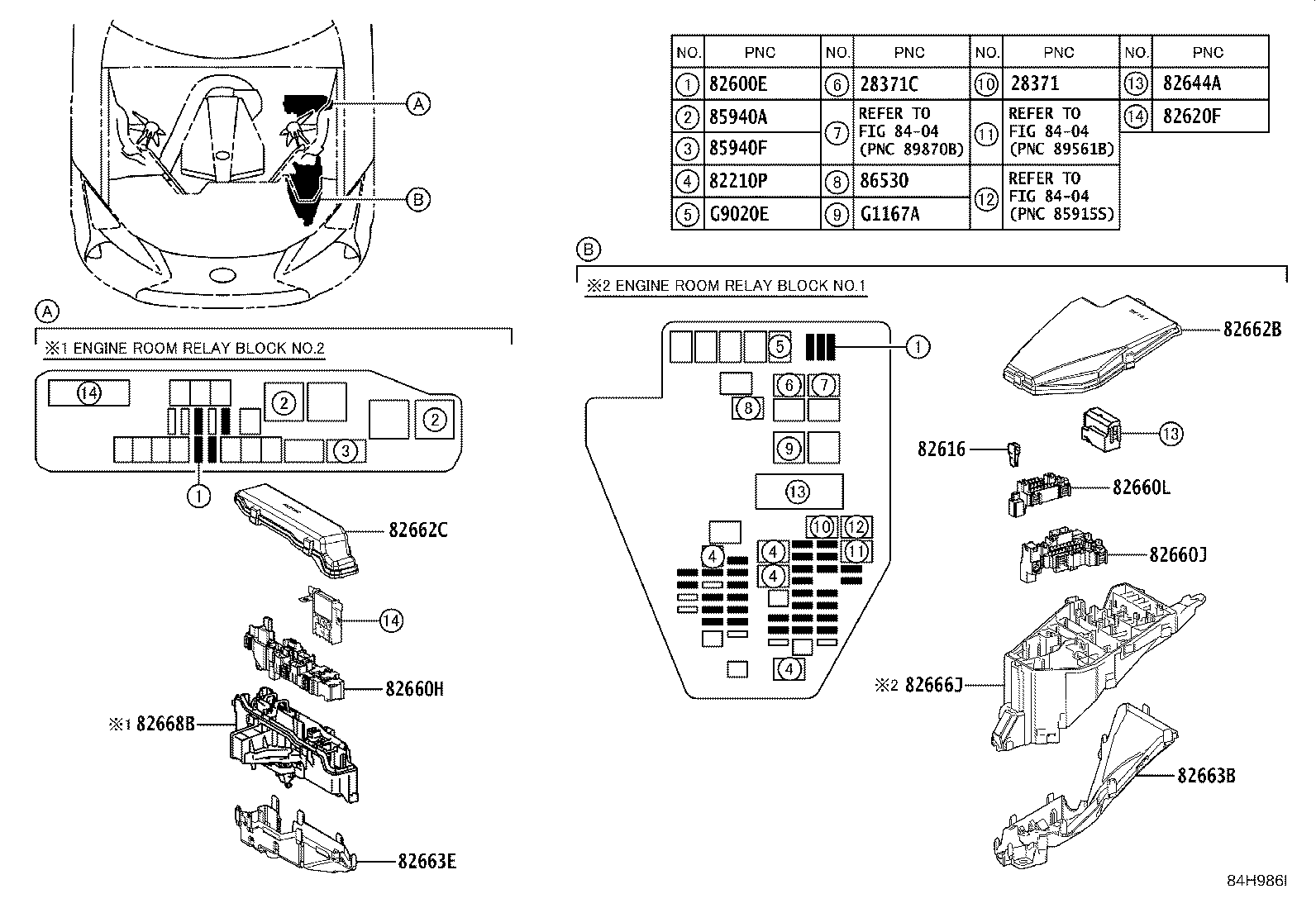

ILLUST NO. 3 OF10(1701- )GWZ100
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08303 |
GWZ100 50A-50A-50A,FEMALE |
1 | ||
| 90982-08304 |
GWZ100,URZ100 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08308 |
GWZ100,URZ100 40A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
GWZ100,URZ100 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
GWZ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
GWZ100,URZ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GWZ100,URZ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GWZ100,URZ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GWZ100 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GWZ100,URZ100 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GWZ100,URZ100 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GWZ100,URZ100 |
1 | ||
| 82620F - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50190 |
GWZ100 |
1 | ||
| 82644A - COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.1 | ||||
| 82644-11030 |
GWZ100,URZ100 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-50150 |
GWZ100 |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-50170 |
GWZ100 |
1 | ||
| 82660L - BLOCK ASSY, RELAY | ||||
| 82660-50190 |
GWZ100 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-50480 |
GWZ100 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-50460 |
GWZ100 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-50250 |
GWZ100 |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-50230 |
GWZ100 |
1 | ||
| 82666J - HOLDER, CONNECTOR, NO.3 | ||||
| 82666-50A00 |
GWZ100 |
1 | ||
| 82668B - HOLDER, CONNECTOR, NO.5 | ||||
| 82666-50880 |
GWZ100 |
1 | ||
| 85940A - RELAY, WINDSHIELD WIPER SWITCH | ||||
| 90987-02025 |
GWZ100,URZ100 |
2 | ||
| 85940F - RELAY ASSY, WINDSHIELD DEICER | ||||
| 90987-02027 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| G1167A - RELAY (FOR OIL PUMP MOTOR) | ||||
| 90987-02025 |
GWZ100 |
1 | ||
| G9020E - RELAY, HYBRID WATER PUMP | ||||
| 90987-02027 |
GWZ100 |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||

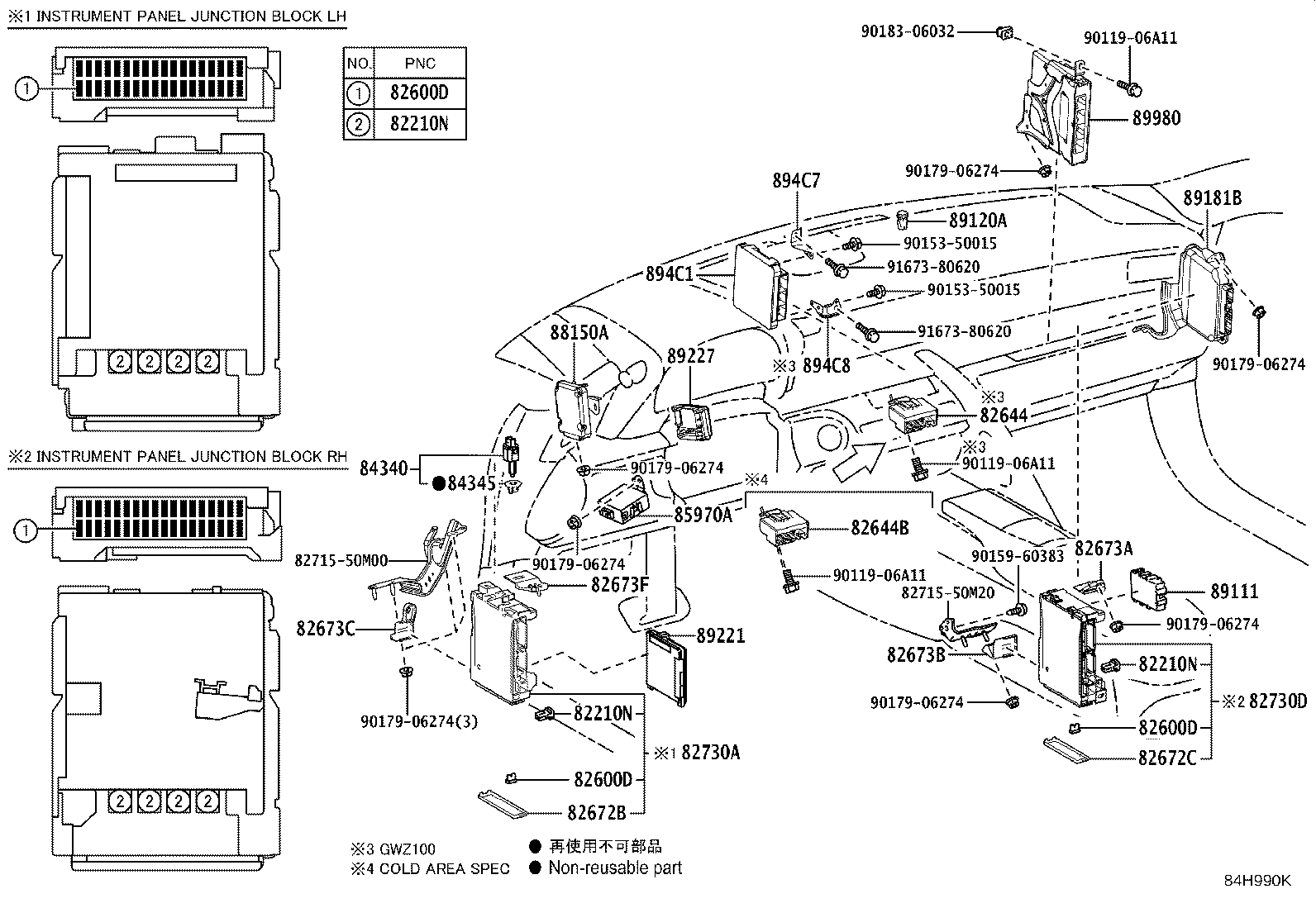

ILLUST NO. 4 OF10(1701- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GWZ100,URZ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GWZ100,URZ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GWZ100,URZ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
GWZ100,URZ100 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GWZ100,URZ100 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GWZ100,URZ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GWZ100,URZ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GWZ100,URZ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GWZ100,URZ100 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
GWZ100,URZ100 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GWZ100,URZ100 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GWZ100,URZ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GWZ100,URZ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GWZ100,URZ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GWZ100,URZ100 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
GWZ100,URZ100 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GWZ100,URZ100 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GWZ100,URZ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GWZ100,URZ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GWZ100,URZ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GWZ100,URZ100 25A,MINI FUSE |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-50040 |
GWZ100 |
1 | ||
| 82644B - COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.2 | ||||
| 82644-50030 |
GWZ100 COLD AREA SPEC |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-50350 |
GWZ100,URZ100 |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-50370 |
GWZ100,URZ100 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-48130 |
GWZ100,URZ100 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-50060 |
GWZ100,URZ100 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-50050 |
GWZ100,URZ100 |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-50040 |
GWZ100,URZ100 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-5A571 |
GWZ100,URZ100 |
1 | ||
| 82730-5A570 |
GWZ100,URZ100 |
1 | ||
| 82730D - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-5A590 |
GWZ100,URZ100 |
1 | ||
| 82730-5A591 |
GWZ100,URZ100 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19075 |
GWZ100,URZ100 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GWZ100,URZ100 |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-11010 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 85970-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-11020 |
GWZ100 |
1 | ||
| 88150-11060 |
GWZ100 |
1 | ||
| 88150-11060 |
GWZ100 KOREA SPEC |
1 | ||
| 88150-11021 |
GWZ100 |
1 | ||
| 88150-11021 |
GWZ100 KOREA SPEC |
1 | ||
| 88150-11020 |
GWZ100 KOREA SPEC |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-50121 |
GWZ100 |
1 | ||
| 89111-50122 |
GWZ100 |
1 | ||
| 89111-50101 |
GWZ100 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GWZ100,URZ100 |
1 | ||
| 89181B - COMPUTER, STEERING CONTROL, FR | ||||
| 89181-11020 |
GWZ100 "S PACKAGE" |
1 | ||
| 89181-11021 |
GWZ100 "S PACKAGE" |
1 | ||
| 89181-11020 |
GWZ100 LUSTER YELLOW*() |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-11061 |
GWZ100,URZ100 PUERTO RICO SPEC |
1 | ||
| 89220-11380 |
GWZ100,URZ100 |
1 | ||
| 89220-11050 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 89220-11021 |
GWZ100,URZ100 |
1 | ||
| 89220-11051 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 89220-11040 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 89220-11390 |
GWZ100,URZ100 HAWAII SPEC |
1 | ||
| 89220-11020 |
GWZ100,URZ100 |
1 | ||
| 89220-11060 |
GWZ100,URZ100 PUERTO RICO SPEC |
1 | ||
| 89220-11031 |
GWZ100,URZ100 HAWAII SPEC |
1 | ||
| 89220-11750 |
GWZ100,URZ100 |
1 | ||
| 89220-11420 |
GWZ100,URZ100 PUERTO RICO SPEC |
1 | ||
| 89220-11030 |
GWZ100,URZ100 HAWAII SPEC |
1 | ||
| 89220-11400 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 89220-11760 |
GWZ100,URZ100 HAWAII SPEC |
1 | ||
| 89220-11410 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 89220-11041 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 89220-11770 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 89220-11G40 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 89220-11G30 |
GWZ100,URZ100 HAWAII SPEC |
1 | ||
| 89220-11G60 |
GWZ100,URZ100 PUERTO RICO SPEC |
1 | ||
| 89220-11790 |
GWZ100,URZ100 PUERTO RICO SPEC |
1 | ||
| 89220-11L90 |
GWZ100,URZ100 GUAM |
1 | ||
| 89220-11G20 |
GWZ100,URZ100 |
1 | ||
| 89220-11780 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 89220-11C20 |
GWZ100,URZ100 GUAM |
1 | ||
| 89220-11G50 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 89227-33030 |
GWZ100,URZ100 |
1 | ||
| 89227-48070 |
GWZ100,URZ100 |
1 | ||
| 894C1 - COMPUTER, SHIFT CONTROL | ||||
| 894C1-11010 |
GWZ100 |
1 | ||
| 894C1-11030 |
GWZ100 |
1 | ||
| 894C7 - BRACKET, SHIFT CONTROL COMPUTER, NO.1 | ||||
| 894C7-11020 |
GWZ100,URZ100 |
1 | ||
| 894C8 - BRACKET, SHIFT CONTROL COMPUTER, NO.2 | ||||
| 894C8-11020 |
GWZ100,URZ100 |
1 | ||
| 89980 - COMPUTER ASSY, HYBRID VEHICLE CONTROL | ||||
| 89980-11011 |
GWZ100 |
1 | ||
| 89980-11040 |
GWZ100 KOREA SPEC |
1 | ||
| 89980-11010 |
GWZ100 |
1 | ||
| 89980-11012 |
GWZ100 |
1 | ||
| 89980-11200 |
GWZ100 |
1 | ||
| 89980-11013 |
GWZ100 |
1 | ||
| 89980-11230 |
GWZ100 KOREA SPEC |
1 | ||
| 89980-11170 |
GWZ100 KOREA SPEC |
1 | ||
| 89980-11110 |
GWZ100 KOREA SPEC |
1 | ||
| 89980-11140 |
GWZ100 |
1 | ||
| 89980-11080 |
GWZ100 |
1 | ||
| Common parts | ||||
| 82715-50M00 | ||||
| 82715-50M20 | ||||
| 90119-06A11 | ||||
| 90153-50015 | ||||
| 90159-60383 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
