Toyota Lexus lc500/500h(cp) GWZ100 WIRING & CLAMP

GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999

Engine 8GRFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

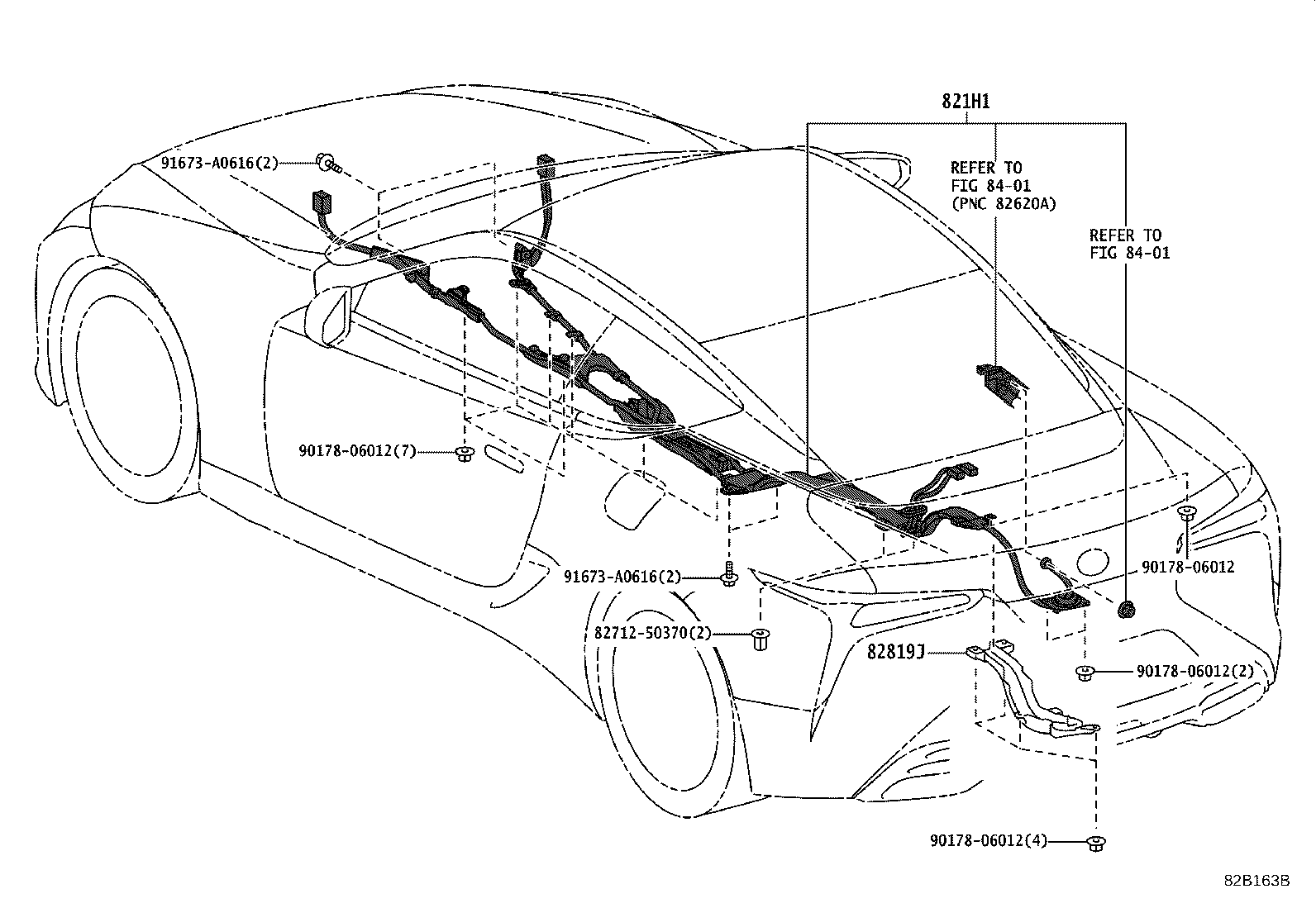

ILLUST NO. 8 OF11(1701- )GWZ100

Click highlighted areas on diagram

HI-VOLTAGE CABLE

Part #	Description	Period	Qty
821H1 - WIRE, FLOOR UNDER
821H1-11010	GWZ100	01/2017 - 12/2999	1
82819J - PROTECTOR, WIRING HARNESS, NO.25
82817-11180	GWZ100,URZ100	01/2017 - 12/2999	1
Common parts
82712-50370
90178-06012
91673-A0616
Linked diagrams
8401

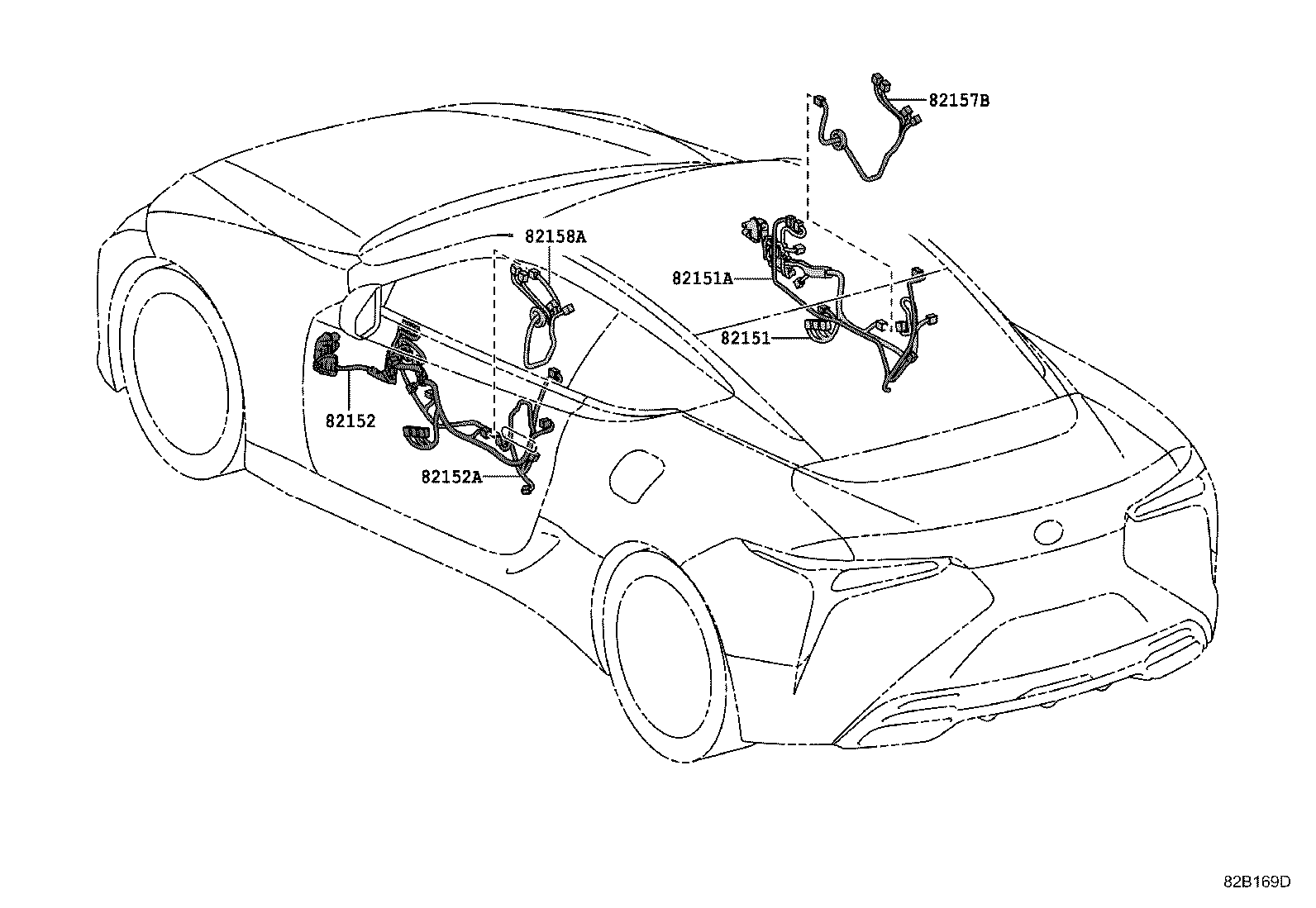

ILLUST NO. 4 OF10(1701- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-11040	GWZ100,URZ100 KOREA SPEC	09/2018 - 12/2999	1
82151-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82151A - WIRE, FRONT DOOR, NO.2, RH
82155-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-11040	GWZ100,URZ100 KOREA SPEC	09/2018 - 12/2999	1
82152-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82152A - WIRE, FRONT DOOR, NO.2, LH
82156-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82157B - WIRE, STEP REAR FLOOR, RH
82157-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82158A - WIRE, STEP PANEL, LH
82158-11010	GWZ100,URZ100	01/2017 - 12/2999	1

ILLUST NO. 1 OF10(1701- )GWZ100

Click highlighted areas on diagram

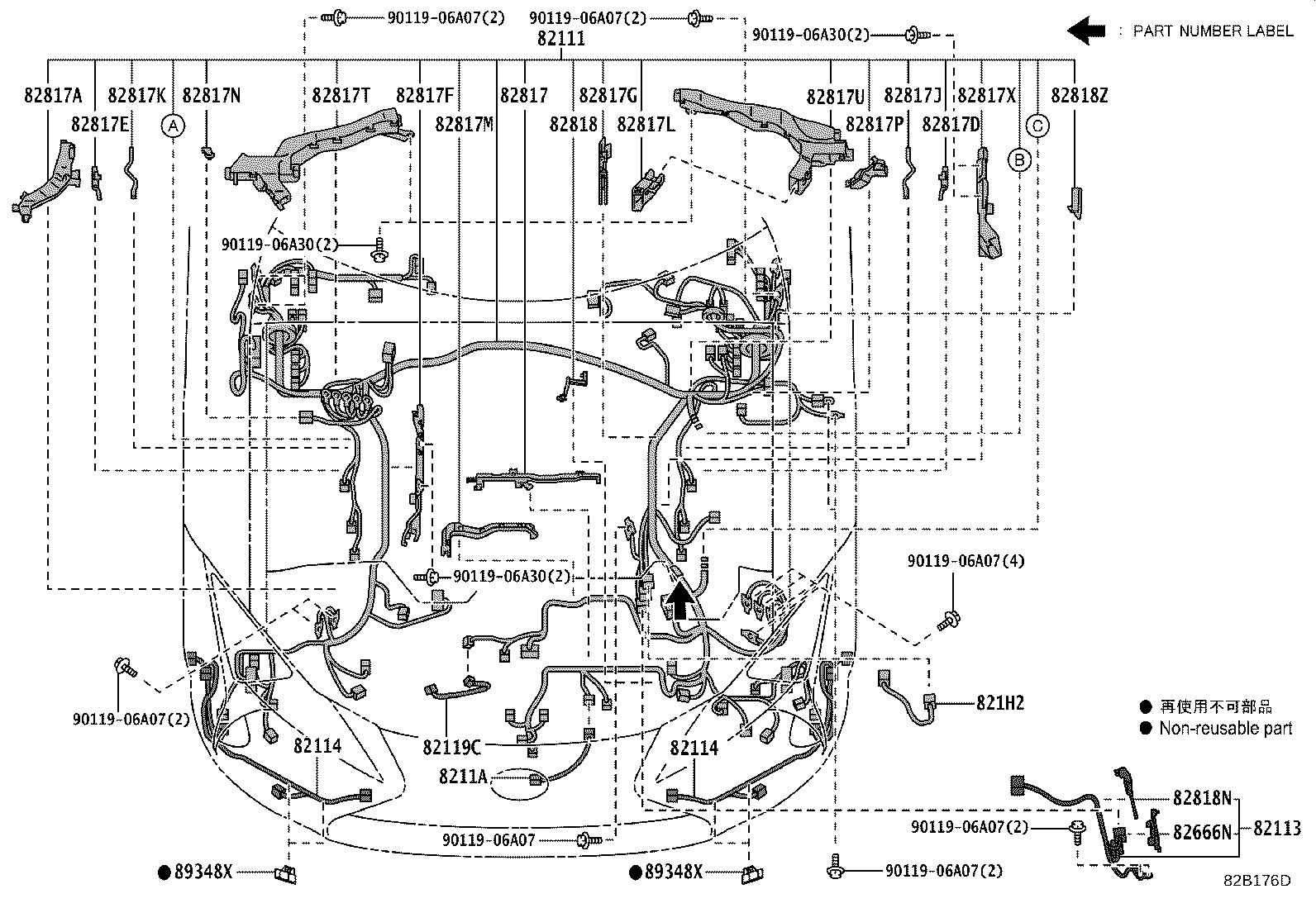

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-11350	GWZ100 REFER ILLUST.	01/2017 - 07/2017	1
82111-11400	GWZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST& RCTA),REFER ILLUST.	01/2017 - 08/2017	1
82111-11351	GWZ100 REFER ILLUST.	07/2017 - 06/2019	1
82111-11401	GWZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST& RCTA),REFER ILLUST.	08/2017 - 06/2019	1
82111-11352	GWZ100 REFER ILLUST.	06/2019 - 04/2020	1
82111-11353	GWZ100 REFER ILLUST.	04/2020 - 12/2999	1
82111-11401	GWZ100 KOREA SPEC,REFER ILLUST.	06/2019 - 04/2020	1
82111-11402	GWZ100 KOREA SPEC,REFER ILLUST.	04/2020 - 12/2999	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-50110	GWZ100	01/2017 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-11040	GWZ100,URZ100	01/2017 - 12/2999	2
82114-11020	GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	2
82114-11010	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	2
82114 - WIRE, ENGINE ROOM, NO.4
82114-11040	GWZ100,URZ100	01/2017 - 12/2999	2
82114-11020	GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	2
82114-11010	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	2
82119C - WIRE, ENGINE ROOM, NO.5
82119-11040	GWZ100	01/2017 - 12/2999	1
8211A - WIRE, ENGINE ROOM, NO.6
8211A-11010	GWZ100,URZ100	01/2017 - 12/2999	1
8211A-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
821H2 - WIRE, HV AIR CONDITIONER
821H2-50041	GWZ100	02/2018 - 12/2999	1
821H2-50040	GWZ100	01/2017 - 01/2018	1
82666N - HOLDER, CONNECTOR NO.10
82666-50A20	GWZ100	01/2017 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-11670	GWZ100,URZ100	01/2017 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-11740	GWZ100,URZ100	01/2017 - 12/2999	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-50P80	GWZ100,URZ100	01/2017 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-50P90	GWZ100,URZ100	01/2017 - 12/2999	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-50Q10	GWZ100,URZ100	01/2017 - 12/2999	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-50Q50	GWZ100	01/2017 - 12/2999	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-50Z70	GWZ100,URZ100	01/2017 - 12/2999	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-50Z80	GWZ100,URZ100	01/2017 - 12/2999	1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-50Q30	GWZ100	01/2017 - 12/2999	1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-50Z60	GWZ100	01/2017 - 12/2999	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-5AA50	GWZ100	01/2017 - 12/2999	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-5AD60	GWZ100,URZ100	01/2017 - 12/2999	1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-50N00	GWZ100	01/2017 - 12/2999	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-50M90	GWZ100	01/2017 - 12/2999	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-50Q40	GWZ100	01/2017 - 12/2999	1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-11700	GWZ100	01/2017 - 12/2999	1
82818N - PROTECTOR, WIRING HARNESS, NO.14
82817-5AE30	GWZ100,URZ100	01/2017 - 12/2999	1
82818Z - PROTECTOR, WIRING HARNESS, NO.22
82817-12860	GWZ100,URZ100	01/2017 - 12/2999	1
89348X - CLIP, ULTRASONIC SENSOR, FRONT
89348-50050	GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	4
89348-50050	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	4
89348X - CLIP, ULTRASONIC SENSOR, FRONT
89348-50050	GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	4
89348-50050	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	4
Common parts
90119-06A07
90119-06A30

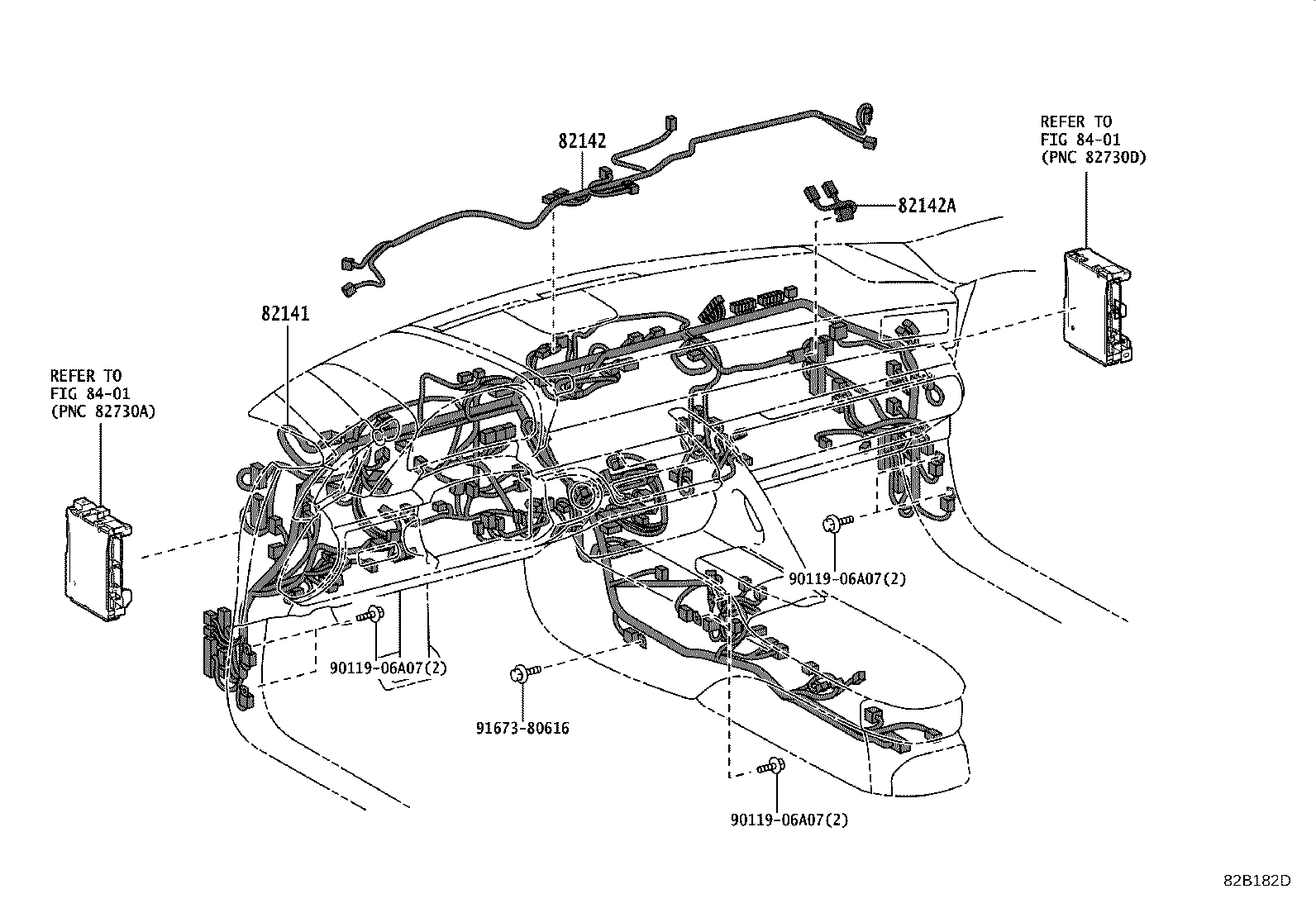

ILLUST NO. 3 OF11(1701- )

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-11160	GWZ100	01/2017 - 09/2018	1
82141-11220	GWZ100 "S PACKAGE"&COLD AREA SPEC	01/2017 - 09/2018	1
82141-11220	GWZ100 "S PACKAGE"	01/2017 - 09/2018	1
82141-11620	GWZ100 KOREA SPEC&"S PACKAGE"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	05/2017 - 09/2018	1
82141-11610	GWZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST& RCTA)	05/2017 - 09/2018	1
82141-11620	GWZ100 KOREA SPEC&"S PACKAGE"&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	05/2017 - 09/2018	1
82141-11610	GWZ100 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	05/2017 - 09/2018	1
82141-11221	GWZ100 "S PACKAGE"	09/2018 - 06/2019	1
82141-11221	GWZ100 LUSTER YELLOW*()&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEAD UP DISPLAY-WITH	09/2018 - 06/2019	1
82141-11221	GWZ100 LUSTER YELLOW*()&HEAD UP DISPLAY-WITH	09/2018 - 06/2019	1
82141-11161	GWZ100	09/2018 - 06/2019	1
82141-11221	GWZ100 "S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	09/2018 - 06/2019	1
82141-11611	GWZ100 KOREA SPEC&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&CLEARANCE& BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	09/2018 - 06/2019	1
82141-11621	GWZ100 KOREA SPEC&"S PACKAGE"&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	09/2018 - 06/2019	1
82141-11611	GWZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST& RCTA)	09/2018 - 06/2019	1
82141-11621	GWZ100 KOREA SPEC&LUSTER YELLOW()&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEAD UP DISPLAY-WITH&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & *RCTA)	09/2018 - 06/2019	1
82141-11162	GWZ100	06/2019 - 04/2020	1
82141-11621	GWZ100 KOREA SPEC&"S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	09/2018 - 06/2019	1
82141-11621	GWZ100 KOREA SPEC&LUSTER YELLOW()&HEAD UP DISPLAY-WITH&CLEARANCE & BACK SONAR-WITH&LANECHANGE ASSIST-BSM(LANE CHANGE ASSIST & *RCTA)	09/2018 - 06/2019	1
82141-11222	GWZ100 "S PACKAGE"	06/2019 - 04/2020	1
82141-11612	GWZ100 KOREA SPEC&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	06/2019 - 04/2020	1
82141-11A70	GWZ100 GUAM	06/2019 - 04/2020	1
82141-11222	GWZ100 "S PACKAGE"&COLD AREA SPEC&SEAT HEATER-WITHOUT	06/2019 - 04/2020	1
82141-11622	GWZ100 KOREA SPEC&"S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	06/2019 - 04/2020	1
82141-11A70	GWZ100 GUAM&"S PACKAGE"&COLD AREA SPEC&SEAT HEATER-WITHOUT	06/2019 - 04/2020	1
82141-11A80	GWZ100 GUAM&"S PACKAGE"&COLD AREA SPEC&SEAT HEATER-WITHOUT	06/2019 - 04/2020	1
82141-11622	GWZ100 KOREA SPEC&"S PACKAGE"	06/2019 - 04/2020	1
82141-11A80	GWZ100 GUAM&"S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	06/2019 - 04/2020	1
82141-11A70	GWZ100 GUAM&STRUCTURAL BLUE*(A)&COLD AREA SPEC&STEERING WHEEL-LEATHER+HEATER(LIMITED)	09/2019 - 04/2020	1
82141-11A80	GWZ100 GUAM&"S PACKAGE"	06/2019 - 04/2020	1
82141-11222	GWZ100 "S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	06/2019 - 04/2020	1
82141-11A70	GWZ100 GUAM&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	06/2019 - 04/2020	1
82141-11612	GWZ100 KOREA SPEC&STRUCTURAL BLUE*(A)&COLD AREA SPEC&STEERING WHEEL-LEATHER+HEATER(LIMITED)	09/2019 - 04/2020	1
82141-11612	GWZ100 KOREA SPEC	06/2019 - 04/2020	1
82141-11223	GWZ100 "S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	04/2020 - 12/2020	1
82141-11A71	GWZ100 GUAM&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	04/2020 - 12/2020	1
82141-11623	GWZ100 KOREA SPEC&"S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	04/2020 - 12/2020	1
82141-11613	GWZ100 KOREA SPEC&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	04/2020 - 12/2020	1
82141-11A81	GWZ100 GUAM&"S PACKAGE"&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)	04/2020 - 12/2020	1
82141-11613	GWZ100 KOREA SPEC&COLD AREA SPEC	12/2020 - 10/2021	1
82141-11223	GWZ100 "S PACKAGE"&COLD AREA SPEC	12/2020 - 10/2021	1
82141-11163	GWZ100	04/2020 - 10/2021	1
82141-11A81	GWZ100 GUAM&"S PACKAGE"&COLD AREA SPEC	12/2020 - 10/2021	1
82141-11623	GWZ100 KOREA SPEC&"S PACKAGE"	04/2020 - 10/2021	1
82141-11613	GWZ100 KOREA SPEC	04/2020 - 10/2021	1
82141-11A81	GWZ100 GUAM&"S PACKAGE"	04/2020 - 10/2021	1
82141-11A71	GWZ100 GUAM	04/2020 - 12/2999	1
82141-11223	GWZ100 "S PACKAGE"	04/2020 - 10/2021	1
82141-11A71	GWZ100 GUAM&COLD AREA SPEC	12/2020 - 12/2999	1
82141-11623	GWZ100 KOREA SPEC&"S PACKAGE"&COLD AREA SPEC	12/2020 - 10/2021	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-11020	GWZ100,URZ100	01/2017 - 12/2999	1
82140-11010	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
Common parts
90119-06A07
91673-80616
Linked diagrams
8401

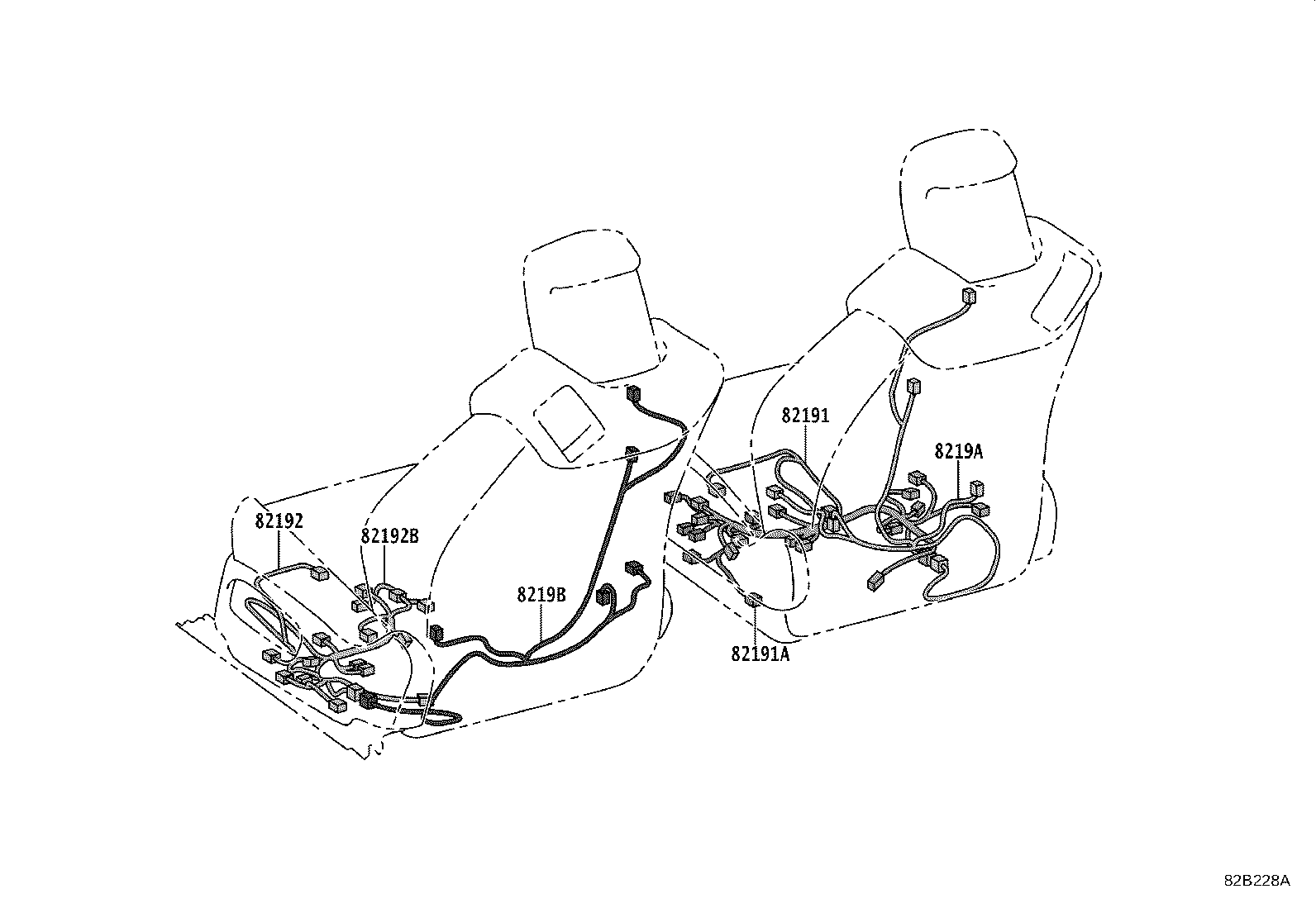

ILLUST NO. 9 OF11(1701- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-11040	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82191-11080	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
82191-11080	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
82191-11040	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82191-11040	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
82191-11040	GWZ100,URZ100 "AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
82191-11040	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82191-11040	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82191-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82191A - WIRE, FRONT SEAT, RH
82191-11030	GWZ100,URZ100	01/2017 - 12/2999	1
82192 - WIRE, FRONT SEAT, LH
82192-11040	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
82192-11040	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82192-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82192-11070	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
82192-11040	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82192-11040	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82192-11070	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
82192-11040	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
82192-11040	GWZ100,URZ100 "AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
82192B - WIRE, FRONT SEAT, LH NO.2
82192-11080	GWZ100,URZ100	01/2017 - 12/2999	1
8219A - WIRE, FRONT SEAT, RH NO.2
8219A-11020	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
8219A-11020	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
8219A-11020	GWZ100,URZ100 "AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
8219A-11020	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
8219A-11020	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
8219A-11010	GWZ100,URZ100	01/2017 - 12/2999	1
8219A-11030	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
8219A-11030	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
8219A-11020	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-11030	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
8219B-11030	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT	01/2017 - 04/2020	1
8219B-11020	GWZ100,URZ100 "AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
8219B-11020	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
8219B-11020	GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2021 - 10/2021	1
8219B-11010	GWZ100,URZ100	01/2017 - 12/2999	1
8219B-11020	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
8219B-11020	GWZ100,URZ100 KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1
8219B-11020	GWZ100,URZ100 "S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)	01/2017 - 10/2021	1

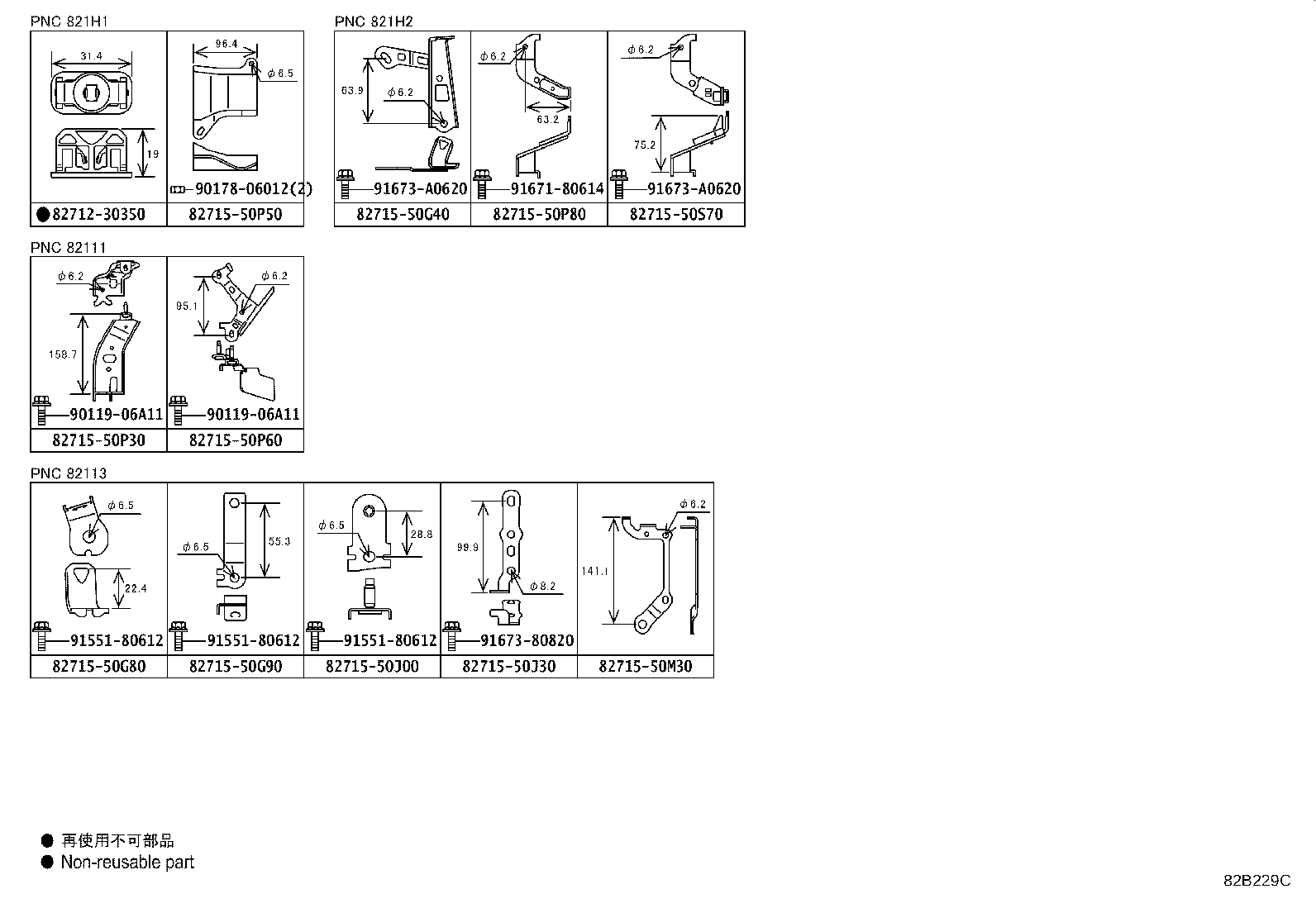

ILLUST NO.10 OF11(1701- )GWZ100

Click highlighted areas on diagram

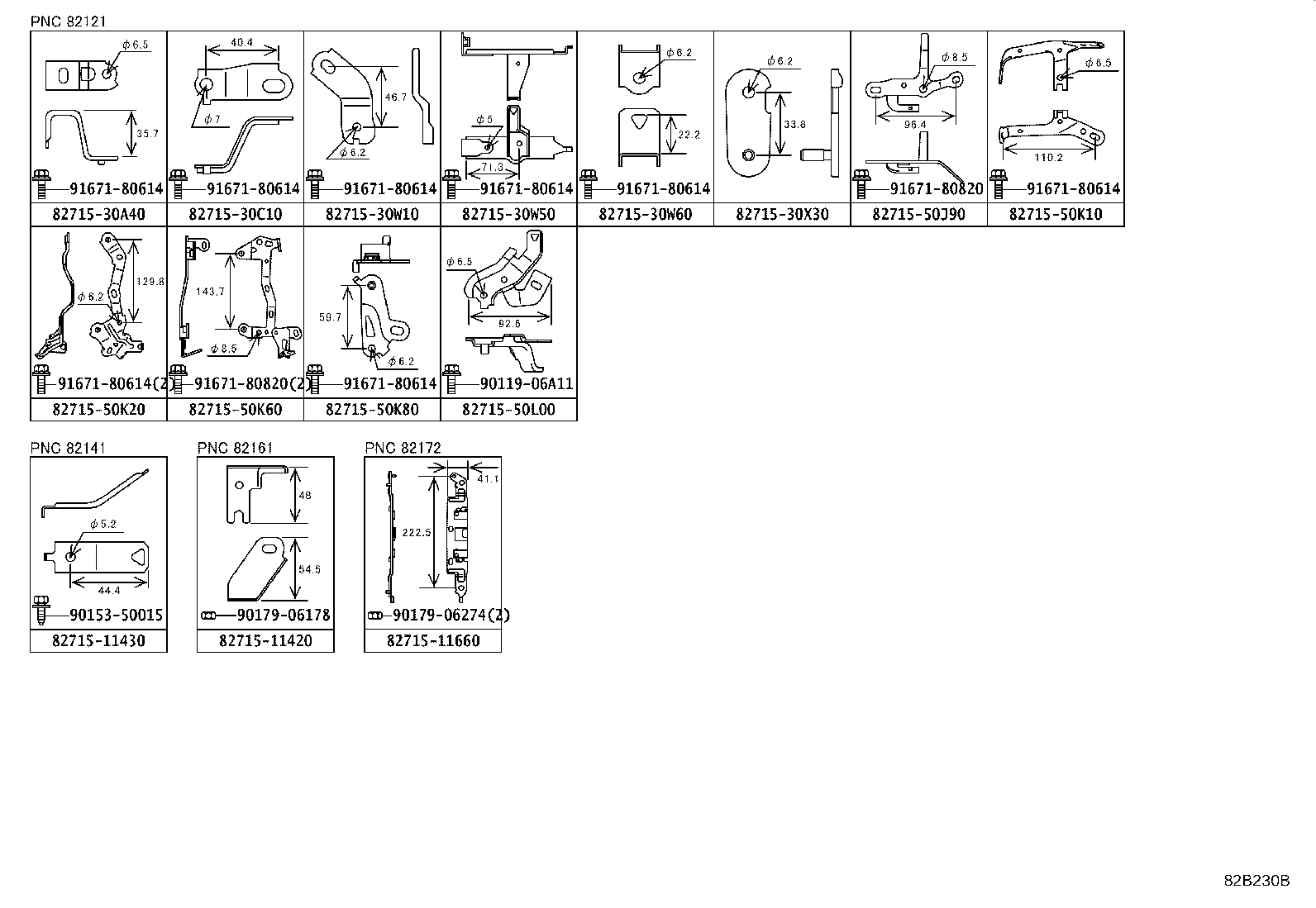

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82712-30350
82715-50G40
82715-50G80
82715-50G90
82715-50J00
82715-50J30
82715-50M30
82715-50P30
82715-50P50
82715-50P60
82715-50P80
82715-50S70
90119-06A11
90178-06012
91551-80612
91671-80614
91673-80820
91673-A0620

ILLUST NO.10 OF11(1701- )GWZ100

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-11420
82715-11430
82715-11660
82715-30A40
82715-30C10
82715-30W10
82715-30W50
82715-30W60
82715-30X30
82715-50J90
82715-50K10
82715-50K20
82715-50K60
82715-50K80
82715-50L00
90119-06A11
90153-50015
90179-06178
90179-06274
91671-80614
91671-80820

ILLUST NO. 2 OF11(1701- )GWZ100

Click highlighted areas on diagram

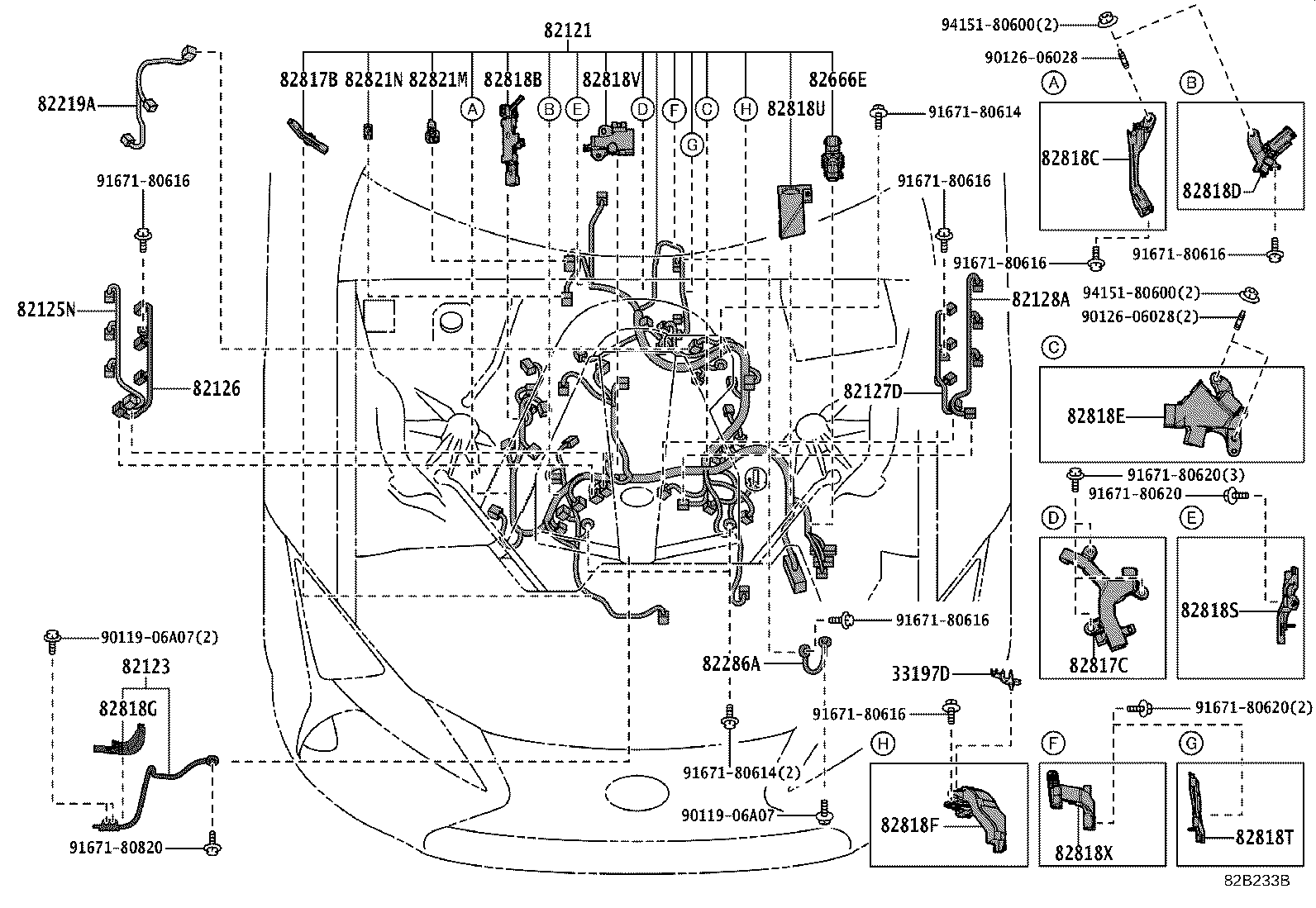

ENGINE

Part #	Description	Period	Qty
33197D - CLAMP, TRANSMISSION BREATHER
33197-11010	GWZ100	01/2017 - 12/2999	1
82121 - WIRE, ENGINE
82121-50841	GWZ100	09/2019 - 04/2020	1
82121-50710	GWZ100	04/2020 - 12/2999	1
82121-50840	GWZ100	01/2017 - 08/2019	1
82123 - WIRE, ENGINE, NO.3
82123-50150	GWZ100	01/2017 - 12/2999	1
82125N - WIRE, ENGINE, NO.5
82125-30600	GWZ100	01/2017 - 12/2999	1
82126 - WIRE, ENGINE
82126-30080	GWZ100	01/2017 - 12/2999	1
82127D - WIRE, ENGINE, NO.7
82127-30080	GWZ100	01/2017 - 12/2999	1
82128A - WIRE, ENGINE, NO.8
82128-30020	GWZ100	01/2017 - 12/2999	1
82219A - WIRE, SENSOR
82219-30050	GWZ100	01/2017 - 12/2999	1
82286A - WIRE, EARTH, NO.2
82286-50070	GWZ100	01/2017 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-50A10	GWZ100	01/2017 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-50R90	GWZ100	01/2017 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-50S00	GWZ100	01/2017 - 12/2999	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-50R00	GWZ100	01/2017 - 12/2999	1
82818C - PROTECTOR, WIRING HARNESS, NO.4
82817-50R10	GWZ100	01/2017 - 12/2999	1
82818D - PROTECTOR, WIRING HARNESS, NO.5
82817-50R20	GWZ100	01/2017 - 12/2999	1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-50R30	GWZ100	01/2017 - 12/2999	1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-50R80	GWZ100	01/2017 - 12/2999	1
82818G - PROTECTOR, WIRING HARNESS, NO.8
82817-50P30	GWZ100,URZ100	01/2017 - 12/2999	1
82818S - PROTECTOR, WIRING HARNESS, NO.15
82817-50S10	GWZ100	01/2017 - 12/2999	1
82818T - PROTECTOR, WIRING HARNESS, NO.16
82817-50S30	GWZ100	01/2017 - 12/2999	1
82818U - PROTECTOR, WIRING HARNESS, NO.17
82817-50S50	GWZ100	01/2017 - 12/2999	1
82818V - PROTECTOR, WIRING HARNESS, NO.18
82817-5AA20	GWZ100	01/2017 - 12/2999	1
82818X - PROTECTOR, WIRING HARNESS, NO.20
82817-50S20	GWZ100	01/2017 - 12/2999	1
82821M - COVER, CONNECTOR
82821-50680	GWZ100,URZ100	01/2017 - 12/2999	1
82821N - COVER, CONNECTOR
82821-50750	GWZ100,URZ100	01/2017 - 12/2999	1
Common parts
90119-06A07
90126-06028
91671-80614
91671-80616
91671-80620
91671-80820
94151-80600

ILLUST NO. 6 OF11(1701- )

Click highlighted areas on diagram

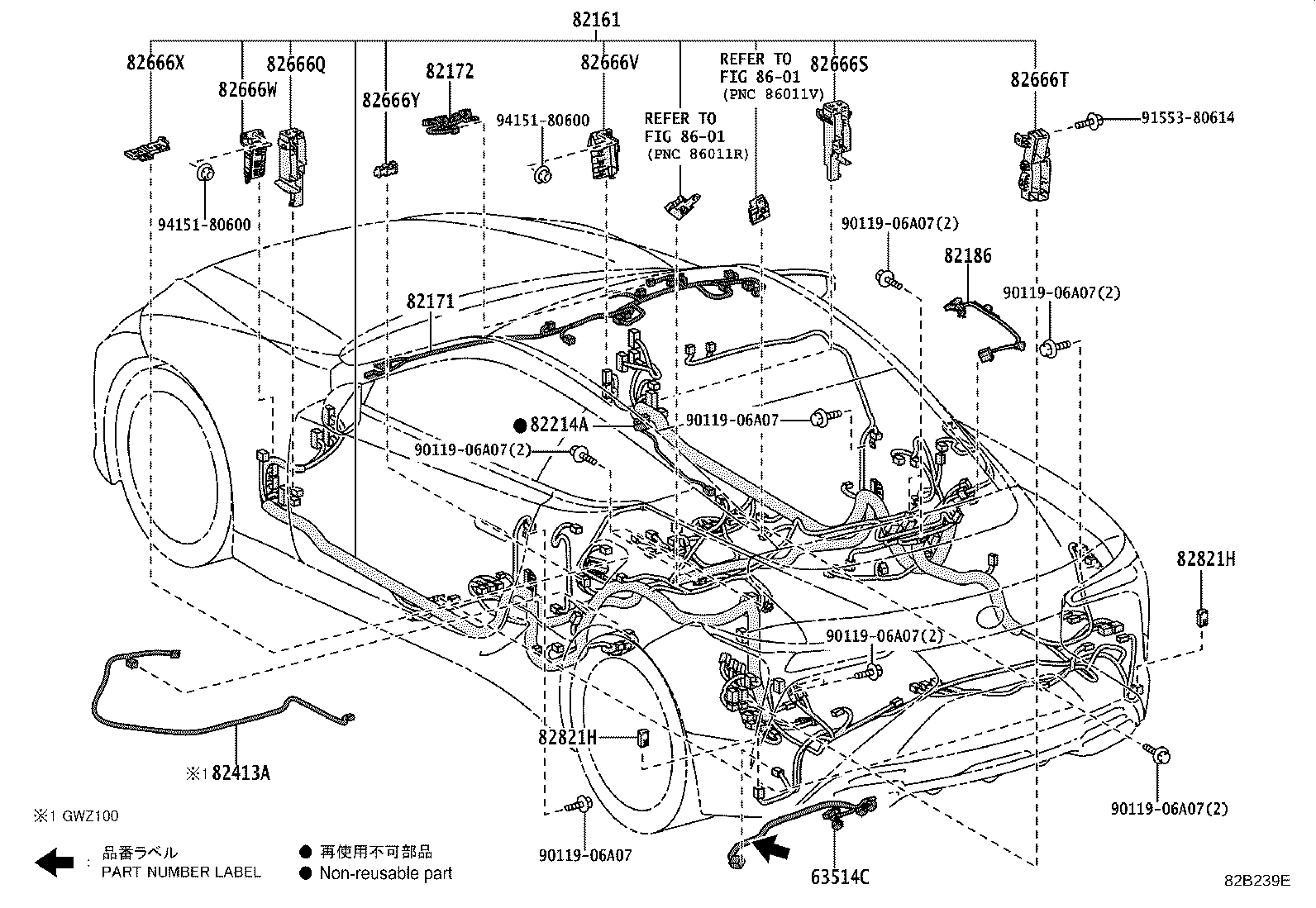

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-11800	GWZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST& RCTA)	01/2017 - 02/2018	1
82161-11220	GWZ100	01/2017 - 11/2017	1
82161-11221	GWZ100	11/2017 - 09/2018	1
82161-11801	GWZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST& RCTA)	02/2018 - 09/2018	1
82161-11222	GWZ100	09/2018 - 06/2019	1
82161-11802	GWZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST& RCTA)	09/2018 - 06/2019	1
82161-11223	GWZ100	06/2019 - 04/2020	1
82161-11802	GWZ100 KOREA SPEC&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	06/2019 - 04/2020	1
82161-11224	GWZ100	04/2020 - 12/2999	1
82161-11803	GWZ100 KOREA SPEC&LANE CHANGE ASSIST-BSM(LANE CHANGE ASSIST & RCTA)	04/2020 - 10/2021	1
82171 - WIRE, ROOF, NO.1
82171-11011	GWZ100,URZ100	04/2020 - 12/2999	1
82171-11010	GWZ100,URZ100	01/2017 - 04/2020	1
82172 - WIRE, ROOF, NO.2
82172-11031	GWZ100,URZ100	04/2020 - 12/2999	1
82172-11030	GWZ100,URZ100	01/2017 - 04/2020	1
82186 - WIRE, REAR WINDOW, NO.1
82186-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82186-11020	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
82214A - WIRE, LAMP
82214-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82413A - WIRE, FUEL TANK
82413-50010	GWZ100	01/2017 - 12/2999	1
82666Q - HOLDER, CONNECTOR NO.12
82666-11130	GWZ100,URZ100	01/2017 - 04/2020	1
82666-11230	GWZ100,URZ100	04/2020 - 12/2999	1
82666S - HOLDER, CONNECTOR NO.13
82666-11220	GWZ100,URZ100	04/2020 - 12/2999	1
82666-11140	GWZ100,URZ100	01/2017 - 04/2020	1
82666T - HOLDER, CONNECTOR NO.14
82666-11150	GWZ100,URZ100	01/2017 - 12/2999	1
82666V - HOLDER, CONNECTOR NO.15
82666-50B00	GWZ100,URZ100	01/2017 - 12/2999	1
82666W - HOLDER, CONNECTOR NO.16
82666-50B10	GWZ100,URZ100	01/2017 - 12/2999	1
82666X - HOLDER, CONNECTOR NO.17
82666-11240	GWZ100,URZ100	04/2020 - 12/2999	1
82666Y - HOLDER, CONNECTOR NO.18
82666-26180	GWZ100,URZ100	01/2017 - 12/2999	1
82821H - COVER, CONNECTOR
82821-48110	GWZ100	11/2017 - 10/2021	2
82821H - COVER, CONNECTOR
82821-48110	GWZ100	11/2017 - 10/2021	2
Common parts
90119-06A07
91553-80614
94151-80600
Linked diagrams
8601

ILLUST NO. 1 OF10(1701- )GWZ100

Click highlighted areas on diagram

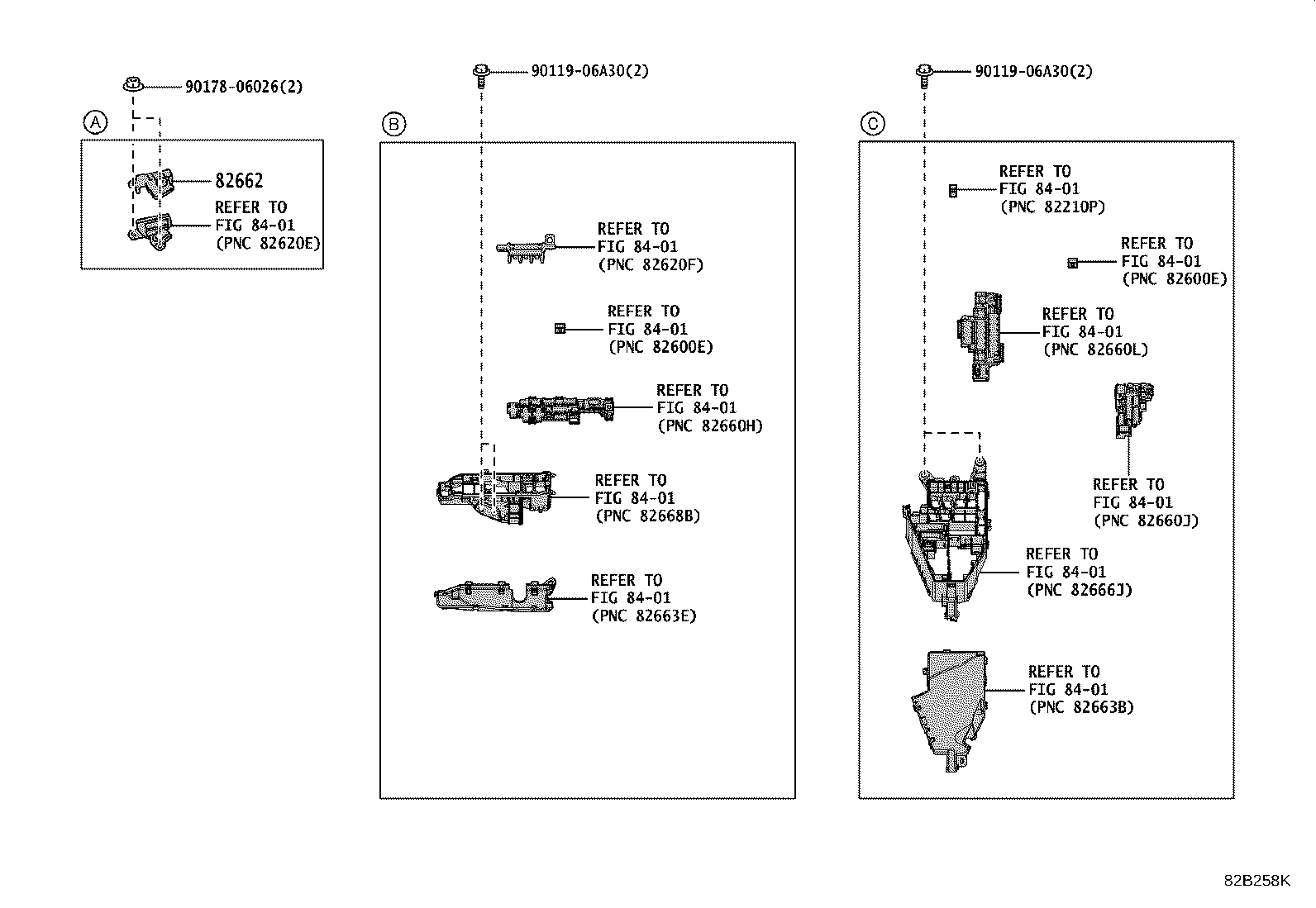

ENGINE ROOM

Part #	Description	Period	Qty
82662 - COVER, RELAY BLOCK, UPPER
82662-50490	GWZ100	01/2017 - 12/2999	1
Common parts
90119-06A30
90178-06026
Linked diagrams
8401

ILLUST NO.11 OF11(1701- )

Click highlighted areas on diagram

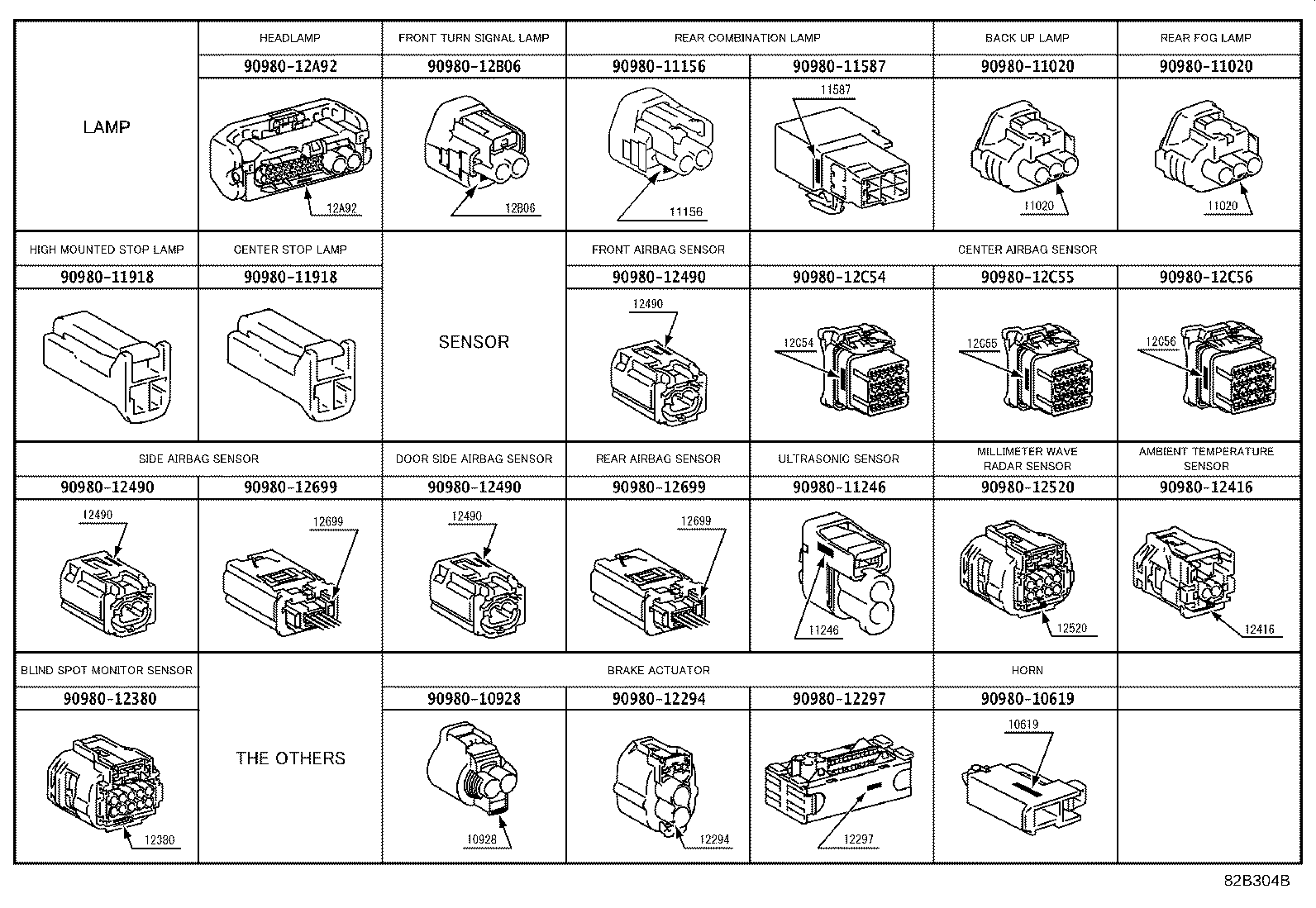

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10928
90980-11020
90980-11156
90980-11246
90980-11587
90980-11918
90980-12294
90980-12297
90980-12380
90980-12416
90980-12490
90980-12520
90980-12699
90980-12A92
90980-12B06
90980-12C54
90980-12C55
90980-12C56

ILLUST NO.11 OF11(1701- )

Click highlighted areas on diagram

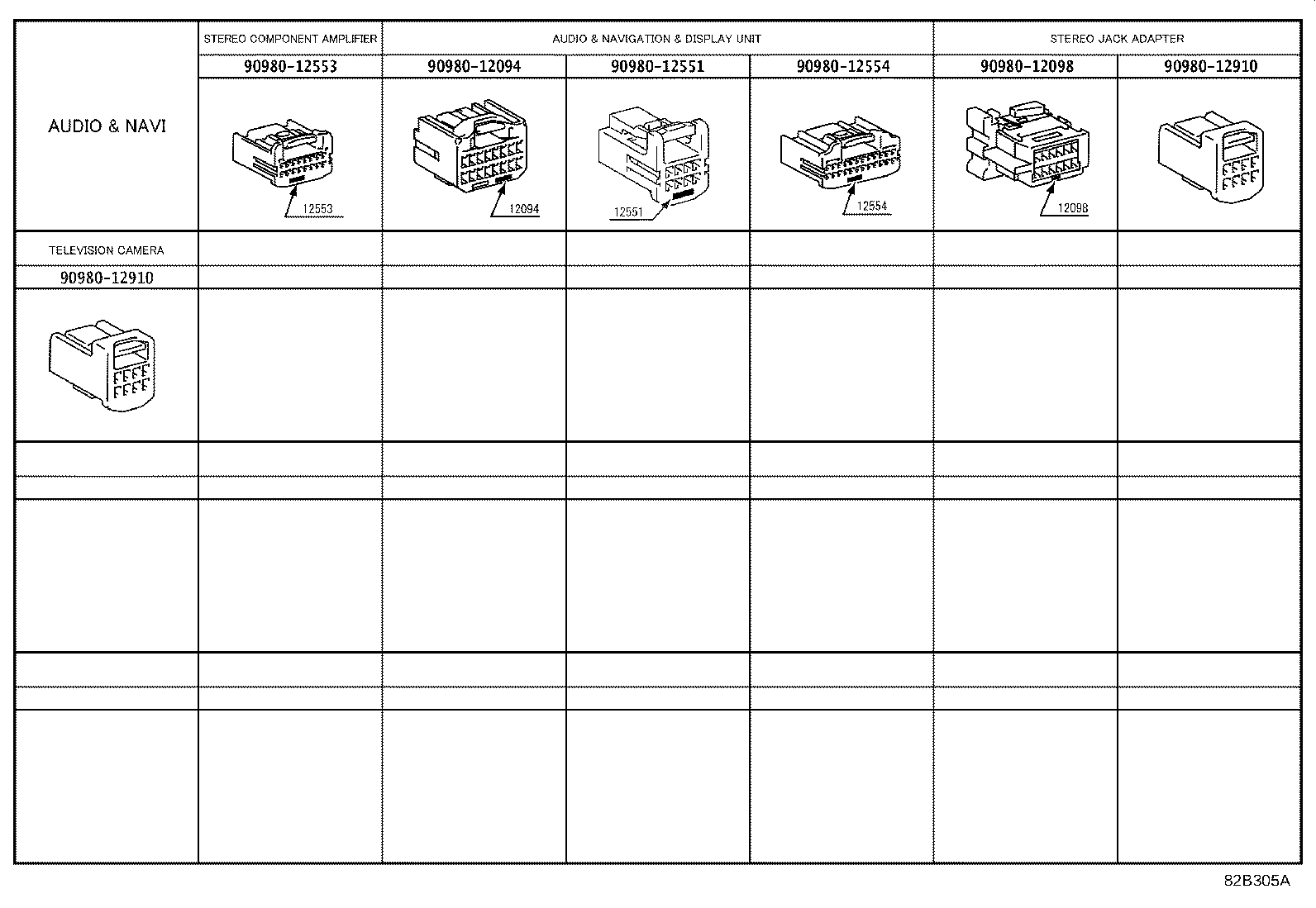

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
90980-12094
90980-12098
90980-12551
90980-12553
90980-12554
90980-12910

ILLUST NO. 5 OF11(1701- )

Click highlighted areas on diagram

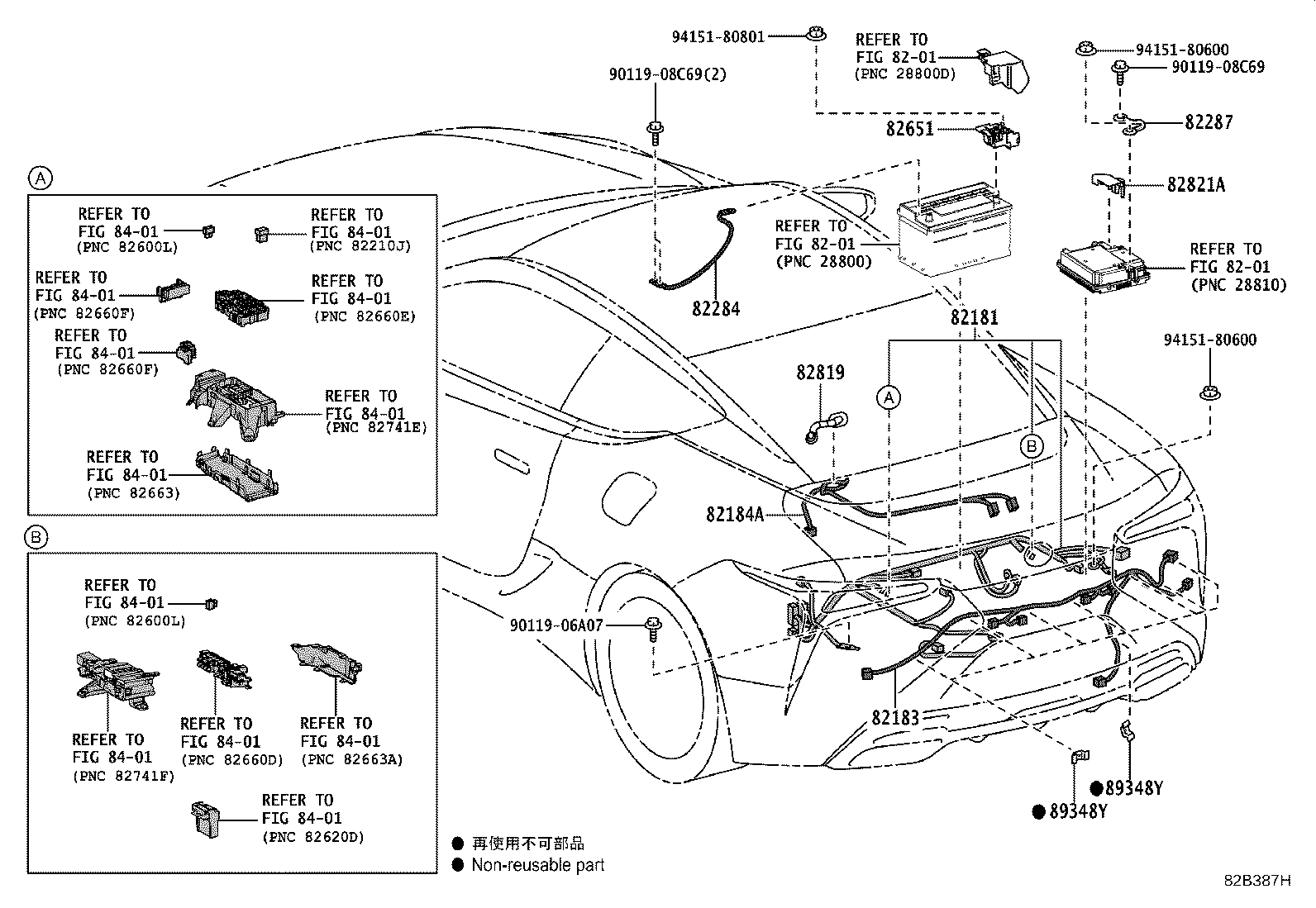

LUGGAGE ROOM

Part #	Description	Period	Qty
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-11060	GWZ100 LUSTER YELLOW*()	09/2018 - 06/2019	1
82181-11050	GWZ100	01/2017 - 10/2021	1
82181-11060	GWZ100 "S PACKAGE"	01/2017 - 12/2999	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-11020	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 04/2020	1
82183-11010	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	04/2020 - 12/2999	1
82183-11050	GWZ100,URZ100	04/2020 - 12/2999	1
82183-11040	GWZ100,URZ100	01/2017 - 04/2020	1
82184A - WIRE, LUGGAGE ROOM, NO.4
82184-11020	GWZ100,URZ100 LUSTER YELLOW*()	09/2018 - 06/2019	1
82184-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82184-11020	GWZ100,URZ100 "S PACKAGE"	01/2017 - 10/2021	1
82284 - WIRE, EARTH
82284-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82287 - WIRE, EARTH, NO.3
82287-11010	GWZ100,URZ100	01/2017 - 12/2999	1
82651 - BLOCK, TERMINAL
82651-50010	GWZ100,URZ100	01/2017 - 12/2999	1
82819 - GROMMET, WIRING HARNESS
82801-11020	GWZ100,URZ100 HAWAII SPEC	01/2017 - 12/2999	1
82801-11020	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
82801-11020	GWZ100,URZ100 PUERTO RICO SPEC	01/2017 - 12/2999	1
82801-11020	GWZ100,URZ100 GUAM	06/2019 - 12/2999	1
82821A - COVER, CONNECTOR
82821-50720	GWZ100,URZ100	01/2017 - 12/2999	1
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050	GWZ100,URZ100	01/2017 - 04/2020	6
89348-50050	GWZ100,URZ100	04/2020 - 12/2999	5
89348-50050	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	8
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050	GWZ100,URZ100	01/2017 - 04/2020	6
89348-50050	GWZ100,URZ100	04/2020 - 12/2999	5
89348-50050	GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH	01/2017 - 12/2999	8
Common parts
90119-06A07
90119-08C69
94151-80600
94151-80801
Linked diagrams
8201
8401

GWZ100L-ACVBBA (2017)

ILLUST NO. 8 OF11(1701- )GWZ100

ILLUST NO. 4 OF10(1701- )

ILLUST NO. 1 OF10(1701- )GWZ100

ILLUST NO. 3 OF11(1701- )

ILLUST NO. 9 OF11(1701- )

ILLUST NO.10 OF11(1701- )GWZ100

ILLUST NO.10 OF11(1701- )GWZ100

ILLUST NO. 2 OF11(1701- )GWZ100

ILLUST NO. 6 OF11(1701- )

ILLUST NO. 1 OF10(1701- )GWZ100

ILLUST NO.11 OF11(1701- )

ILLUST NO.11 OF11(1701- )

ILLUST NO. 5 OF11(1701- )

Part Price Details
