Toyota Lexus lc500/500h(cp) GWZ100 BATTERY & BATTERY CABLE

GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999

Engine 8GRFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

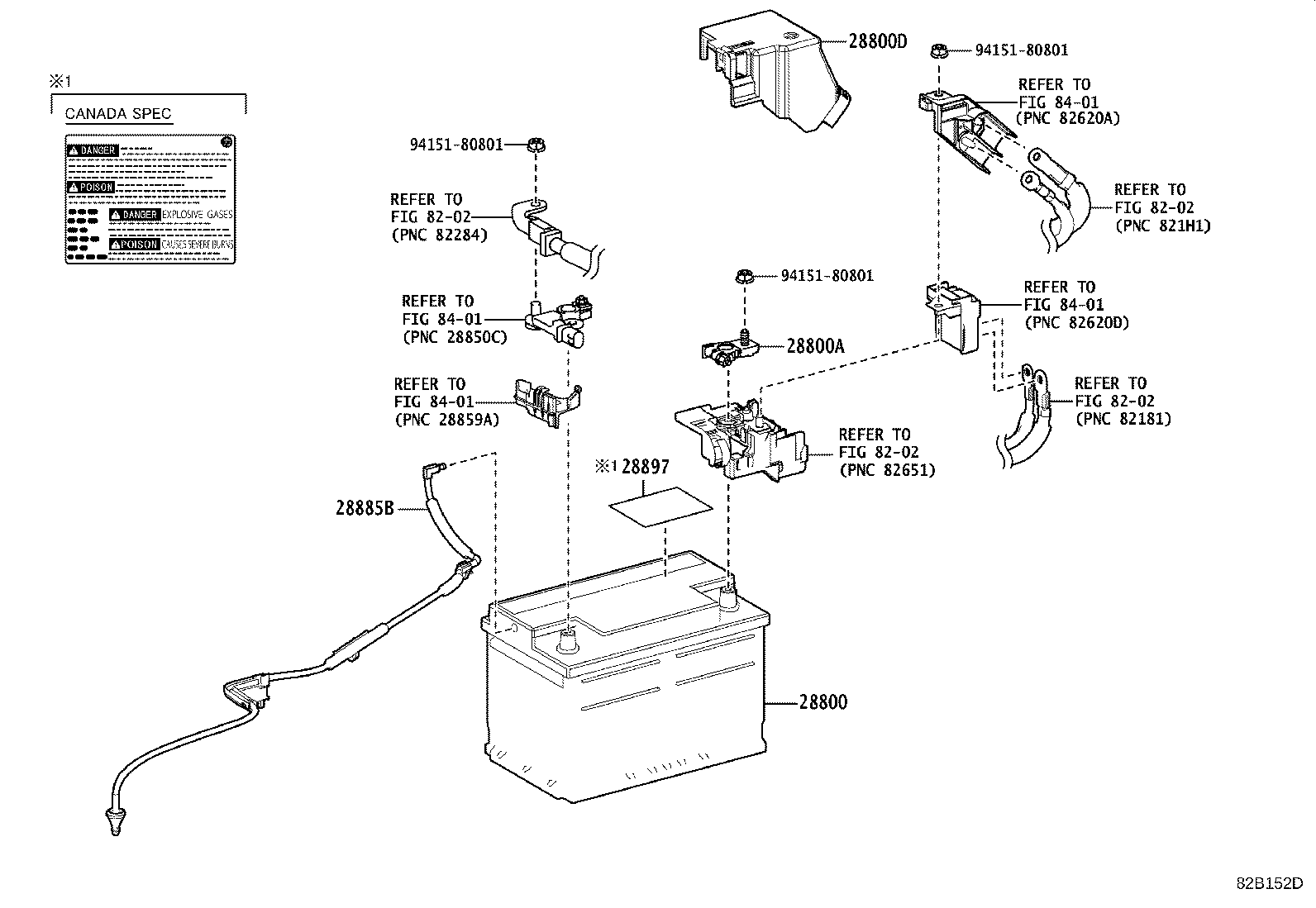

ILLUST NO. 1 OF 5(1701- )GWZ100

Click highlighted areas on diagram

12V BATTERY

Part #	Description	Period	Qty
28800 - BATTERY
28800-31450	8GRFXS,2URGSE..GWZ100,URZ100 LN3	01/2017 - 12/2999	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 12/2999	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50730	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 12/2999	1
28885B - HOSE, BATTERY
28885-38020	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 12/2999	1
28897 - PLATE, BATTERY CAUTION
28897-38020	8GRFXS,2URGSE..GWZ100,URZ100 CANADA SPEC	01/2017 - 12/2999	1
Common parts
94151-80801
Linked diagrams
8202
8401

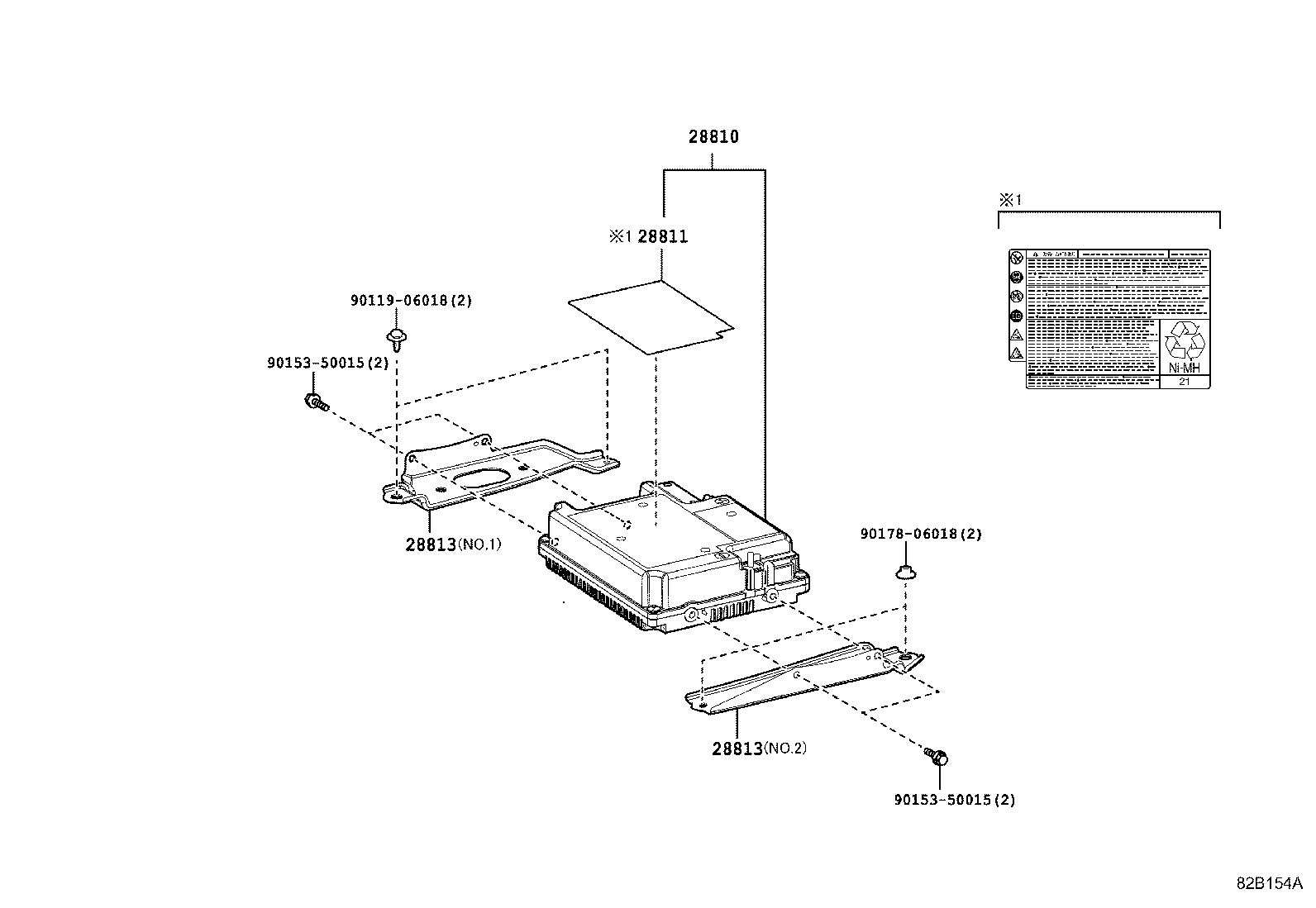

ILLUST NO. 2 OF 5(1701- )

Click highlighted areas on diagram

SUB-BATTERY

Part #	Description	Period	Qty
28810 - SUB-BATTERY ASSY, W/CONTROL
28810-38010	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 12/2999	1
28811 - LABEL, SUB-BATTERY CAUTION
28811-38010	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 12/2999	1
28813 - BRACKET, SUB-BATTERY
28813-38020	8GRFXS,2URGSE..GWZ100,URZ100 NO.2	01/2017 - 12/2999	1
28813-38010	8GRFXS,2URGSE..GWZ100,URZ100 NO.1	01/2017 - 12/2999	1
28813 - BRACKET, SUB-BATTERY
28813-38020	8GRFXS,2URGSE..GWZ100,URZ100 NO.2	01/2017 - 12/2999	1
28813-38010	8GRFXS,2URGSE..GWZ100,URZ100 NO.1	01/2017 - 12/2999	1
Common parts
90119-06018
90153-50015
90178-06018

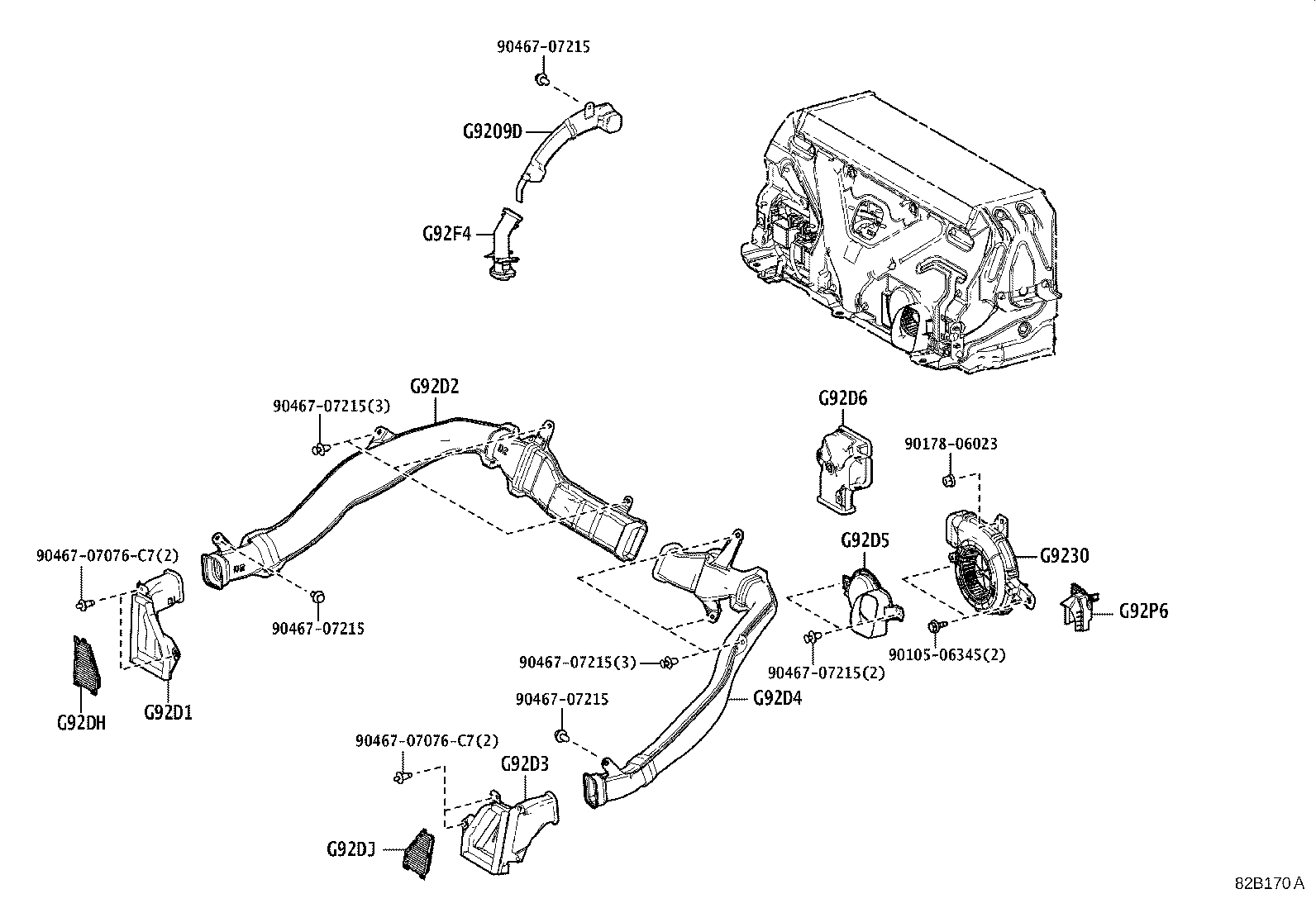

ILLUST NO. 3 OF 5(1701- )GWZ100

Click highlighted areas on diagram

HV BATTERY

Part #	Description	Period	Qty
G9209D - DUCT SUB-ASSY, HV BATTERY
G9209-11010	GWZ100	01/2017 - 12/2999	1
G9209-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-11010	GWZ100	01/2017 - 12/2999	1
G9230-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-11010	GWZ100	01/2017 - 12/2999	1
G92D1-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2
G92D2-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D2-11010	GWZ100	01/2017 - 12/2999	1
G92D3 - DUCT, HYBRID BATTERY INTAKE, NO.3
G92D3-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D3-11010	GWZ100	01/2017 - 12/2999	1
G92D4 - DUCT, HYBRID BATTERY INTAKE, NO.4
G92D4-11010	GWZ100	01/2017 - 12/2999	1
G92D4-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5
G92D5-11010	GWZ100	01/2017 - 12/2999	1
G92D5-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D6 - DUCT, HYBRID BATTERY INTAKE, NO.6
G92D6-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D6-11010	GWZ100	01/2017 - 12/2999	1
G92DH - FILTER, HV BATTERY INTAKE, NO.1
G92DH-11010	GWZ100 RH	01/2017 - 12/2999	1
G92DJ - FILTER, HV BATTERY INTAKE, NO.2
G92DJ-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH,LH	01/2017 - 12/2999	1
G92DJ-11010	GWZ100 LH	01/2017 - 12/2999	1
G92F4 - DUCT, HV BATTERY EXHAUST, NO.4
G92F4-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 07/2017	1
G92F4-11010	GWZ100	01/2017 - 07/2017	1
G92F4-11011	GWZ100	08/2017 - 12/2999	1
G92F4-11011	GWZ100 HIGH VOLTAGE BATTERY-WITH	08/2017 - 12/2999	1
G92P6 - COVER, HV BATTERY CLAMP, NO.2
G92P6-11010	GWZ100	01/2017 - 12/2999	1
G92P6-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
Common parts
90105-06345
90178-06023
90467-07076C7
90467-07215

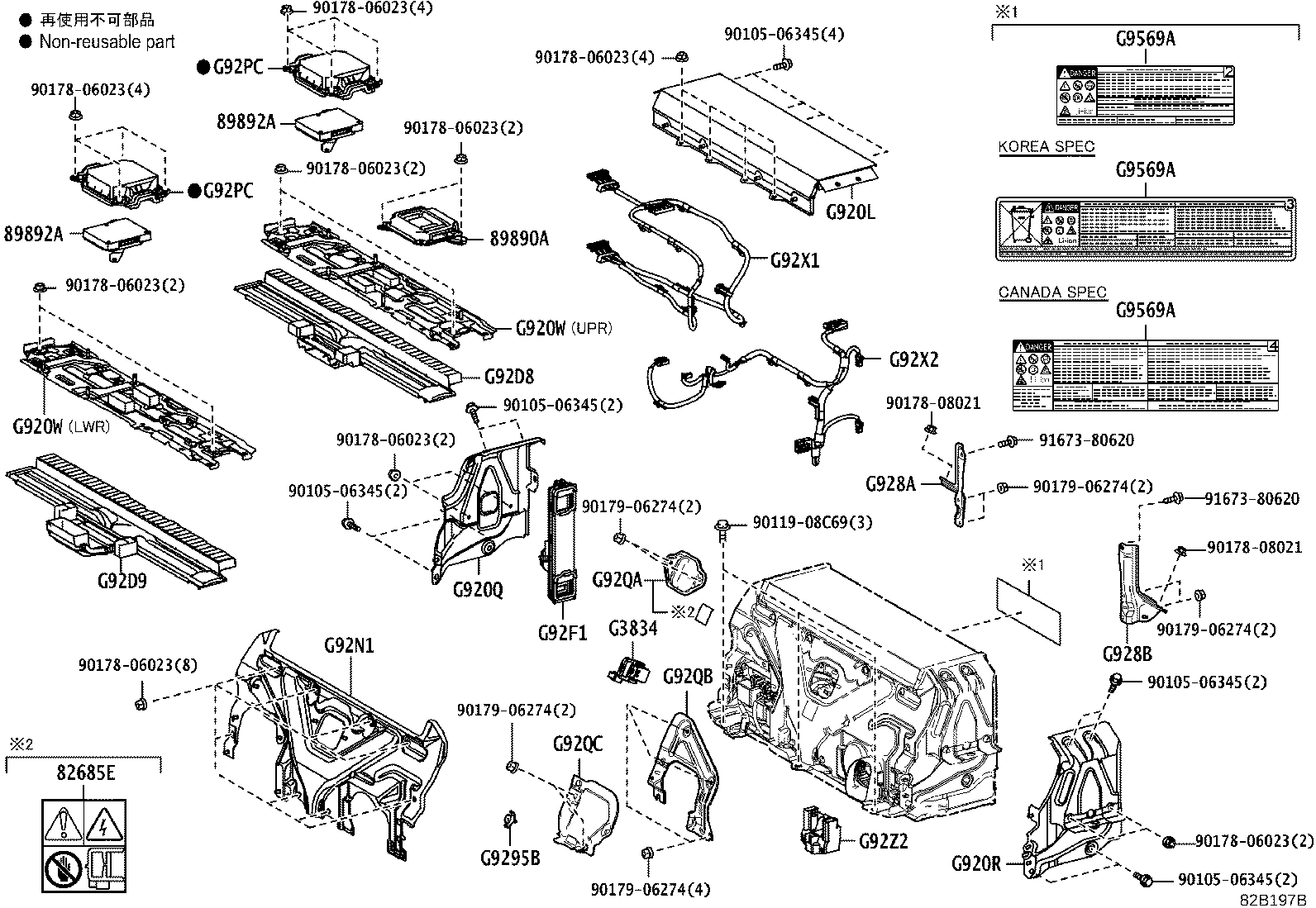

ILLUST NO. 4 OF 5(1701- )GWZ100

Click highlighted areas on diagram

HV BATTERY

Part #	Description	Period	Qty
82685E - PLATE, SERVICE PLUG CAUTION
82685-47110	GWZ100	01/2017 - 12/2999	1
82685-47110	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
89890A - COMPUTER ASSY, BATTERY
89890-11011	GWZ100 DENSO	01/2017 - 11/2017	1
89890-11011	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 11/2017	1
89890-11012	GWZ100 DENSO,HIGH VOLTAGE BATTERY-WITH	12/2017 - 08/2018	1
89890-11013	GWZ100 DENSO	09/2018 - 12/2999	1
89890-11012	GWZ100 DENSO	12/2017 - 08/2018	1
89890-11013	GWZ100 DENSO,HIGH VOLTAGE BATTERY-WITH	09/2018 - 12/2999	1
89892A - SENSOR, BATTERY VOLTAGE
89892-11010	GWZ100	01/2017 - 12/2999	2
89892-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	2
89892A - SENSOR, BATTERY VOLTAGE
89892-11010	GWZ100	01/2017 - 12/2999	2
89892-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	2
G3834 - GRIP, SERVICE PLUG
G3834-47050	GWZ100	01/2017 - 12/2999	1
G3834-47050	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1
G920L-11010	GWZ100	01/2017 - 12/2999	1
G920L-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G920Q-11010	GWZ100	01/2017 - 12/2999	1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-11010	GWZ100	01/2017 - 12/2999	1
G920R-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G920W - SHIELD SUB-ASSY, HV BATTERY, NO.7
G920W-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH, UPR	01/2017 - 12/2999	1
G920W-11010	GWZ100 UPR	01/2017 - 12/2999	1
G920W-11020	GWZ100 LWR	01/2017 - 12/2999	1
G920W - SHIELD SUB-ASSY, HV BATTERY, NO.7
G920W-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH, UPR	01/2017 - 12/2999	1
G920W-11010	GWZ100 UPR	01/2017 - 12/2999	1
G920W-11020	GWZ100 LWR	01/2017 - 12/2999	1
G928A - BRACKET, HV BATTERY, RH
G928A-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G928A-11010	GWZ100	01/2017 - 12/2999	1
G928B - BRACKET, HV BATTERY, LH
G928B-11010	GWZ100	01/2017 - 12/2999	1
G928B-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9295-30020	GWZ100	01/2017 - 12/2999	1
G92D8 - DUCT, HYBRID BATTERY INTAKE, NO.8
G92D8-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92D8-11010	GWZ100	01/2017 - 12/2999	1
G92D9 - DUCT, HYBRID BATTERY INTAKE, NO.9
G92D9-11010	GWZ100	01/2017 - 12/2999	1
G92D9-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-11010	GWZ100	01/2017 - 12/2999	1
G92F1-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92N1 - PANEL, HV BATTERY UPPER COVER
G92N1-11010	GWZ100	01/2017 - 12/2999	1
G92N1-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92PC - PROTECTOR, HV BATTERY, NO.1
G92PC-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	2
G92PC-11010	GWZ100	01/2017 - 12/2999	2
G92PC - PROTECTOR, HV BATTERY, NO.1
G92PC-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	2
G92PC-11010	GWZ100	01/2017 - 12/2999	2
G92QA - PANEL, HV BATTERY SHIELD, NO.8
G92QA-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92QA-11010	GWZ100	01/2017 - 12/2999	1
G92QB - PANEL, HV BATTERY SHIELD, NO.9
G92QB-11010	GWZ100	01/2017 - 12/2999	1
G92QB-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92QC - PANEL, HV BATTERY SHIELD, NO.10
G92QC-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92QC-11010	GWZ100	01/2017 - 12/2999	1
G92X1 - WIRE, HYBRID BATTERY PACK, NO.1
G92X1-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92X1-11010	GWZ100	01/2017 - 12/2999	1
G92X2 - WIRE, HV BATTERY PACK, NO.2
G92X2-11011	GWZ100	01/2017 - 12/2999	1
G92X2-11011	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92Z2-47070	GWZ100	01/2017 - 12/2999	1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47130	GWZ100 CANADA SPEC	01/2017 - 12/2999	1
G9569-47110	GWZ100	01/2017 - 12/2999	1
G9569-47130	GWZ100 CANADA SPEC&HIGH VOLTAGE BATTERY-WITH	01/2017 - 09/2018	1
G9569-47110	GWZ100 CANADA SPEC&HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9569-47130	GWZ100 CANADA SPEC	09/2018 - 12/2999	1
G9569-47120	GWZ100 KOREA SPEC	01/2017 - 12/2999	1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47130	GWZ100 CANADA SPEC	01/2017 - 12/2999	1
G9569-47110	GWZ100	01/2017 - 12/2999	1
G9569-47130	GWZ100 CANADA SPEC&HIGH VOLTAGE BATTERY-WITH	01/2017 - 09/2018	1
G9569-47110	GWZ100 CANADA SPEC&HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9569-47130	GWZ100 CANADA SPEC	09/2018 - 12/2999	1
G9569-47120	GWZ100 KOREA SPEC	01/2017 - 12/2999	1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47130	GWZ100 CANADA SPEC	01/2017 - 12/2999	1
G9569-47110	GWZ100	01/2017 - 12/2999	1
G9569-47130	GWZ100 CANADA SPEC&HIGH VOLTAGE BATTERY-WITH	01/2017 - 09/2018	1
G9569-47110	GWZ100 CANADA SPEC&HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9569-47130	GWZ100 CANADA SPEC	09/2018 - 12/2999	1
G9569-47120	GWZ100 KOREA SPEC	01/2017 - 12/2999	1
Common parts
90105-06345
90119-08C69
90178-06023
90178-08021
90179-06274
91673-80620

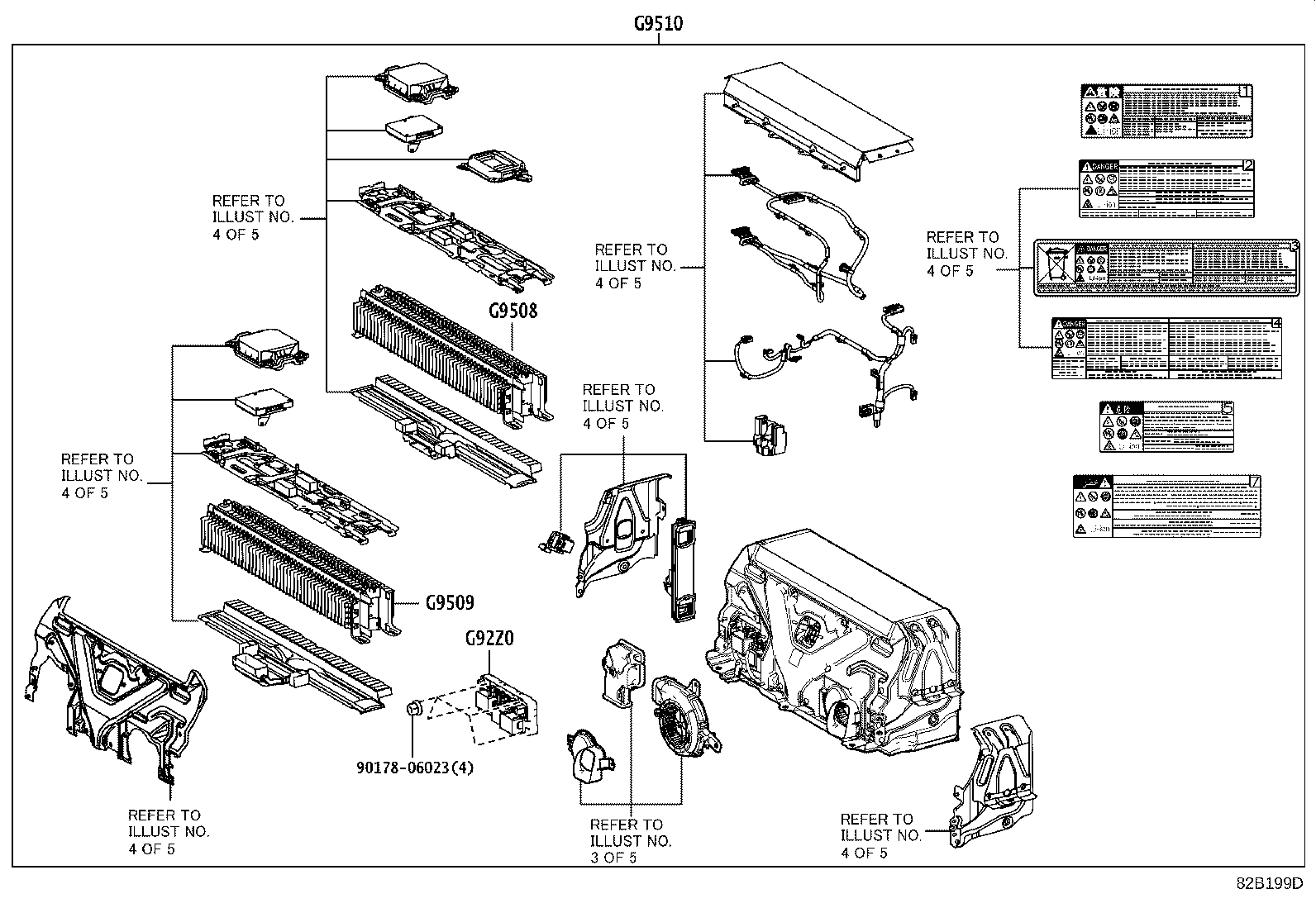

ILLUST NO. 5 OF 5(1701- )GWZ100

Click highlighted areas on diagram

HV BATTERY

Part #	Description	Period	Qty
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-33050	GWZ100	01/2017 - 05/2018	1
G92Z0-47110	GWZ100	01/2020 - 12/2999	1
G92Z0-33051	GWZ100	05/2018 - 12/2019	1
G92Z0-33051	GWZ100 HIGH VOLTAGE BATTERY-WITH	05/2018 - 12/2019	1
G92Z0-33050	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 05/2018	1
G92Z0-47110	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2020 - 12/2999	1
G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1
G9508-11010	GWZ100	01/2017 - 12/2999	1
G9508-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2
G9509-11010	GWZ100	01/2017 - 12/2999	1
G9509-11010	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-11011	GWZ100	01/2017 - 11/2017	1
G9510-11013	GWZ100 HIGH VOLTAGE BATTERY-WITH	09/2018 - 12/2999	1
G9510-11012	GWZ100	12/2017 - 08/2018	1
G9510-11012	GWZ100 HIGH VOLTAGE BATTERY-WITH	12/2017 - 08/2018	1
G9510-11013	GWZ100	09/2018 - 12/2999	1
G9510-11011	GWZ100 HIGH VOLTAGE BATTERY-WITH	01/2017 - 11/2017	1
Common parts
90178-06023
