GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

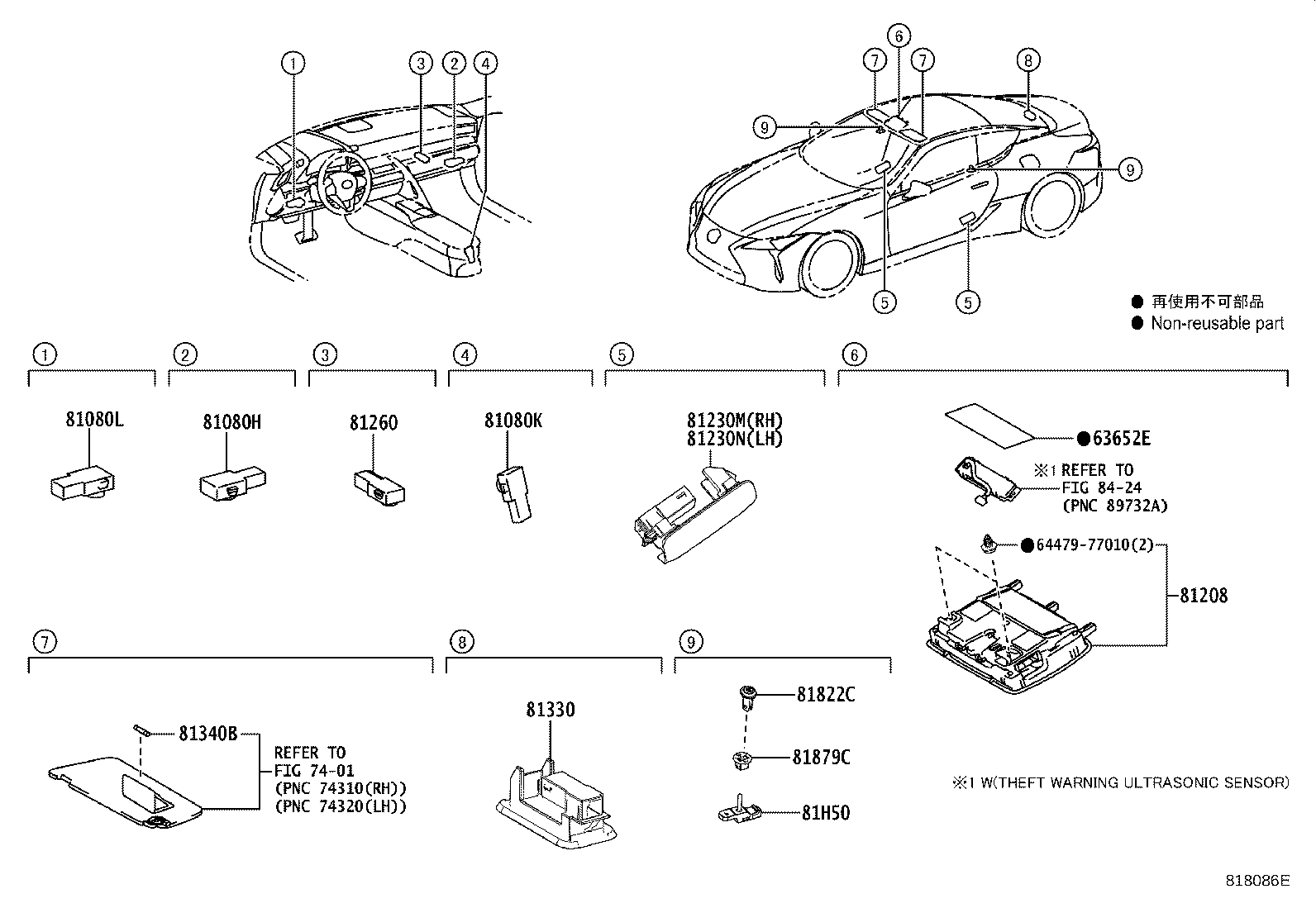

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63652E - COVER, ROOF CONSOLE BOX, NO.1 | ||||
| 63652-11010 |
GWZ100,URZ100 |
1 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-33310 |
GWZ100,URZ100 |
1 | ||
| 81080-33090 |
GWZ100,URZ100 |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81080-30170 |
GWZ100,URZ100 |
1 | ||
| 81080-30010 |
GWZ100,URZ100 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-33090 |
GWZ100,URZ100 |
1 | ||
| 81080-33310 |
GWZ100,URZ100 |
1 | ||
| 81208 - LAMP SUB-ASSY, MAP | ||||
| 81208-11060 |
GWZ100,URZ100 |
1 | ||
| 81208-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81208-11190 |
GWZ100,URZ100 |
1 | ||
| 81208-11160 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81208-11150 |
GWZ100,URZ100 GUAM |
1 | ||
| 81208-11010 |
GWZ100,URZ100 GUAM |
1 | ||
| 81230M - LAMP ASSY, COURTESY, RH | ||||
| 81230-11030 |
GWZ100,URZ100 |
1 | ||
| 81230N - LAMP ASSY, COURTESY, LH | ||||
| 81230-11030 |
GWZ100,URZ100 |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-22040 |
GWZ100,URZ100 |
1 | ||
| 81080-33290 |
GWZ100,URZ100 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-11010 |
GWZ100,URZ100 |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14014 |
GWZ100,URZ100 12V 2W |
2 | ||
| 81822C - COVER, INDICATOR LAMP | ||||
| 81822-11010 |
GWZ100,URZ100 |
2 | ||
| 81879C - BRACKET, INDICATOR LAMP | ||||
| 81879-50020 |
GWZ100,URZ100 |
2 | ||
| 81H50 - LAMP ASSY, INDICATOR | ||||
| 81850-11010 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 64479-77010 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8424 | ||||
