GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

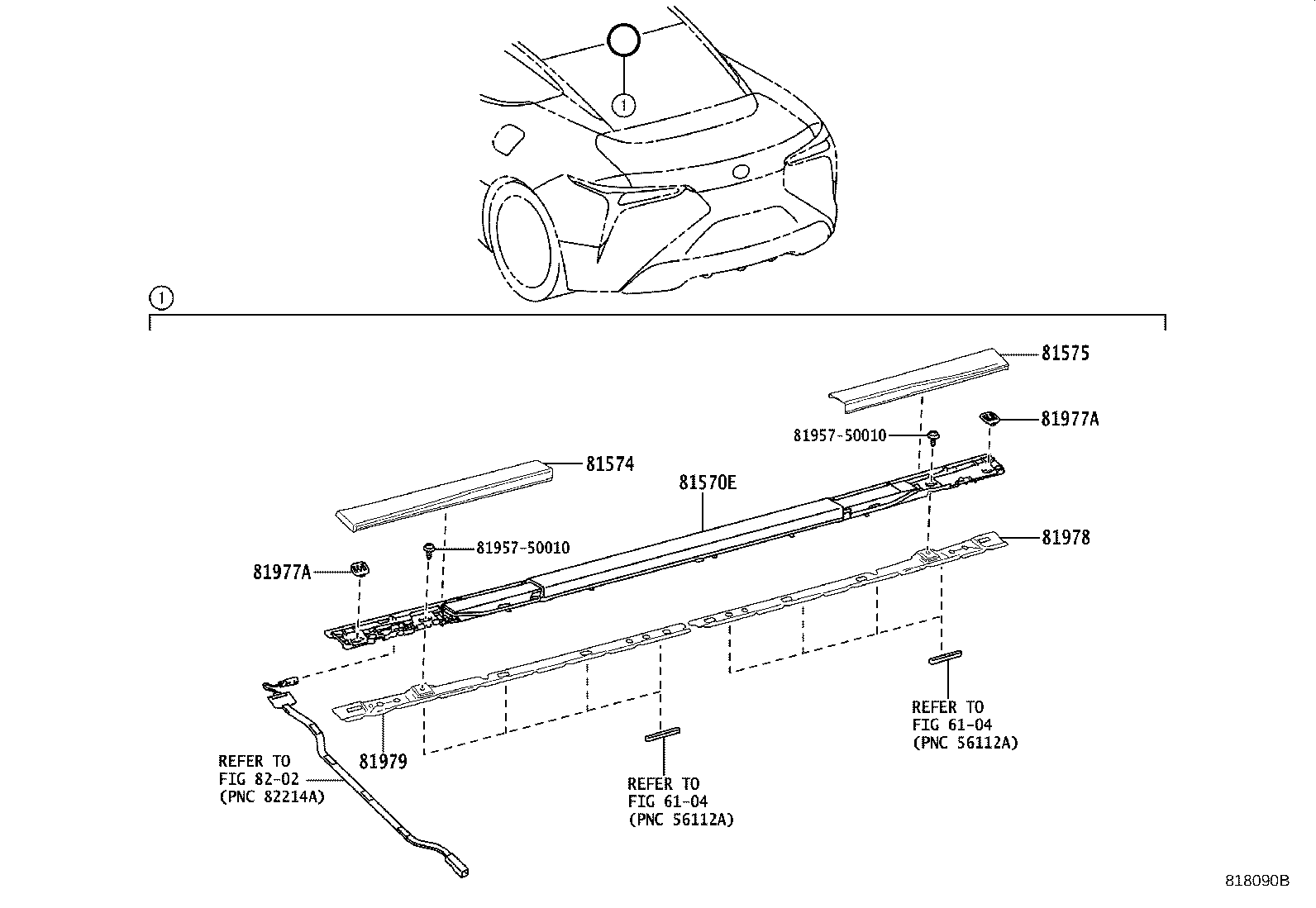

Click highlighted areas on diagram

diagram 6104 6104 81570E 81574 81575 8195750010 8195750010 81977A 81977A 81978 81979 8202
Part # Description Qty Price
81570E - LAMP ASSY, CENTER STOP W/O HARNESS
81570-11010

GWZ100,URZ100

 1
81574 - COVER, CENTER STOP LAMP
81952-11010

GWZ100,URZ100

 1
81575 - COVER, CENTER STOP LAMP, NO.2
81952-11020

GWZ100,URZ100

 1
81977A - CLIP (FOR CENTER STOP LAMP)
81559-50160

GWZ100,URZ100

 2
81977A - CLIP (FOR CENTER STOP LAMP)
81559-50160

GWZ100,URZ100

 2
81978 - BRACKET, STOP CENTER
81978-11010

GWZ100,URZ100

 1
81979 - BRACKET, CENTER STOP LAMP, LH
81979-11010

GWZ100,URZ100

 1
Common parts
81957-50010
Linked diagrams
6104
8202
