GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

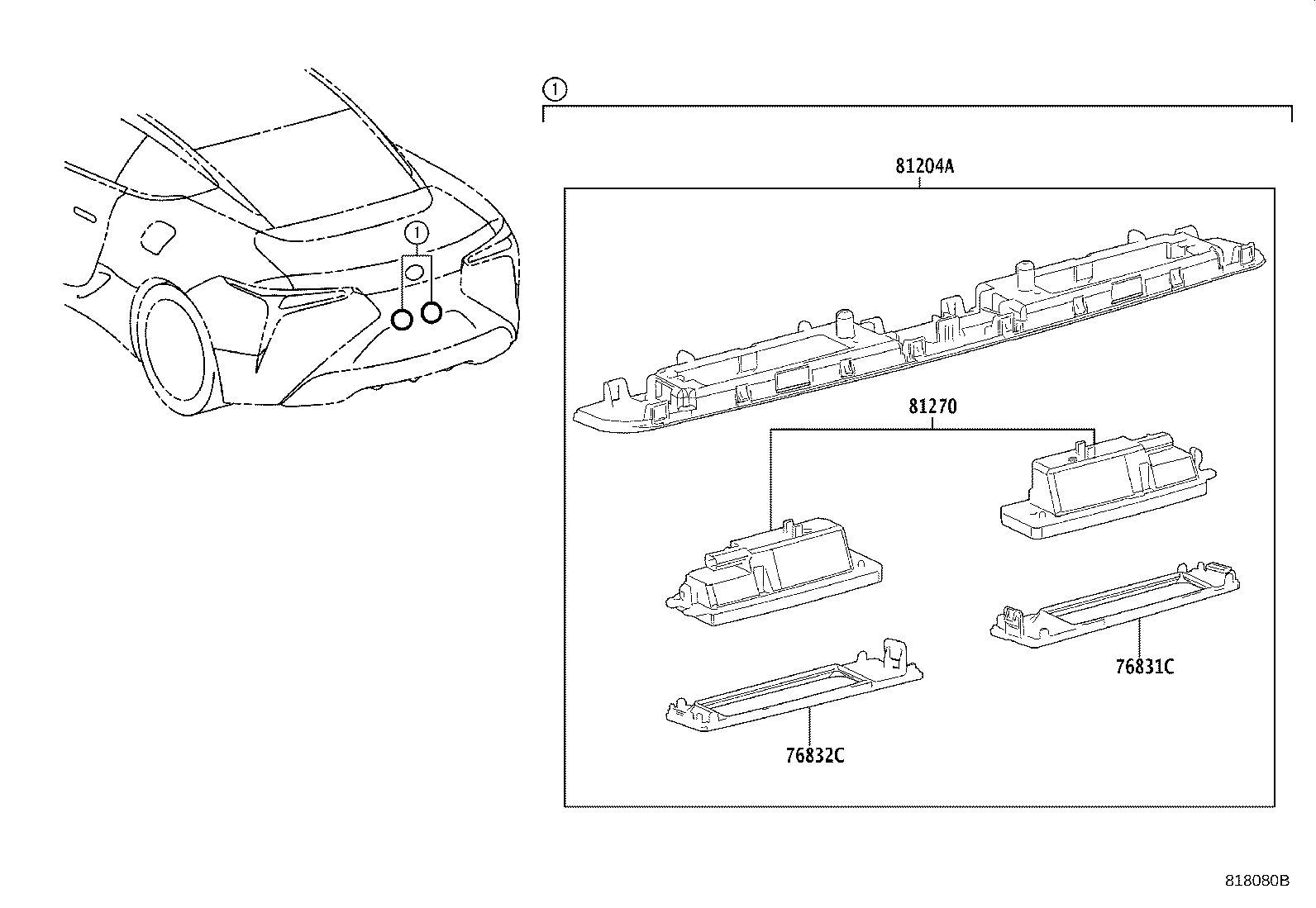

Click highlighted areas on diagram

diagram 76831C 76832C 81204A 81270
Part # Description Qty Price
76831C - COVER, BACK DOOR FINISH PANEL, RH
76831-11010

GWZ100,URZ100

 1
76832C - COVER, BACK DOOR FINISH PANEL, LH
76832-11010

GWZ100,URZ100

 1
81204A - LAMP SUB-ASSY, LICENSE PLATE
81204-11010

GWZ100,URZ100

 1
81270 - LAMP ASSY, LICENSE PLATE
81271-60450

GWZ100,URZ100

 1
