GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-11010 |
GWZ100,URZ100 |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-11010 |
GWZ100,URZ100 |
1 | ||
| 52565E - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-11010 |
GWZ100,URZ100 |
1 | ||
| 52566D - RETAINER, REAR BUMPER, LOWER LH | ||||
| 52566-11010 |
GWZ100,URZ100 |
1 | ||
| 52581K - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-11010 |
GWZ100,URZ100 |
1 | ||
| 52582E - PROTECTOR, REAR BUMPER, LH | ||||
| 52582-11010 |
GWZ100,URZ100 |
1 | ||
| 58456G - BRACKET, REAR GARNISH, NO.1 RH | ||||
| 58456-11050 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 58456-11030 |
GWZ100,URZ100 |
1 | ||
| 58456-11050 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 58457L - BRACKET, REAR GARNISH, NO.1 LH | ||||
| 58457-11050 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 58457-11030 |
GWZ100,URZ100 |
1 | ||
| 58457-11050 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 75137C - COVER, COMBINATION REAR LAMP, RH | ||||
| 75137-11010 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 75137-11010 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 75137-11040 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 75137-11030 |
GWZ100,URZ100 |
1 | ||
| 75138B - COVER, COMBINATION REAR LAMP, LH | ||||
| 75138-11040 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 75138-11030 |
GWZ100,URZ100 |
1 | ||
| 75138-11010 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 75138-11010 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
GWZ100,URZ100 |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-11010 |
GWZ100,URZ100 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-11010 |
GWZ100,URZ100 |
1 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81553-11160 |
GWZ100,URZ100 |
1 | ||
| 81553-11170 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81553-11170 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-11210 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81551-11200 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81551-11220 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81551-11160 |
GWZ100,URZ100 |
1 | ||
| 81551-11170 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81556 - RIM, REAR COMBINATION LAMP, RH | ||||
| 81556-11160 |
GWZ100,URZ100 |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-11160 |
GWZ100,URZ100 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81563-11170 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81563-11170 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81563-11160 |
GWZ100,URZ100 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-11200 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81561-11170 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81561-11220 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81561-11210 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81561-11160 |
GWZ100,URZ100 |
1 | ||
| 81566 - RIM, REAR COMBINATION LAMP, LH | ||||
| 81566-11160 |
GWZ100,URZ100 |
1 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81568-11160 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 81559-14480 | ||||
| 90159-60621 | ||||
| 90176-05023 | ||||
| 90189-06242 | ||||
| 90467-09206 | ||||
| 93560-53010 | ||||

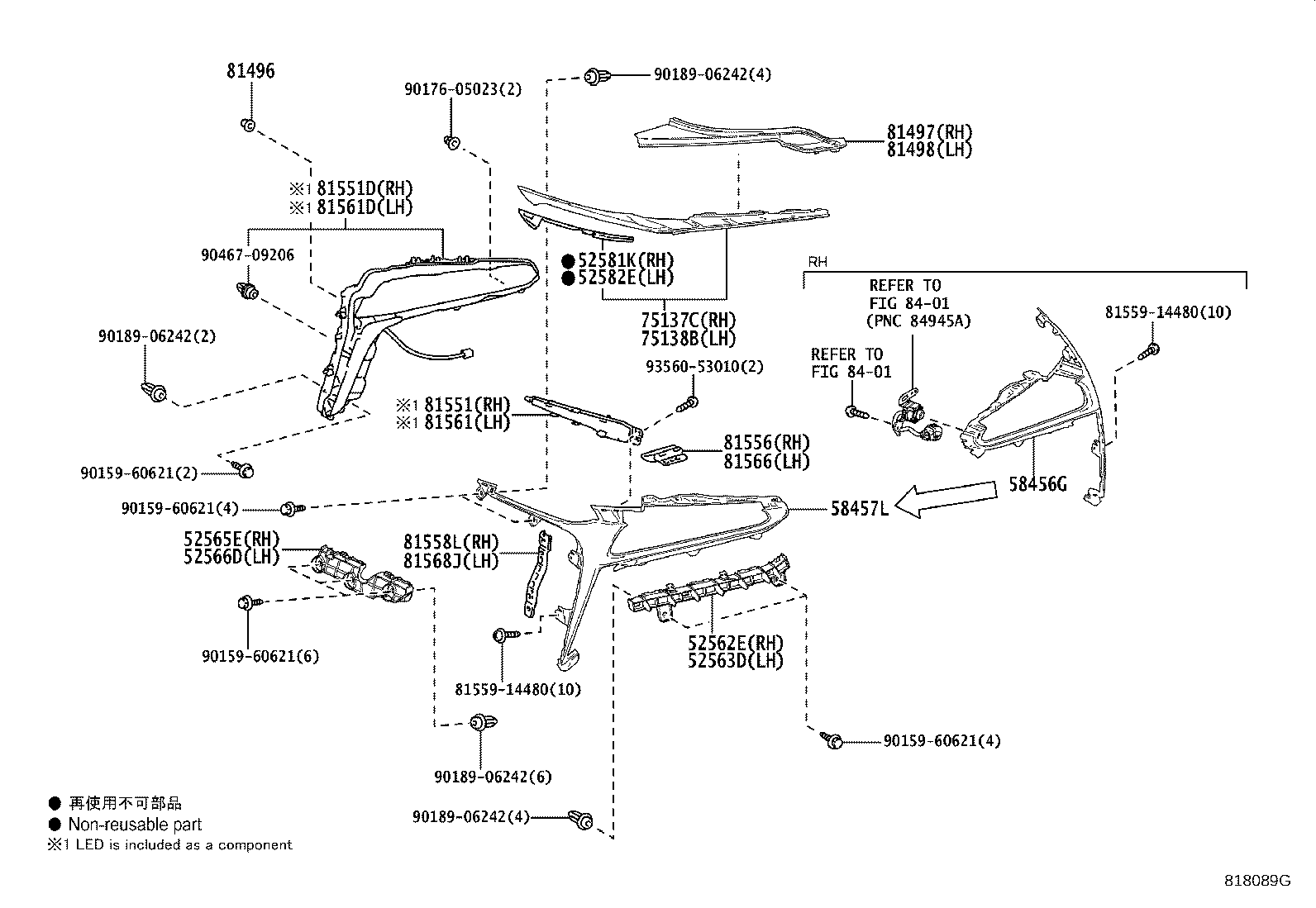

| Linked diagrams | ||||
| 8401 | ||||
