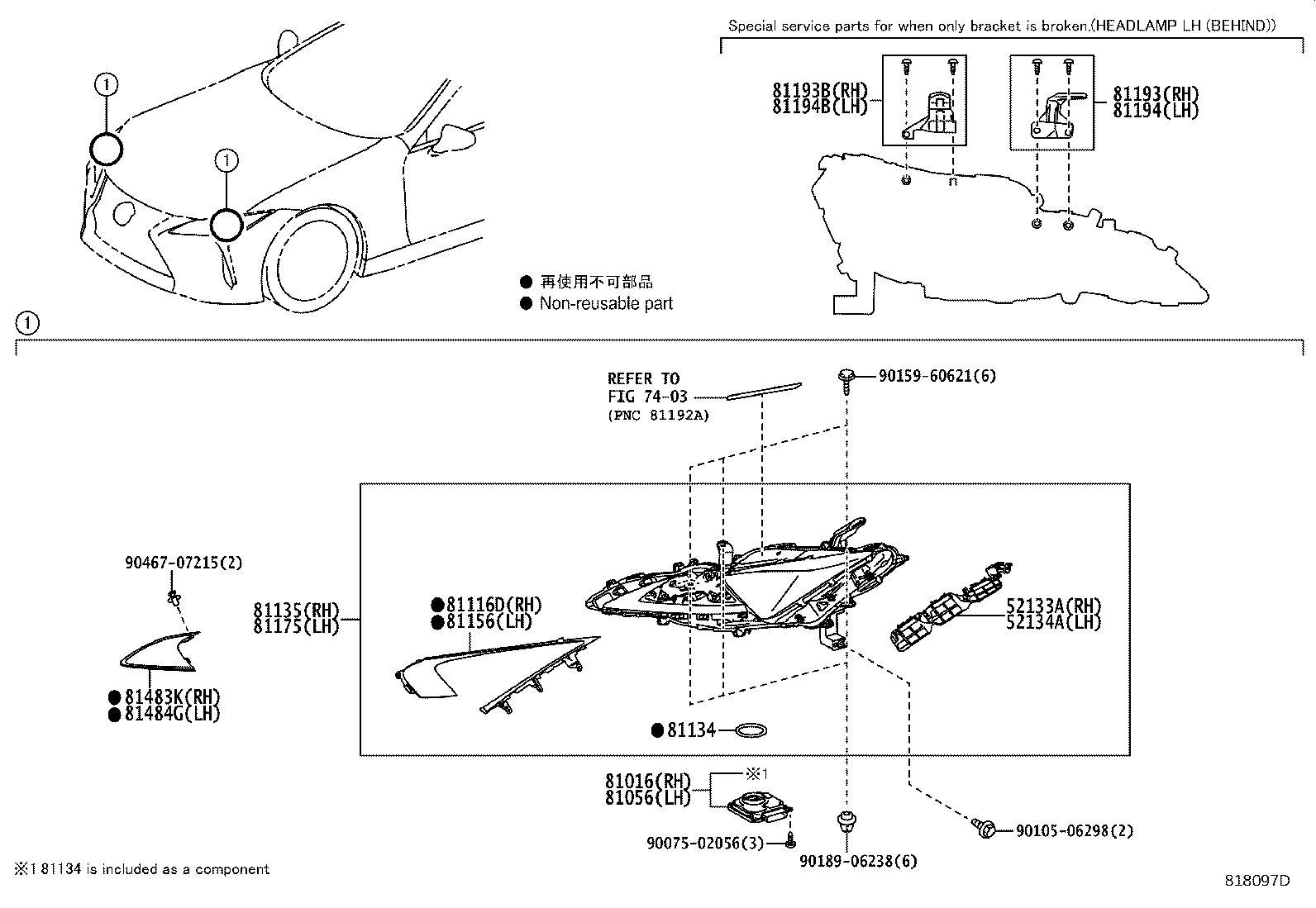

GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701- )
EXCEPT KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52133A - BRACKET, FRONT BUMPER, RH | ||||
| 52133-11020 |
GWZ100,URZ100 |
1 | ||
| 52134A - BRACKET, FRONT BUMPER, LH | ||||
| 52134-11030 |
GWZ100,URZ100 |
1 | ||
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-11050 |
GWZ100,URZ100 |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-11050 |
GWZ100,URZ100 |
1 | ||
| 81116D - RIM, HEAD LAMP, RH | ||||
| 81116-11050 |
GWZ100,URZ100 |
1 | ||
| 81116-11100 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81116-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
GWZ100,URZ100 |
1 | ||
| 90075-23003 |
GWZ100,URZ100 "AVIATION"*(D) |
4 | ||
| 90075-23003 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
4 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-11090 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81145-11050 |
GWZ100,URZ100 |
1 | ||
| 81145-11051 |
GWZ100,URZ100 |
1 | ||
| 81145-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81145-11031 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81145-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81156 - RIM, HEADLAMP, LH | ||||
| 81156-11050 |
GWZ100,URZ100 |
1 | ||
| 81156-11100 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81156-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81185-11031 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81185-11051 |
GWZ100,URZ100 |
1 | ||
| 81185-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81185-11050 |
GWZ100,URZ100 |
1 | ||
| 81185-11090 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-11020 |
GWZ100,URZ100 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-11010 |
GWZ100,URZ100 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-11020 |
GWZ100,URZ100 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-11010 |
GWZ100,URZ100 |
1 | ||
| 81483K - COVER, DAYTIME RUNNING LAMP, RH | ||||
| 81483-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 81483-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 81483-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 81483-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 81483-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 81483-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 81483-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 81483-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 81483-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 81483-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 81483-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 81483-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 81483-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 81483-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 81484G - COVER, DAYTIME RUNNING LAMP, LH | ||||
| 81484-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 81484-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 81484-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 81484-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 81484-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 81484-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 81484-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 81484-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 81484-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 81484-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 81484-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 81484-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 81484-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 81484-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 7403 | ||||

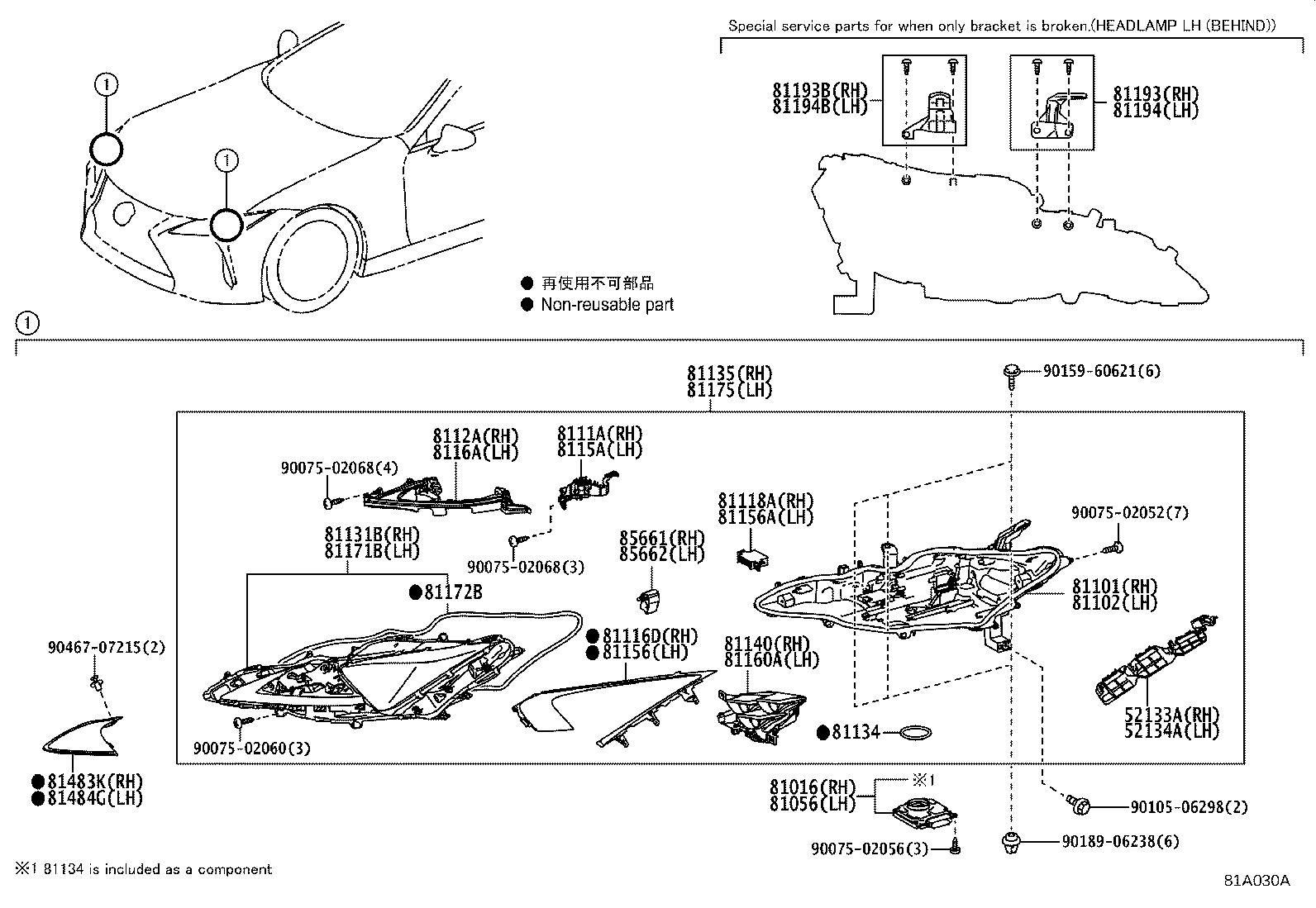

(1701- )
KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52133A - BRACKET, FRONT BUMPER, RH | ||||
| 52133-11020 |
GWZ100,URZ100 |
1 | ||
| 52134A - BRACKET, FRONT BUMPER, LH | ||||
| 52134-11030 |
GWZ100,URZ100 |
1 | ||
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-11050 |
GWZ100,URZ100 |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-11050 |
GWZ100,URZ100 |
1 | ||
| 81101 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81101-11011 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81101-11010 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81102 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81102-11011 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81102-11010 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81116D - RIM, HEAD LAMP, RH | ||||
| 81116-11050 |
GWZ100,URZ100 |
1 | ||
| 81116-11100 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81116-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81118-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 8111A - UNIT, HEADLAMP CORNERING LED, RH | ||||
| 8111A-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 8111A-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH | ||||
| 8112A-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 8112A-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81131-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
GWZ100,URZ100 |
1 | ||
| 90075-23003 |
GWZ100,URZ100 "AVIATION"*(D) |
4 | ||
| 90075-23003 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
4 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-11090 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81145-11050 |
GWZ100,URZ100 |
1 | ||
| 81145-11051 |
GWZ100,URZ100 |
1 | ||
| 81145-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81145-11031 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81145-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81140-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81156 - RIM, HEADLAMP, LH | ||||
| 81156-11050 |
GWZ100,URZ100 |
1 | ||
| 81156-11100 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81156-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81156A - BRACKET, HEADLAMP, LH | ||||
| 81118-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81118-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 8115A - UNIT, HEADLAMP CORNERING LED, LH | ||||
| 8115A-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 8115A-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81160-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH | ||||
| 8116A-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 8116A-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-11030 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81171-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81172B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
GWZ100,URZ100 KOREA SPEC |
2 | ||
| 81132-48C30 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81185-11031 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 81185-11051 |
GWZ100,URZ100 |
1 | ||
| 81185-11100 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 81185-11050 |
GWZ100,URZ100 |
1 | ||
| 81185-11090 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-11020 |
GWZ100,URZ100 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-11010 |
GWZ100,URZ100 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-11020 |
GWZ100,URZ100 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-11010 |
GWZ100,URZ100 |
1 | ||
| 81483K - COVER, DAYTIME RUNNING LAMP, RH | ||||
| 81483-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 81483-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 81483-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 81483-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 81483-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 81483-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 81483-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 81483-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 81483-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 81483-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 81483-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 81483-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 81483-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 81483-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 81484G - COVER, DAYTIME RUNNING LAMP, LH | ||||
| 81484-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 81484-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 81484-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 81484-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 81484-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 81484-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 81484-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 81484-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 81484-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 81484-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 81484-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 81484-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 81484-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 81484-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48050 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 85661-48050 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48050 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D) |
1 | ||
| 85661-48050 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90075-02068 | ||||
| 90105-06298 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| 90467-07215 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
