GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

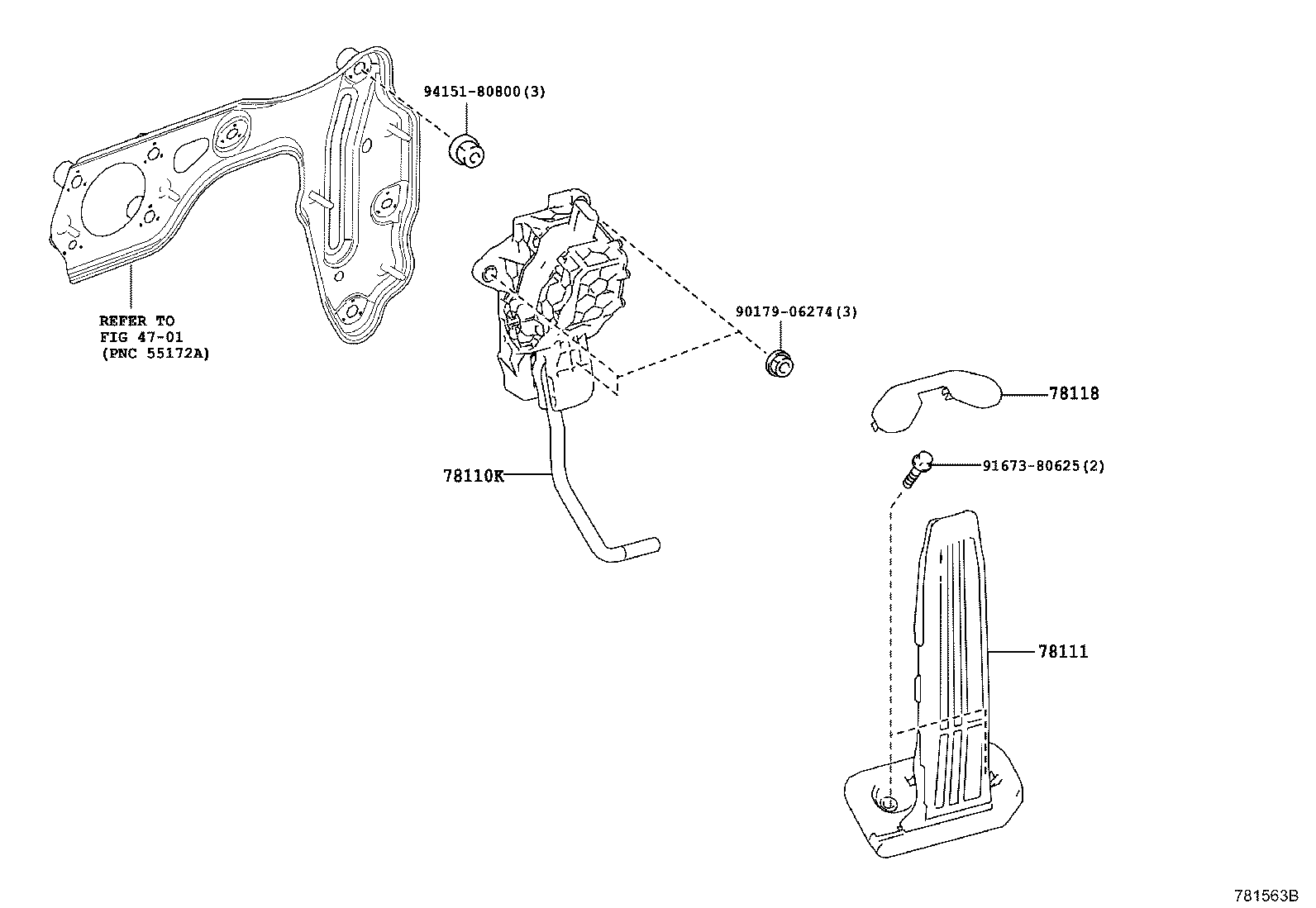

Click highlighted areas on diagram

diagram 4701 78110K 78111 78118 9017906274 9167380625 9415180800
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-11031

GWZ100,URZ100

 1
78110-11010

GWZ100,URZ100

 1
78110-11030

GWZ100,URZ100

 1
78111 - PEDAL, ACCELERATOR
78101-11010

GWZ100,URZ100

 1
78118 - PAD, ACCELERATOR PEDAL
78117-11010

GWZ100,URZ100

 1
Common parts
90179-06274
91673-80625
94151-80800
Linked diagrams
4701
